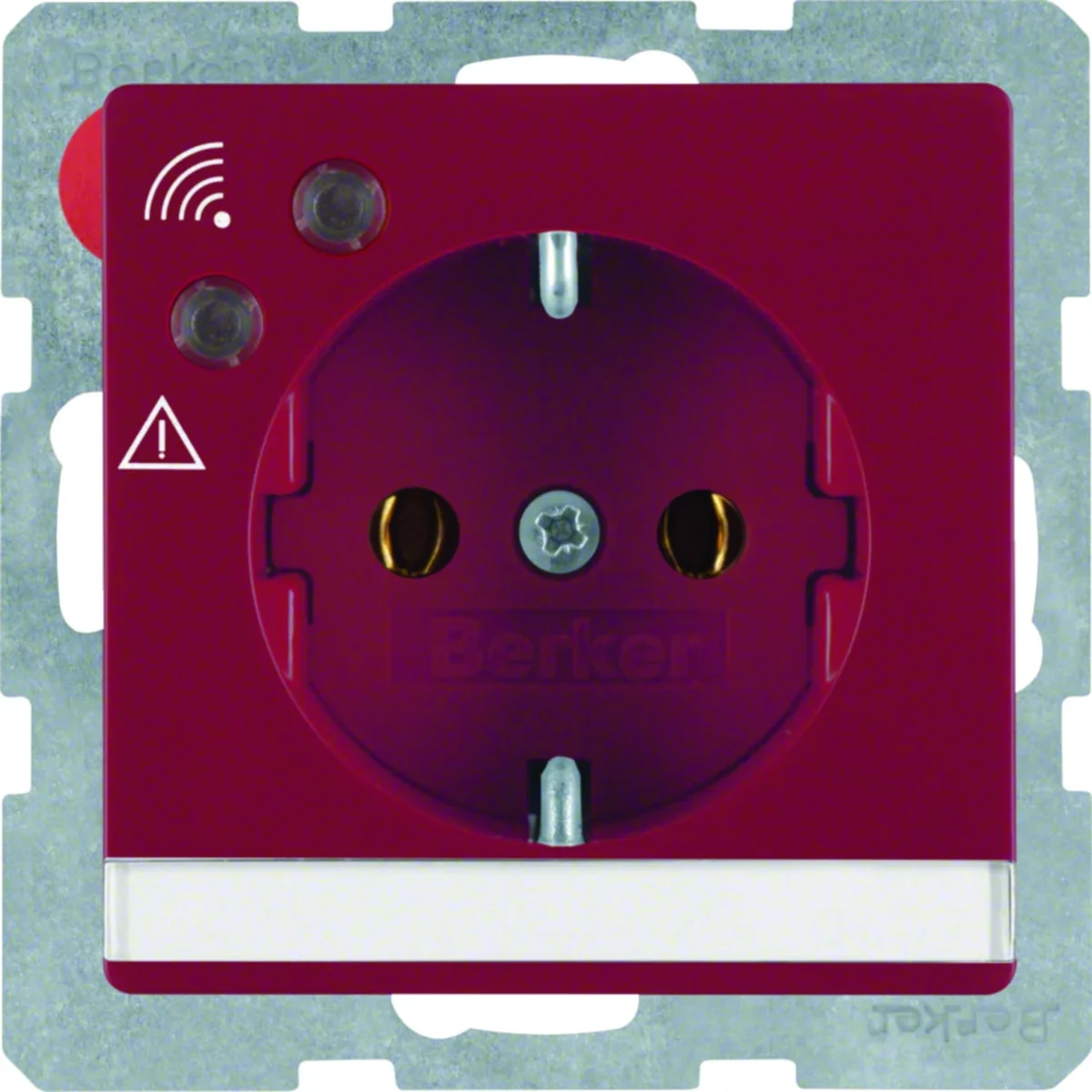

Q.1 SCHUKO socket with overvoltage protection and red description field 41086062

local index:
MEE003BERK
Catalog No:
41086062
EAN code:
4011334313502
Manufacturer: BERKER
Number of sockets: 1
Color: Red
Shape: Square
Price:
240,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket with earthing SCHUKO, with overvoltage protection and description field, Berker Q.1/Q.3 series.

  • with screw terminals
  • with control LED for operation / error
  • with audible error message
  • labeling field height designed for 6 mm P-touch tape

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    Q.1 Q.3 Q.7
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Thermoplastic
  • Color
    Red
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Descriptive field
    Yes
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    velvet
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Overvoltage protection
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Red
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    Yes
  • Over voltage protection
    Yes
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Imprint/indication
    Other
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    3003
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Additional safety power supply (red)
  • Type of fastening
    Mounting with claw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    42 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,133 0,140 5,480 198,360
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
