Q.1 Grounded socket "USA/CANADA" NEMA 5-15R snow white 41666089

local index:
MEE043BERK
Catalog No:
41666089
EAN code:
4011334319184

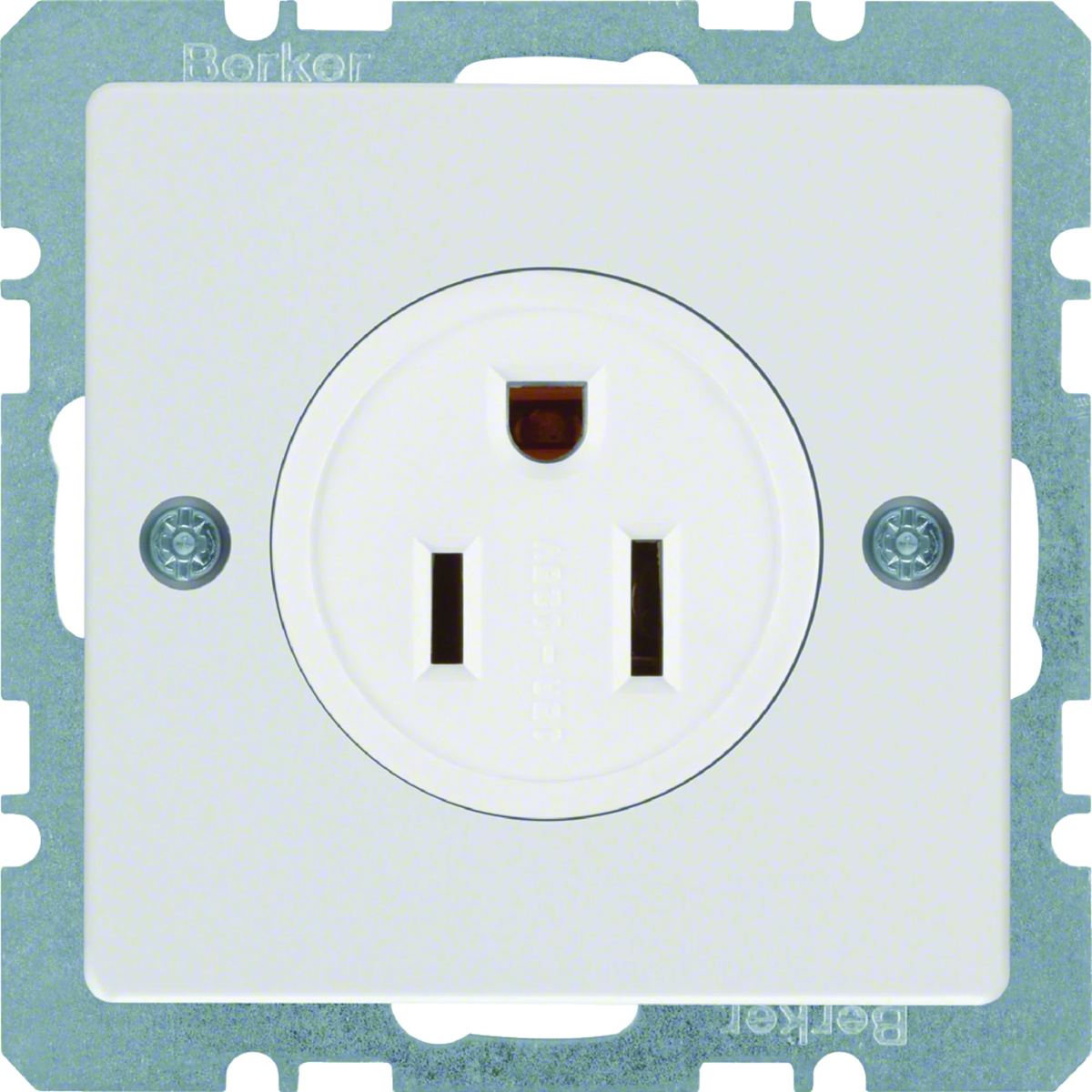

Q.1 Grounded socket "USA/CANADA" NEMA 5-15R snow white
Q.1 Grounded socket "USA/CANADA" NEMA 5-15R snow white

Click on the photo to enlarge

Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
See full description
Price:
45,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Earthed socket, USA/CANADA standard, NEMA 5-15 R standard, Berker Q.1/Q.3 series. With screw terminals.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    screws
  • Rated voltage [V]
    125
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    velvet
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    15
  • Family
    Q.1 Q.3 Q.7
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Snow white
  • Mounting depth [mm]
    19
  • Standard
    American Canadian
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    NEMA
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    125 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    28.5 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    15 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,790 4,390 165,480
Width (m) 0,175 0,300 0,800
Length (m) 0,075 0,225 1,050
Depth (m) 0,235 0,400 1,200

Files to download

41666089.pdf
