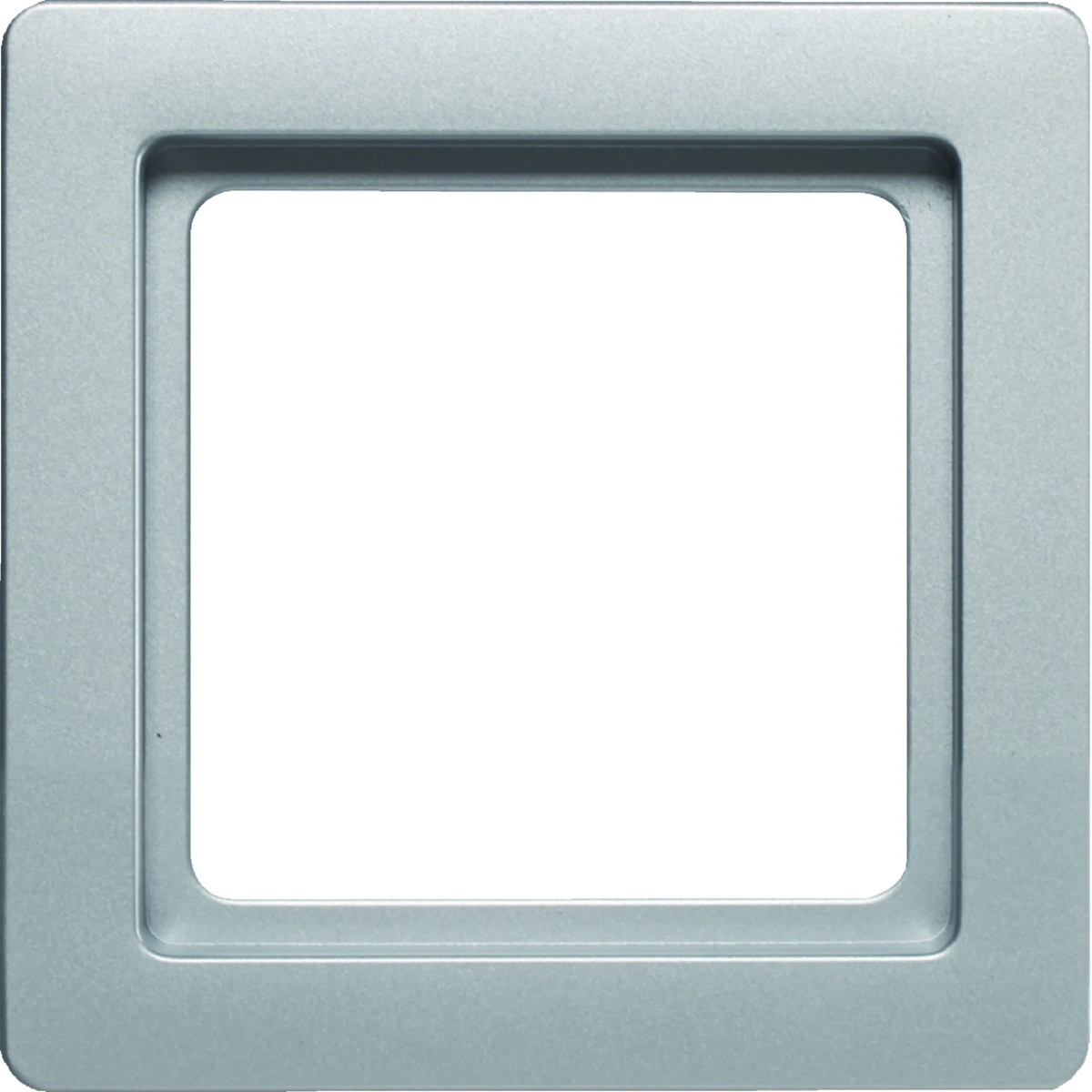

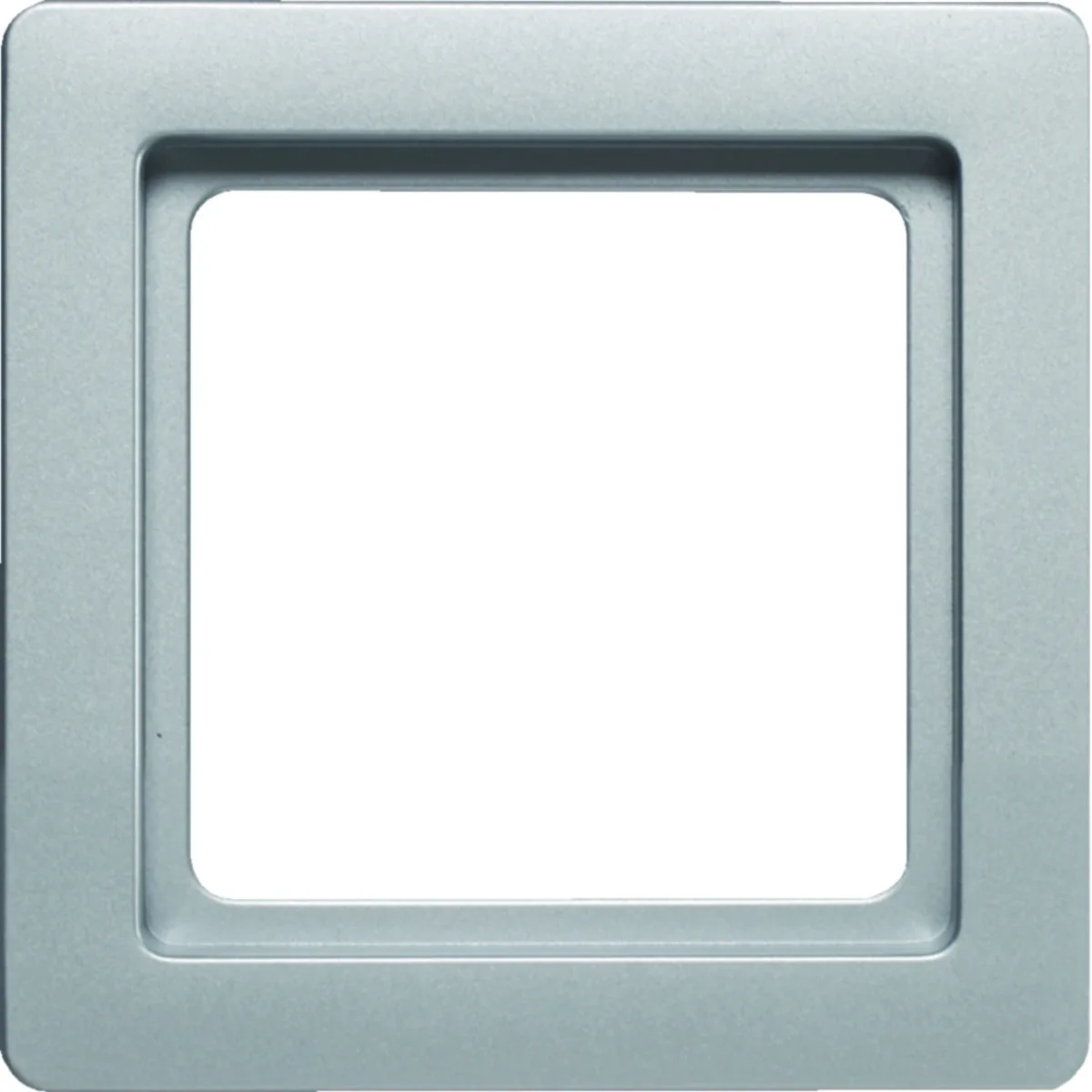

Q.1 1-fold aluminum velvet lacquered frame 10116084

local index:
MAR522BERK
Catalog No:
10116084
EAN code:
4011334442639
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 1
Color: Silver
Price:
9,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single frame from the Q.1  series from Berker. The product part number is 10116084.

  • For vertical and horizontal mounting.
  • IP44 protection when  gasket kit order no. < strong>1010 7...



SERIES DESCRIPTION

Berker Q.1 Series

Technical data

  • Depth [mm]
    9.9
  • Color
    Silver
  • Material
    Plastic
  • Family
    Q.1
  • Width [mm]
    80.5
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    1
  • Shape
    Square
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    80.5
  • Surface finish
    velvet
  • Mounting direction
    Universal
  • Exact material
    Duroplastic
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    80.5 mm
  • Depth
    9.9 mm
  • Built-in height
    59.3 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Duroplast
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    80.5 mm
  • Built-in width
    59.3 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 220 pcs. 7040 pcs.
Weight (kg) 0,023 0,270 6,355 226,360
Width (m) 0,080 0,100 0,295 0,800
Length (m) 0,010 0,095 0,225 1,050
Depth (m) 0,080 0,105 0,400 1,200
