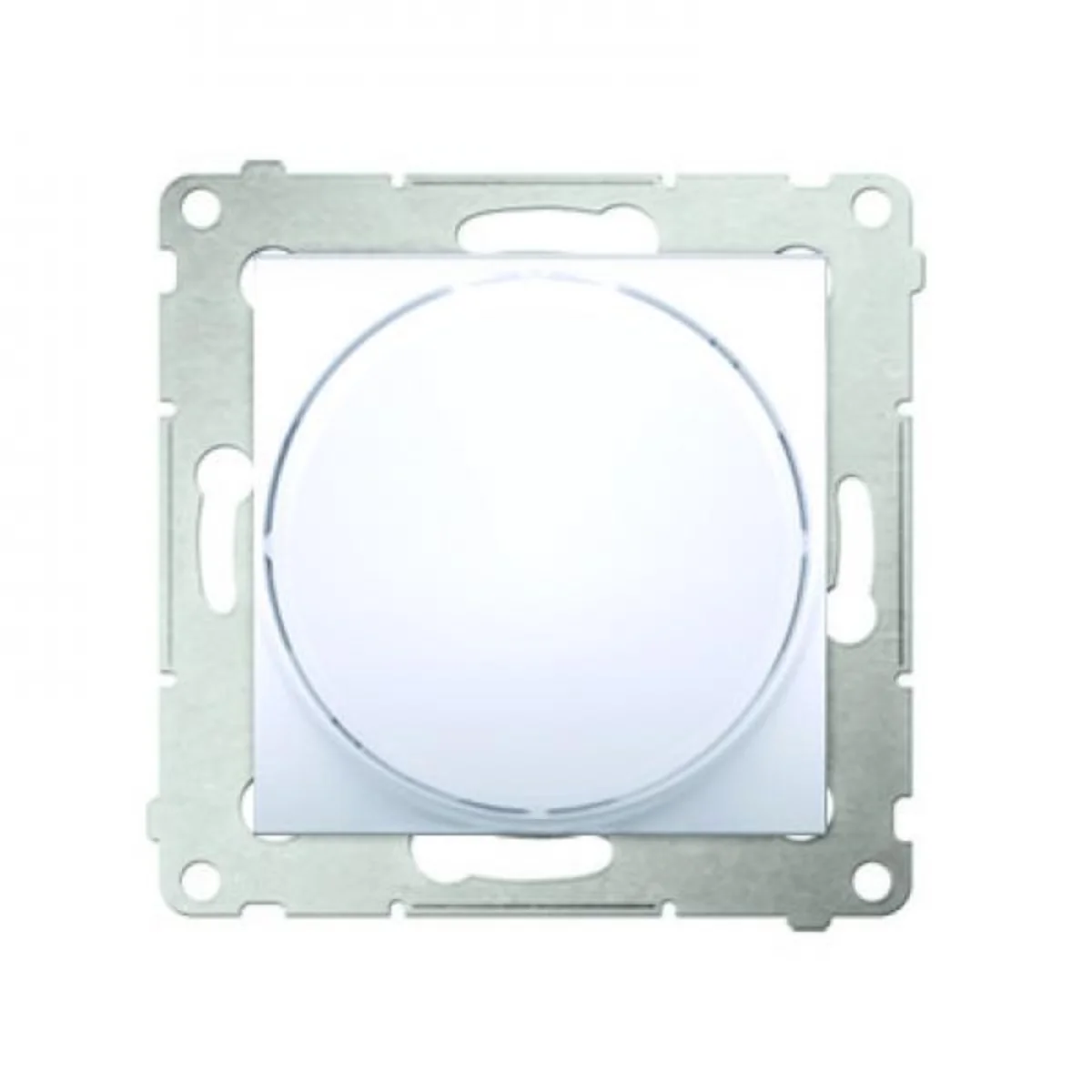

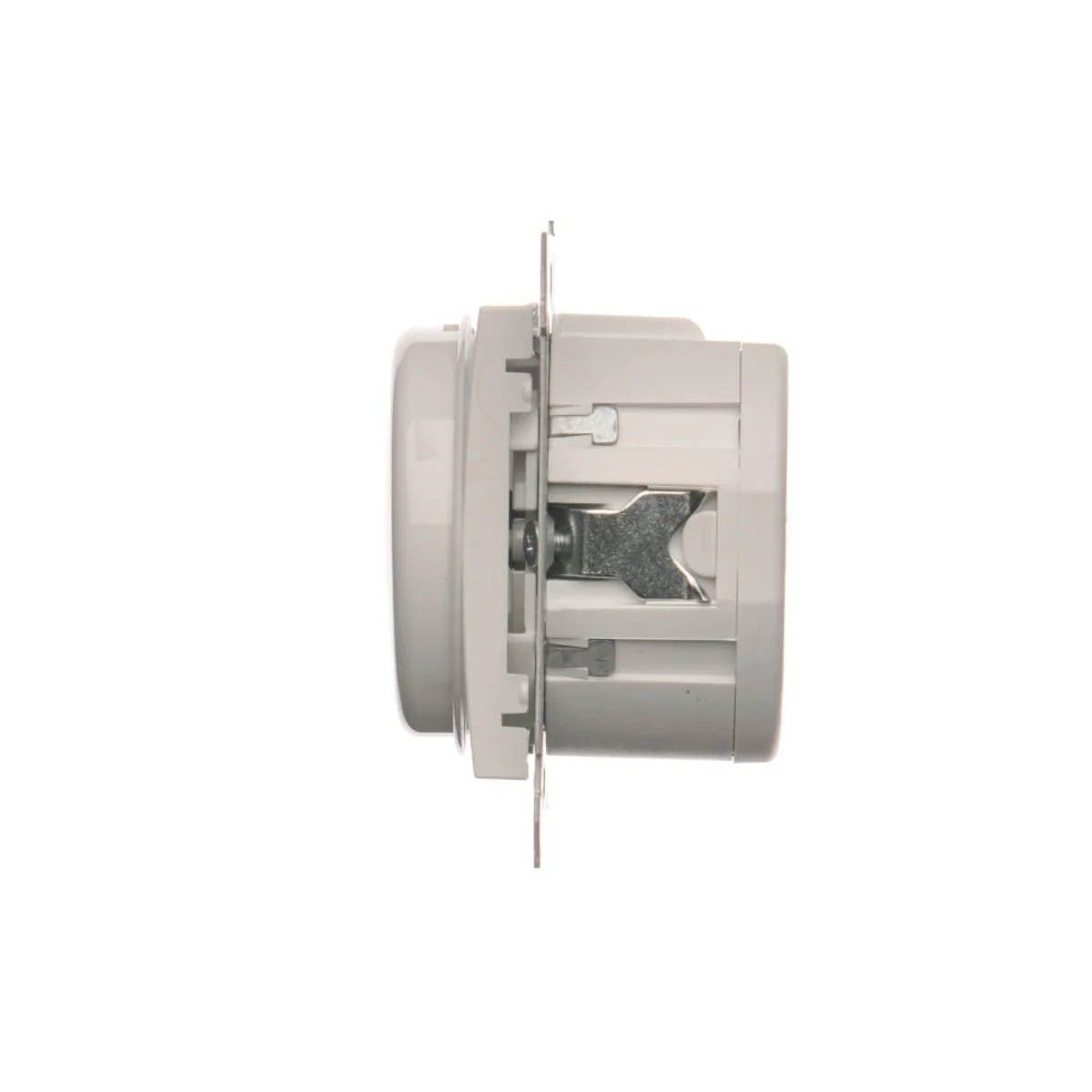

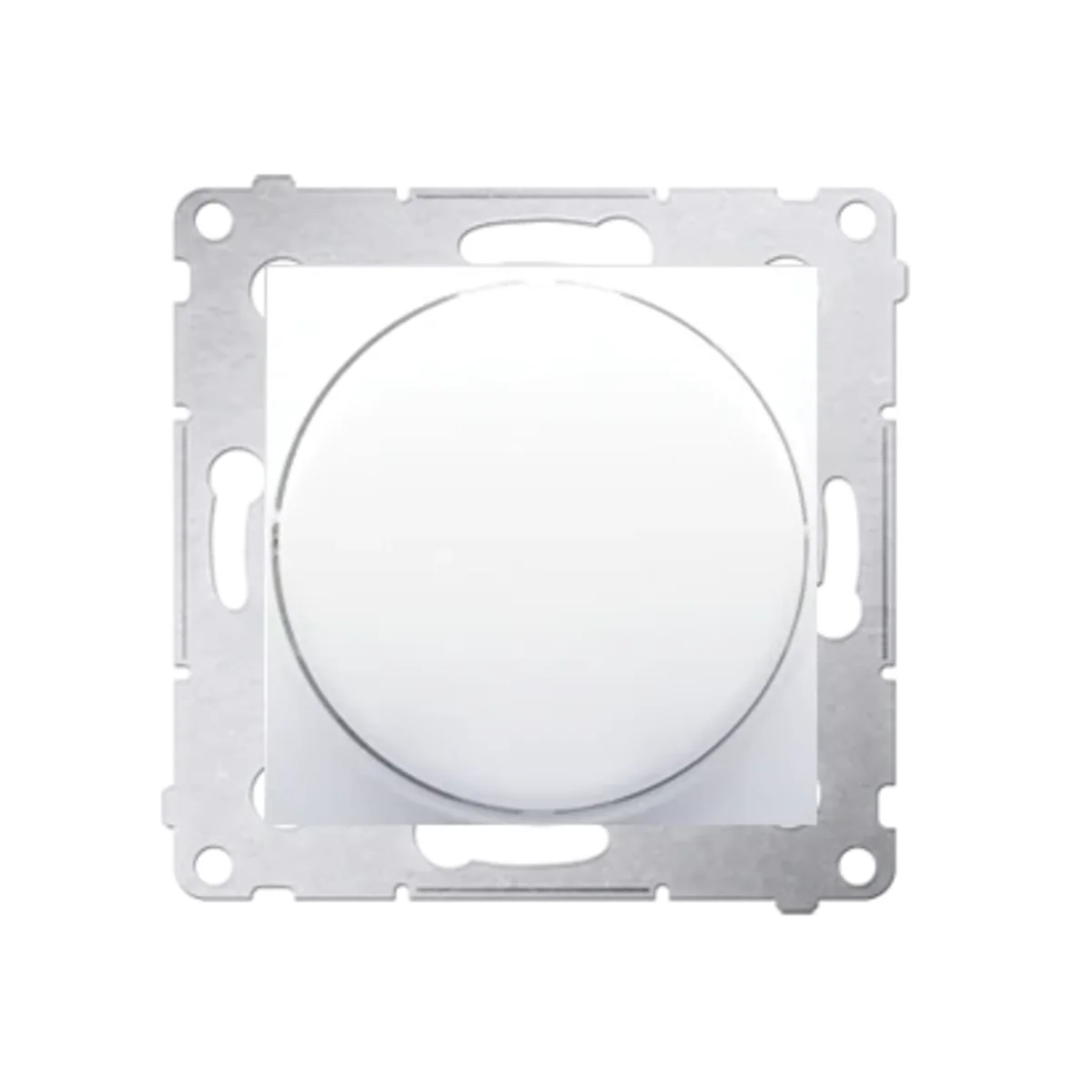

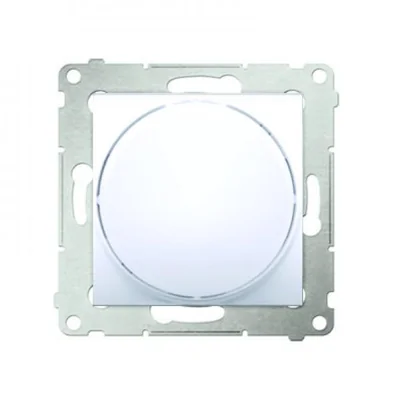

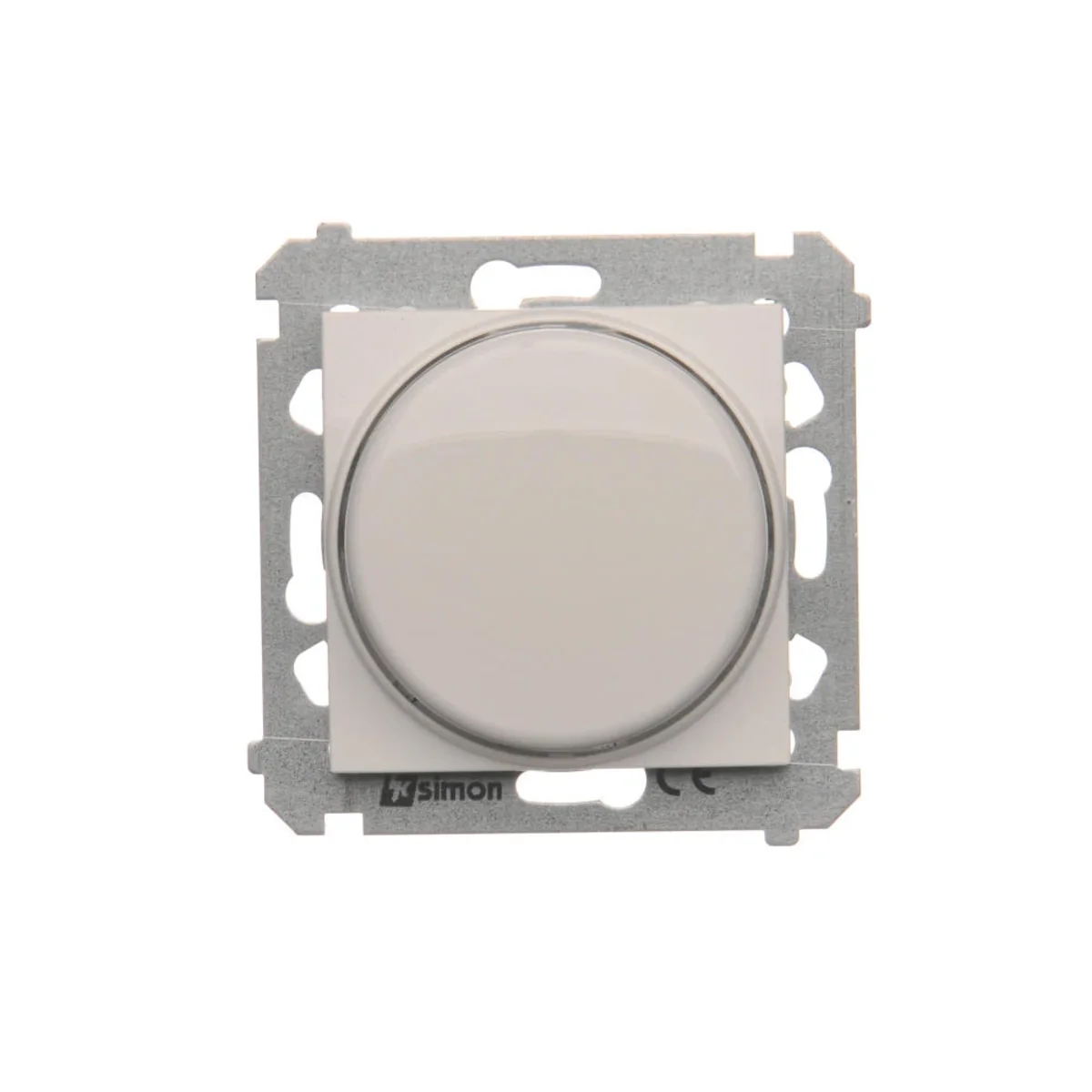

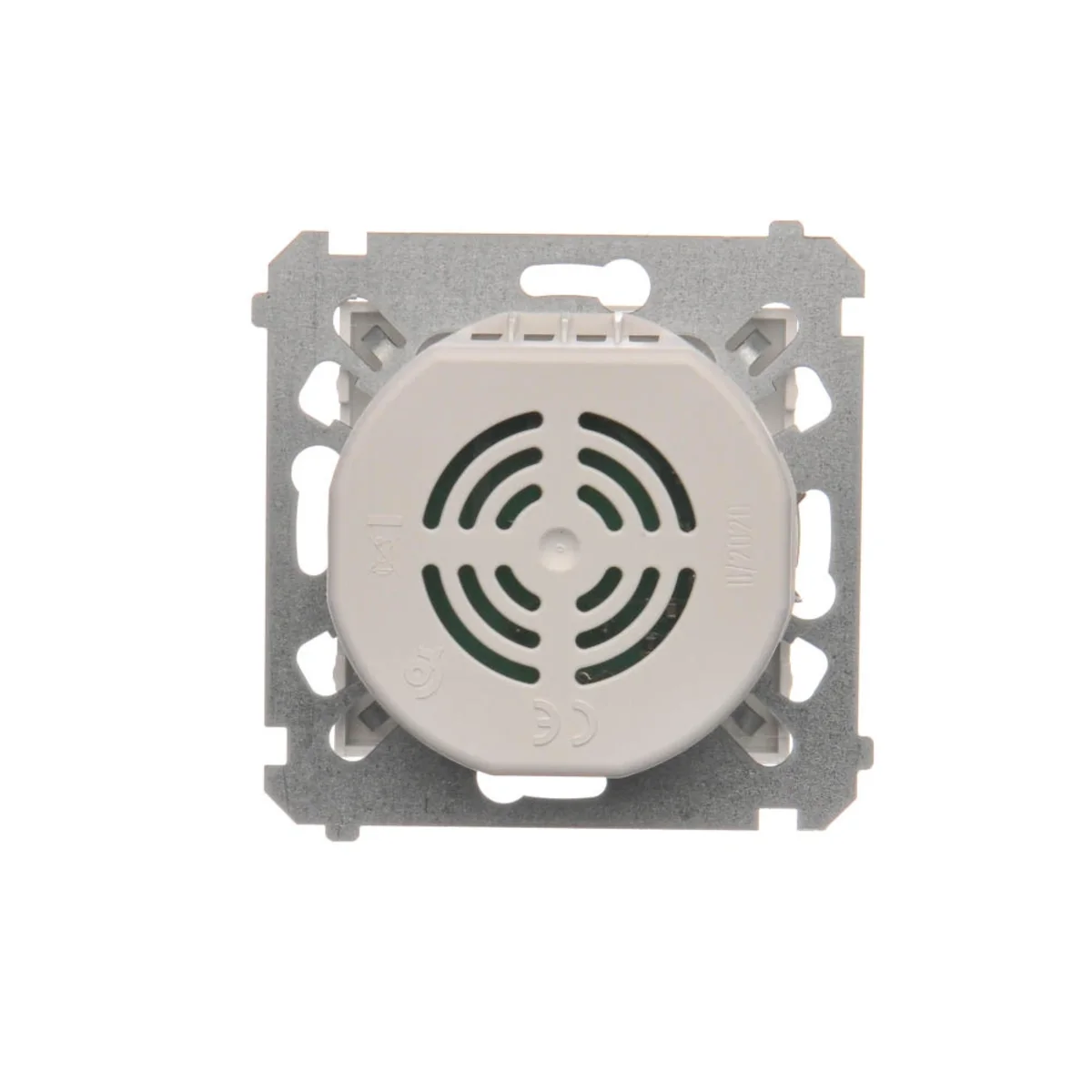

Name: Push-turn dimmer (module) 20-500W white
Brand: KONTAKT-SIMON
SKU: MMC048KONT
Price: 34.98 PLN

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DS9T.01/11.

FEATURES

Push-turn.< /li>
Screw terminals.
Rated power: 500 VA.
Load type: universal.
Serial dimmer.
For light sources:
- 230V bulbs,
- 230V halogen bulbs,
- 12V halogen bulbs - electronic transformer,
- 12V halogen bulbs - toroidal core transformer.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Dimmer characterizes the features of this unique series.

Halogen free

Yes
Number of keys

Knob 1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Family

Simon 54
Width [mm]

75
Version

For incandescent lighting For halogen lighting
Surface protection

Natural
Backlight

NO
load power [W]

20-500
Variant

Rotary Button
Exact material

PC

Depth [mm]

46
Color

White
Material

Plastic
Installation

Flush-mounted
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

28
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Serial dimmer

Yes
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Material

Plastic
Surface protection

Untreated
Colour

White
Frequency

50 ... 50 Hz

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,112	0,112	1,246
Width (m)	0,075	0,100	0,190
Length (m)	0,075	0,060	0,320
Depth (m)	0,046	0,150	0,100
