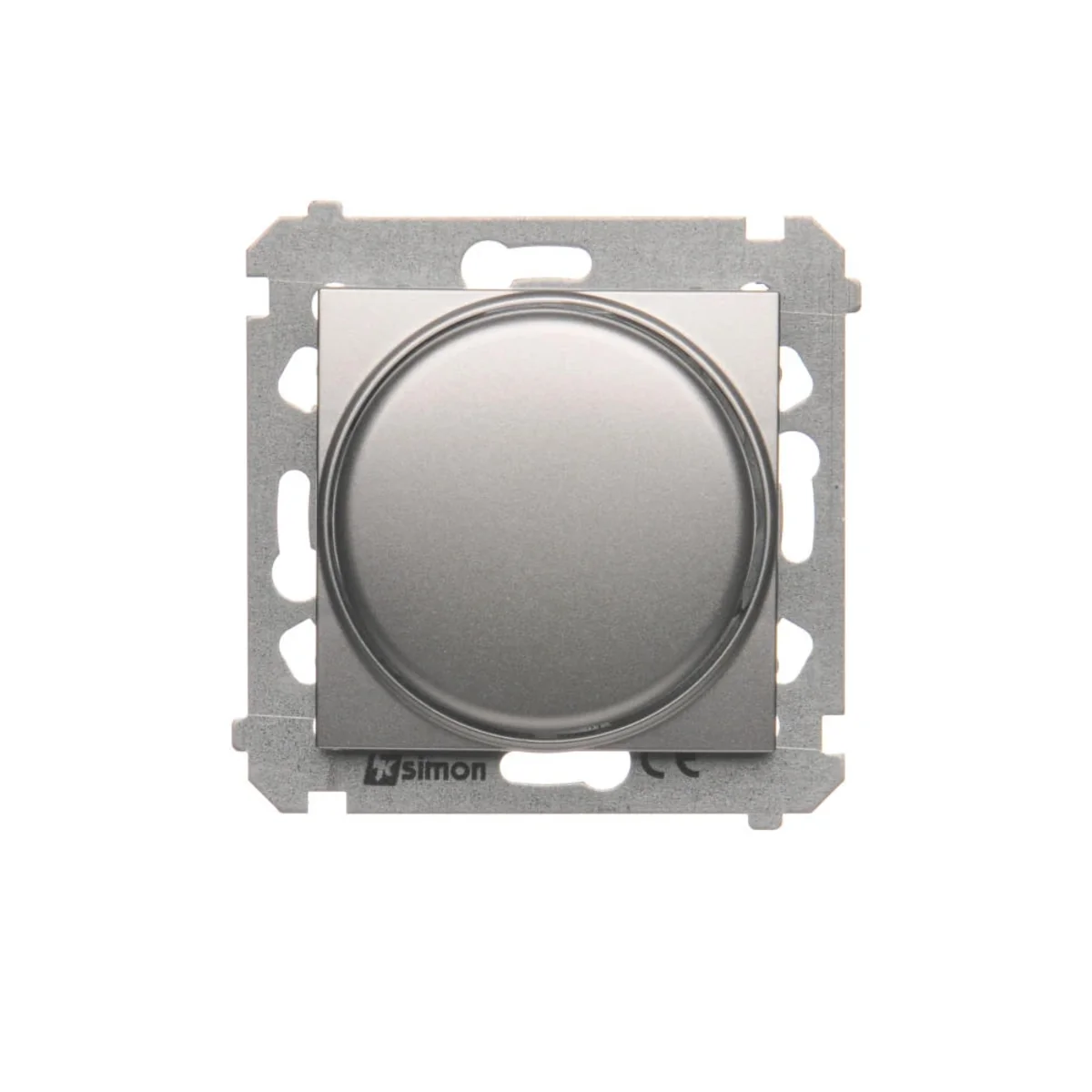

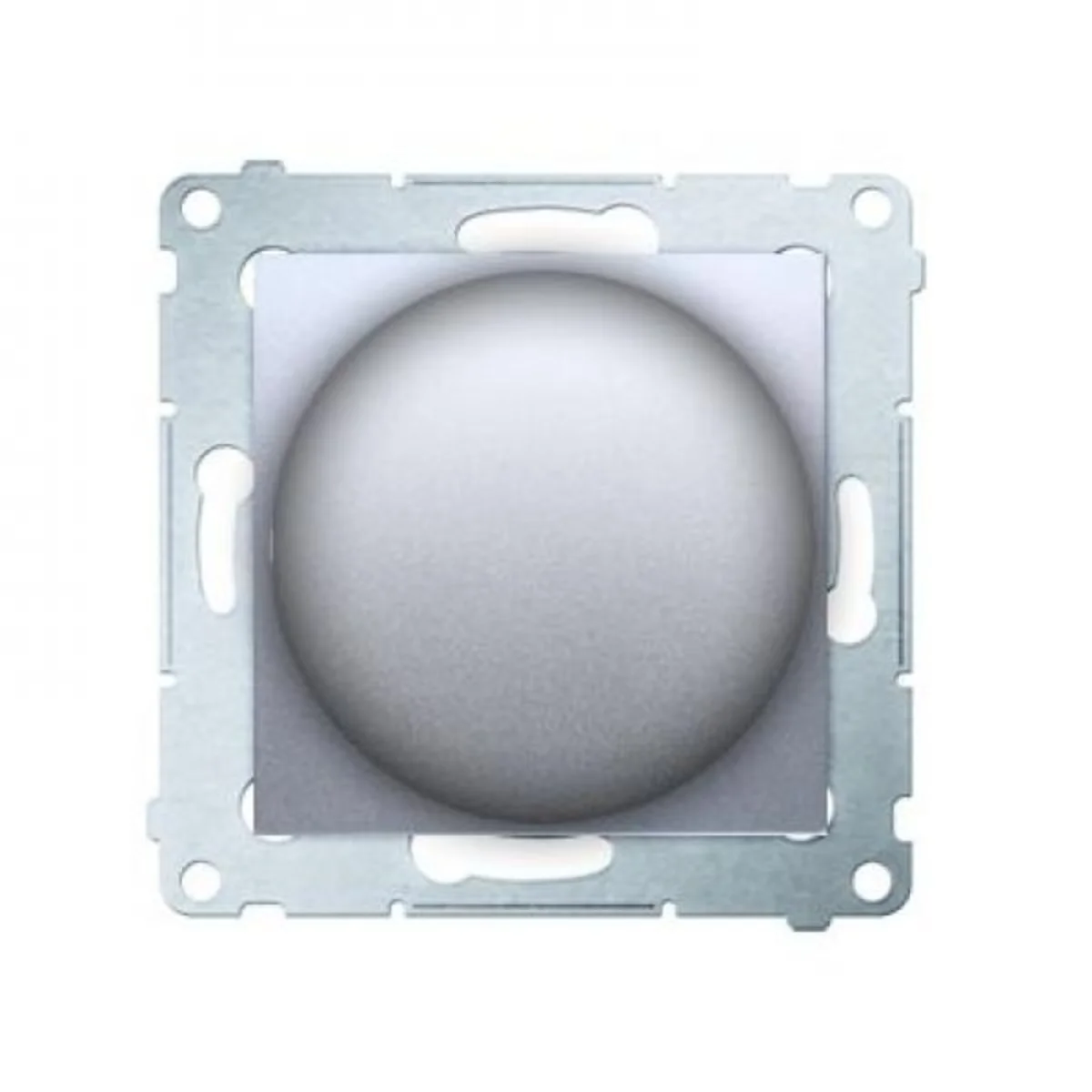

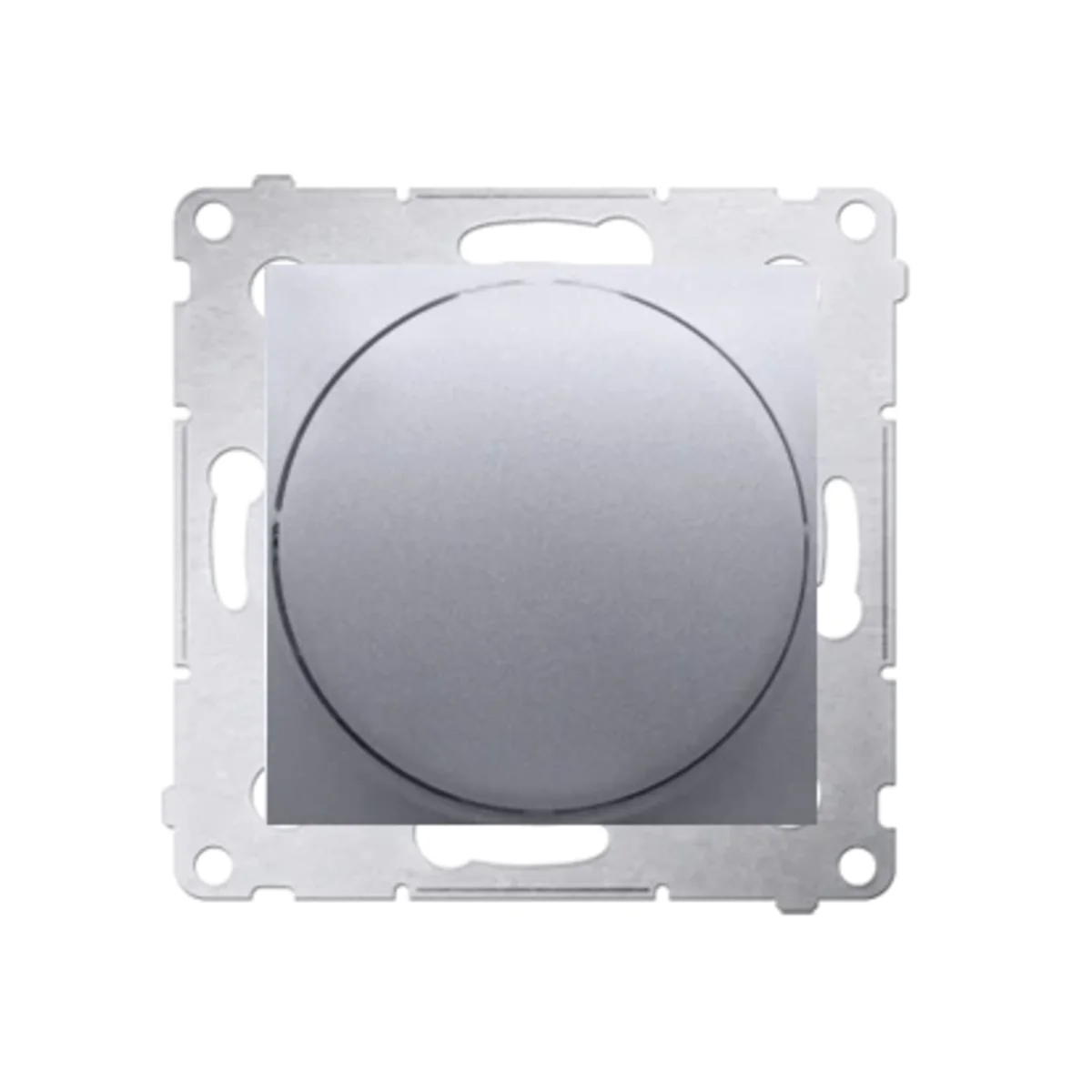

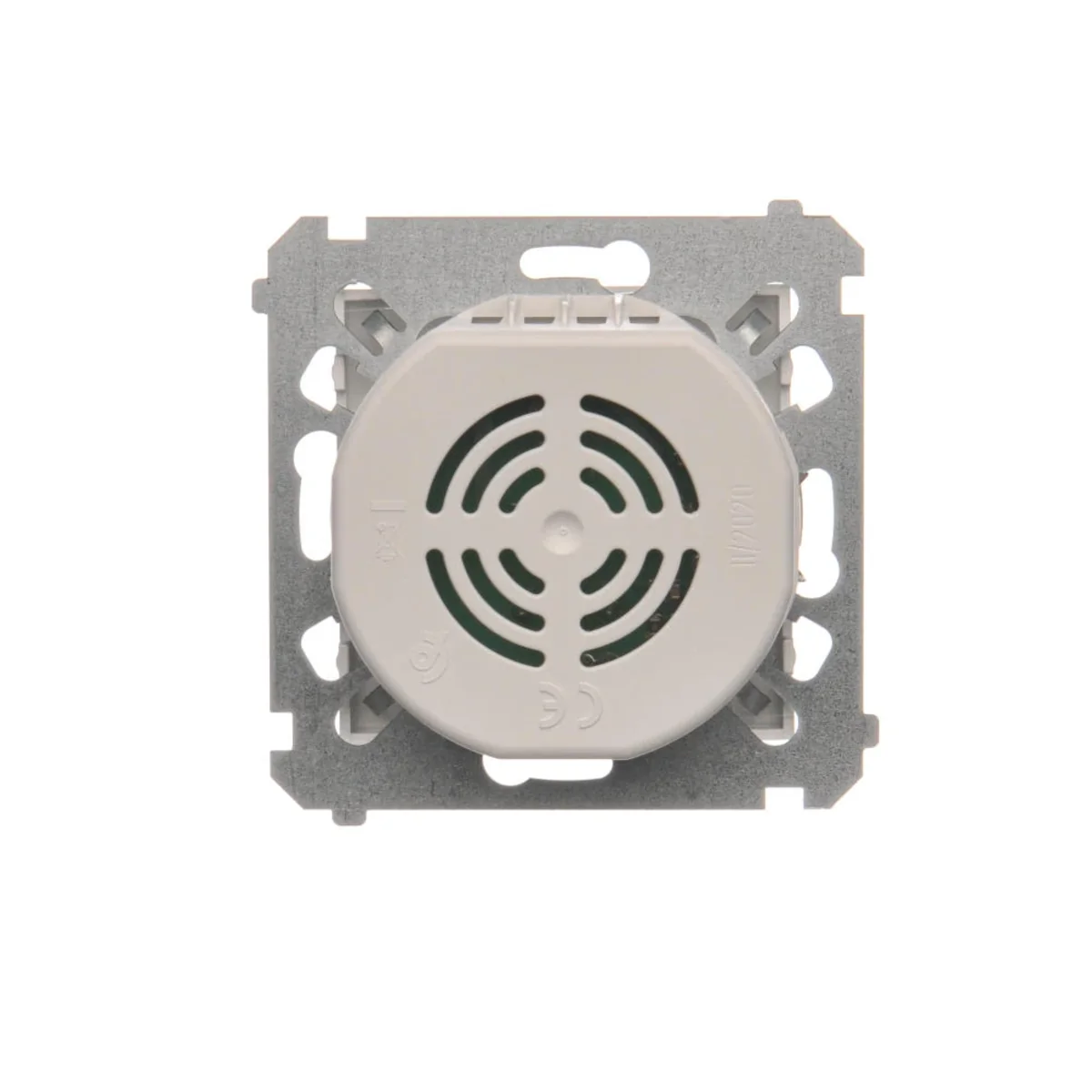

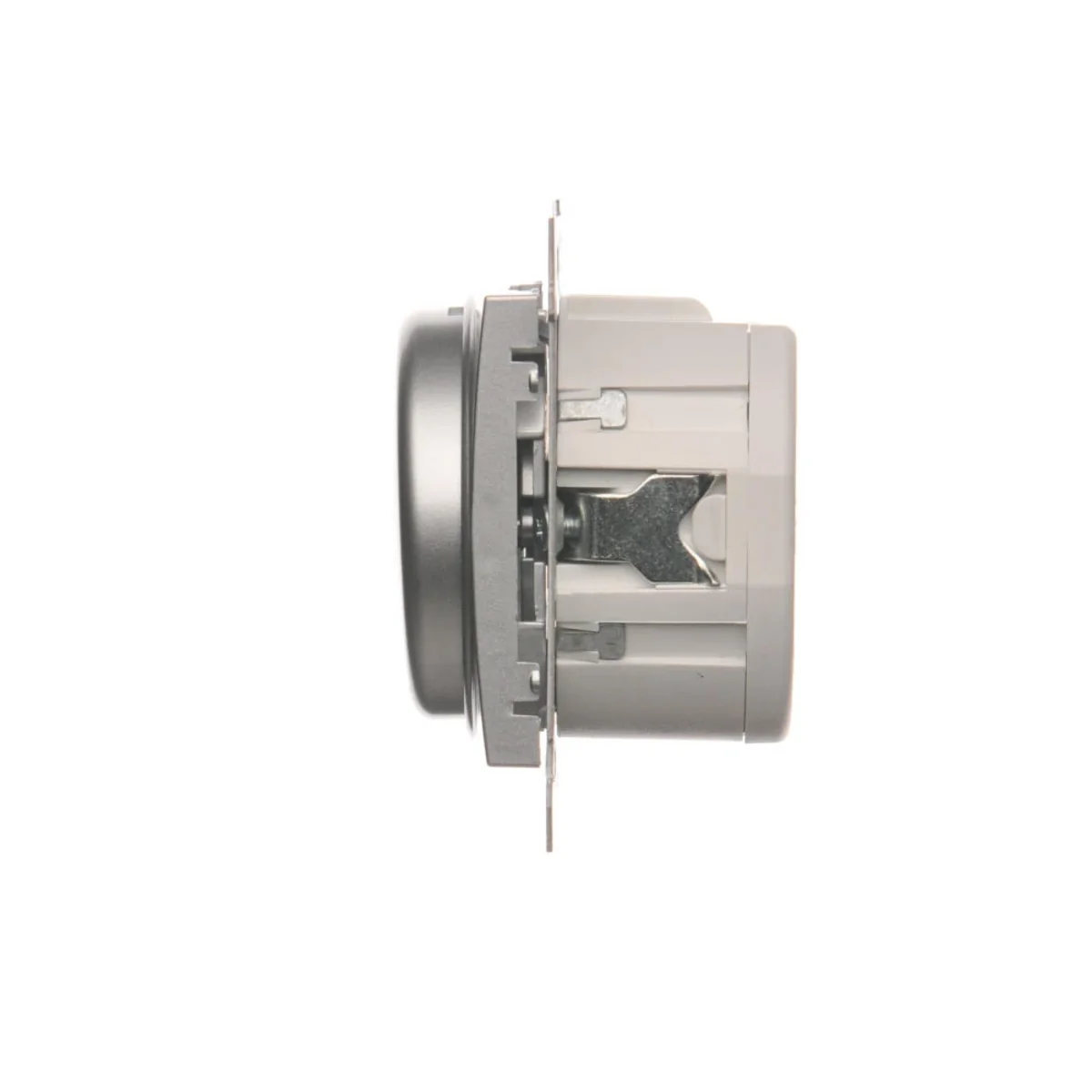

Push-turn dimmer (module) 20-500W silver (metallic) DS9T.01/43

local index:
MMC050KONT
Catalog No:
DS9T.01/43
EAN code:
5902787825928
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 46
Number of keys: Knob | 1
Price:
37,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DS9T.01/43.



FEATURES

  • Push-turn.< /li>
  • Screw terminals.
  • Rated power: 500 VA.
  • Load type: universal.
  • Serial dimmer.
  • For light sources:
    • 230V bulbs,
    • 230V halogen bulbs,
    • 12V halogen bulbs - electronic transformer,
    • 12V halogen bulbs - toroidal core transformer.



SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Dimmer characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    Knob 1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Family
    Simon 54
  • Width [mm]
    75
  • Version
    For incandescent lighting For halogen lighting
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    28
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    46
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    dimmers
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • load power [W]
    20-500
  • Variant
    Rotary Button
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Substation input
    No
  • Applicable with button
    No
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Serial dimmer
    Yes
  • Light value memory
    Yes
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Frequency
    50 ... 50 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,112 0,112 1,246
Width (m) 0,075 0,100 0,190
Length (m) 0,075 0,060 0,320
Depth (m) 0,046 0,150 0,100
