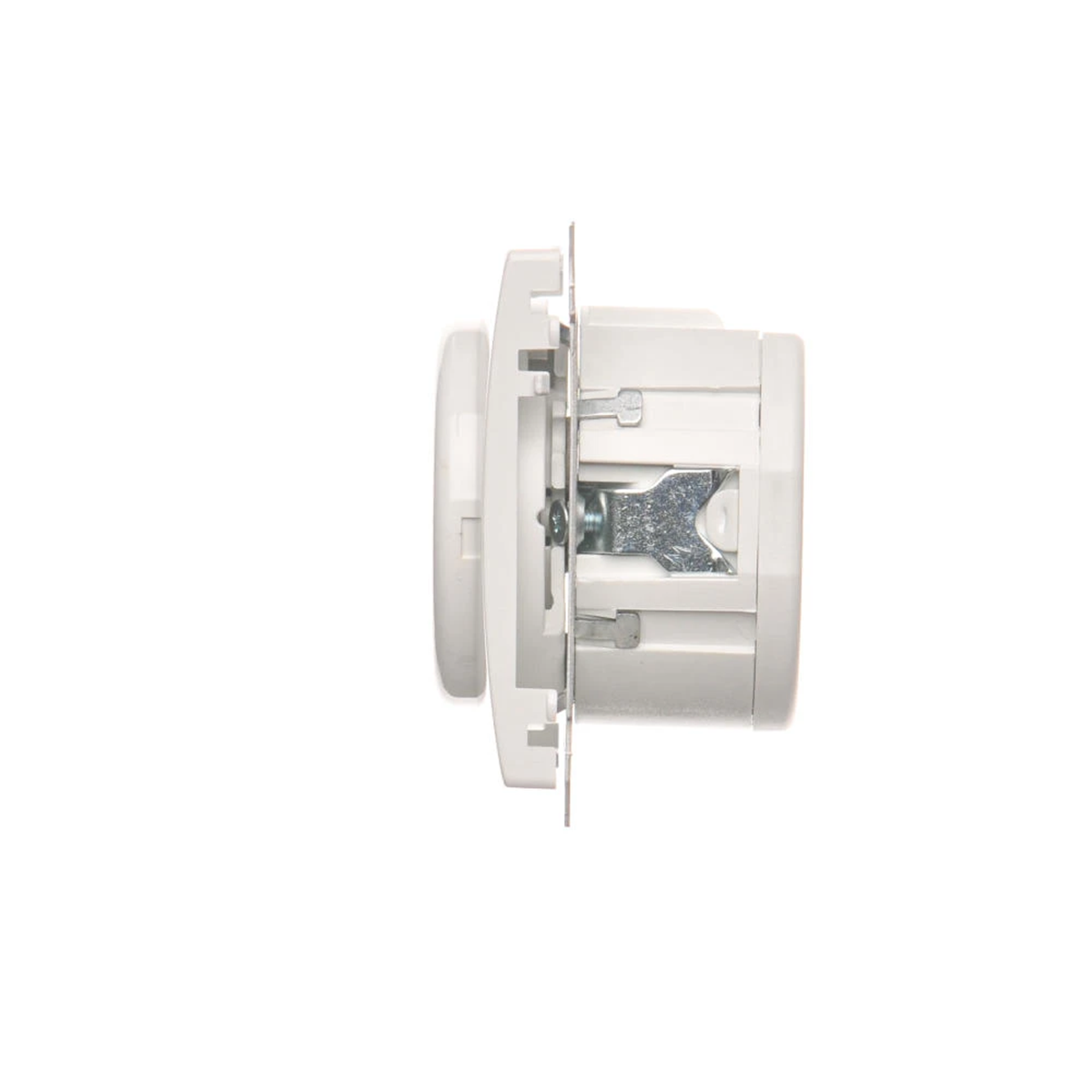

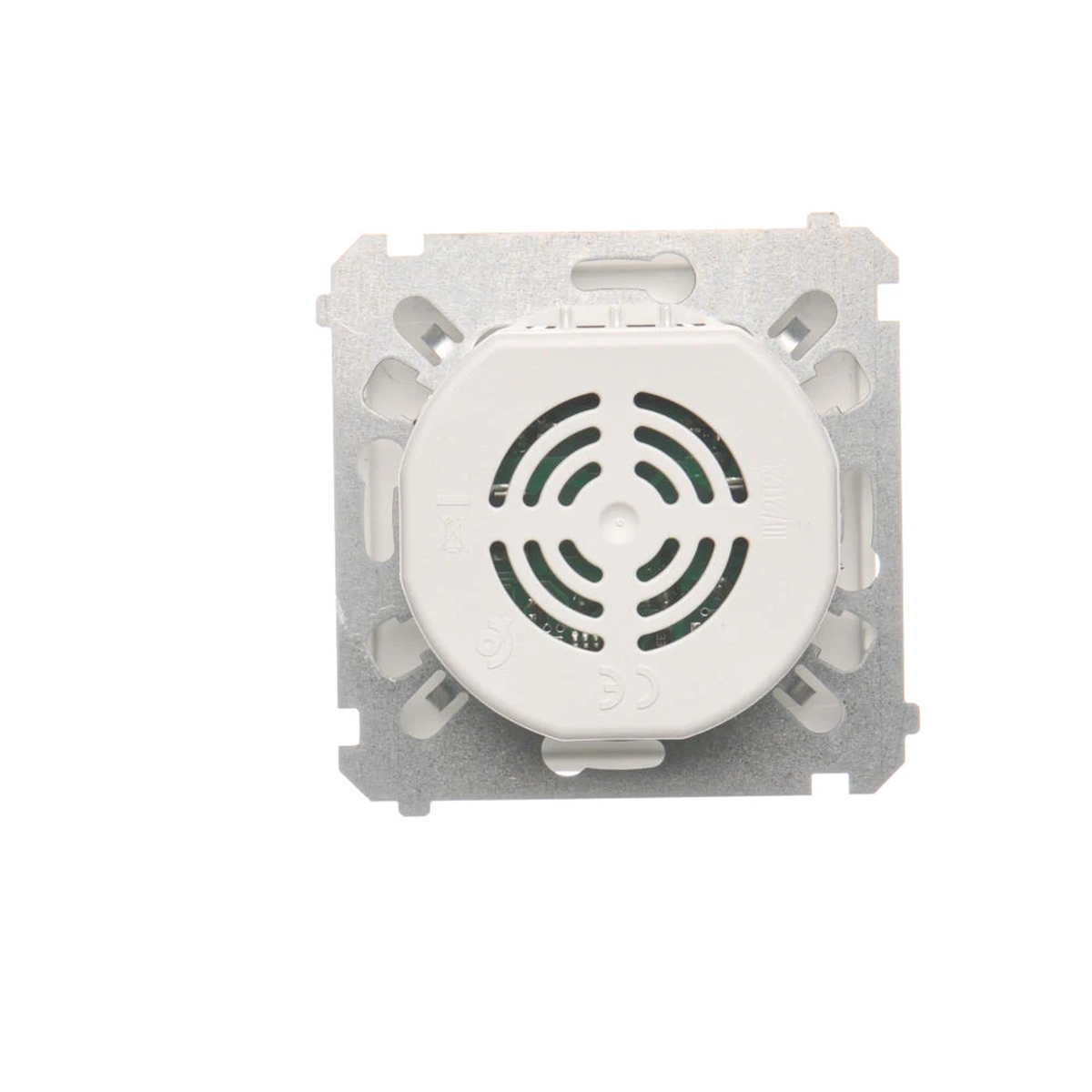

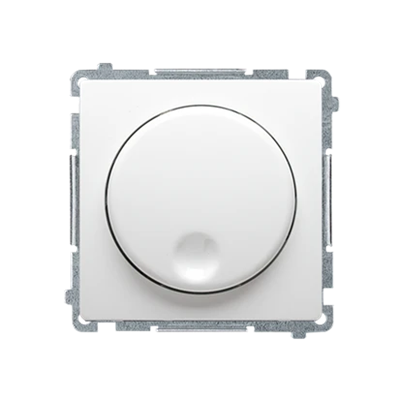

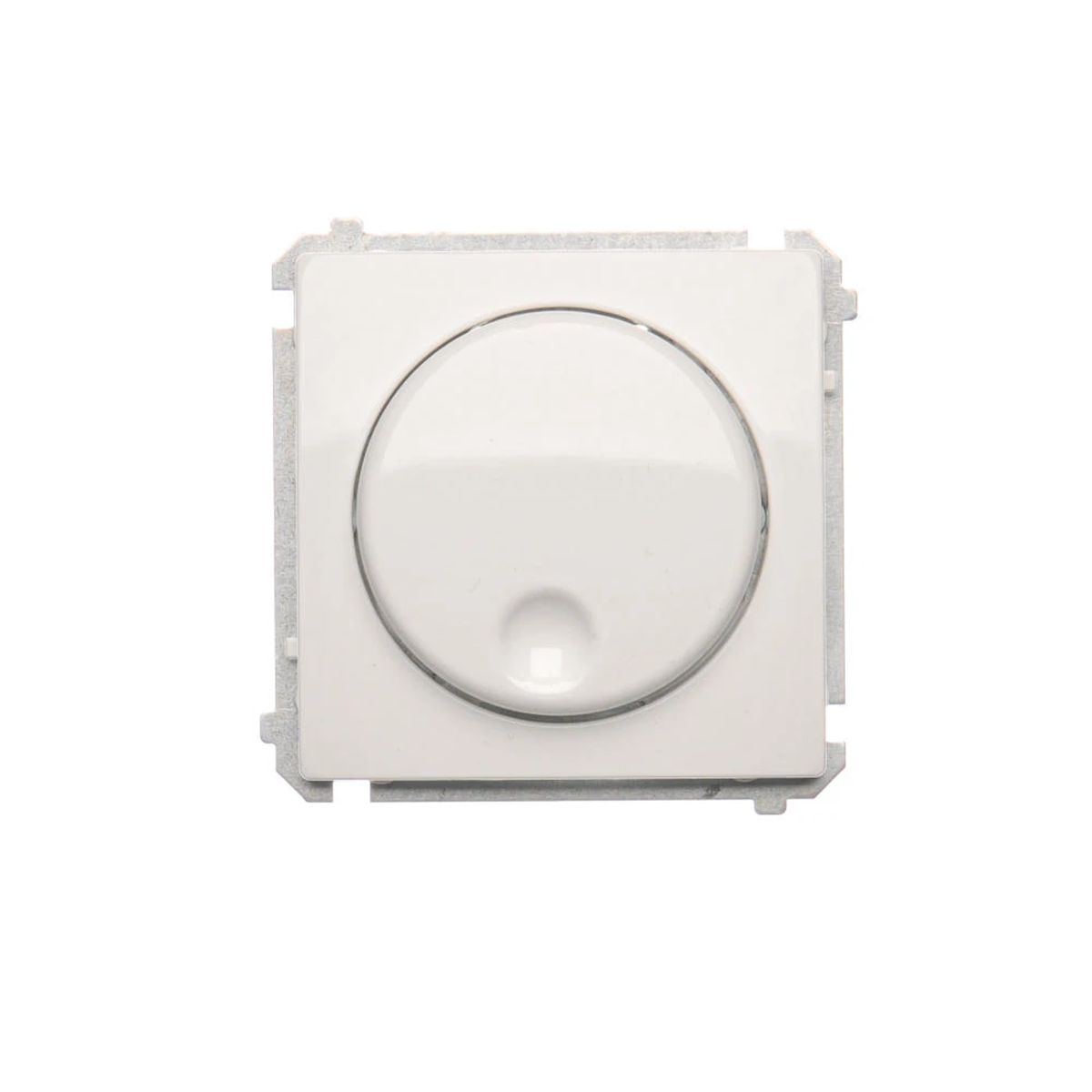

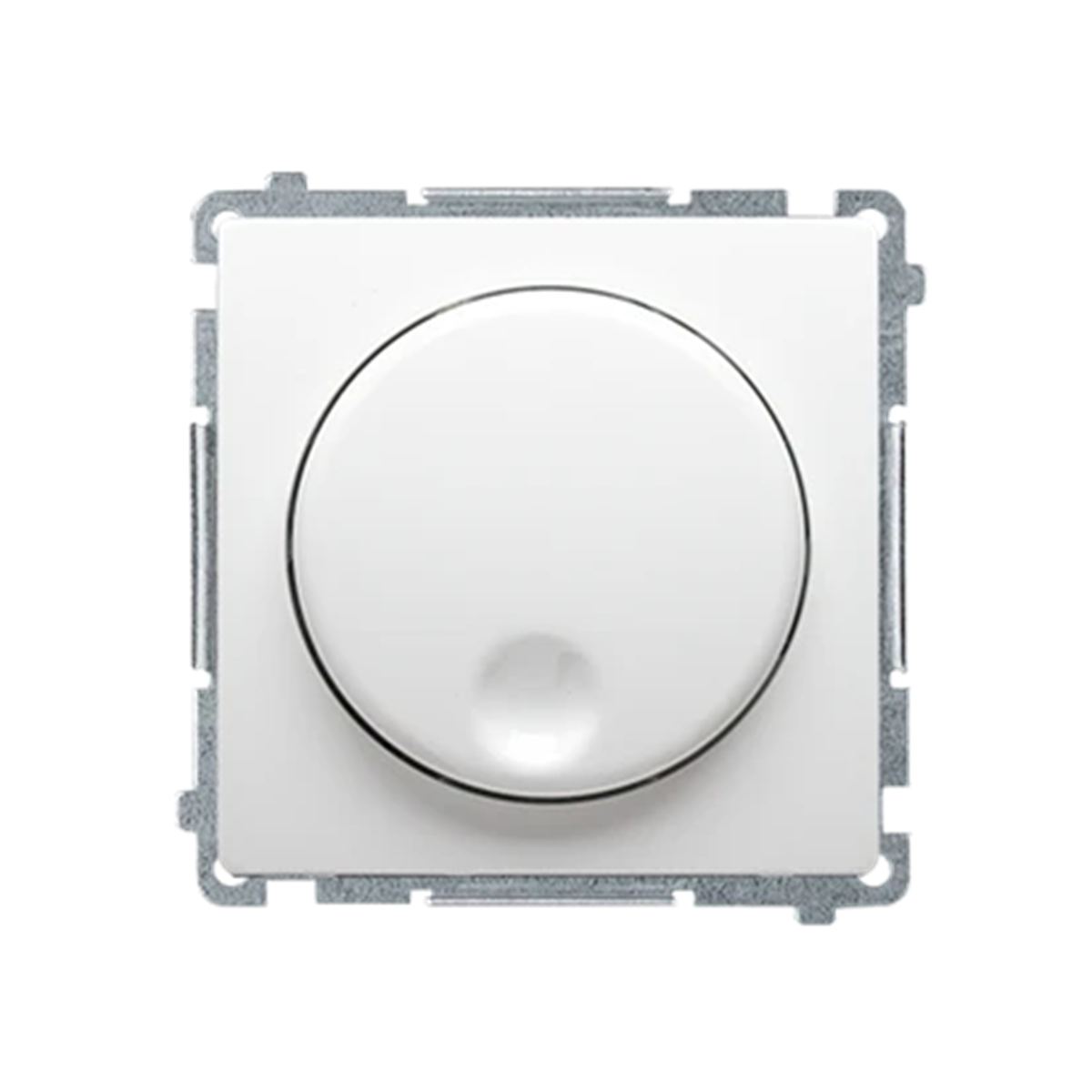

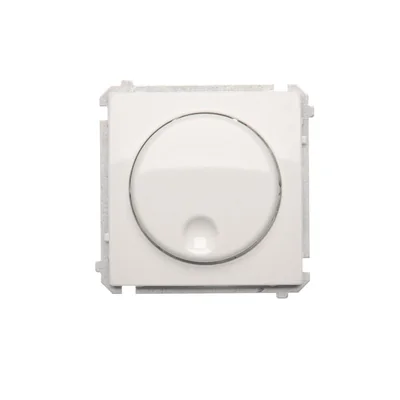

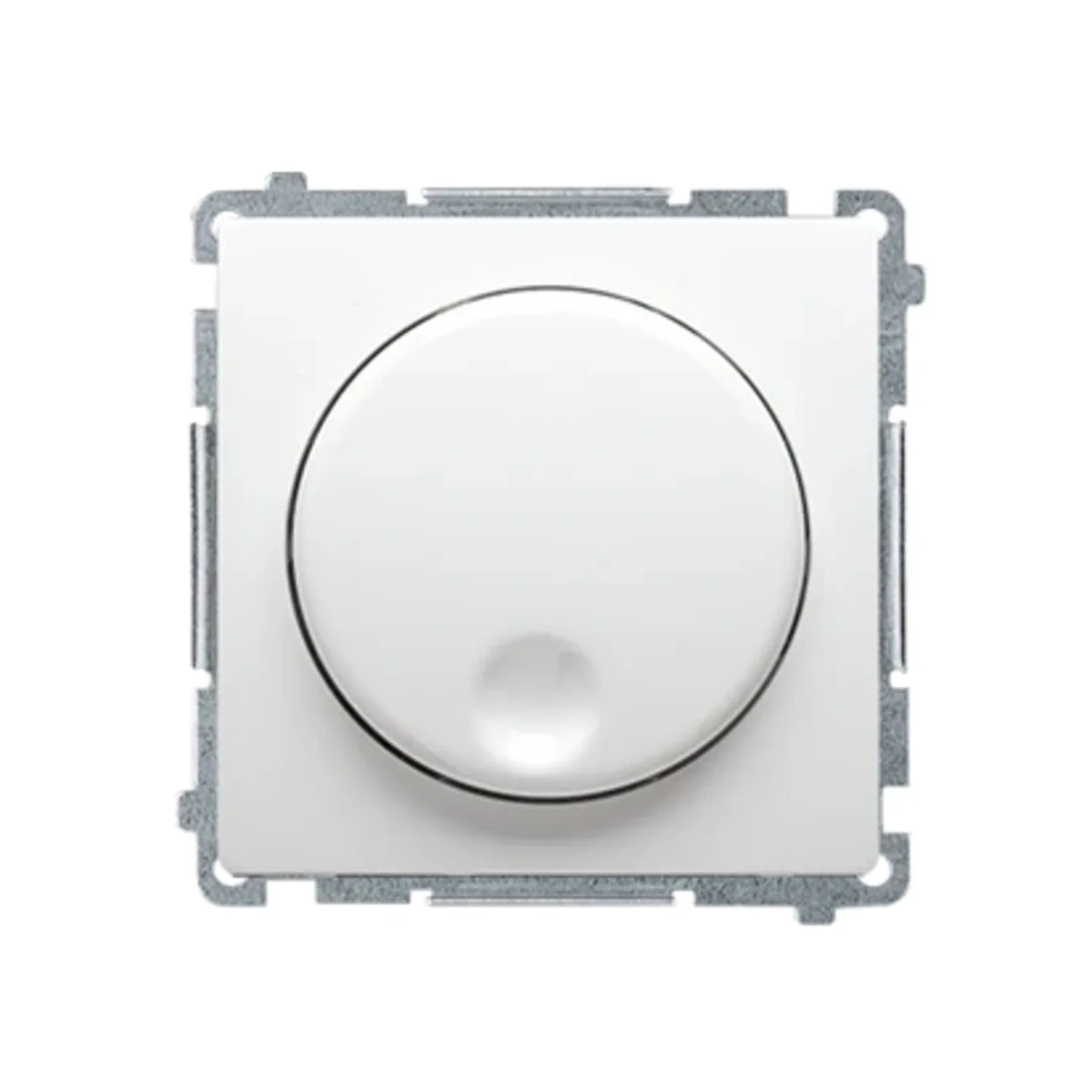

Push-turn dimmer (module) 20-500W 230V white BMS9T.01/11

local index:
MMC019KONT
Catalog No:
BMS9T.01/11
EAN code:
5902787806231
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 46
Number of keys: Knob | 1
Price:
30,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Dimmer from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is BMS9T.01/11.



FEATURES

  • Push-turn.< /li>
  • Screw terminals.
  • With brightness level memory.
  • To be used with push button.
  • Type of load: universal.
  • < li>Serial dimmer.
  • Rated power: 500 VA.
  • For light sources:
    • LED - NO,
    • light compact (energy-saving) lamp - NO,
    • linear fluorescent lamp - NO,
    • 230V bulbs - YES,
    • 230V halogen bulbs -YES ,
    • 12V halogen bulbs - electronic transformer - YES,
    • 12V halogen bulbs - toroidal core transformer - YES,
    • devices with an electric motor ( fans) - NO.



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment, which is based on classic appearance and functionality. Dimmer characterize the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    Knob 1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    For incandescent lighting For halogen lighting
  • Surface protection
    Natural
  • Backlight
    NO
  • load power [W]
    20-500
  • Variant
    Rotary Button
  • Exact material
    PC
  • Depth [mm]
    46
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    dimmers
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    25
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Substation input
    No
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Serial dimmer
    Yes
  • Light value memory
    Yes
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Frequency
    50 ... 50 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,114 0,114 1,243
Width (m) 0,075 0,087 0,190
Length (m) 0,075 0,055 0,290
Depth (m) 0,046 0,115 0,100
