Push-button switch, snow-white, glossy Integro Flow/Pure 936712509

Name: Push-button switch, snow-white, glossy Integro Flow/Pure
Brand: BERKER
SKU: MMZ041BERK
Price: 10.77 PLN

local index:

MMZ041BERK

Catalog No:

936712509

EAN code:

4011334240341

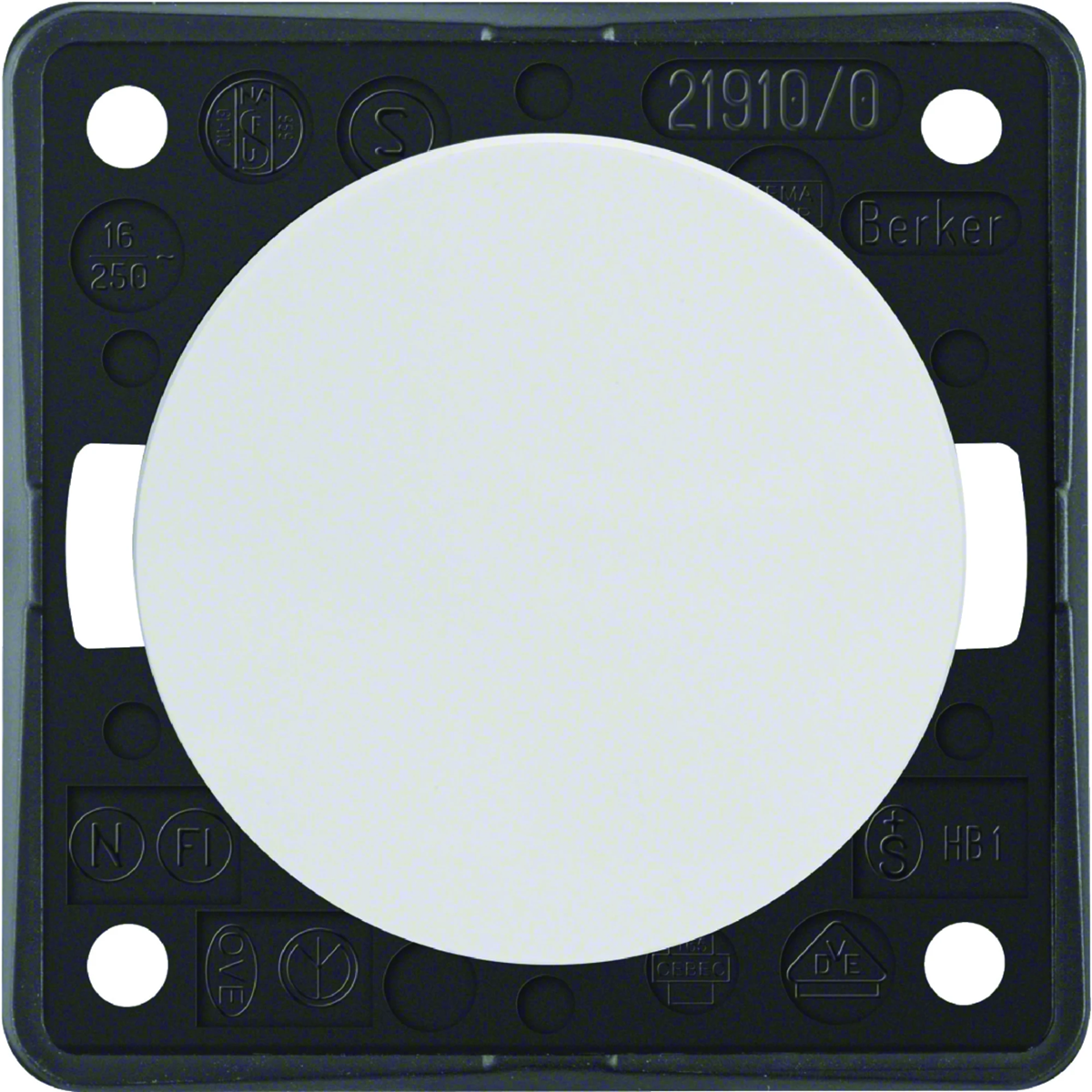

Push-button switch, snow-white, glossy Integro Flow/Pure

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 25

Number of keys: 1

Color: White

See full description

Price:

10,77 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Switch pushbutton, normally open, from the Berker Integro Flow/Pure series, from the manufacturer Berker. The product catalog number is 936712509. White.

FEATURES

With screw terminals.

SERIES DESCRIPTION

Berker Integro Flow with its minimalist design, quick and easy installation makes the series an ideal a solution for use in kitchen furniture, in the sanitary industry and everywhere where compact design and versatile functionality are required.

Technical data

Depth [mm]

25
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Short
Level of security

IP44
Type

Flush-mounted
Height [mm]

55.5
Backlight

NO
Variant

Ordinary
Exact material

Thermoplastic

Number of keys

1
Shape

Round
Installation

Flush-mounted
Rated current [A]

10
Family

INTEGRO FLOW INTEGRA PURE
Width [mm]

55.5
Version

Confident
Surface finish

Shiny
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Method of operation

Rocker
Number of modules (module system)

0
Nominal voltage

250 V
With lighting

No
Feedback-signal contact

No
Type of fastening

Screw mounting
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Glossy
RAL-number (similar)

9010
Label space/information surface

No
Suitable for degree of protection (IP)

IP44
Device height

55.5 mm
Min. depth of built-in installation box

13 mm

Model

Single push button
Number of rockers

1
Number of poles

1
Rated current

10 A
With signal lamp

No
Mounting method

Built-in installation
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Transparent

No
Imprint

None
Device width

55.5 mm
Device depth

25 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	100 pcs.	2400 pcs.
Weight (kg)	0,028	0,340	3,838	115,112
Width (m)	0,056	0,140	0,315	0,800
Length (m)	0,024	0,065	0,215	1,050
Depth (m)	0,056	0,205	0,360	1,200
