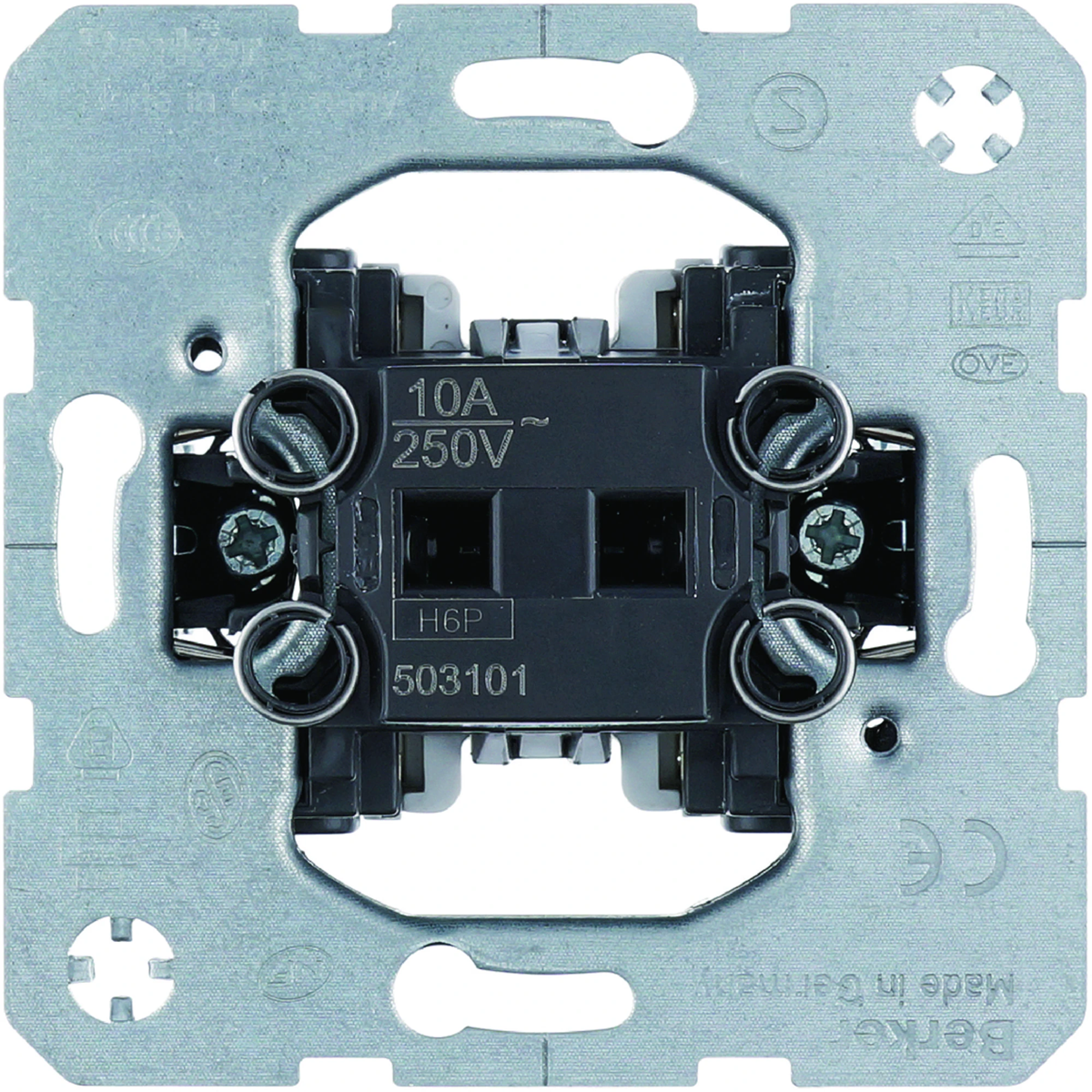

Push-button switch, NO contact with 2 separated reporting contacts, 503101
local index:
MPZ004BERK
Catalog No:
503101
EAN code:
4011334030300
Price:
14,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-button switch mechanism from the one.platform series, from Berker. The product part number is 503101.
- 2 separate signaling contacts.
- Key angle: 3.5°.
- N/O contact.
- With plug-in terminals.
- For backlight connection and backlight test connection.
- Can be illuminated with glow plug and with a neutral terminal.
Technical data
-
Depth [mm]41.6
-
ShapeSquare
-
FixingExpanding claws
-
Rated current [A]10
-
FamilyONE.PLATFORM
-
Width [mm]71
-
VersionConfident
-
Maximum conductor cross-section [mm²]2.5
-
Mounting depth [mm]31
-
VariantOrdinary
-
PKWIU27.33.11.0
-
Number of keys1
-
MaterialPlastic Metal
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element
-
Method of operationRocker
-
Number of modules (module system)0
-
Rated current10 A
-
With signal lampNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
Surface protectionOther
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
-
ModelSingle push button
-
Number of rockers1
-
Nominal voltage250 V
-
With lightingNo
-
Feedback-signal contactYes
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Anti-bacterial treatmentNo
-
TransparentNo
-
ImprintNone
-
Device width71 mm
-
Device depth41.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,060 | 0,691 | 3,845 | 146,040 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,225 | 0,400 | 1,200 |
