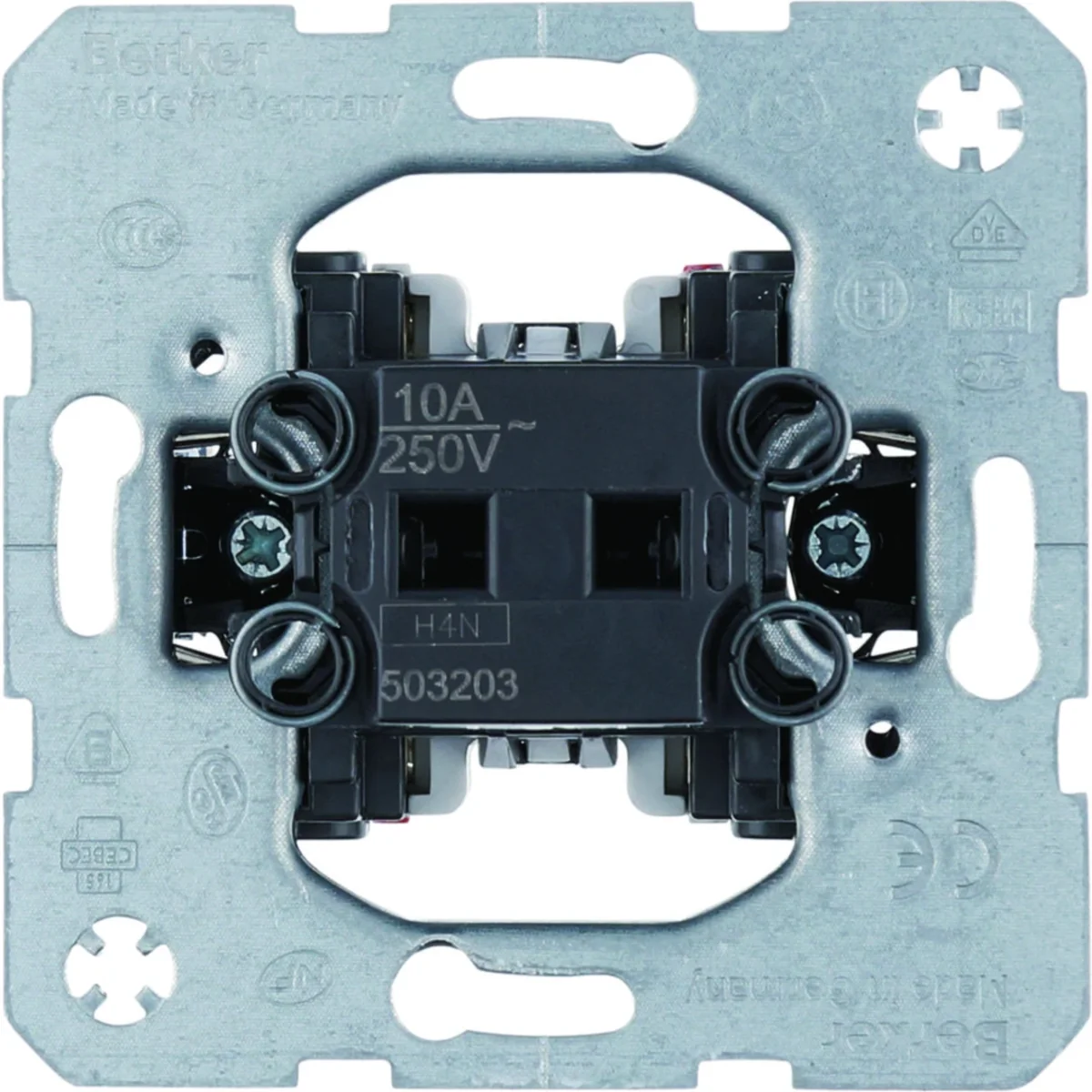

Push-button switch, 1 NO contact, 1 NC contact, separate input terminals, 503203

local index:
MPZ005BERK
Catalog No:
503203
EAN code:
4011334030430
Manufacturer: BERKER
Depth [mm]: 41.6
Number of keys: 1
Shape: Square
Price:
23,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-button switch mechanism from the one.platform series, from Berker. Product part number is 503203.

  • 1 NO contact, 1 NC contact, separate input terminals.
  • Key angle: 3 .5°.
  • With self-clamps.
  • For connection with backlight and control connection with backlight.
  • Can be illuminated with glow plug and incandescent element with neutral terminal .

Technical data

  • Depth [mm]
    41.6
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated current [A]
    10
  • Family
    ONE.PLATFORM
  • Width [mm]
    71
  • Version
    Closer Open
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of keys
    1
  • Material
    Plastic Metal
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Height [mm]
    71
  • Mounting depth [mm]
    30.9
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface protection
    Other
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Mounting with claw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Transparent
    No
  • Imprint
    None
  • Device width
    71 mm
  • Device depth
    41.6 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,061 0,701 3,870 146,840
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
