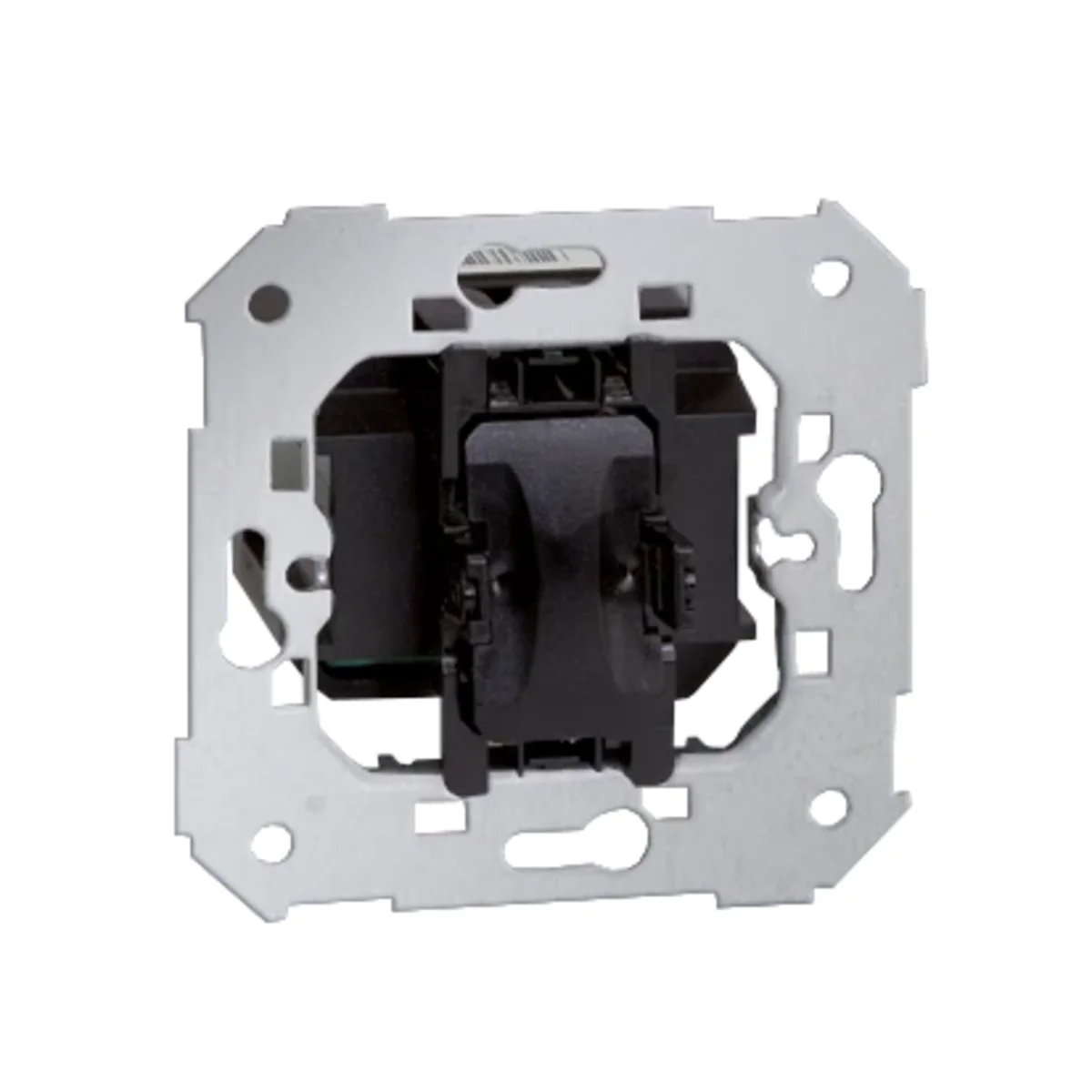

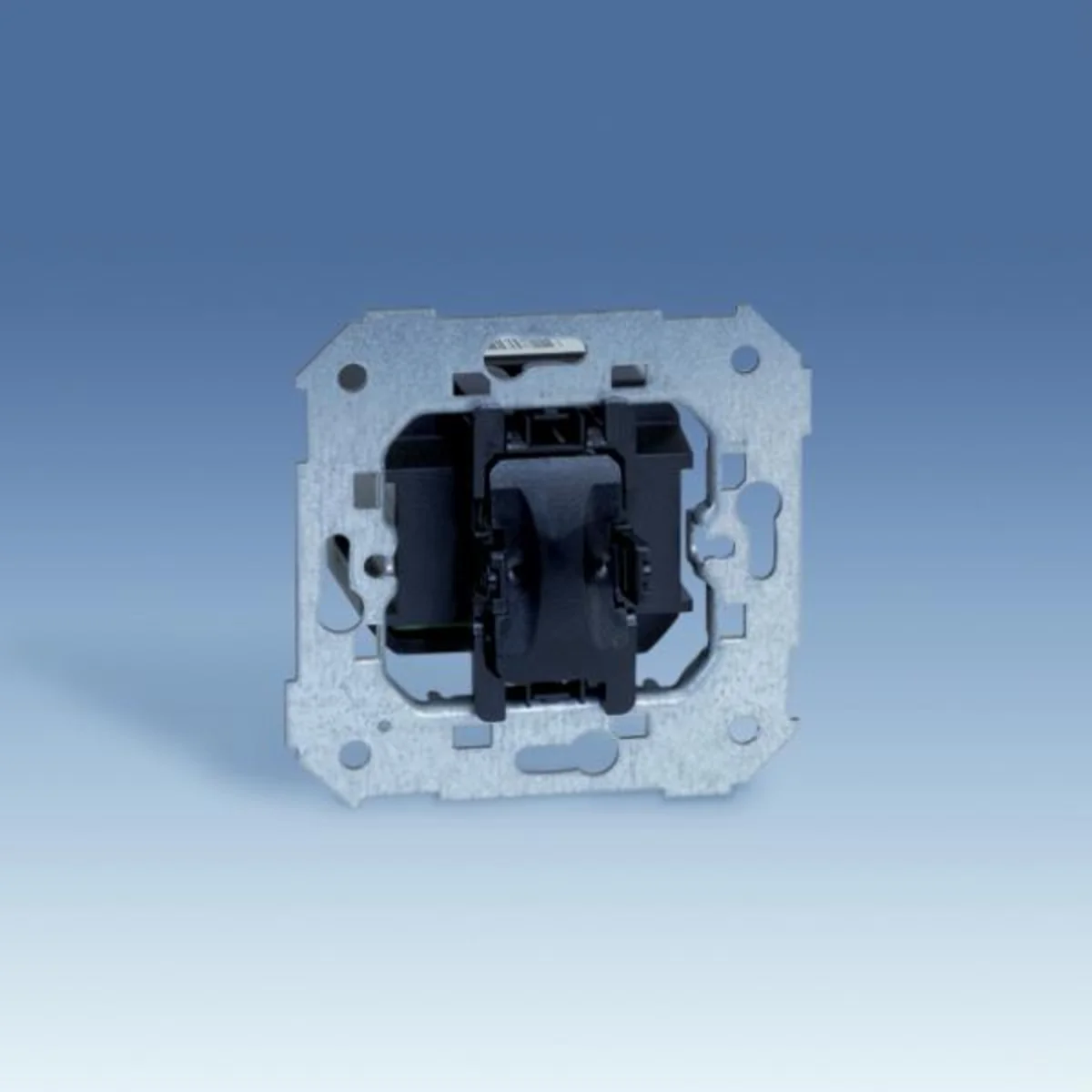

Push-button dimmer (works with 82010-3.. keys) 40-500W 7500316-039

local index:
MPC002KONT
Catalog No:
7500316-039
EAN code:
8421053080498
Manufacturer: KONTAKT-SIMON
Depth [mm]: 47
Shape: Square
Material: Metal
Price:
56,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push dimmer from the Simon 82 series, from the manufacturer Contact Simon. Number product catalog is 7500316-039.

  • Possible to control with additional closing buttons (up to 5 buttons).
  • Gradual start and shutdown.
  • Rated power: 400 VA.
  • For light sources:
    • 230V bulbs,
    • 230V halogen bulbs,
    • 12V halogen bulbs - electronic transformer.
  • For use with push button.
  • Brightness level memory.
  • Universal load.
  • Serial dimmer.

Technical data

  • Depth [mm]
    47
  • Material
    Metal
  • Installation
    Flush-mounted
  • Type
    dimmers
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Height [mm]
    75
  • Backlight
    NO
  • load power [W]
    40-500
  • Variant
    Button
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Family
    Simon 82
  • Width [mm]
    75
  • Version
    For incandescent lighting For halogen lighting
  • Surface protection
    Natural
  • Mounting depth [mm]
    36
  • Terminal type
    Threaded
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Substation input
    No
  • Applicable with button
    Yes
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Serial dimmer
    Yes
  • Light value memory
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Frequency
    50 ... 50 Hz
