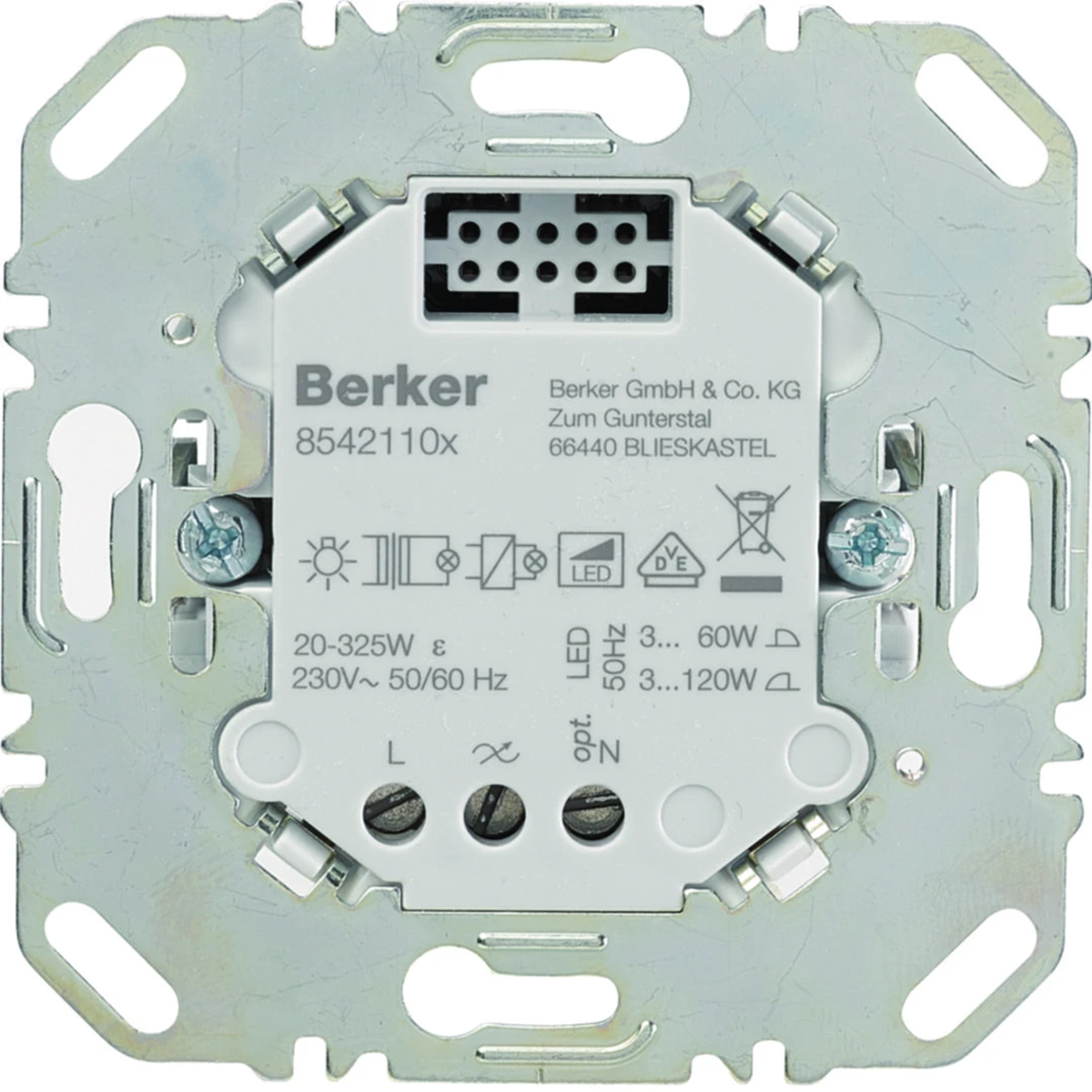

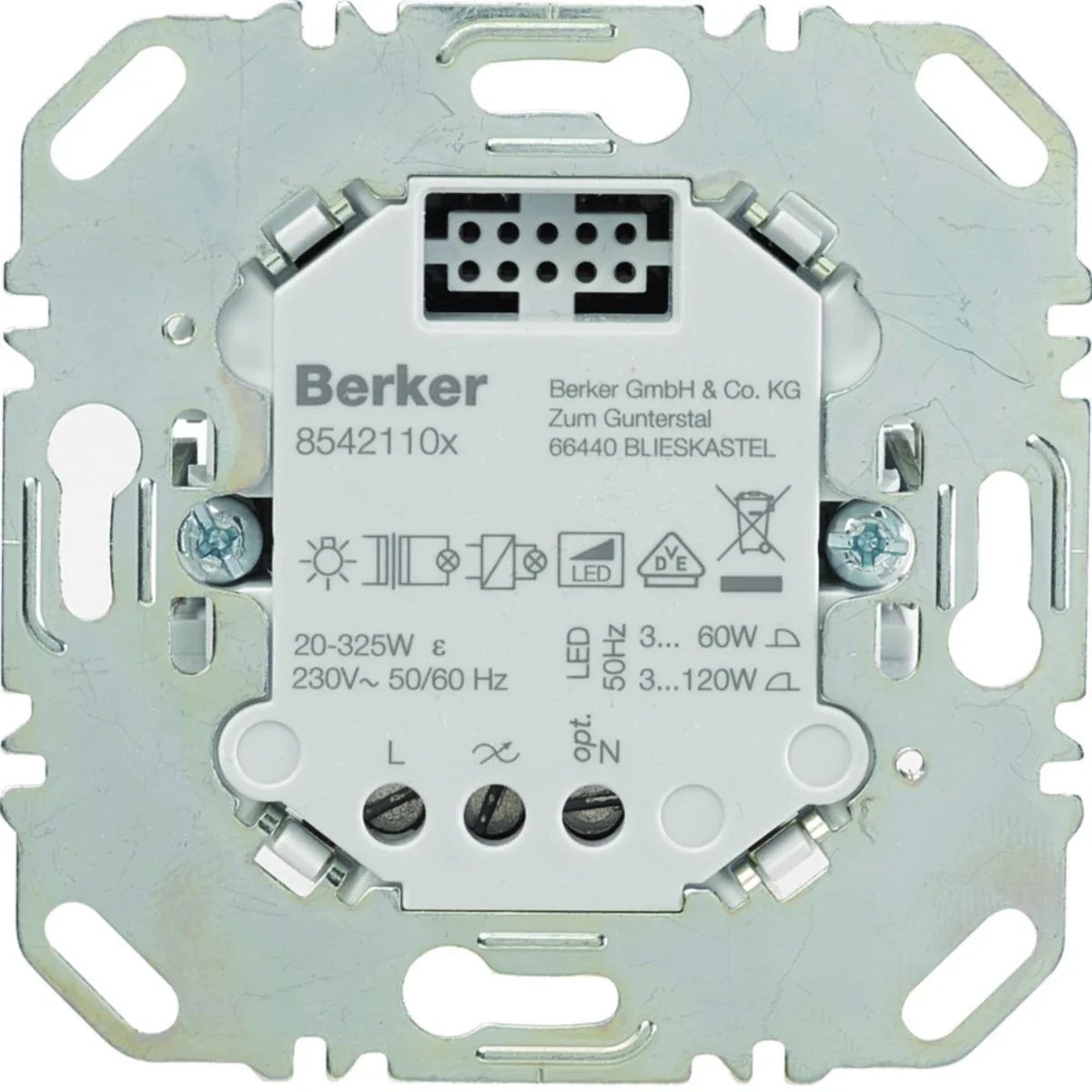

Push-button dimmer 85421100
local index:
MPC013BERK
Catalog No:
85421100
EAN code:
4011334375913
Price:
105,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Push button dimmer mechanism from the one.platform series. The product catalog number is 85421100.
- Short-circuit and overload protection (fuse).
- Power:
- Conventional dimming transformers: 25…400 VA.
- Mode power consumption waiting (standby): < 0.3 W.
- 230 V halogen bulbs and fluorescent lamps: 25…400 W.
- With extension input for connector push-button (NO contact) with one-level operation and motion detector extension.
- No conductive connection between carrier ring and spreader lugs.
- Length of the load cable: max. 100 m
- Expansion cable length: max. 50 m.
- Adjustment by phase cutting.
- With the ability to remember the brightness of switching on after a power failure.
Technical data
-
Number of keys1
-
MaterialPlastic Metal
-
Rated voltage [V]230
-
FamilyONE.PLATFORM
-
VersionFor halogen lighting
-
Mounting depth [mm]32
-
Terminal typeThreaded
-
For the frame systemYes
-
ShapeSquare
-
FixingExpanding claws
-
Typedimmers
-
TypeThe linkage mechanism
-
BacklightNO
-
load power [W]25-400
-
VariantButton
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element
-
Dimming phase cut-onYes
-
Serial dimmerNo
-
Substation inputYes
-
Applicable with buttonYes
-
Applicable with presence indicatorNo
-
Applicable with transmission buttonYes
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
TransparentNo
-
Impact strengthIK02
-
Frequency50 ... 60 Hz
-
Core cross section1.5 ... 2.5 mm²
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
-
Method of operationPush button
-
Dimming phase cut-offNo
-
Type of loadInductive load
-
Light value memoryNo
-
Applicable with movement sensorYes
-
Applicable with time switch/timerNo
-
Applicable with infrared buttonNo
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Surface protectionOther
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 ... 230 V
-
Connection typeScrewed terminal
-
Device width71 mm
-
Device depth33.2 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 2400 pcs. |
| Weight (kg) | 0,083 | 0,083 | 4,980 | 199,200 |
| Width (m) | 0,071 | 0,086 | 0,300 | 0,800 |
| Length (m) | 0,033 | 0,072 | 0,338 | 1,840 |
| Depth (m) | 0,071 | 0,086 | 0,400 | 1,200 |
