Pressure dimmer and remote control (module) 20-500W, anthracite (metallic) DS13T.01/48

Name: Pressure dimmer and remote control (module) 20-500W, anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MMC036KONT
Price: 50.74 PLN

local index:

MMC036KONT

Catalog No:

DS13T.01/48

EAN code:

5902787826093

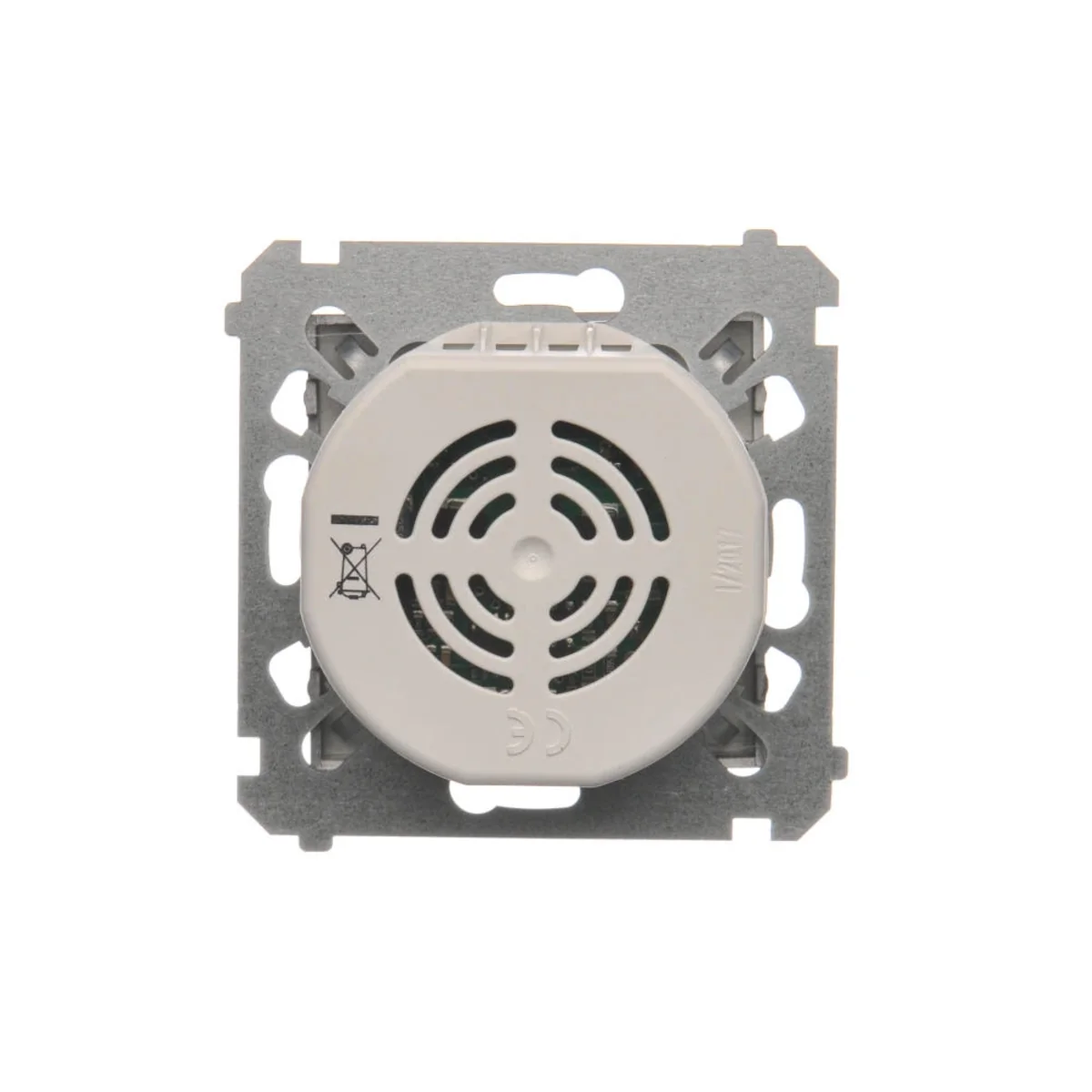

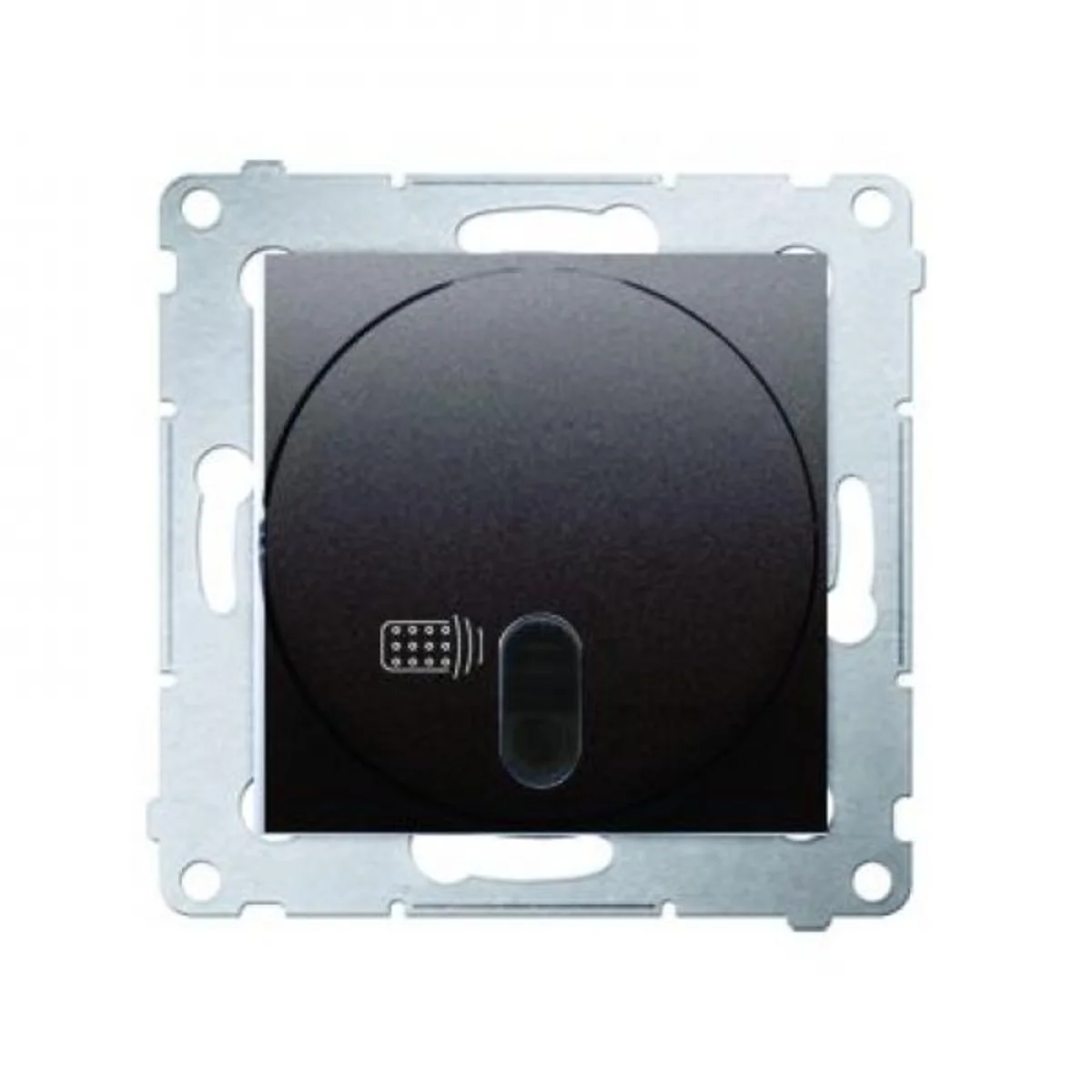

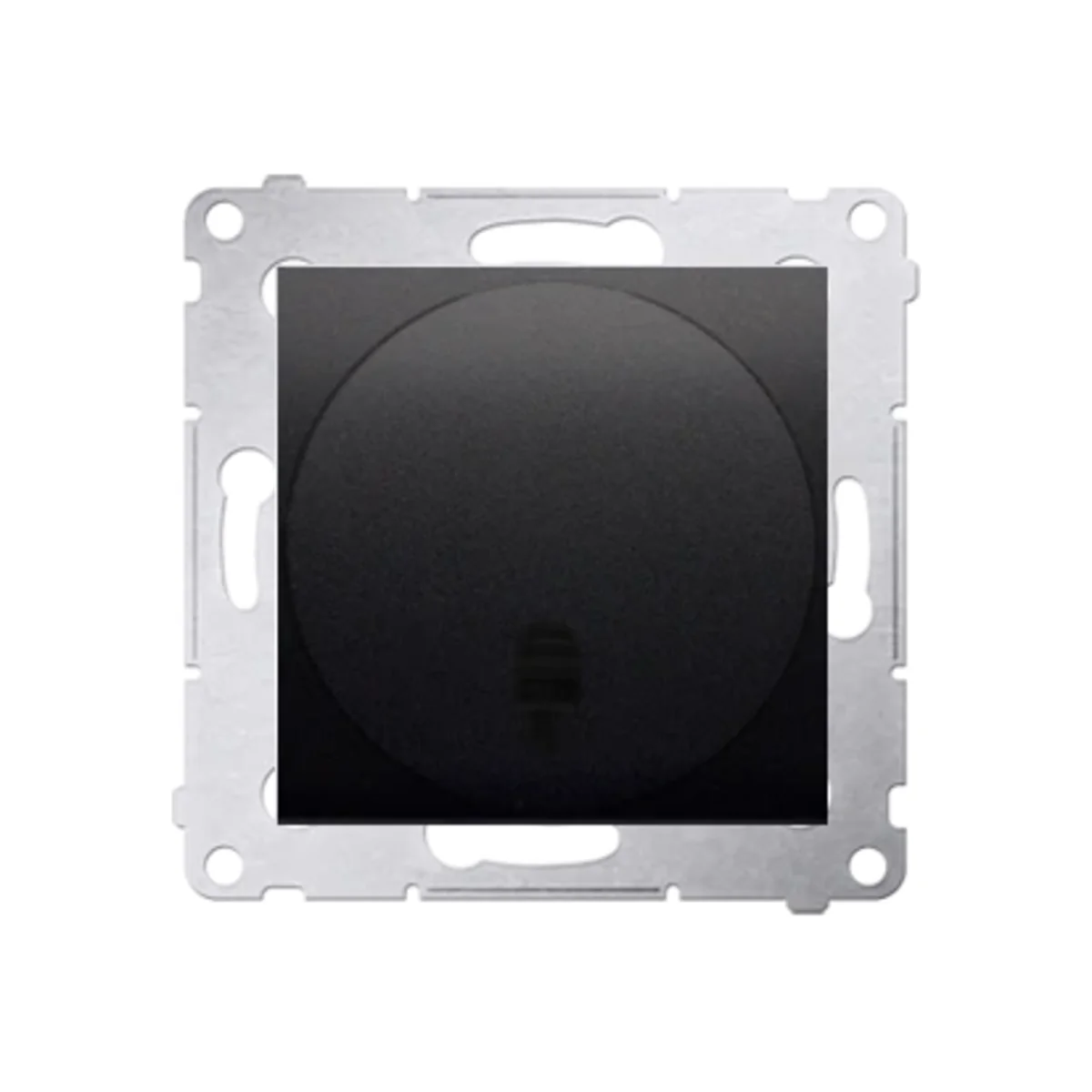

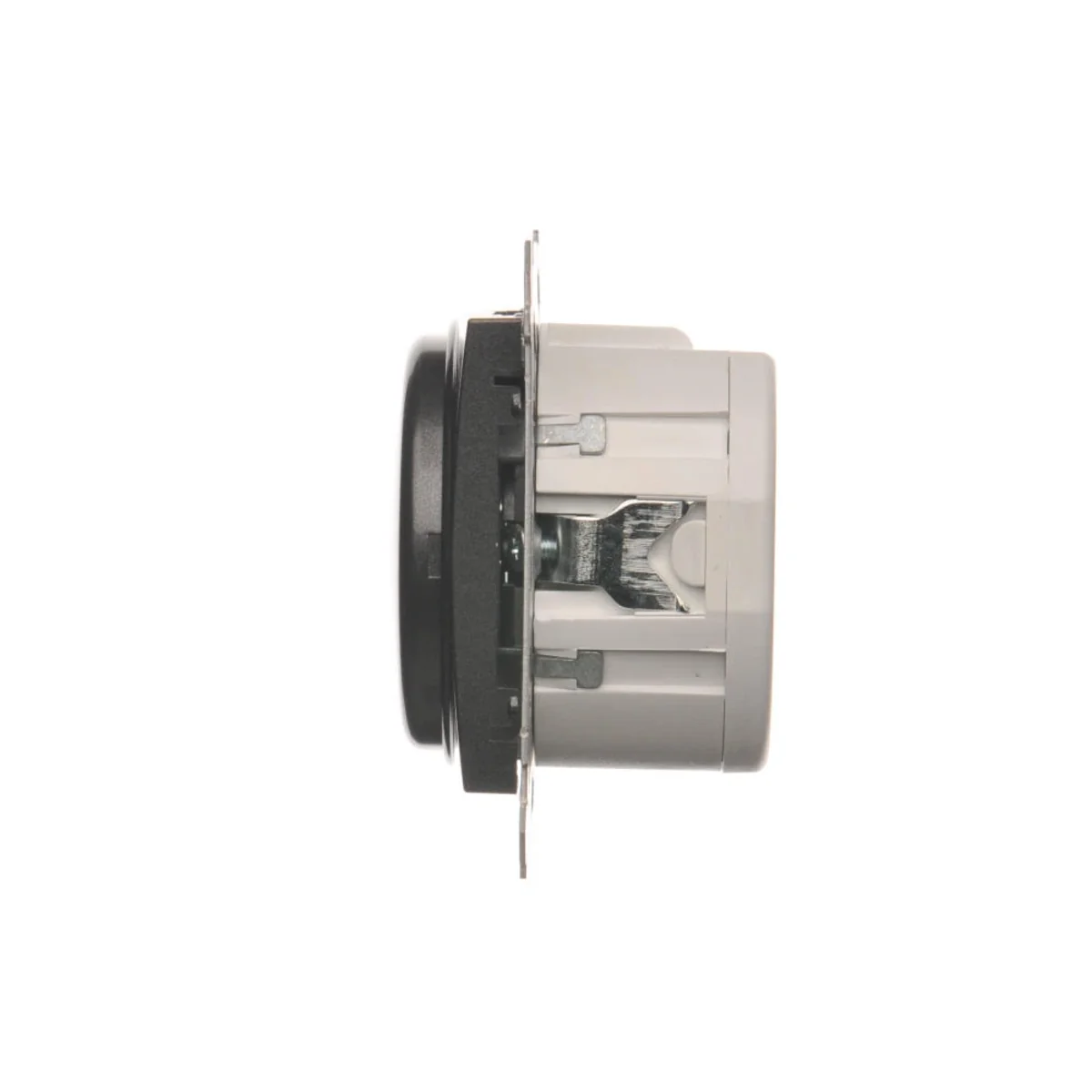

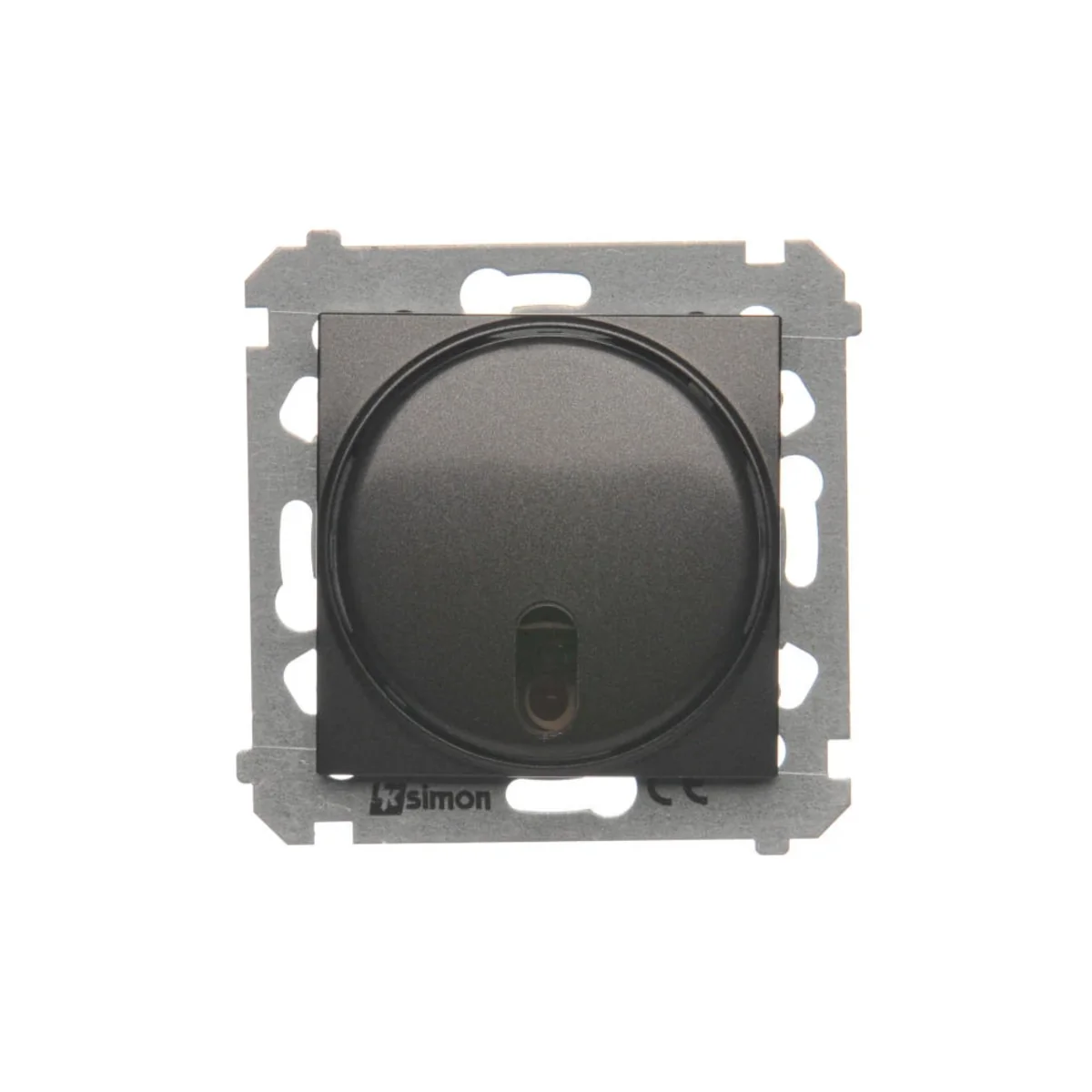

Pressure dimmer and remote control (module) 20-500W, anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 46.5

Number of keys: 1

See full description

Price:

50,74 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DS13T.01/48.

FEATURES

Pressive.
Remote control.
Screw terminals.
Use with push button.
Use with infrared push button.
Type of load: universal.
Serial dimmer.
Rated power: 500 VA.
For light sources:
- bulbs 230V bulbs,
- 230V halogen bulbs,
- 12V halogen bulbs - electronic transformer,
- 12V halogen bulbs - toroidal core transformer.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Dimmer characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Family

Simon 54
Width [mm]

75
Version

For incandescent lighting For halogen lighting
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

28
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

46.5
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
load power [W]

20-500
Variant

Button Remote controlled
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Substation input

Yes
Applicable with button

Yes
Applicable with time switch/timer

No
Applicable with infrared button

Yes
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Frequency

50 ... 50 Hz

Serial dimmer

Yes
Light value memory

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,112	0,112	1,269
Width (m)	0,075	0,100	0,190
Length (m)	0,075	0,060	0,320
Depth (m)	0,047	0,150	0,100
