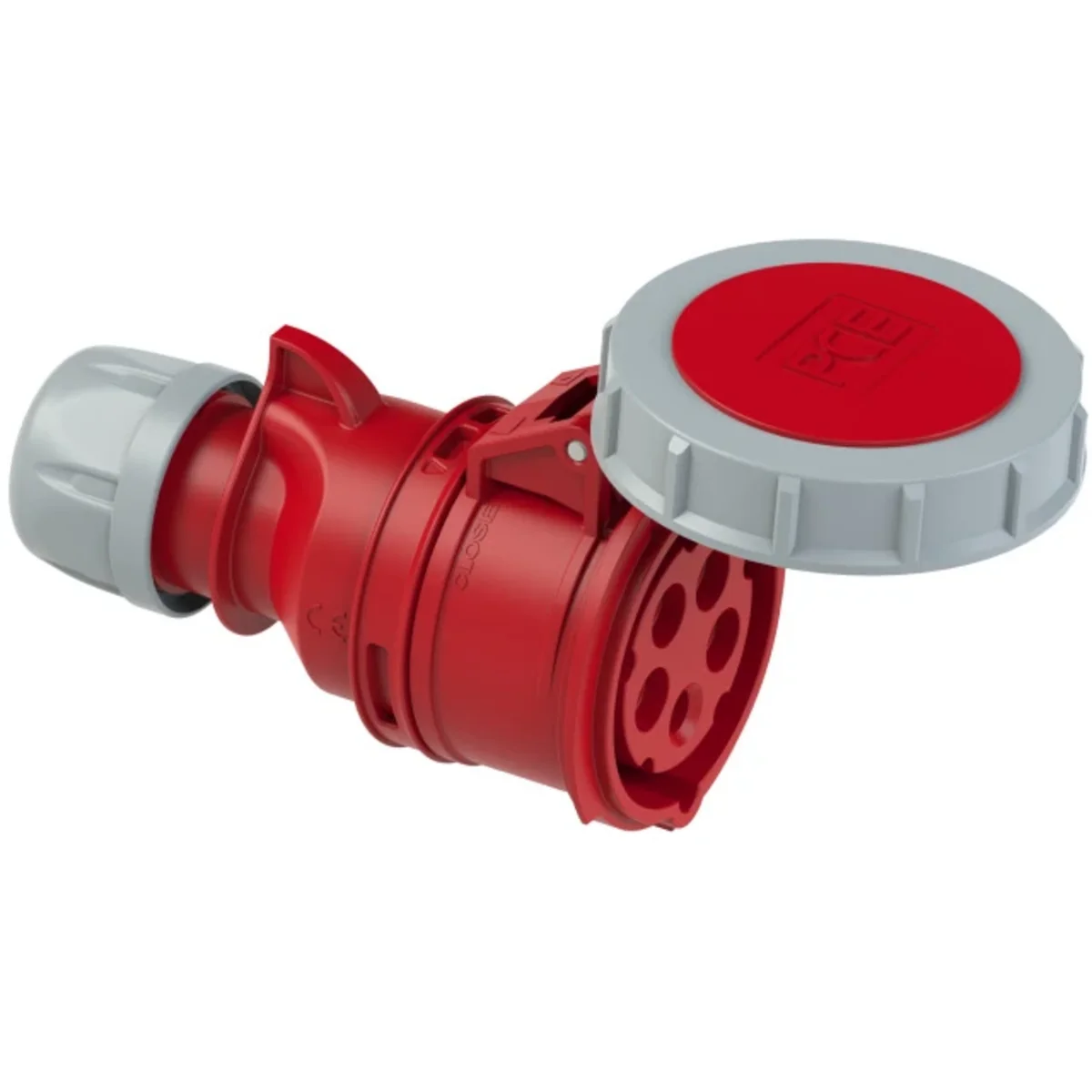

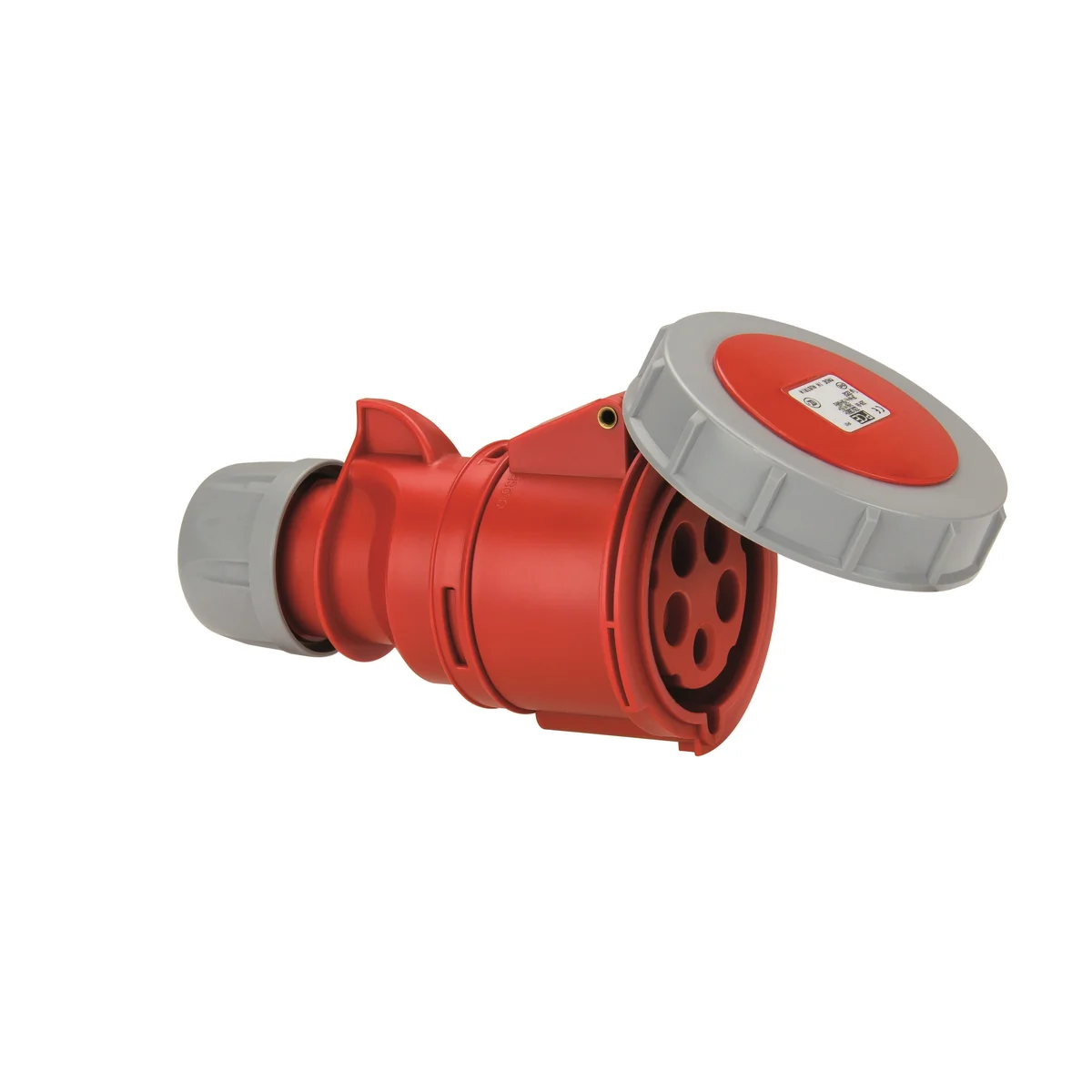

Portable socket TWIST IP67 16A 400V 3P+Z+N 2152-6
local index:
MKL003PCEQ
Catalog No:
2152-6
EAN code:
9003399052484
Price:
12,28 €
gross / pcs.
(including VAT 23%)
57,92 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Portable socket TWIST IP67 16A 400V 3P+E+N
• screw terminals
• plastic: PA6
• contacts: brass
- to order nickel-plated contacts add “v“ e.g. 2152-6v - IP67 waterproof
• screw terminals
• plastic: PA6
• contacts: brass
- to order nickel-plated contacts add “v“ e.g. 2152-6v - IP67 waterproof
Technical data
-
Rated frequency [Hz]50/60
-
Number of contacts5
-
Rated current [A]16
-
Clamping force [Ncm]100
-
Connection typescrew terminals
-
PKWIU27.33.13.0
-
Length [mm]145
-
Rated voltage [V]400
-
Hose [mm²]1-2.5
-
Width [mm]92
-
Weight [g]212
