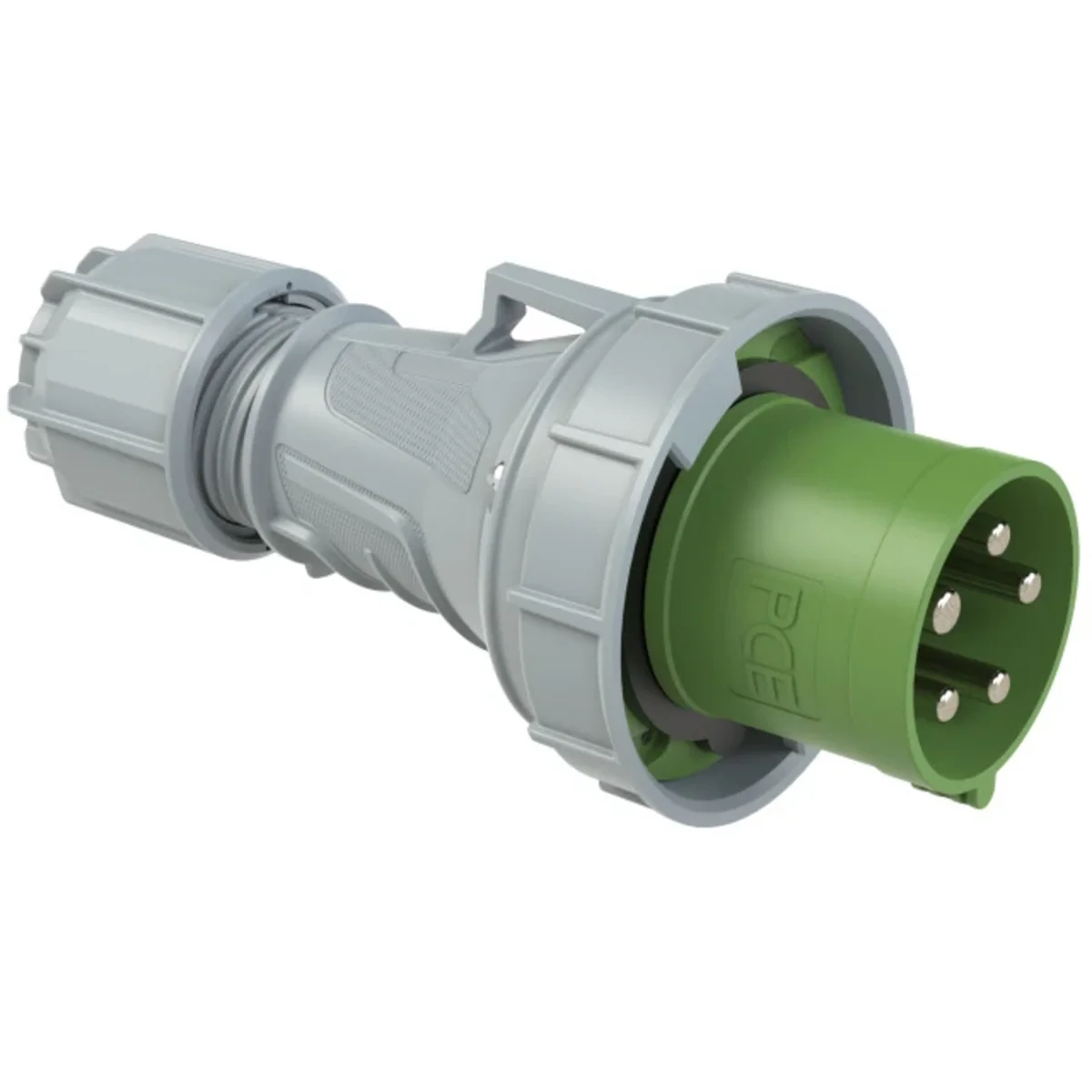

Portable plug POWER TWIST 63A 3P+Z+N >50-500V 301-500Hz 2h IP66/67 035-2

Índice local:
MKP254PCEQ
Número de catálogo:
035-2
Código EAN:
9003399046612
Fabricante: PCE
Precio:
148,12 zł
gross / uds.
(IVA incluido 23%)
Fuera de stock
Por encargo
Añadir a solicitud de presupuesto
Imprimir

Datos técnicos

Otros datos técnicos

  • IEC-amperage
    63 A
  • Voltage according to EN 60309-2
    50-500 V (>300-500 Hz) green
  • Identification colour
    Green
  • Degree of protection (IP)
    IP67
  • Cable entry
    Gland nut
  • Material
    Plastic
  • Surface treatment contacts
    Nickel-plated
  • Number of poles
    5
  • Clock hour position
    2 h
  • RAL-number
    7046
  • Connection system
    Screwed terminal
  • Insert direction
    Straight
  • Contact material
    CuZn
