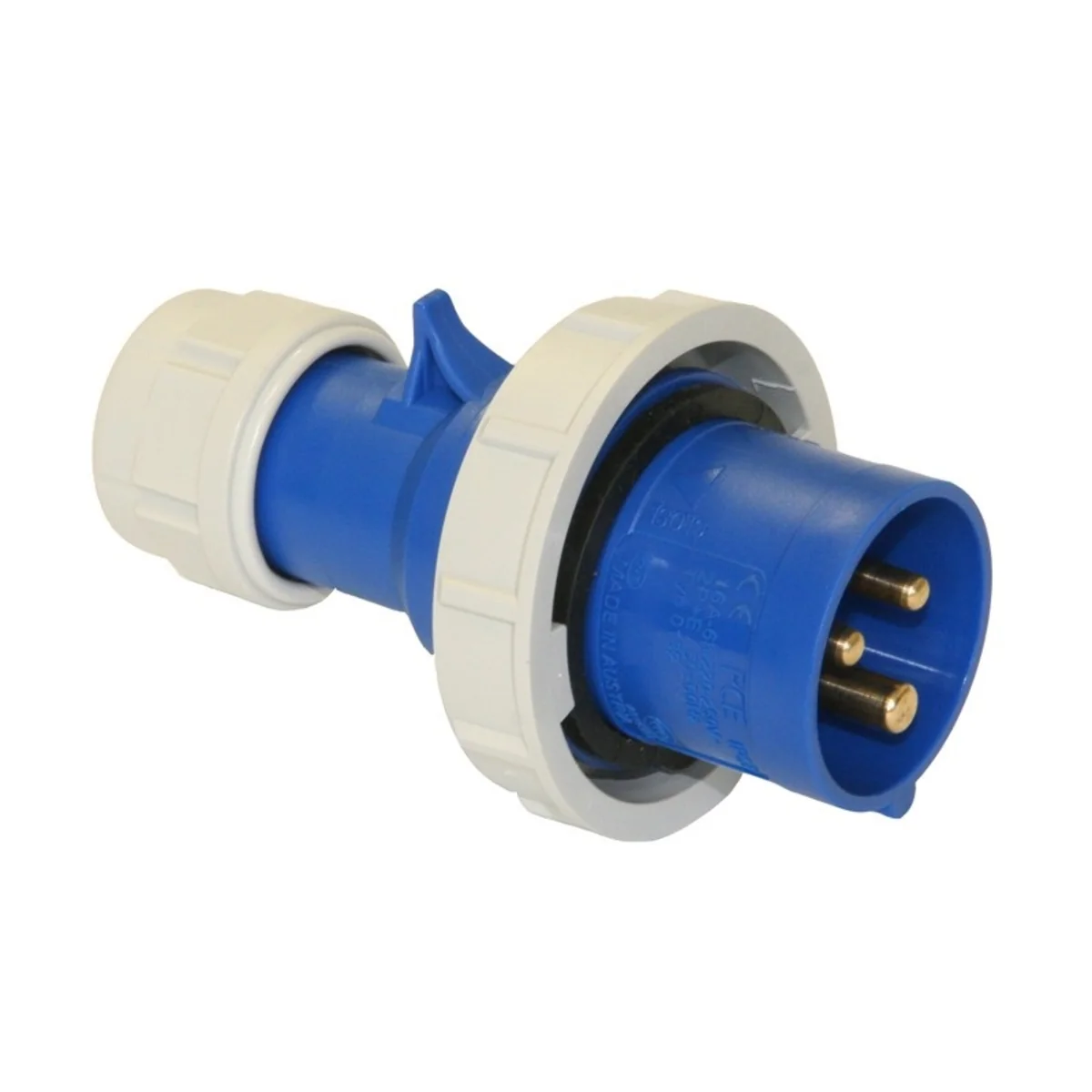

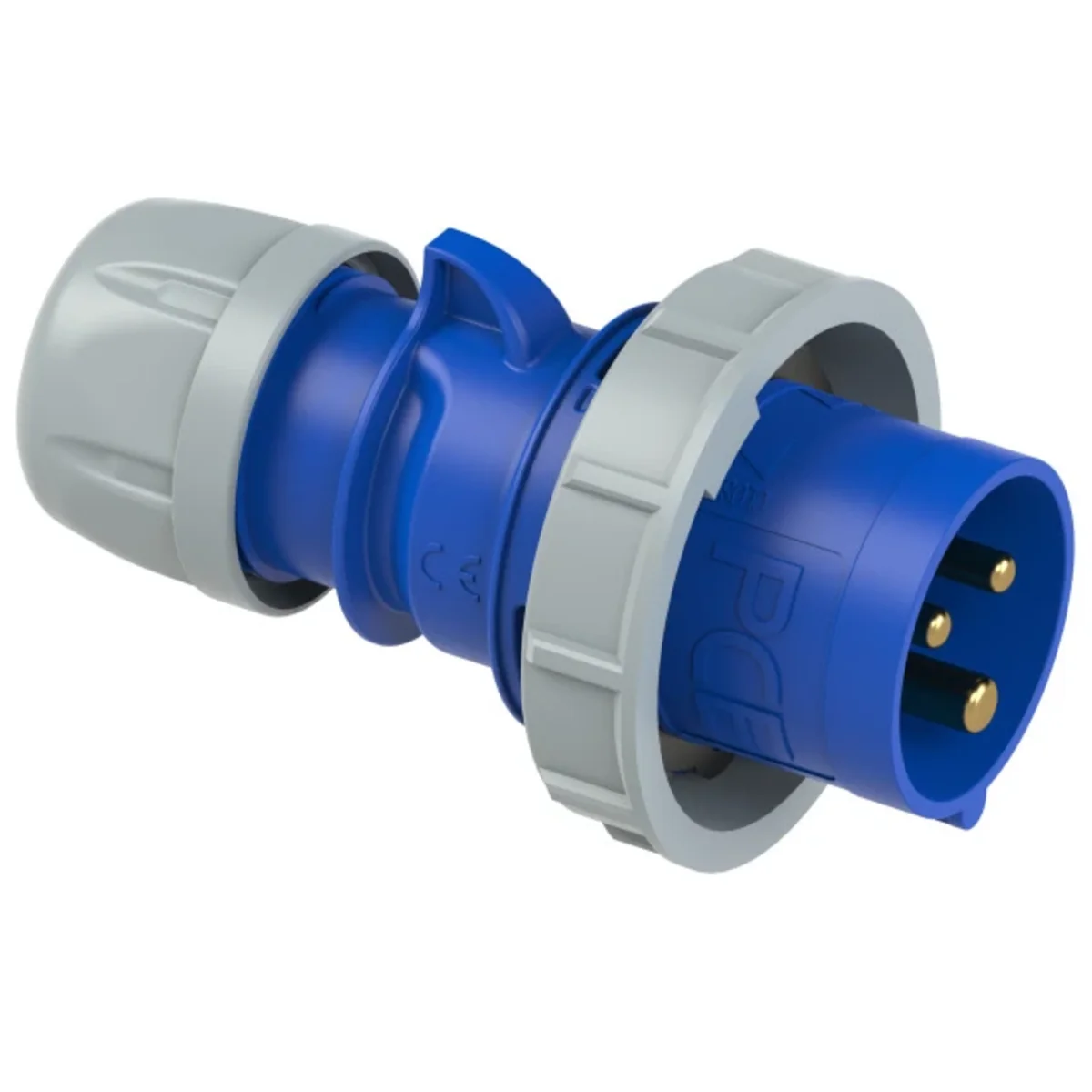

Portable plug IP67 32A 230V 2P+E 0232-6
local index:
MKP058PCEQ
Catalog No:
0232-6
EAN code:
9003399136245
Price:
47,12 zł
gross / pcs.
(including VAT 23%)
216,15 zł gross/kg.
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Portable plug, watertight, made of PA6 plastic.
Technical data
-
Rated frequency [Hz]50/60
-
Number of contacts3
-
Rated current [A]32
-
Clamping force [Ncm]110
-
Cable diameter [mm]11.5-20
-
Weight [g]218
-
Length [mm]146
-
Rated voltage [V]230
-
Hose [mm²]2.5-6
-
Width [mm]93
-
Connection typeScrewless terminals
-
PKWIU27.33.13.0
Other technical data
-
IEC-amperage32 A
-
Voltage according to EN 60309-2230 V (50+60 Hz) blue
-
Identification colourBlue
-
Connection systemScrewed terminal
-
Insert directionStraight
-
Contact materialCuZn
-
Number of poles3
-
Clock hour position6 h
-
Degree of protection (IP)IP67
-
Cable entryGland nut
-
MaterialPlastic
-
Surface treatment contactsUntreated
Manufacturer details
-
ManufacturerPCE Polska Sp. z o.o.
-
Address58-200 Dzierżoniów Podwalna 8A Polska
-
