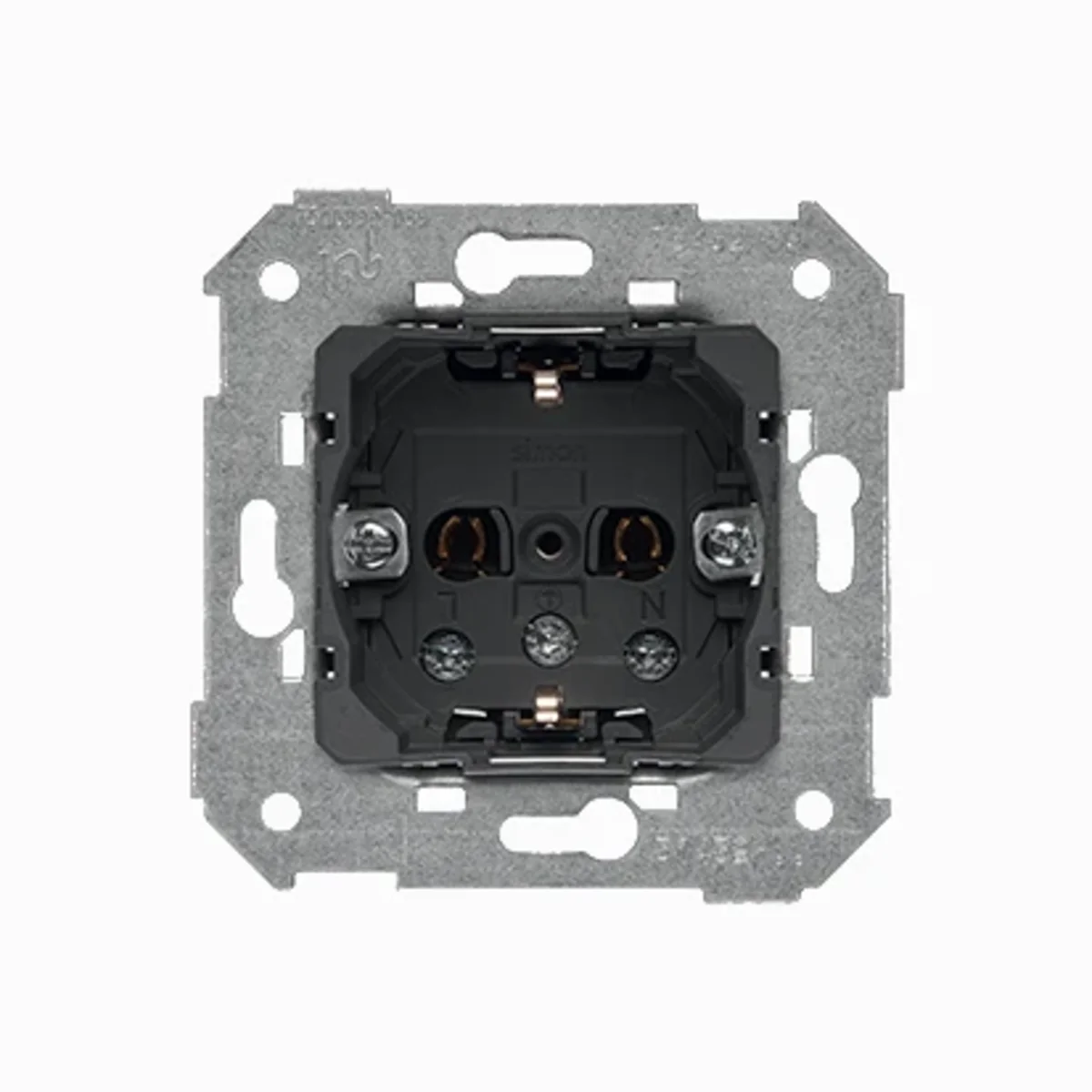

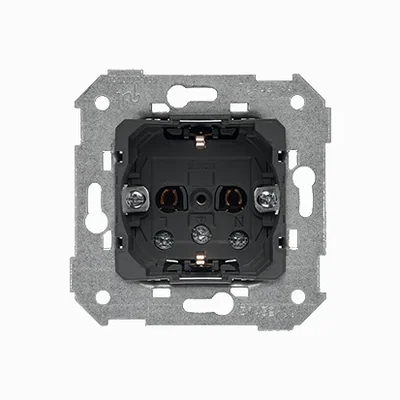

Plug socket with grounding type schuko quick connectors 75464-39
local index:
MJE006KONT
Catalog No:
75464-39
EAN code:
8421053041710
Price:
5,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product part number is 75464-39.
FEATURES
- Single socket.
- With SCHUKO grounding.
- Quick connectors.
- Rated current 16 A.
- Rated voltage 230V.
- Ingress protection IP20/IP44.
Technical data
-
Depth [mm]40
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeSocket mechanism
-
Height [mm]75
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsNO
-
For the frame systemYes
-
Number of sockets1
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 82
-
Width [mm]75
-
Groundschuko
-
Surface protectionNatural
-
Mounting depth [mm]33
-
StandardEuropean
-
On the DATA keyNO
-
PKWIU27.33.13.0
Other technical data
-
MaterialMetal
-
Surface finishingNie dotyczy
-
Surface protectionUntreated
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,069 | 0,069 | 0,764 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,040 | 0,160 | 0,100 |
