KONTAKT-SIMON

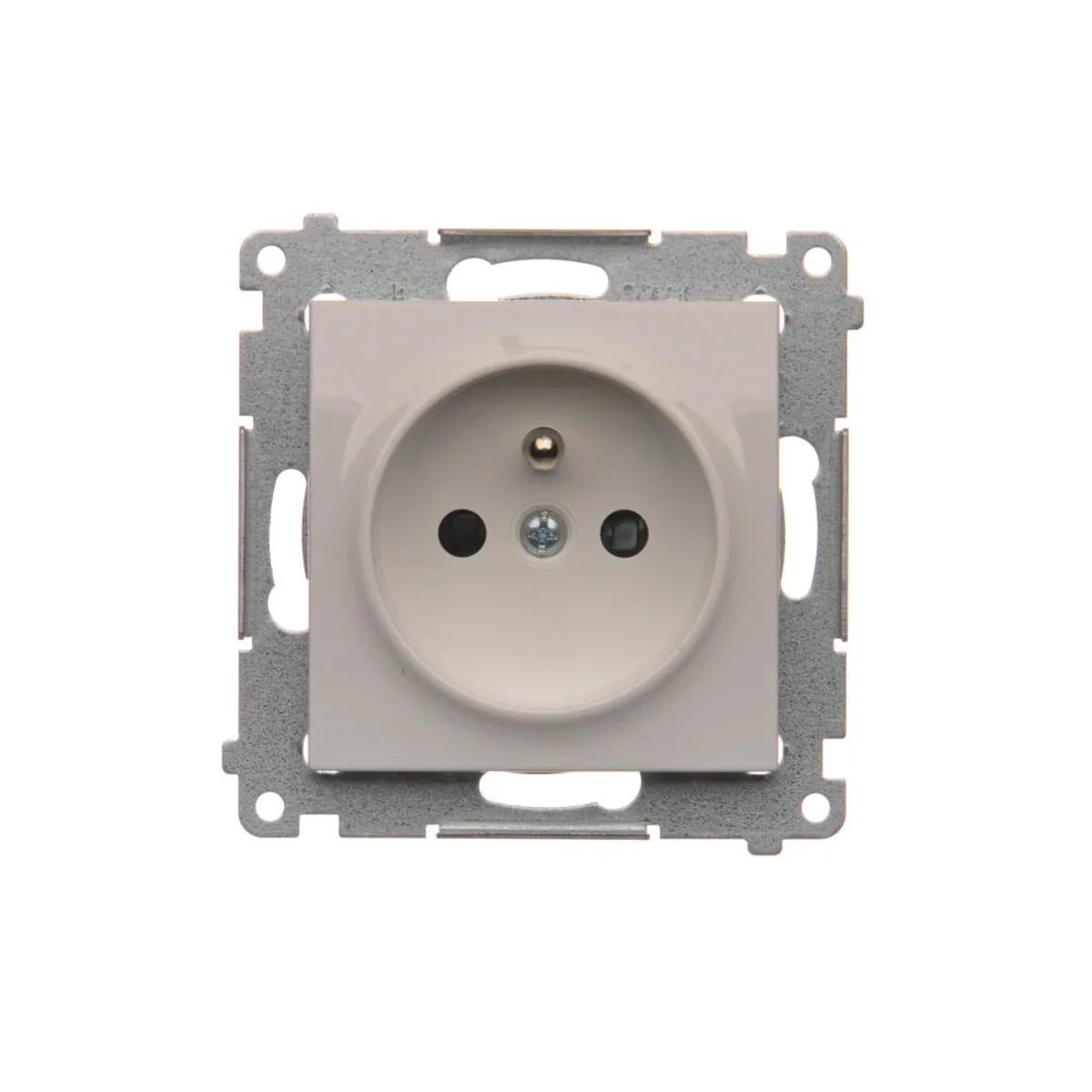

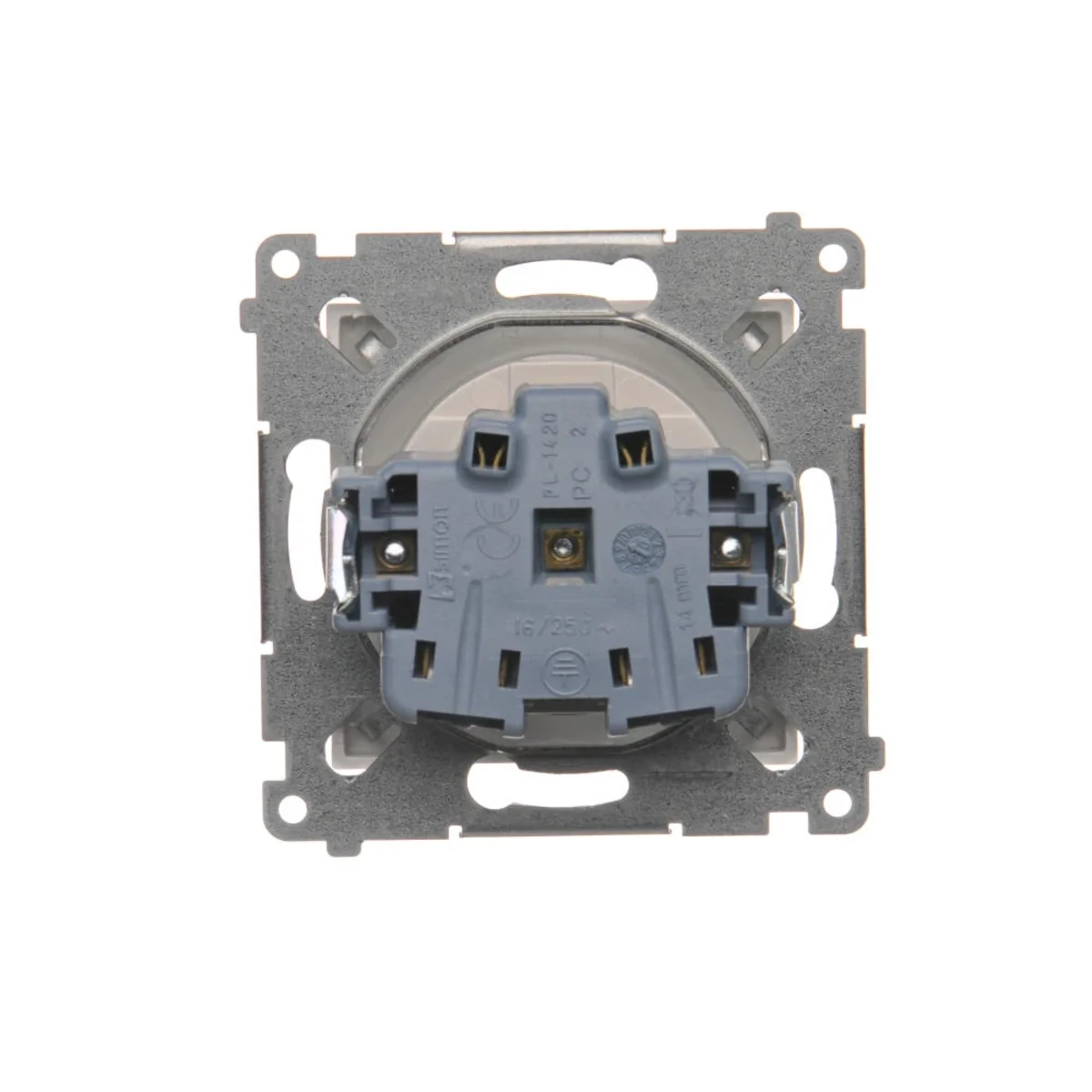

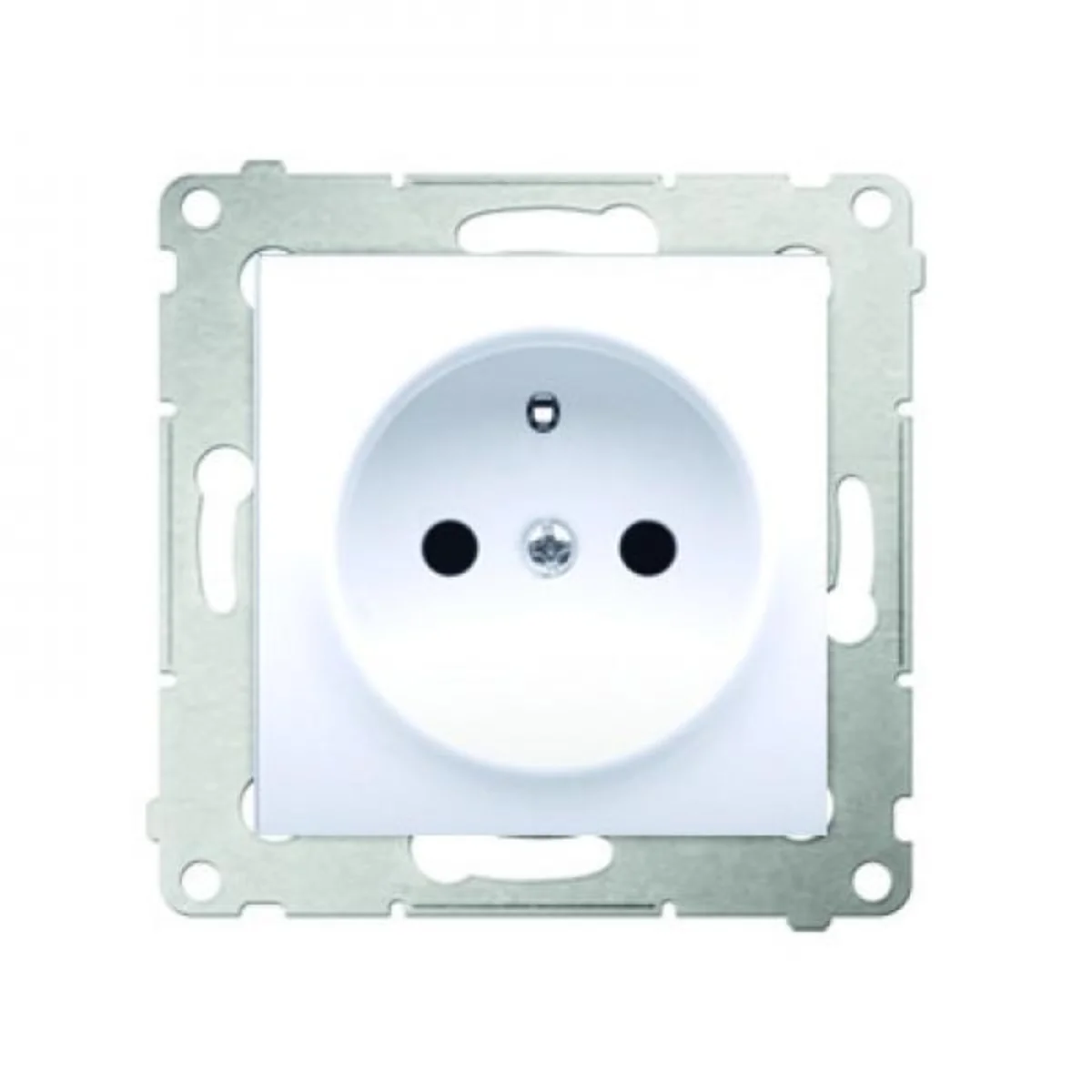

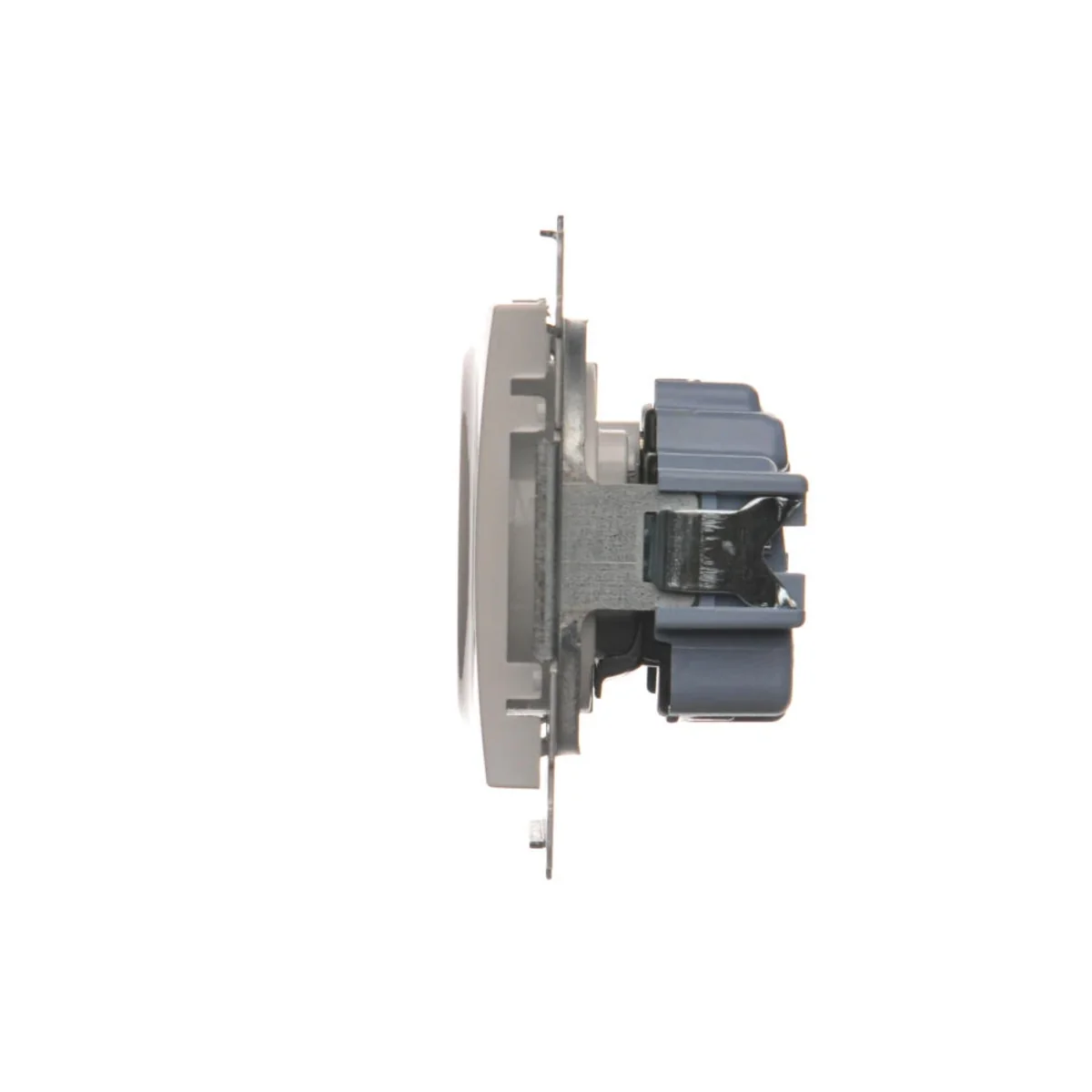

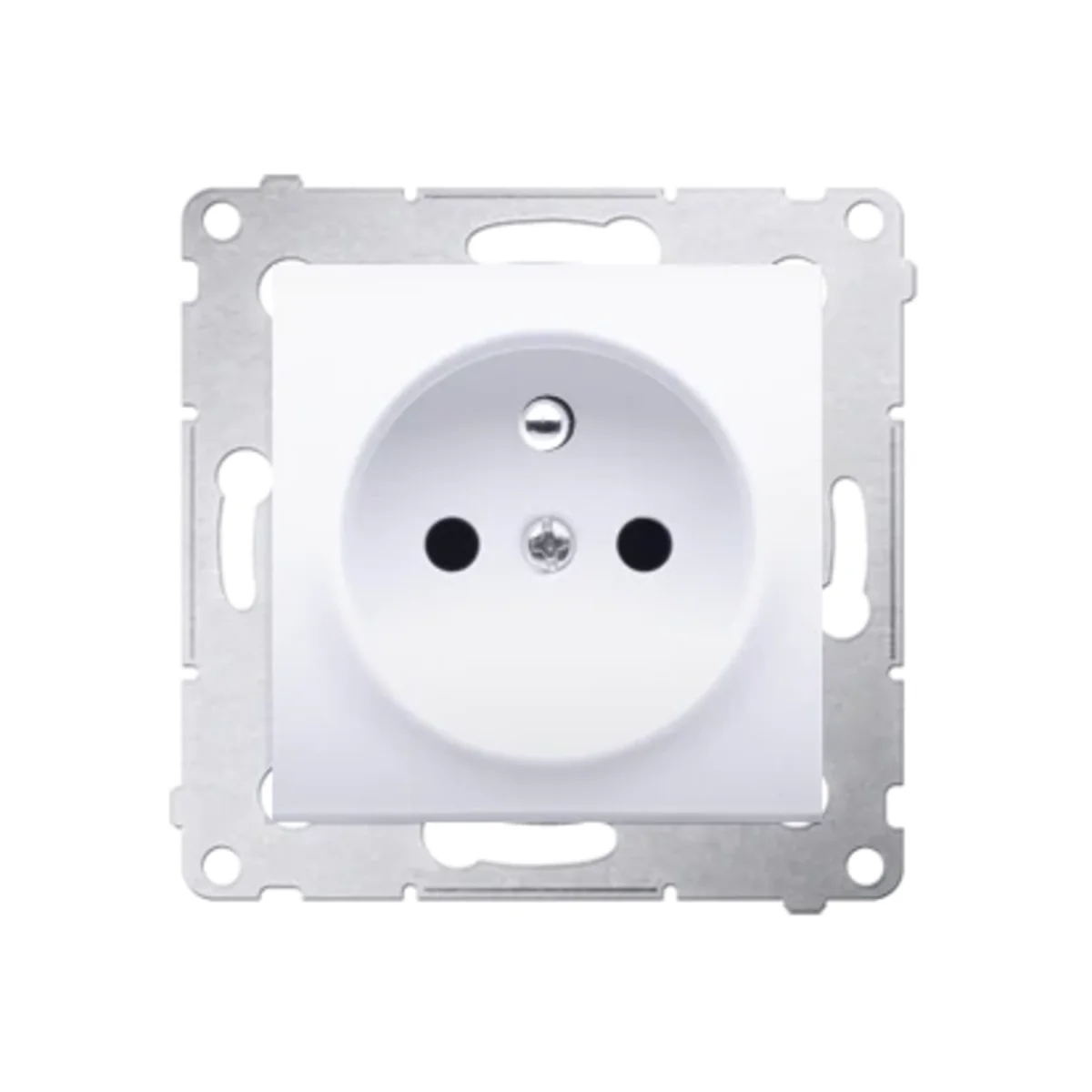

Plug socket with earthing and shutters (module) 16A 250V white quick connectors DGZ1CZ.01/11

local index:
MEE321KONT
Catalog No:
DGZ1CZ.01/11
EAN code:
5902787823764
Price:
5,22 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGZ1CZ.01/11.



FEATURES

  • Single.
  • With grounding, grounding pin.
  • With shutters for current paths.
  • Module without frame ; for frames from the Nature and Premium series.
  • Quick connectors.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flushmount.
  • Dimensions: 75 x 75 mm (height x width).
  • Material PC.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    29
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    40
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    75
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes

Other technical data

  • Number of units
    1
  • Colour
    White
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Connection type
    Push-in clamp
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz
