Plug socket with earthing and shutters (module) 16A 250V bronze matt (metallic) DGZ1Z.01/46

Name: Plug socket with earthing and shutters (module) 16A 250V bronze matt (metallic)
Brand: KONTAKT-SIMON
SKU: MEE329KONT
Price: 7.01 PLN

local index:

MEE329KONT

Catalog No:

DGZ1Z.01/46

EAN code:

5902787832513

Plug socket with earthing and shutters (module) 16A 250V bronze matt (metallic)

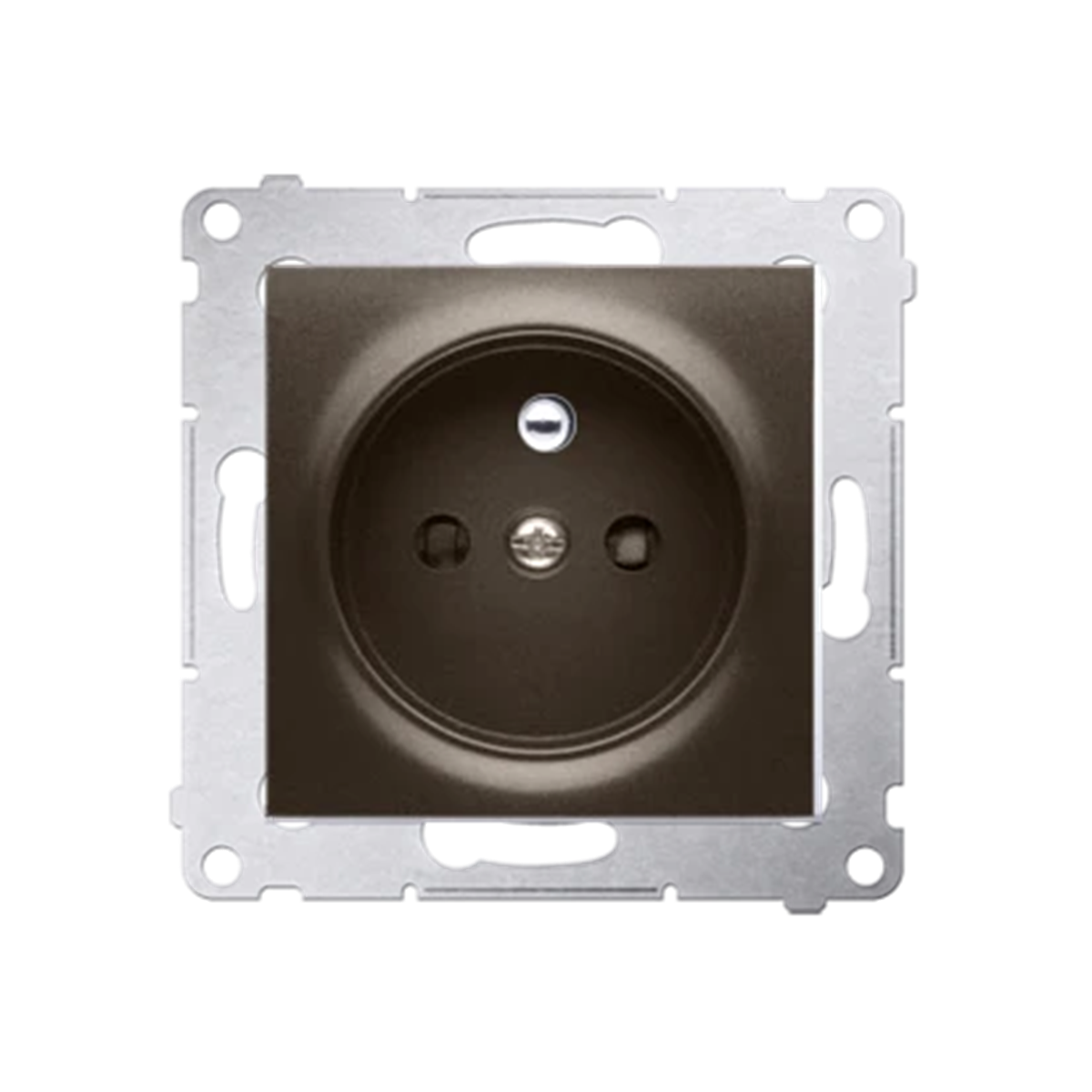

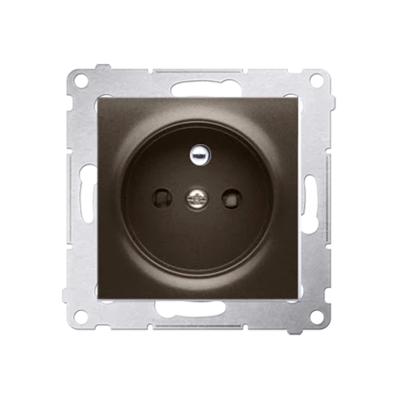

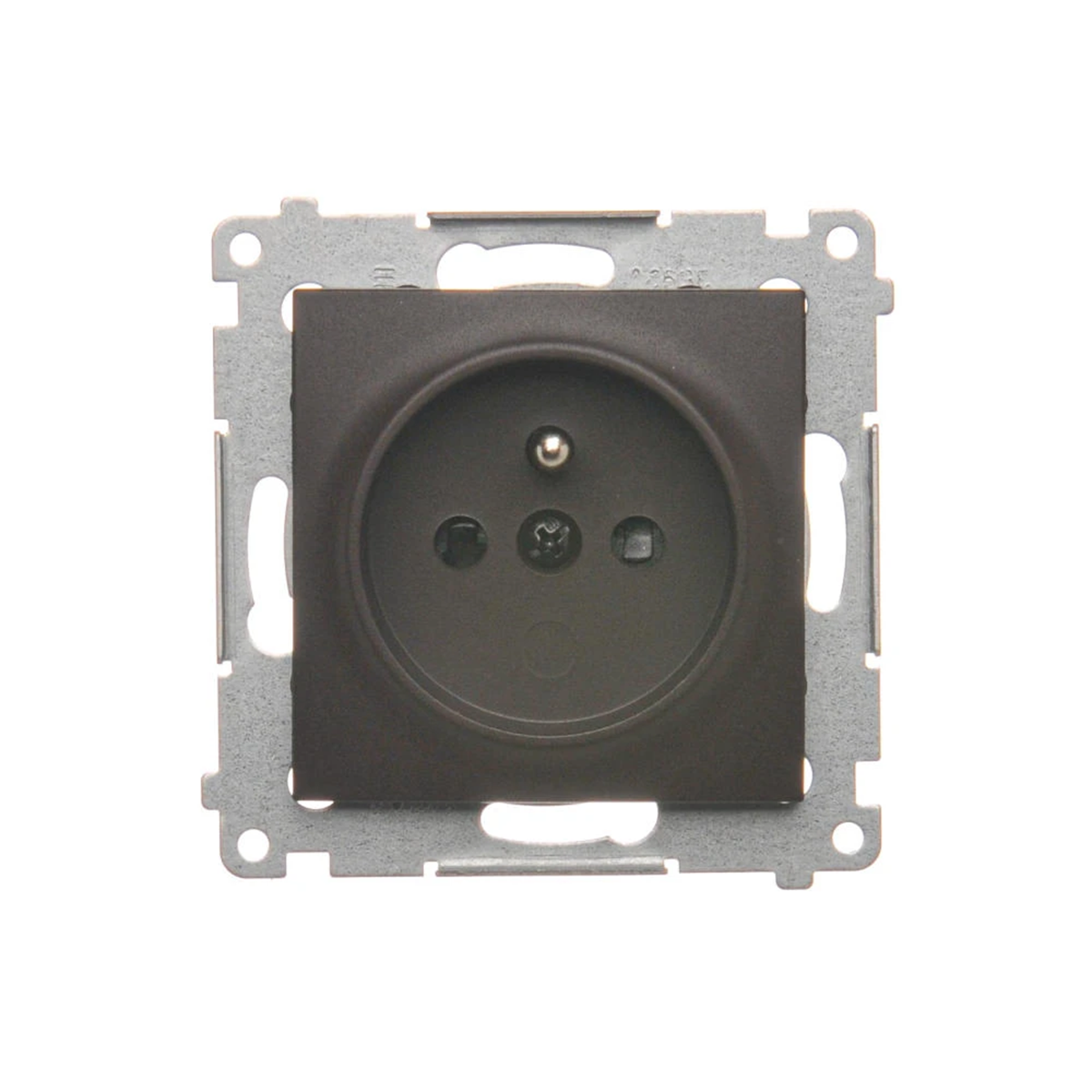

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 40

Number of sockets: 1

See full description

Price:

7,01 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGZ1Z.01/46.

FEATURES

Single.
With grounding, grounding pin.
With shutters for current paths.
Module without frame ; for frames from the Nature and Premium series.
Screw clamps.
Colour bronze matt, metallized.
Rated current 16A.
Rated voltage 230V.
Ingress protection IP20.
flushmount.
Dimensions: 75 x 75 mm (height x width).
Material PC.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation accessories based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

40
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Ground

Hurt
Surface protection

varnishing
Accurate color

Metallic bronze matt
Mounting depth [mm]

29
Standard

European
On the DATA key

NO
Exact material

PC

Other technical data

Number of units

1
Colour

Brown
Material

Plastic
Surface protection

Lacquered
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 60 Hz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,075	0,075	0,839
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,046	0,230
Depth (m)	0,040	0,160	0,100
