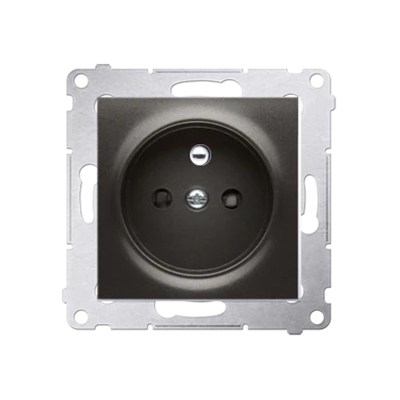

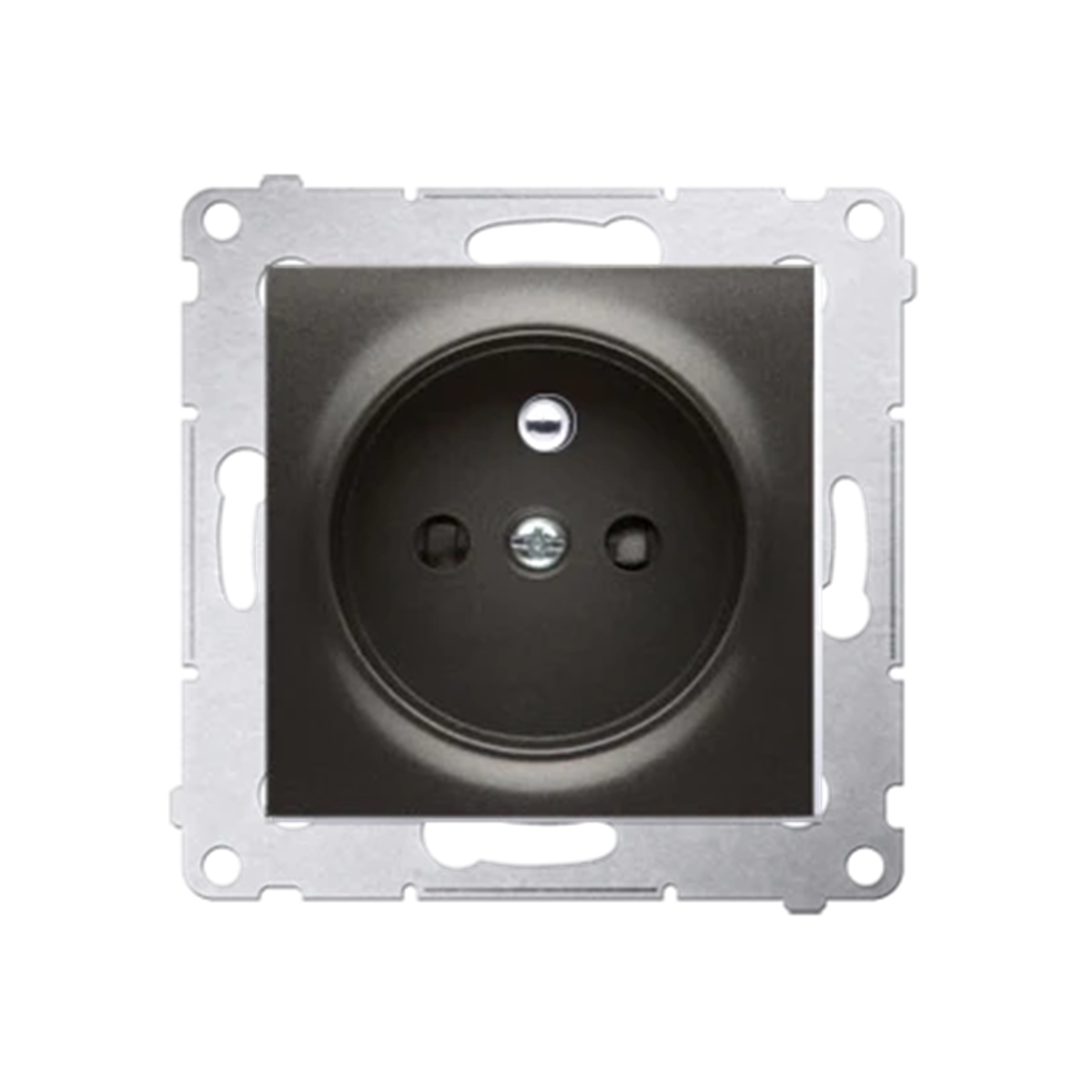

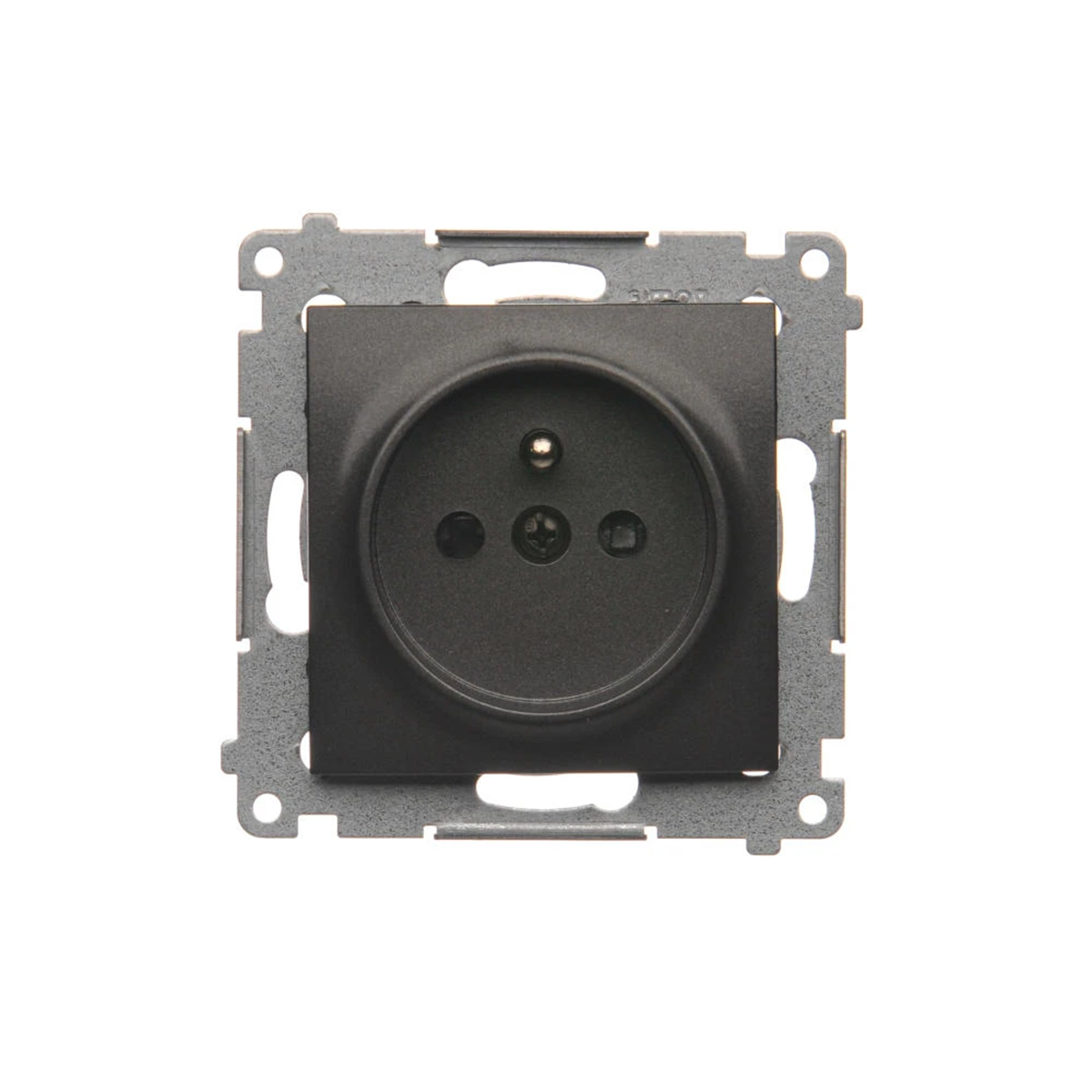

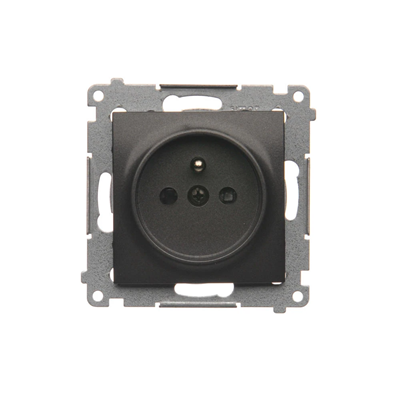

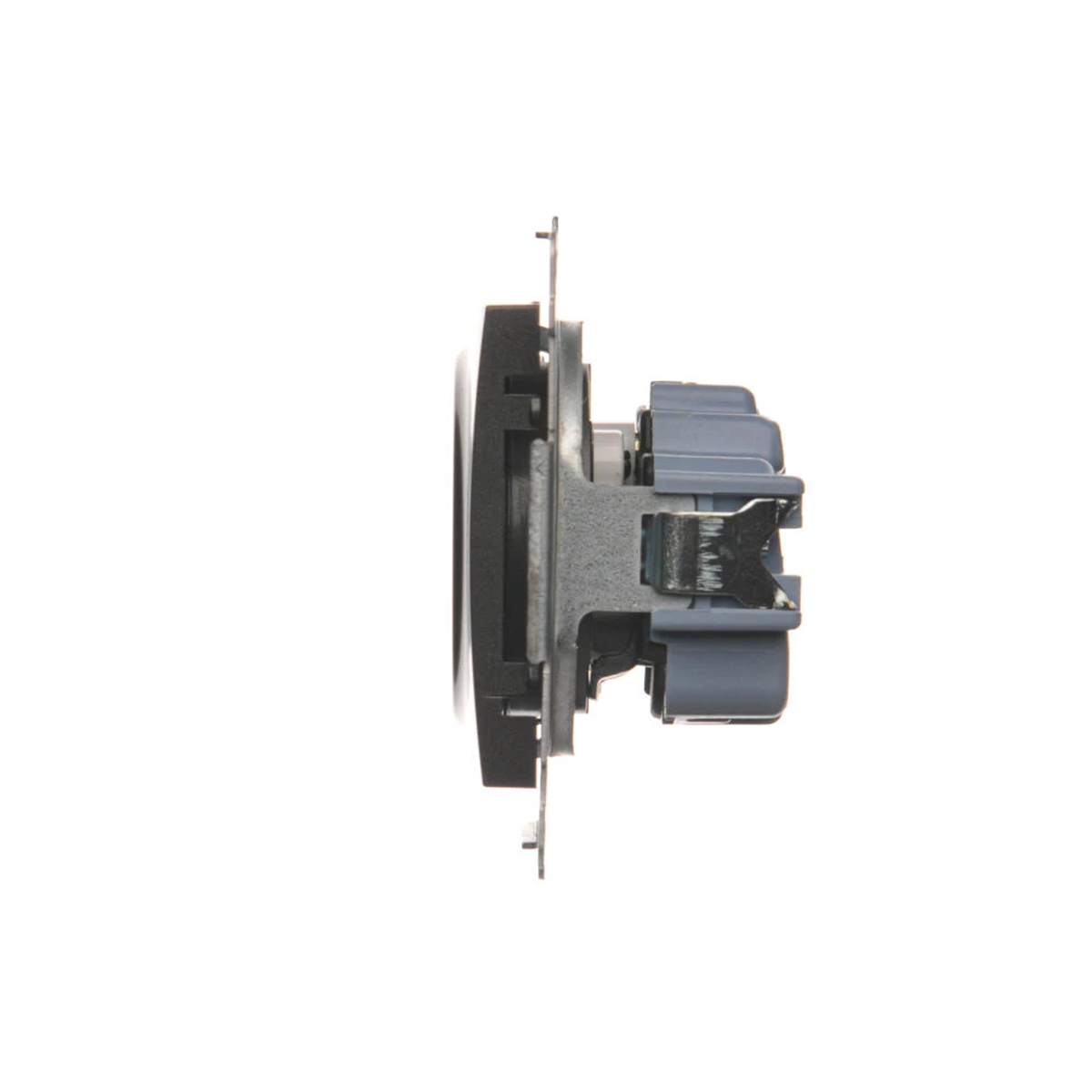

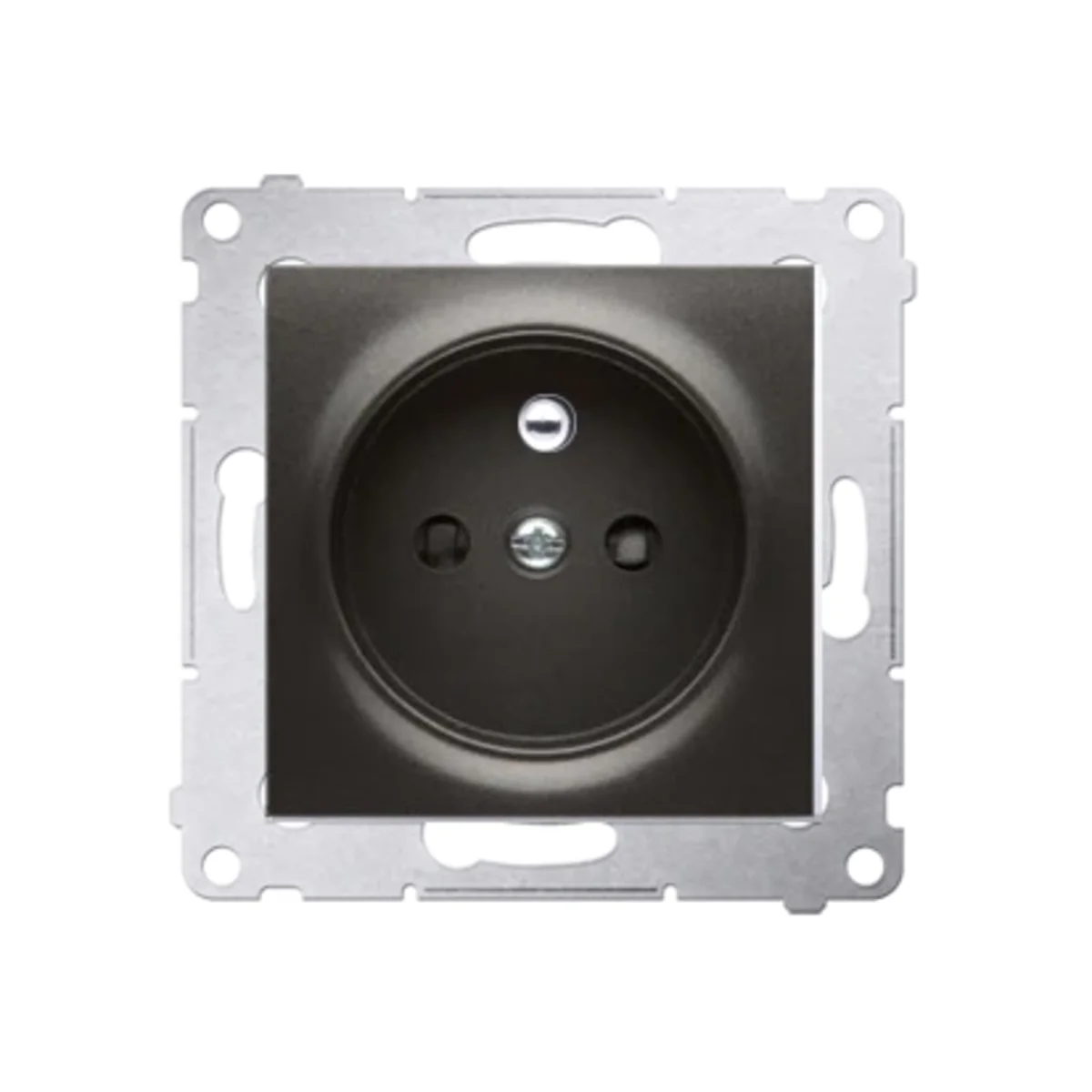

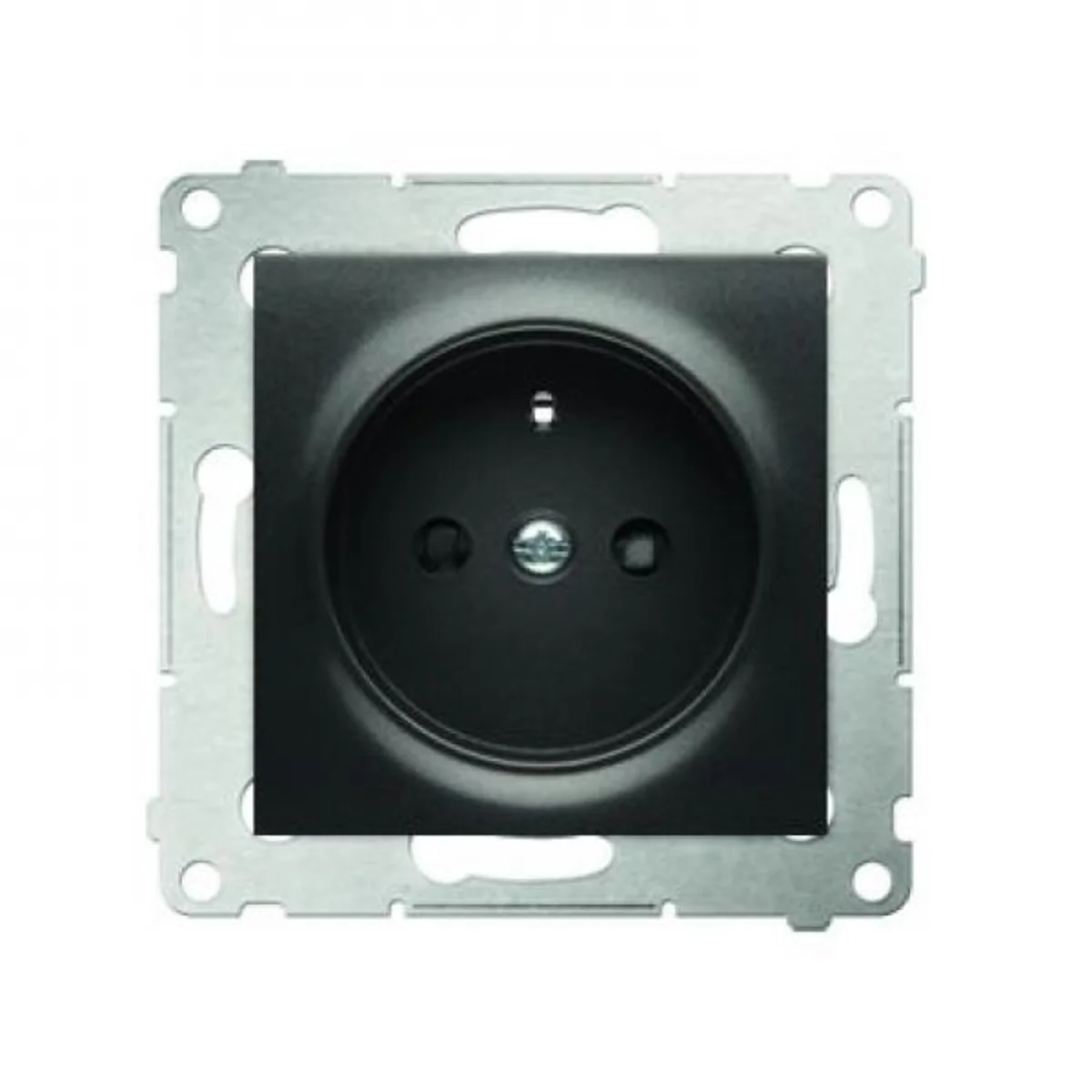

Plug socket with earthing and shutters (module) 16A 230V quick connectors anthracite (metallic) DGZ1CZ.01/48
local index:
MEE009KONT
Catalog No:
DGZ1CZ.01/48
EAN code:
5902787823801
Price:
7,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGZ1CZ.01/48.
FEATURES
- Single.
- With grounding, grounding pin.
- With shutters for current paths.
- Module without frame ; for frames from the Nature and Premium series.

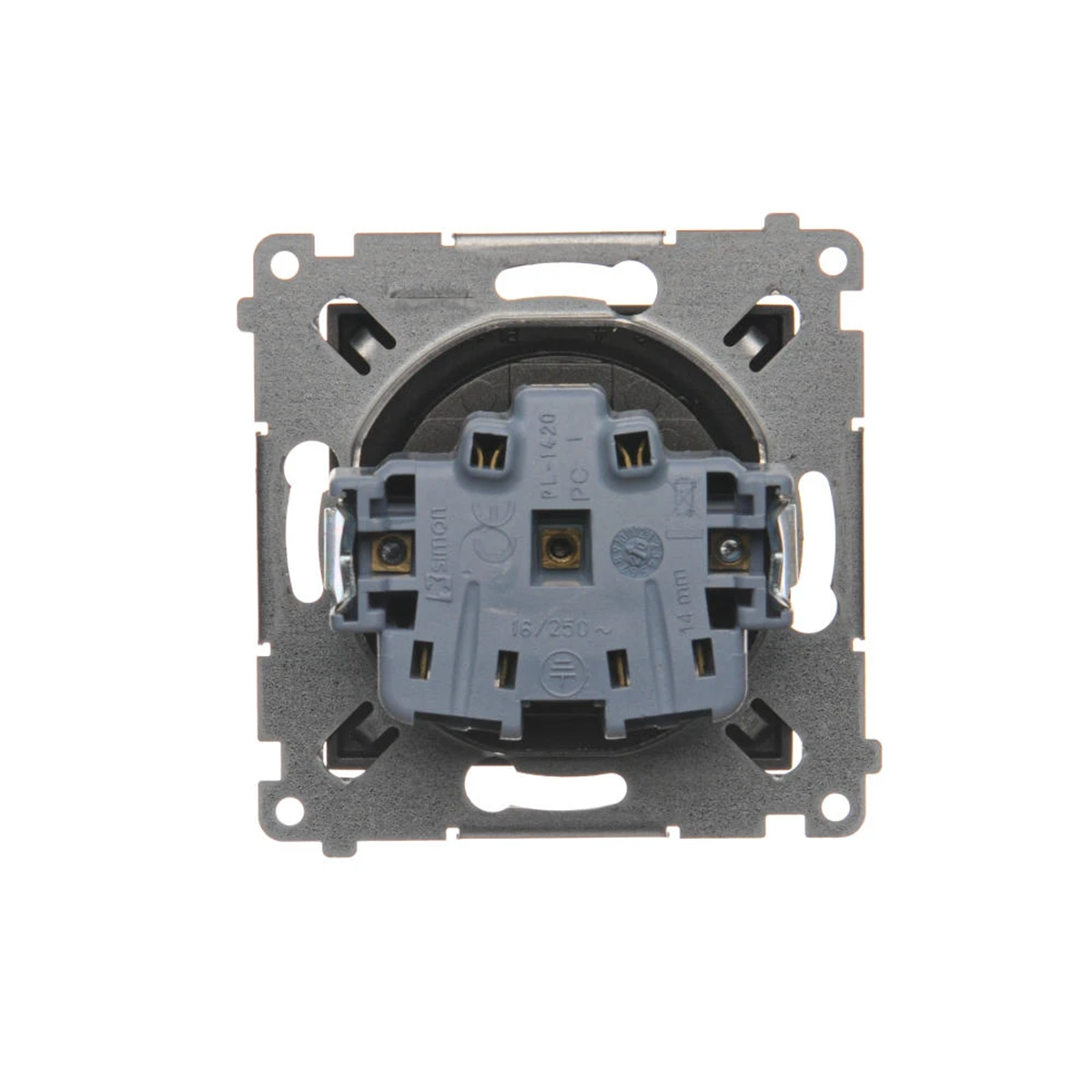

- Quick connectors.
- Colour anthracite, metallic. < li>Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.< /li>
- flushmount.
- Dimensions: 75 x 75 mm (height x width).
- Material PC< /strong>.
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new , reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]75
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Depth [mm]40
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
Width [mm]75
-
GroundHurt
-
Surface protectionvarnishing
-
Accurate colorMetallized anthracite
-
Mounting depth [mm]29
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
Other technical data
-
Number of units1
-
ColourAnthracite
-
MaterialPlastic
-
Surface protectionLacquered
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Connection typePush-in clamp
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Frequency50 ... 60 Hz
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,075 | 0,075 | 0,839 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,046 | 0,230 |
| Depth (m) | 0,040 | 0,160 | 0,100 |
