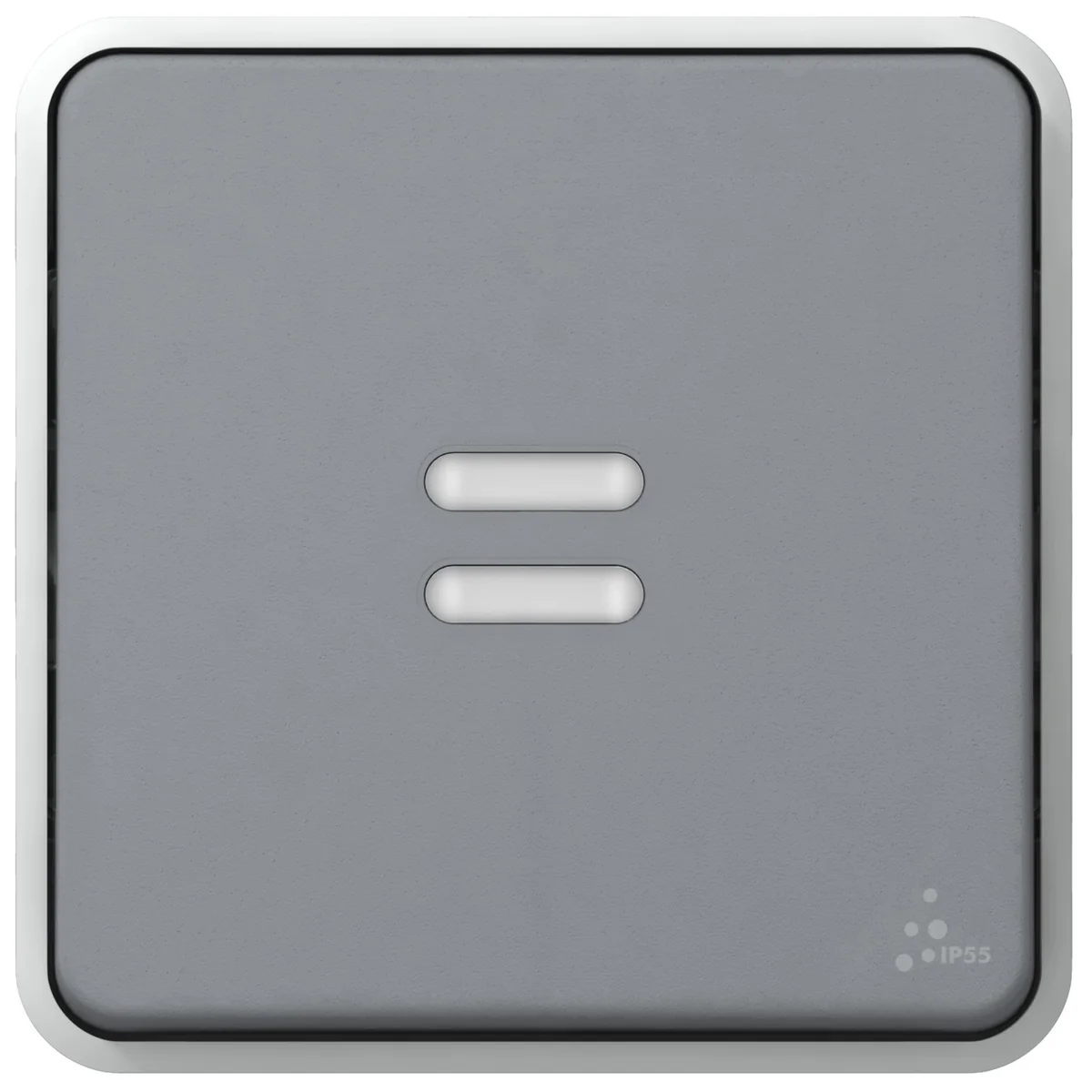

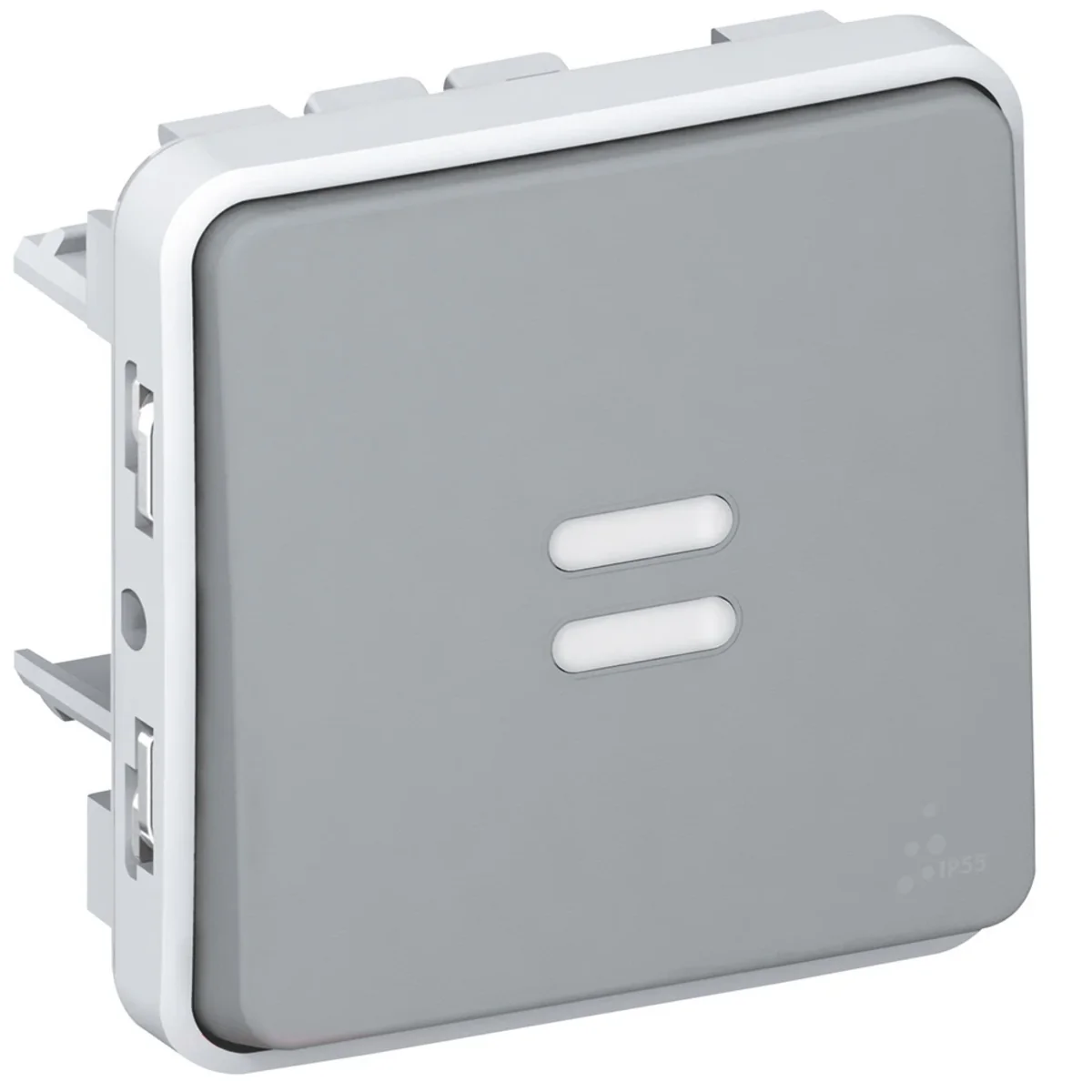

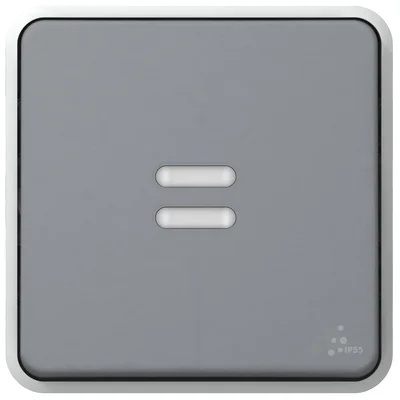

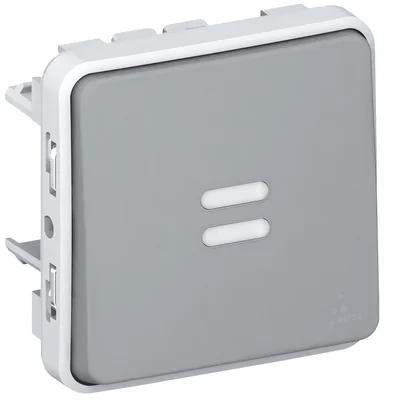

Name: PLEXO Stair switch with backlight grey
Brand: LEGRAND
SKU: MMS055LEGR
Price: 7.69 PLN
Availability: InStock

1. 7,69 € gross / pcs.

2. Last lowest price: 22,44 €

3. Base price: 24,61 € -69%

1. How much does this product cost today

2. Lowest price in the last 30 days

3. The base price of the product

Universal illuminated switch from the PLEXO55 series, from the manufacturer Legrand. The product catalog number is 069513.

FEATURES

Mechanism complete with key.
Single-pole.
To be fitted with a plug-in box or flush-mounted handle.
Compatible with fluorescent lamps.

SERIES DESCRIPTION

Products from the PLEXO series in the IP55 version are solutions for flush-mounted and surface-mounted installations. The stair switch are characterized by features of this unique series.

Depth [mm]

40
Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

stairs
Level of security

IP55
Type

Recessed Surface-mounted
Degree of mechanical protection

IK07
For the frame system

Yes
PKWIU

27.33.11.0

Number of keys

1
Shape

Square
Installation

Recessed Surface-mounted
Rated current [A]

10
Family

PLEXO55
Width [mm]

64
Height [mm]

64
Backlight

Yes
Exact material

ABS

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Basic element with central cover plate
Number of rockers

1
Type of fastening

Other
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7046
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Other
Device width

64 mm
Device depth

40 mm
Min. depth of built-in installation box

30 mm

Method of operation

Rocker/button
Push button switch

No
Mounting method

Other
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP55
Rated current

10 A
Feedback-signal contact

No
Washing machine switch

No
Device height

64 mm
Built-in depth

40 mm

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

A kind of package	Pudełko	Karton	Paleta
Quantity	5 pcs.	100 pcs.	2000 pcs.
Weight (kg)	0,342	7,140	142,800
Volume (m3)	0,000	0,000	0,001
Width (m)	0,070	0,274	1,200
Length (m)	0,052	0,301	0,765
Depth (m)	0,356	0,370	1,000
