Plate for UAE double (telephone, computer) connection socket aluminum mat 14091404

Name: Plate for UAE double (telephone, computer) connection socket aluminum mat
Brand: BERKER
SKU: MAP440BERK
Price: 3.17 PLN
Availability: InStock

local index:

MAP440BERK

Catalog No:

14091404

EAN code:

4011334222149

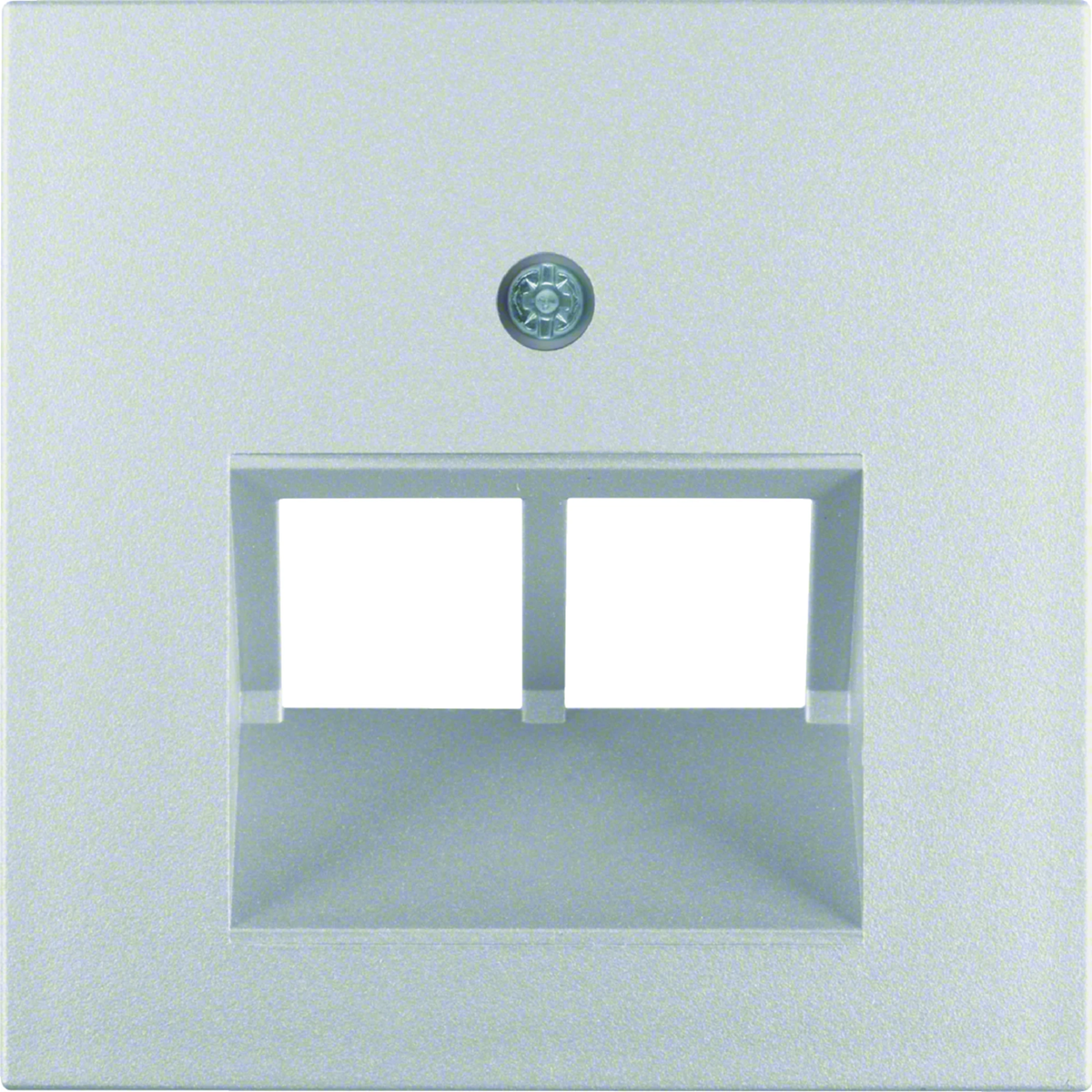

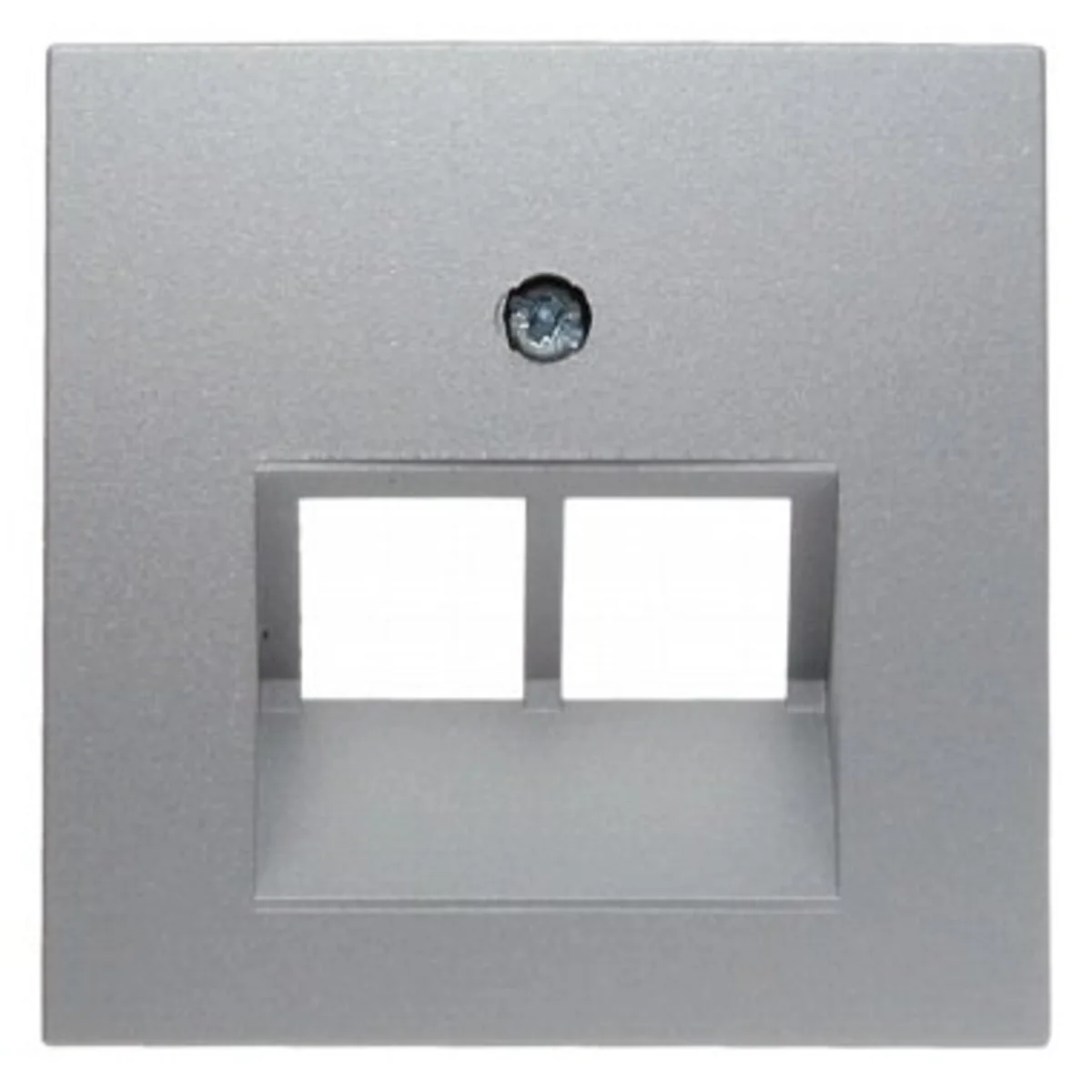

Plate for UAE double (telephone, computer) connection socket aluminum mat

Click on the photo to enlarge

Manufacturer: BERKER

Number of holes: 2

Color: Silver

Shape: Square

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

3,17 €

gross / pcs.

(including VAT 23%)

The lowest price from 30 days before the reduction: 3,17 € gross

Base price: 8,03 € gross

Accessible 46 pcs.

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Central element for 2-gang UAE connection socket, series Serie 1930/Glas.

For order no. 4554 01, 53 4538, 53 4554, 53 4556
UAE connection sockets: BTR; rutenbeck; teleärtner; Telena
Cat. 3, cat. 5e and cat. 6
With an angle of inclination of the outlet 45°
For a single connection socket

Technical data

Number of holes

2
Shape

Square
Type

To the internet socket To the telephone socket
Level of security

IP20
Surface finish

matte
For modular equipment

Not applicable

Color

Silver
Material

Plastic
Family

B.SQUARE
Surface protection

varnishing
Accurate color

Aluminum
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Central cover plate
Support ring

No
With hinged lid

No
Imprintable label

Without indication field
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9006
Type of fastening

Mounting with screw
Suitable for number of connectors

2
Luster terminal

No
Device width

55 mm
Device depth

16.6 mm

Utilization

UAE/IAE (ISDN)
With dust cover

No
Outlet direction

Inclined
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Aluminium
Transparent

No
With buses/couplings

No
With strain relief

No
Suitable for degree of protection (IP)

IP20
Device height

55 mm
Min. depth of built-in installation box

0 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	300 pcs.	9600 pcs.
Weight (kg)	0,122	4,092	150,932
Width (m)	0,080	0,300	0,800
Length (m)	0,066	0,225	1,050
Depth (m)	0,125	0,400	1,200

Files to download

14091404.pdf
