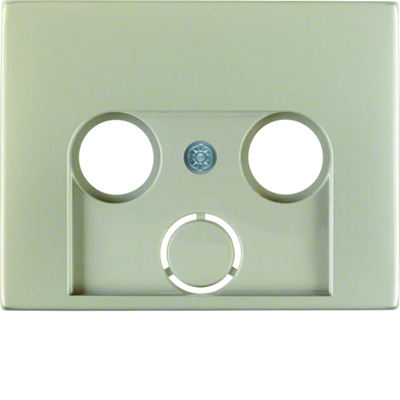

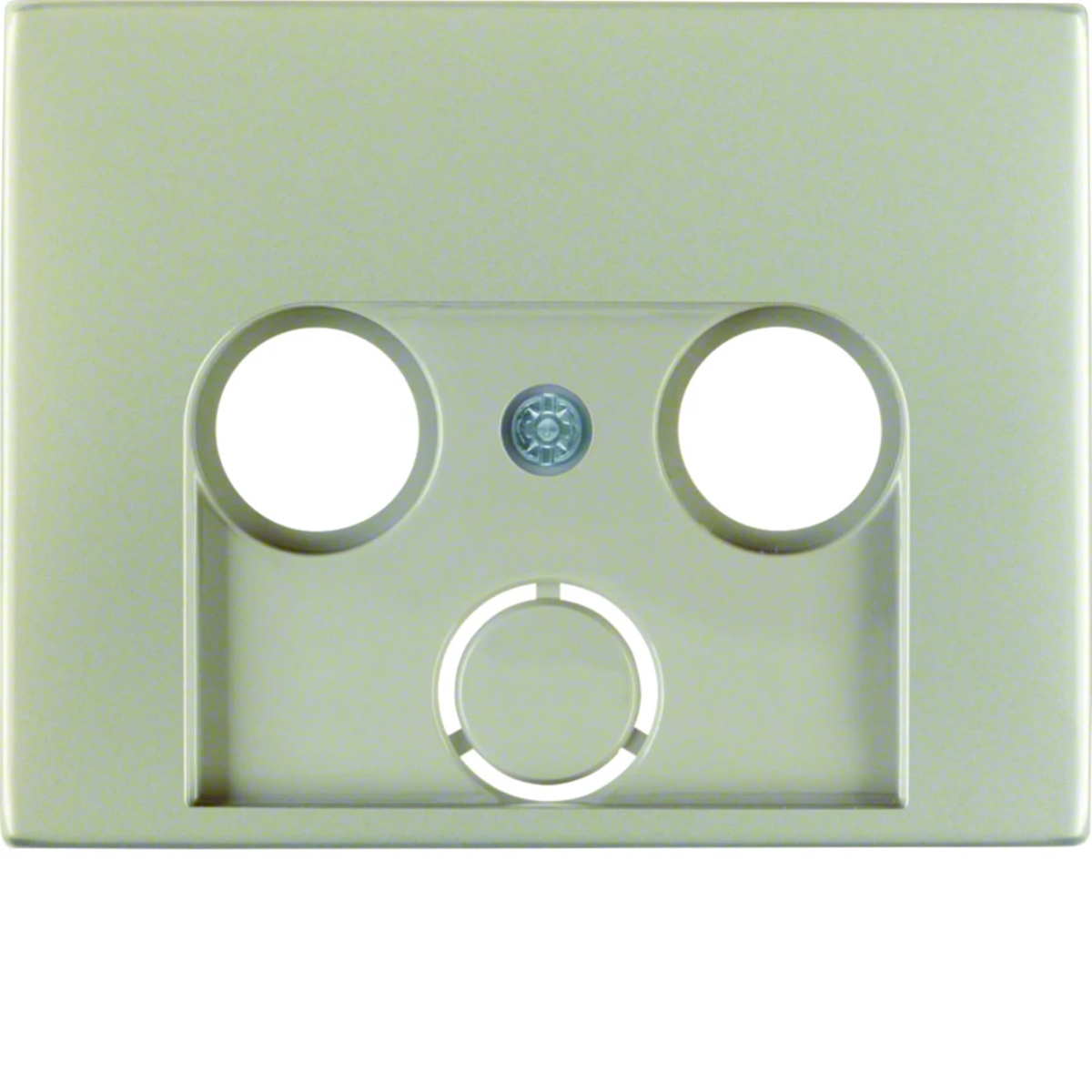

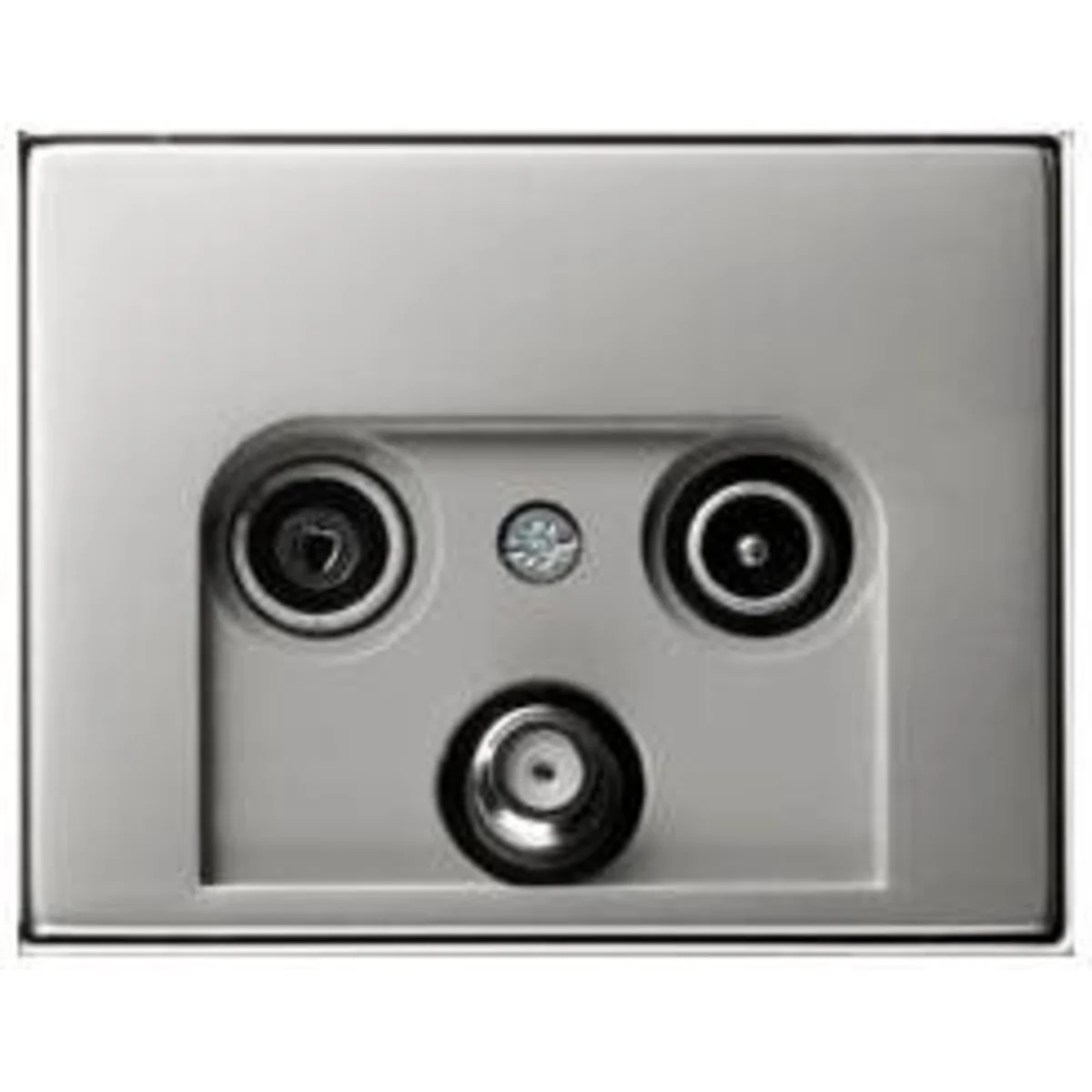

Plate for 2 and 3-output RTV antenna socket - Stainless steel 12017014

local index:
MAP419BERK
Catalog No:
12017014
EAN code:
4011334387398
Manufacturer: BERKER
Color: Silver
Shape: Rectangular
Material: Metal
Price:
15,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frontplate for 2- and 3-output antenna socket, K.5 series. Product catalog number is 12017014.

  • With the possibility of breaking out the SAT input cover.
  • For screw connection.
  • Without ring.



SERIES DESCRIPTION

Berker K.5 is a modern series made of high-quality metal, such as aluminum and stainless steel.

Technical data

  • Color
    Silver
  • Material
    Metal
  • Family
    K.5
  • Surface finish
    matte
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0
  • Shape
    Rectangular
  • Type
    To the antenna socket
  • Level of security
    IP20
  • Accurate color
    Stainless steel
  • Exact material
    stainless steel

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Stainless steel
  • Surface protection
    Other
  • Colour
    Stainless steel
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Other
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    3
  • Luster terminal
    No
  • Device width
    70.5 mm
  • Device depth
    7 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,025 0,272 8,592 294,931
Width (m) 0,056 0,080 0,300 0,800
Length (m) 0,007 0,066 0,225 1,050
Depth (m) 0,071 0,125 0,400 1,200
