Plate for 2 and 3-out antenna socket - WHITE VELVET 12036089

local index:
MAP435BERK
Catalog No:
12036089
EAN code:
4011334313878
Manufacturer: BERKER
Color: White
Shape: Square
Material: Plastic
Price:
3,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 39 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

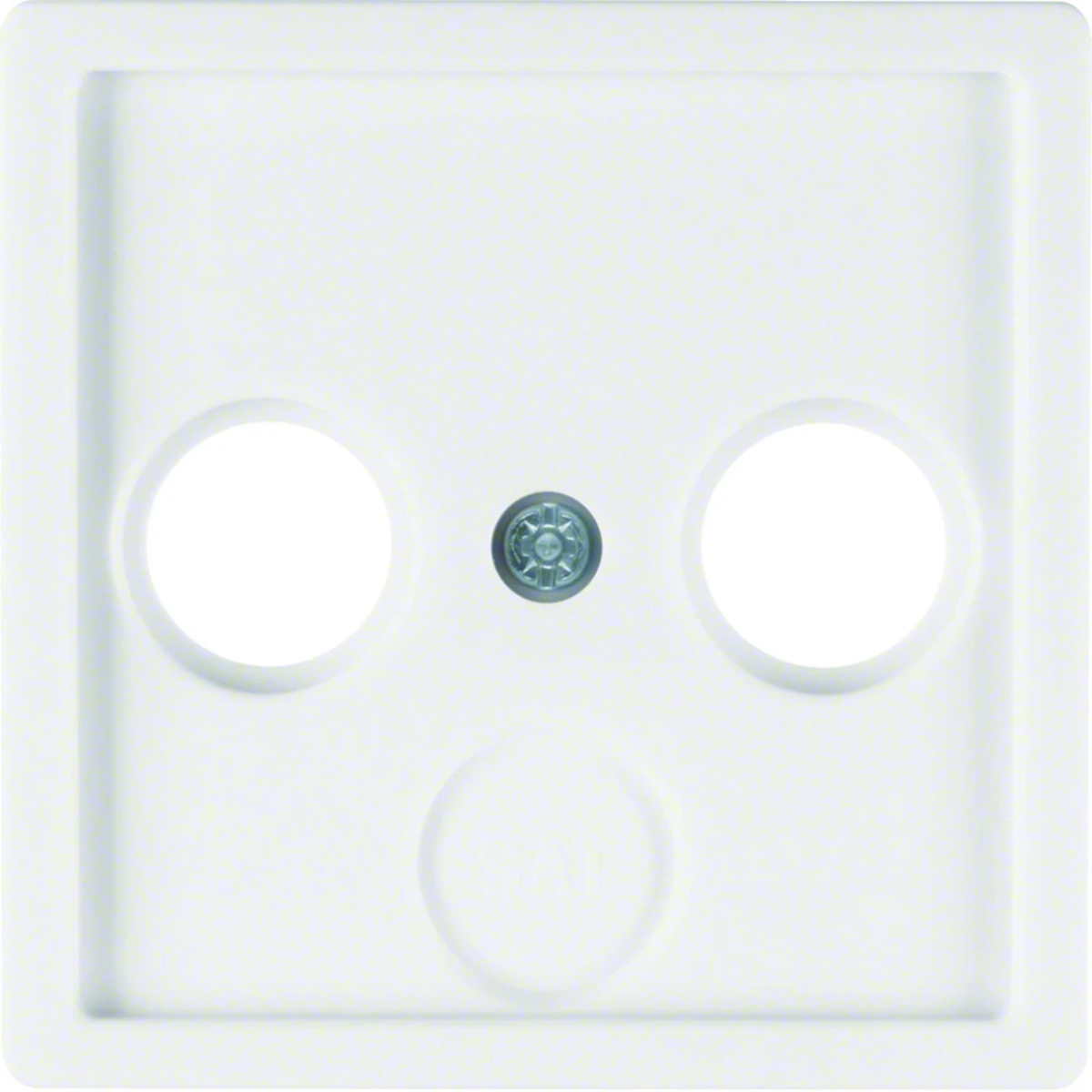

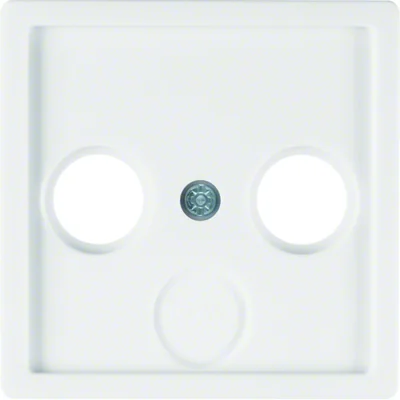

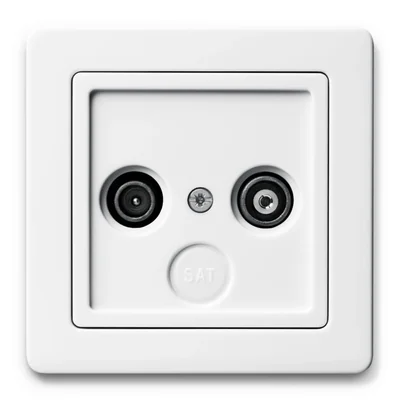

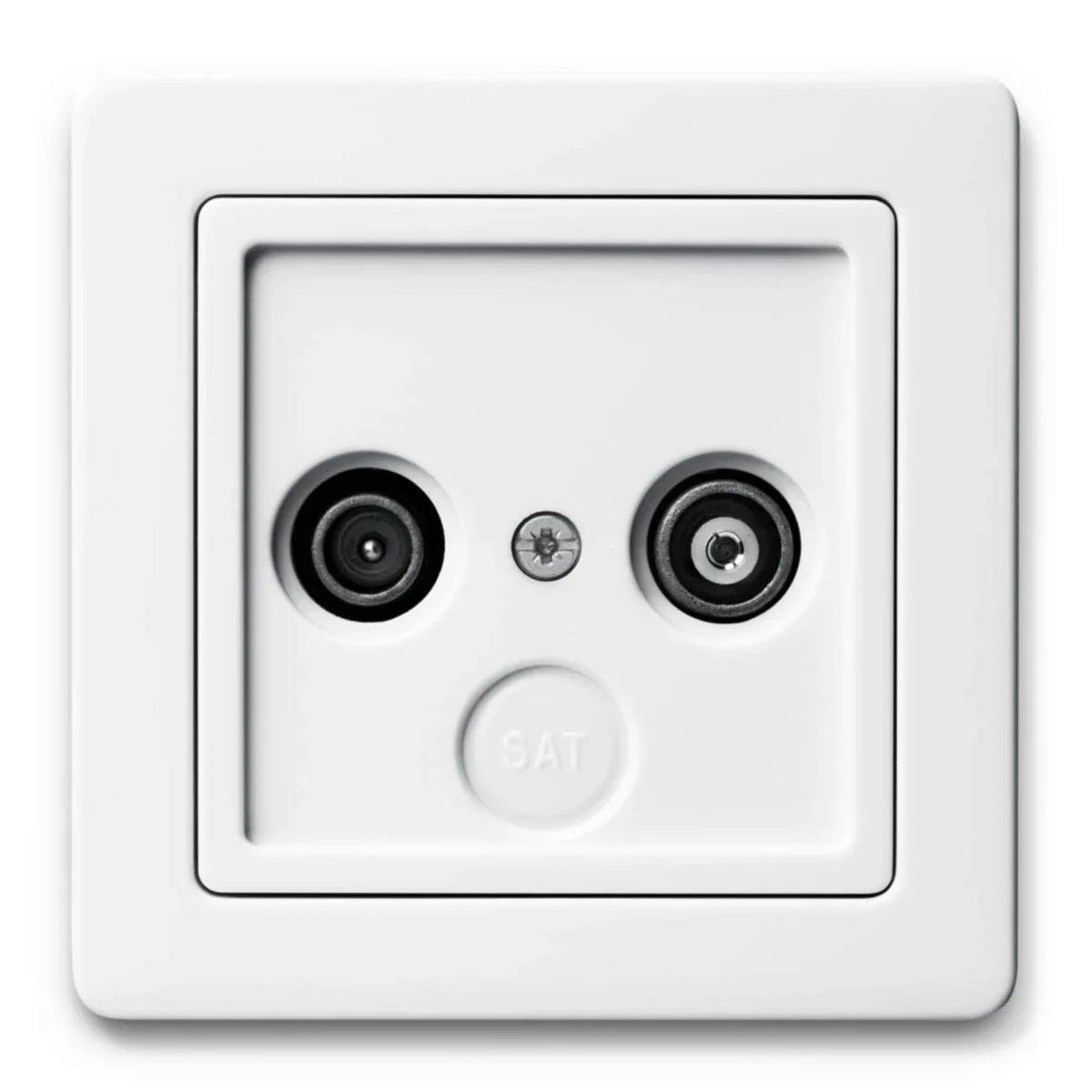

Frontplatefor 2- and 3-output antenna socket, series Berker Q.1/Q.3/Q.7 . The product's catalog number is 12036089.

  • With the possibility of breaking out the SAT input cover.
  • For screw connection.
  • < li>Without support ring.

Technical data

  • Color
    White
  • Material
    Plastic
  • Family
    Q.1 Q.3 Q.7
  • Surface finish
    velvet
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Type
    To the antenna socket
  • Level of security
    IP20
  • Accurate color
    Snow white
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    58.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Other
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    3
  • Luster terminal
    No
  • Device width
    58.5 mm
  • Device depth
    8.9 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,018 0,205 6,495 230,840
Width (m) 0,058 0,085 0,300 0,800
Length (m) 0,009 0,070 0,225 1,050
Depth (m) 0,058 0,125 0,400 1,200
