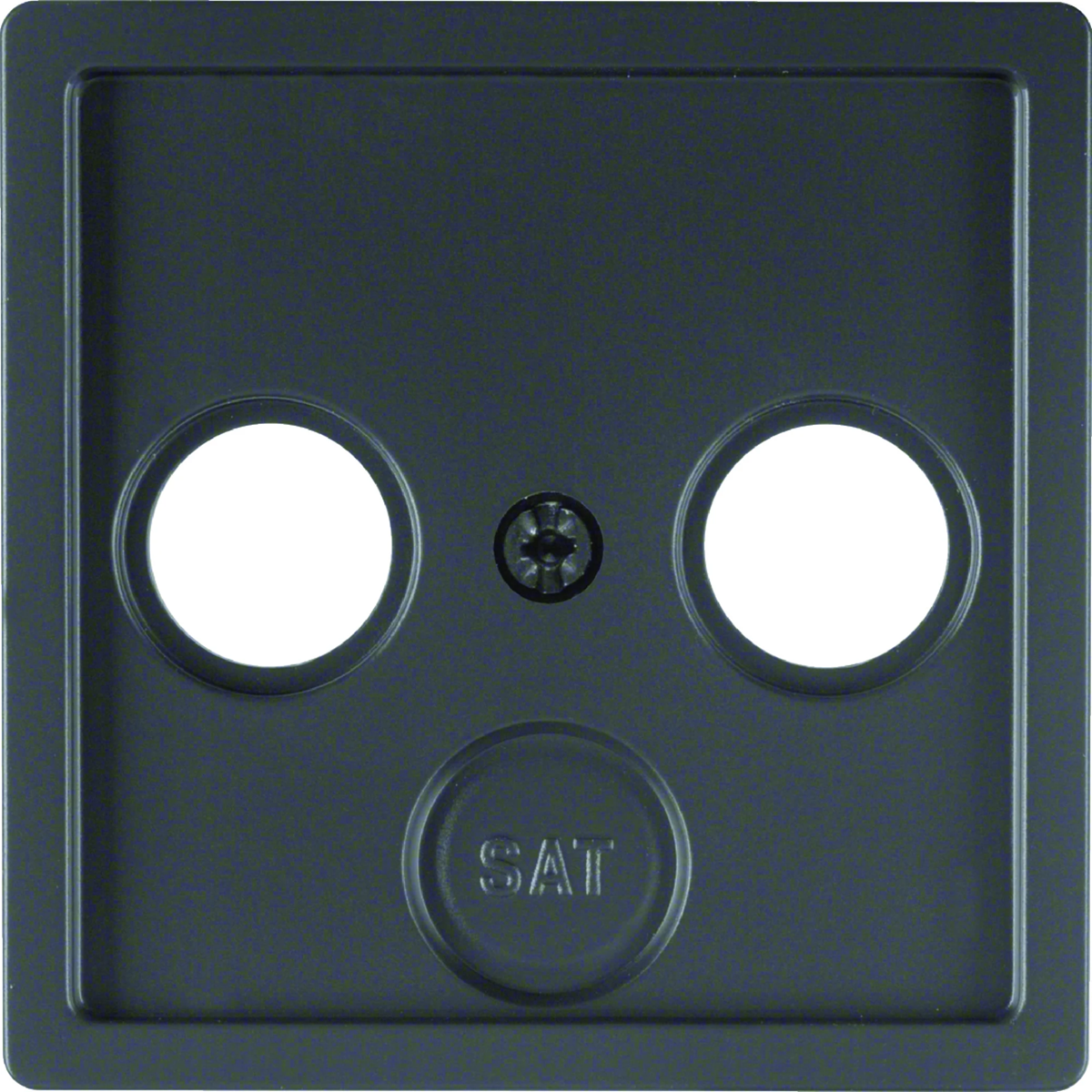

Plate for 2 and 3-out antenna socket - ANTHRACITE VELVET 12036086
local index:
MAP138BERK
Catalog No:
12036086
EAN code:
4011334380078
Price:
6,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frontplatefor 2- and 3-output antenna socket, series Berker Q.1/Q.3/Q.7 . The product's catalog number is 12036086.
- With the possibility of breaking out the SAT input cover.
- For screw connection. < li>Without support ring.
Technical data
-
ColorGraphite
-
MaterialPlastic
-
FamilyQ.1 Q.3 Q.7
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
PKWIU27.12.40.0
-
ShapeSquare
-
TypeTo the antenna socket
-
Level of securityIP20
-
Surface finishvelvet
-
For modular equipmentNot applicable
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height58.5 mm
-
Min. depth of built-in installation box0 mm
-
UtilizationOther
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
Suitable for number of connectors3
-
Luster terminalNo
-
Device width58.5 mm
-
Device depth8.9 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,015 | 0,220 | 7,035 | 248,120 |
| Width (m) | 0,058 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,070 | 0,230 | 1,050 |
| Depth (m) | 0,058 | 0,125 | 0,395 | 1,200 |
