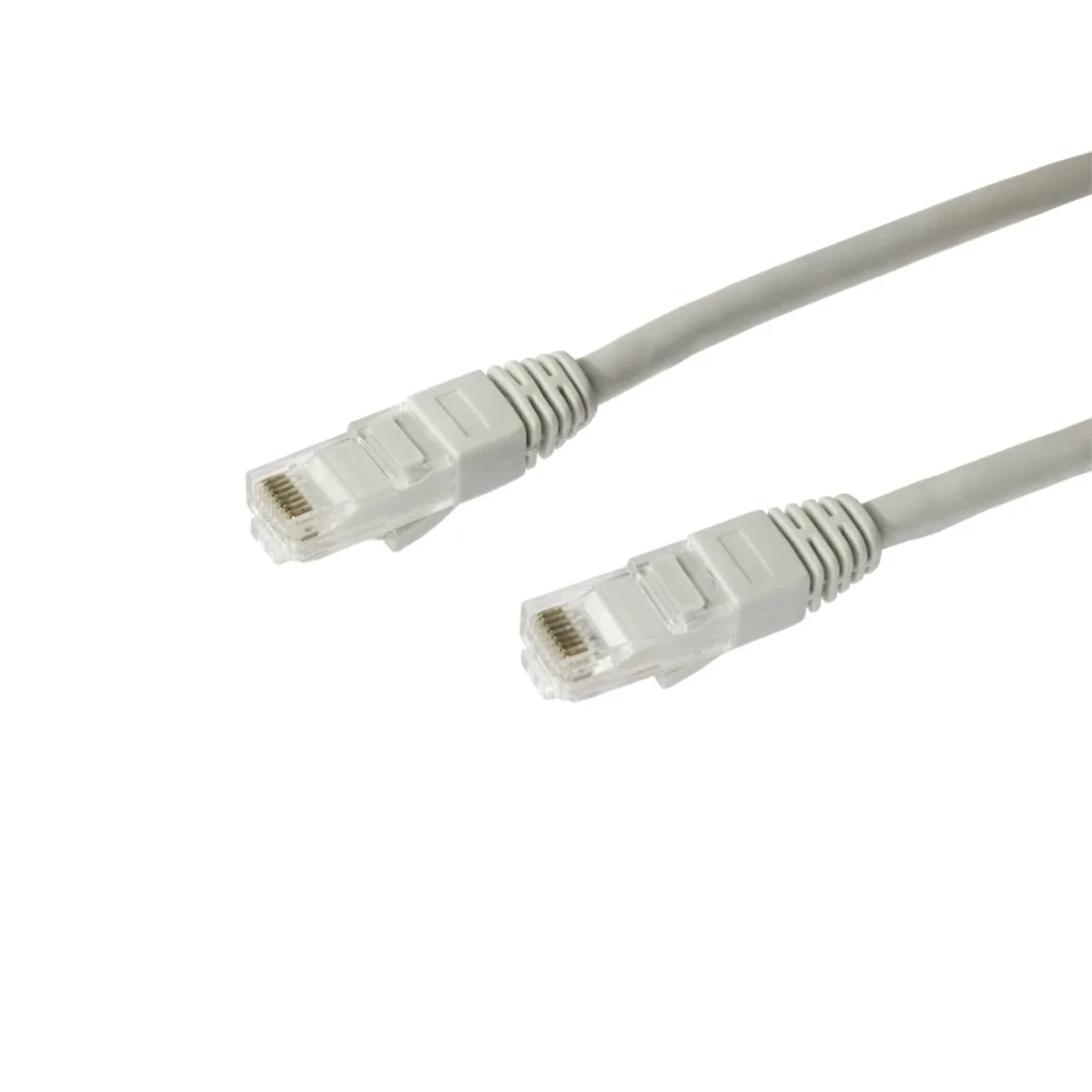

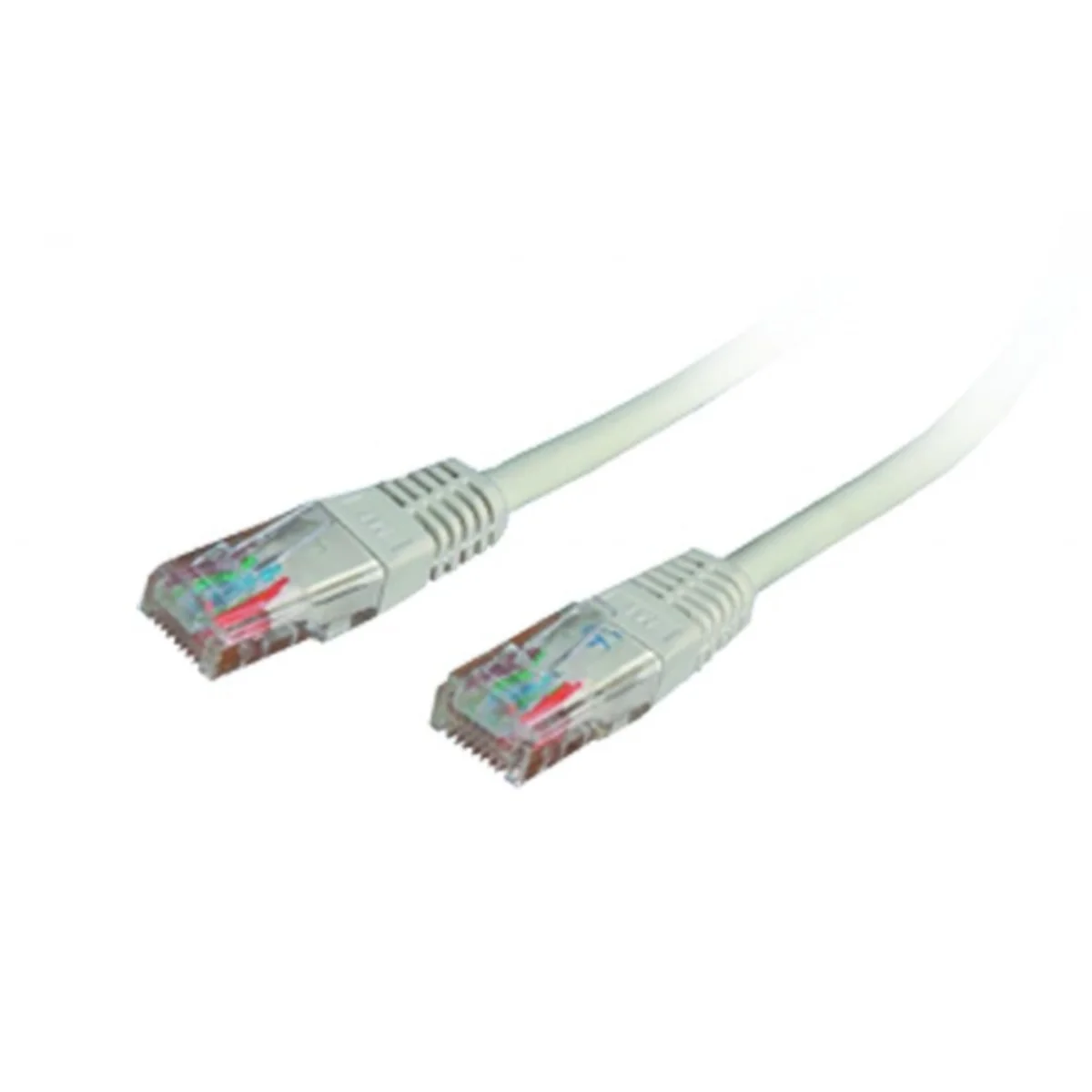

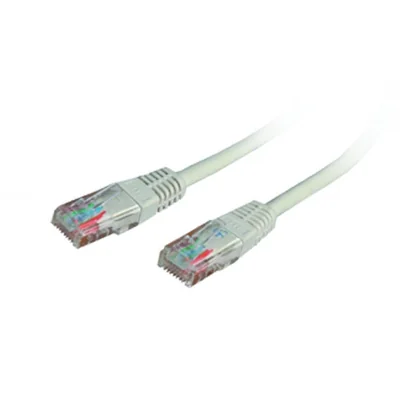

Patch cable EmiterNet UTP cat. 6 2m LSOH grey EM/PC-UTP6LSOH-2M
local index:
AEK083EMSO
Catalog No:
EM/PC-UTP6LSOH-2M
EAN code:
5906764105140
Manufacturer:
EMITER
Category: 6
Price:
2,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The patch cords are used to flexibly connect an active device with a patch panel or a computer with a subscriber outlet. They are made of a cable with an LSOH sheath. The plug is poured with plastic to increase the rigidity of the connection. Made in gray as standard.
- Conductor: Cu 24AWG 7/0.20mm±0.005mm
- Insulation: diameter 1.00±0.015mm
- External insulation material: LS0H
- thickness: 0.55±0.05mm
- external diameter: 6.0±0.2mm
- color: gray
- Plug: RJ45 8P8C
Technical data
-
Category6
Other technical data
-
Cable typeU/UTP
-
Length2 m
-
Type of connector connection 2RJ45 8(8)
-
Anti-kink sleeveMoulded-on
-
Colour anti-kink sleeveGrey
-
Oil resistant according to EN IEC 60811-404No
-
Pin assignment1:1
-
Category6
-
Type of connector connection 1RJ45 8(8)
-
Colour outer sheathGrey
-
Locking leverYes
-
Halogen freeYes
-
AWG-size24
Manufacturer details
-
ManufacturerEmiter Sp. z o.o. Katowice
-
Address40-241 Katowice Porcelanowa 27
-
Tax identification number6442926039
