Pass-through R-TV-SAT socket (RTV-12dB, SAT-8dB) 75467Z-69

Name: Pass-through R-TV-SAT socket (RTV-12dB, SAT-8dB)
Brand: KONTAKT-SIMON
SKU: MJA004KONT
Price: 15.19 PLN

local index:

MJA004KONT

Catalog No:

75467Z-69

EAN code:

5902787856755

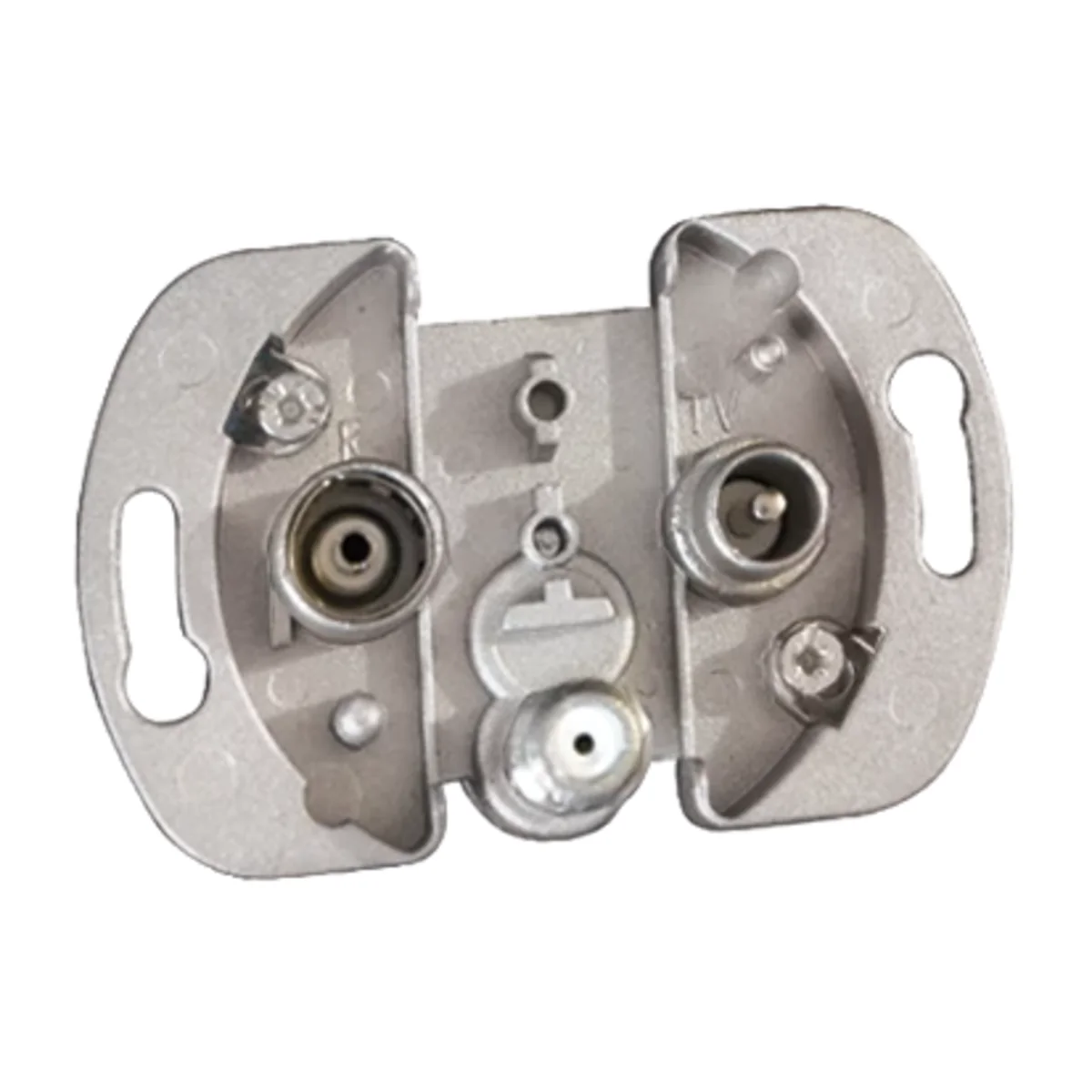

Pass-through R-TV-SAT socket (RTV-12dB, SAT-8dB)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 41

Number of sockets: 3

Shape: Rectangular

See full description

Price:

15,19 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Mechanism of the antenna socket from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75467Z-69.

FEATURES

R-TV-SAT .
Through-hole.
Type of connection/terminal type: plug, screw terminals.

Technical data

Depth [mm]

41
Shape

Rectangular
Fixing

claws Screws
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
Version

through
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
F-type input

NO
PKWIU

27.33.13.0

Number of sockets

3
Material

Metal
Installation

Flush-mounted
Family

Simon 82
Width [mm]

71
Type

Socket mechanism
Height [mm]

46
Frequency Range [MHz]

5-2400
Mounting depth [mm]

31
Variant

R TV sat
For the frame system

Yes

Other technical data

Model

Loop-through socket
Tap loss at 2150 MHz

8 dB
Through loss at 860 MHz

4 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

10 dB
Number of outlets

3
Through loss at 2150 MHz

6 dB
Frequency

5 ... 2400 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	-	-	0,350
Width (m)	0,046	-	-
Length (m)	0,071	-	-
Depth (m)	0,041	-	-
