Pass-through R-TV-SAT antenna socket white AASP/11

Name: Pass-through R-TV-SAT antenna socket white
Brand: KONTAKT-SIMON
SKU: MEA051KONT
Price: 31.43 PLN

local index:

MEA051KONT

Catalog No:

AASP/11

EAN code:

5902787818999

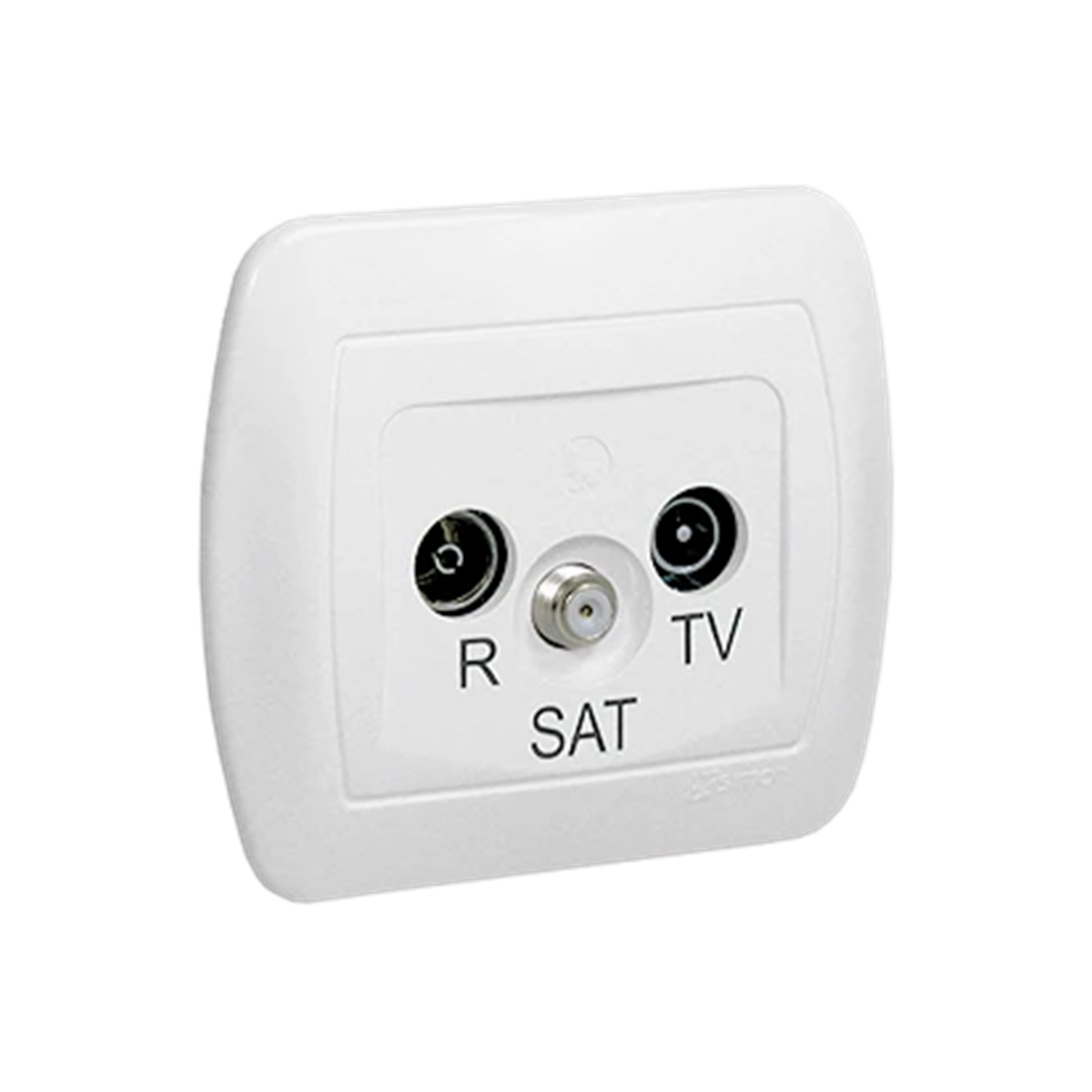

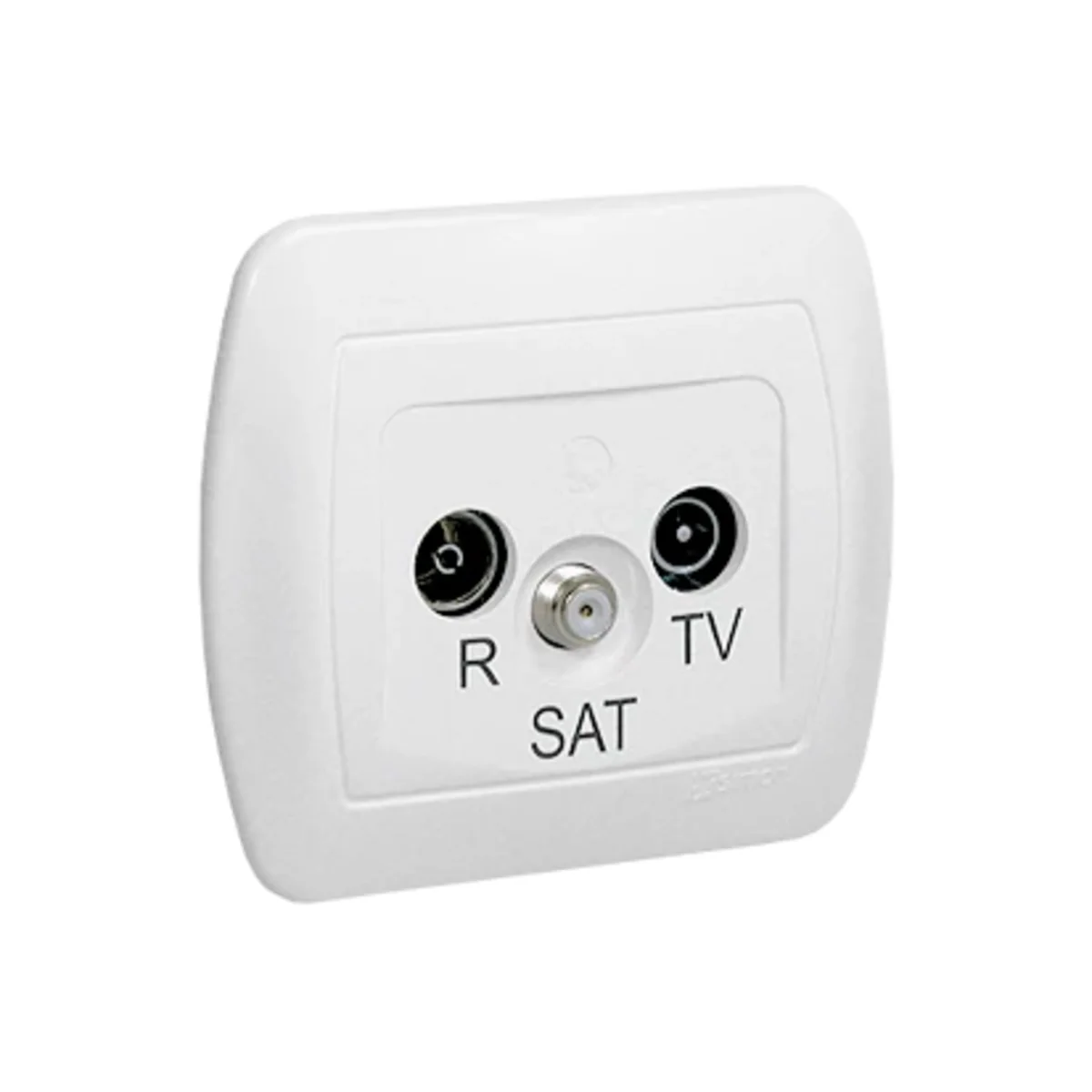

Pass-through R-TV-SAT antenna socket white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

31,43 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

R-TV-SAT antenna socket

SERIES DESCRIPTION

Slightly longer base and spine line relative to the sides ;w and clearly rounded frame corners distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Rectangular
Fixing

claws Screws
Overprint

Yes
Family

SIMON CHORD
Width [mm]

90
Type

Flush-mounted
Height [mm]

80.5
Frequency Range [MHz]

5-2400
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
Version

through
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

R TV sat
For the frame system

NO
PKWIU

27.33.13.0

Other technical data

Model

Loop-through socket
Tap loss at 2150 MHz

8 dB
Through loss at 860 MHz

4 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

10 dB
Number of outlets

3
Through loss at 2150 MHz

6 dB
Frequency

5 ... 2400 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,108	0,108	1,173
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,046	0,230
Depth (m)	0,041	0,160	0,100
