Pass-through R-TV antenna socket (module) attenuation 10dB beige BMZAP10/1.01/12

Name: Pass-through R-TV antenna socket (module) attenuation 10dB beige
Brand: KONTAKT-SIMON
SKU: MEA230KONT
Price: 17.63 PLN

local index:

MEA230KONT

Catalog No:

BMZAP10/1.01/12

EAN code:

5902787576257

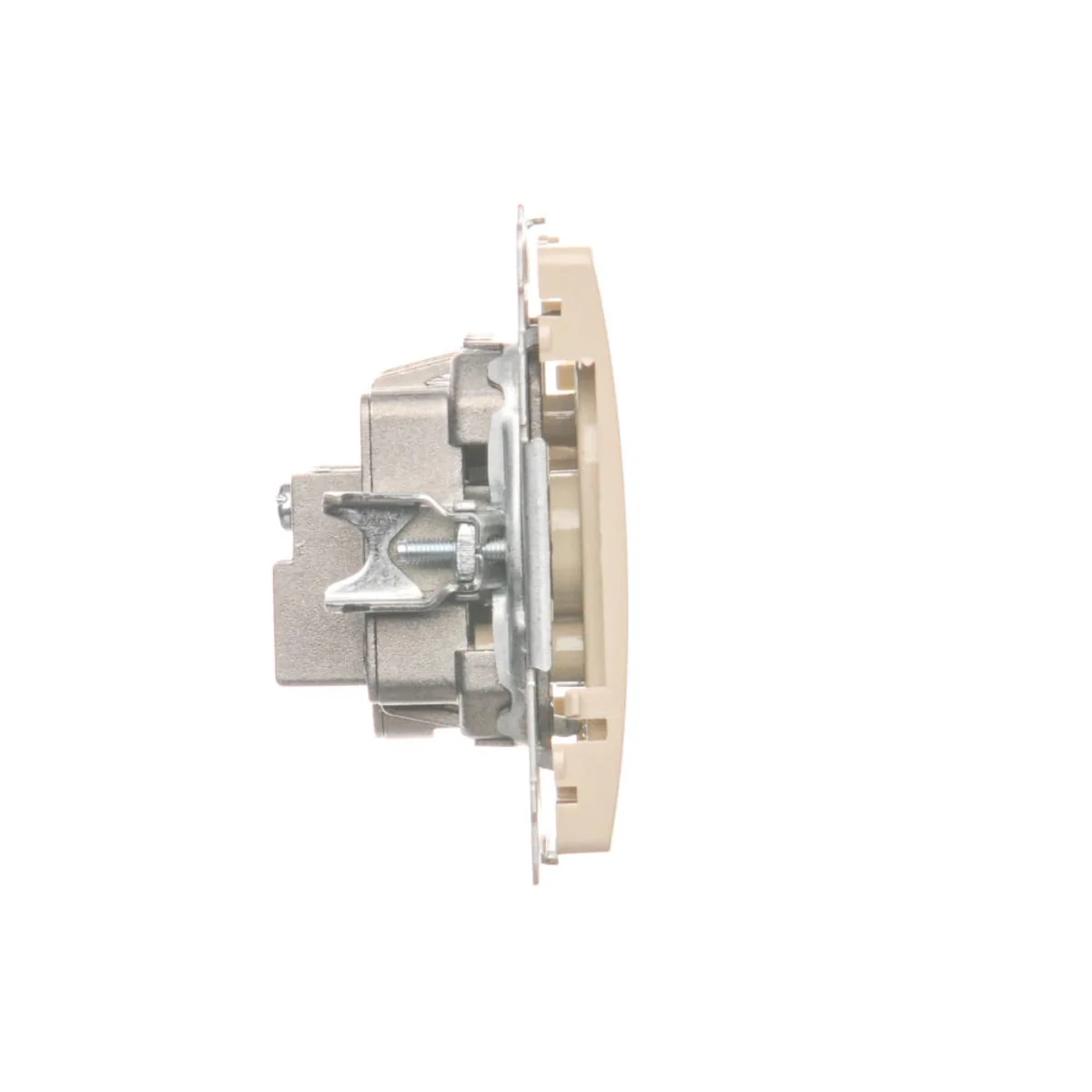

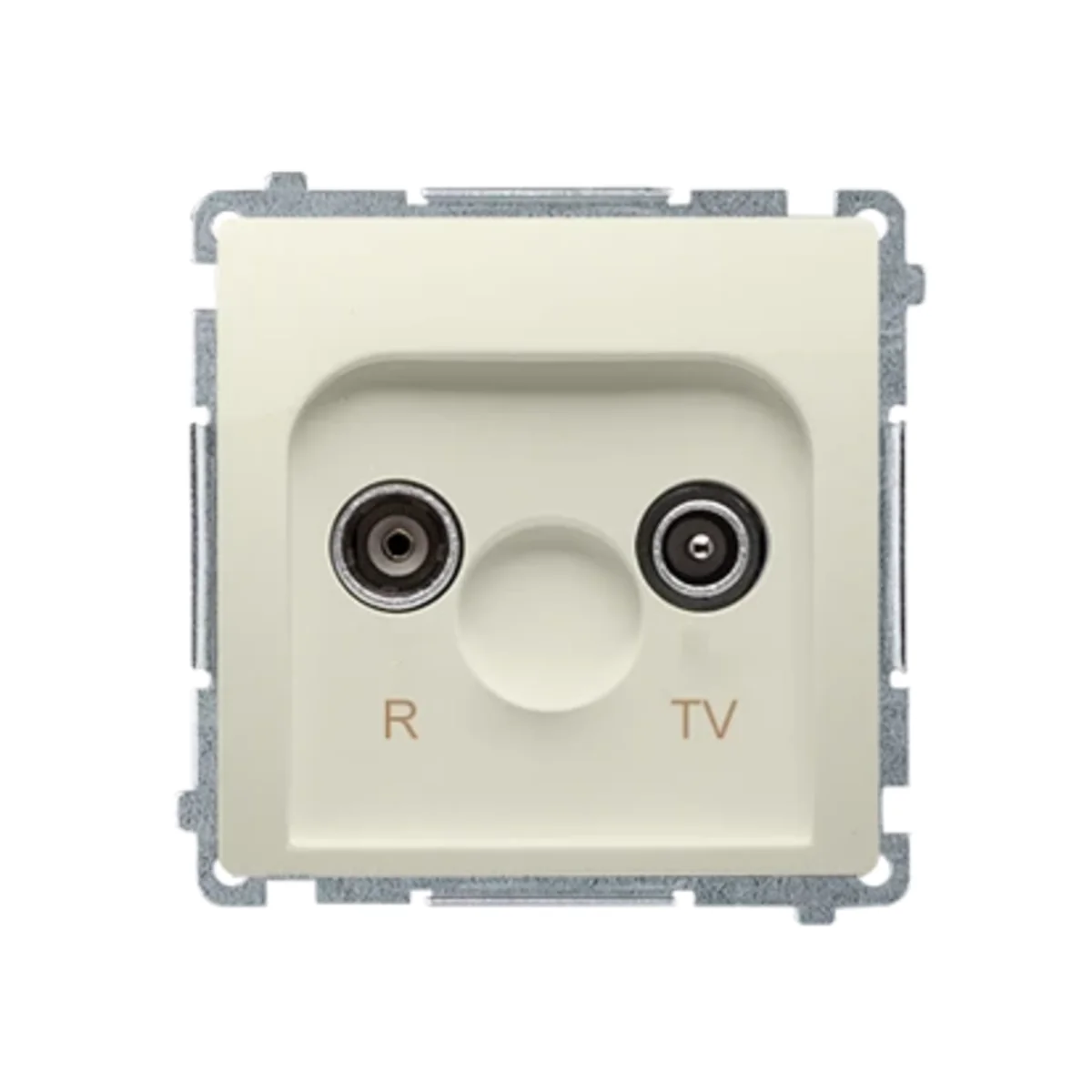

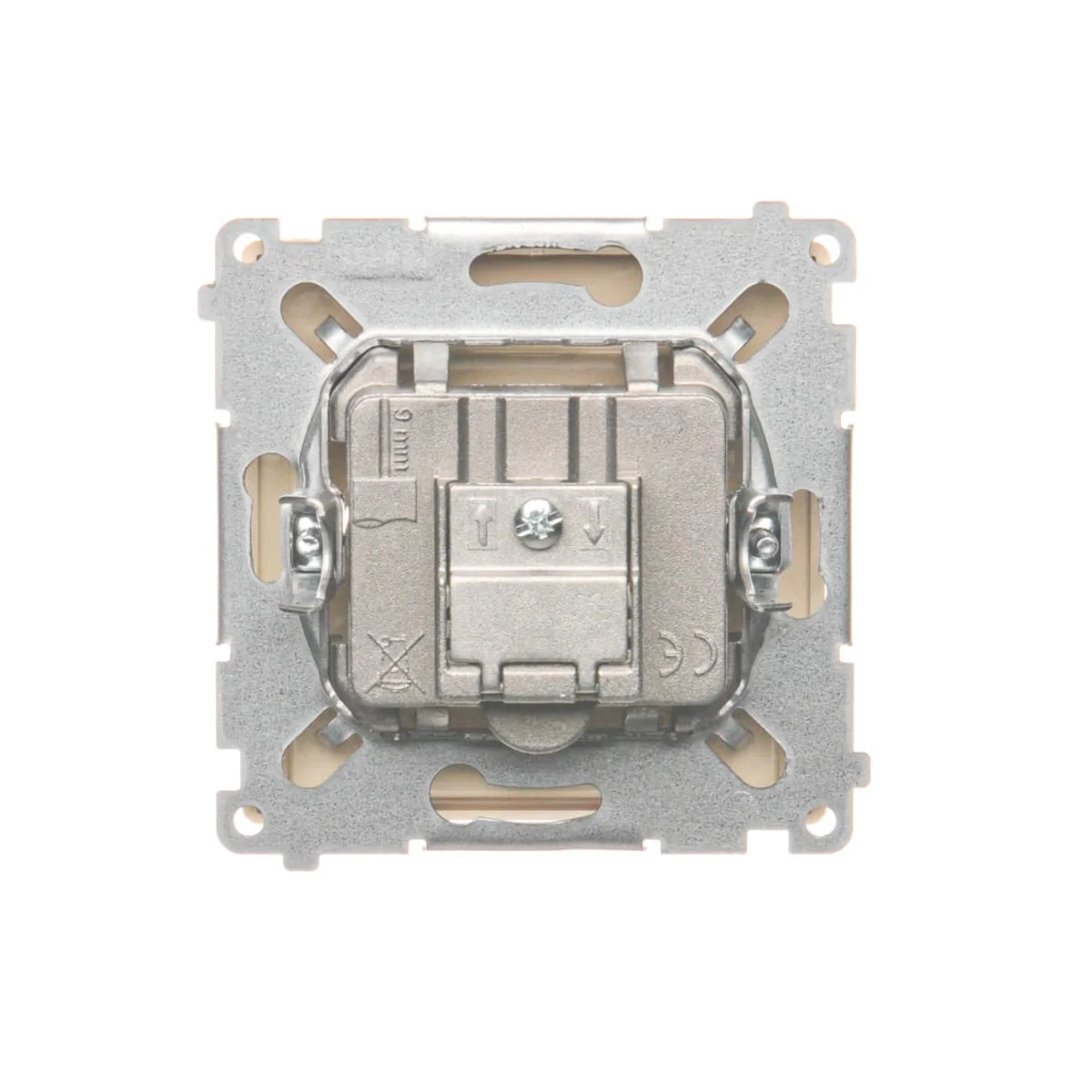

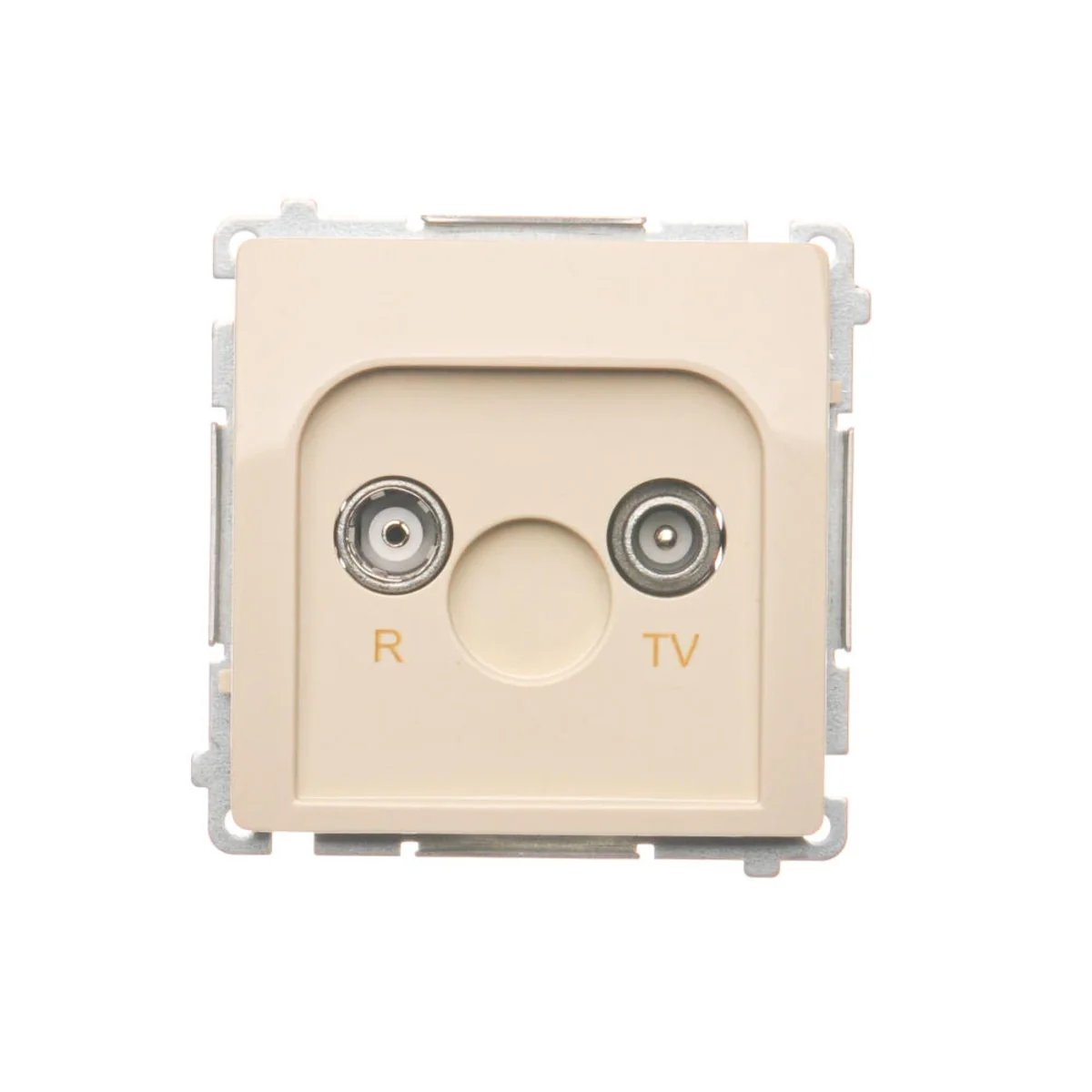

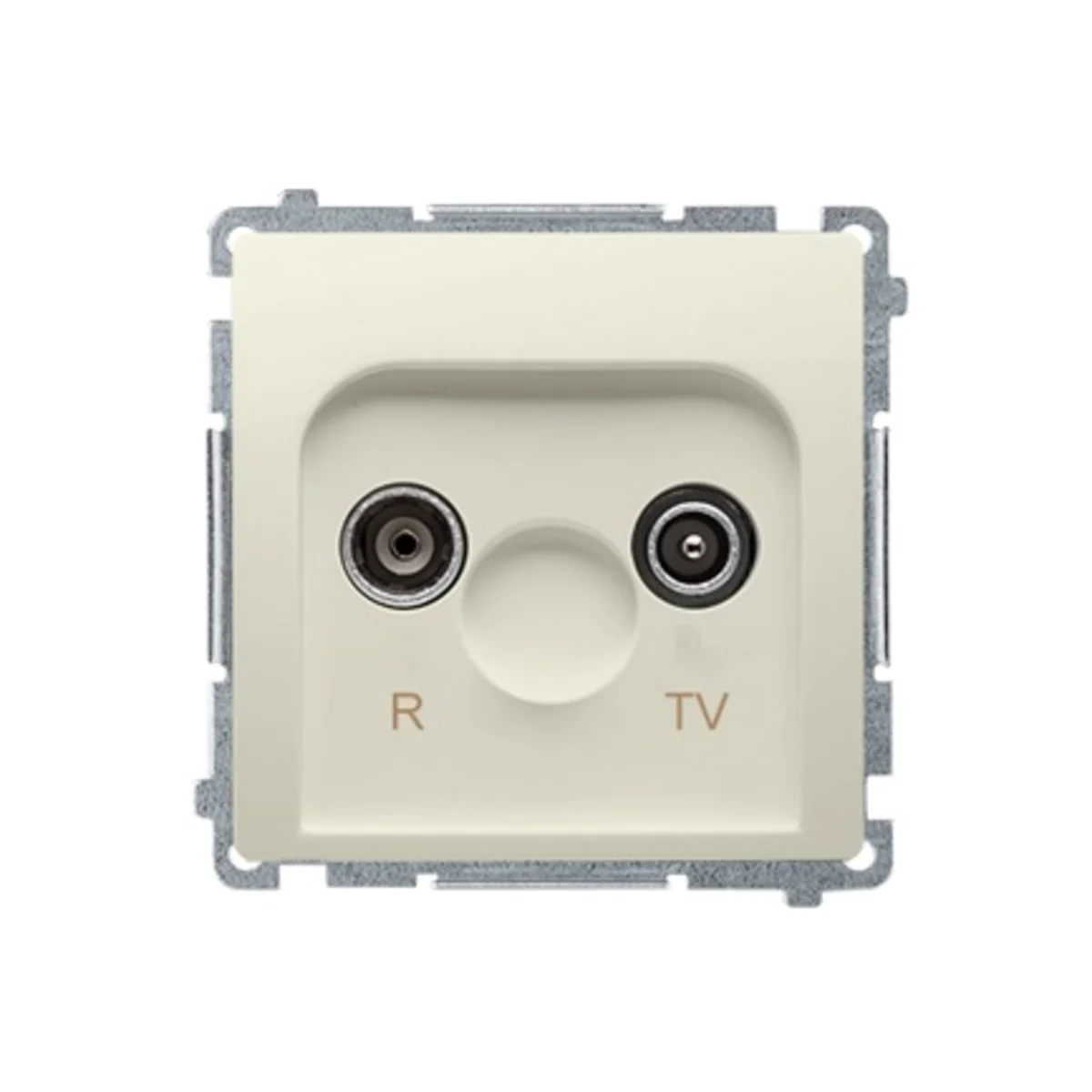

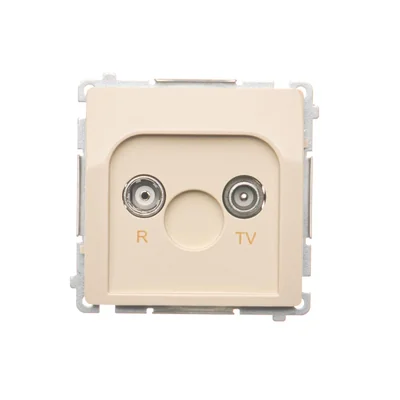

Pass-through R-TV antenna socket (module) attenuation 10dB beige

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 39

Number of sockets: 2

See full description

Price:

17,63 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Antenna socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMZAP10/1.01/12.

FEATURES

R-TV .
Through-through.
Frameless module.
Color beige.< /li>

SERIES DESCRIPTION

Simon Basic is a series of electrical equipment that is based on a classic look and functionality. Antenna socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

SIMON BASIC
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-862
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

39
Color

Beige
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthrough for 860 MHz: 1.5
Version

through
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

thirty
Variant

R TV
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Loop-through socket
Number of outlets

2
Suitable for remote power supply

No

Tap loss at 860 MHz

10 dB
Through loss at 860 MHz

1.5 dB
Frequency

5 ... 862 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,116	0,116	1,252
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,044	0,230
Depth (m)	0,039	0,160	0,100
