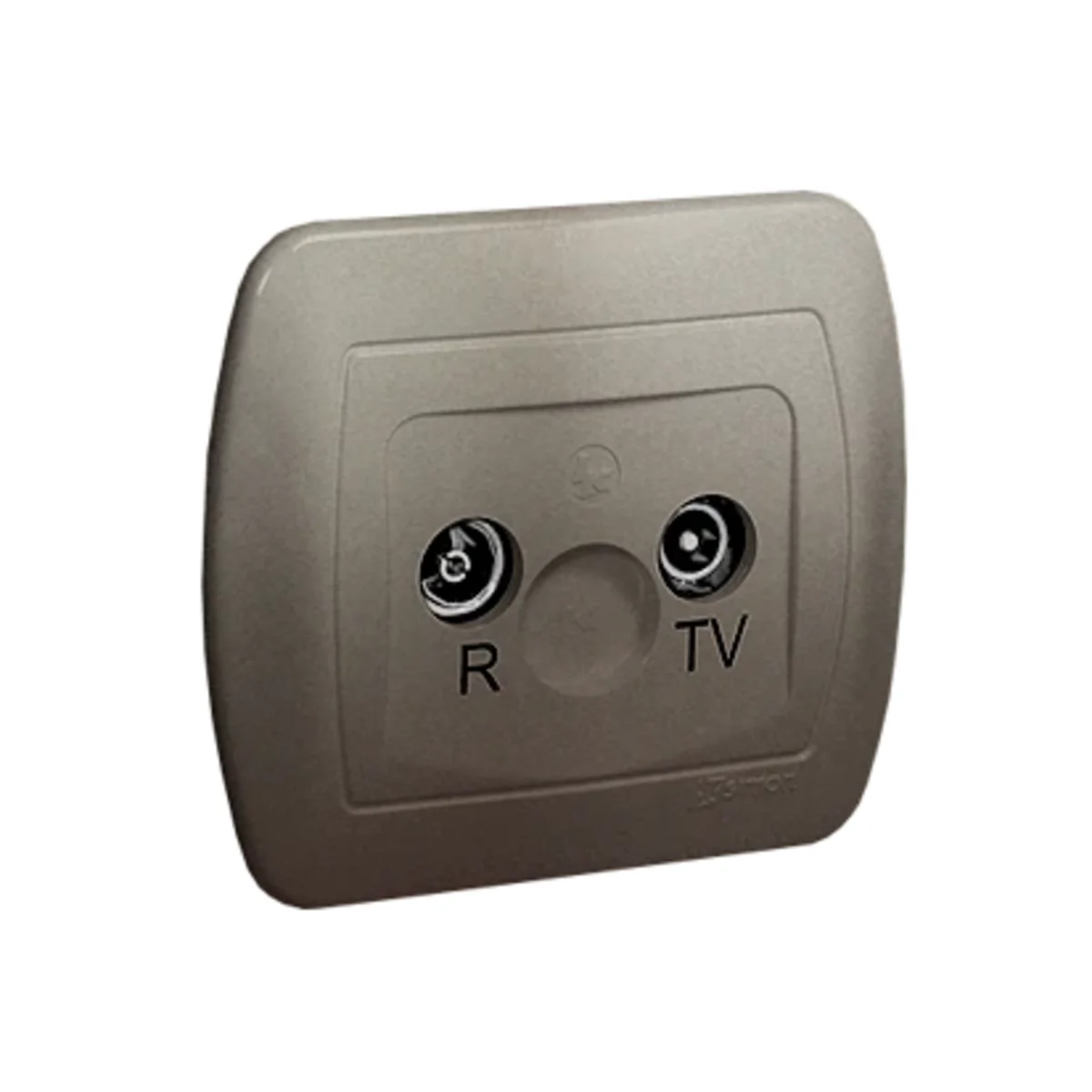

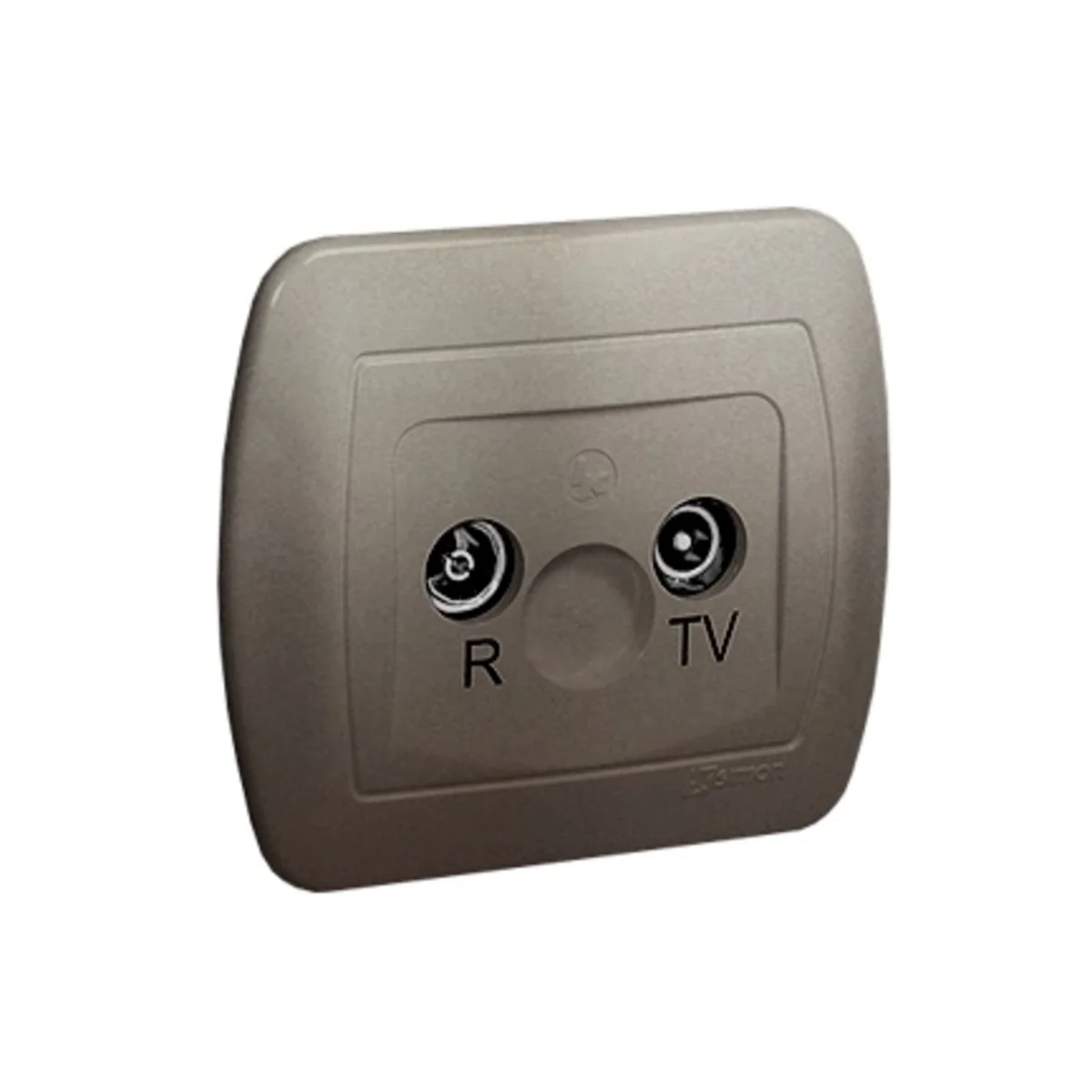

Pass-through R-TV antenna socket crowd. 10dB satin (metallic) AA10/29

local index:
MEA036KONT
Catalog No:
AA10/29
EAN code:
5902787598495
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 36
Number of sockets: 2
Price:
16,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

R-TV antenna socket



SERIES DESCRIPTION

Slightly longer line of the base and the spine in relation to the sides and clearly rounded corners of the frames distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Frequency Range [MHz]
    5-862
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    29
  • Variant
    R TV
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    36
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 10 Passthrough for 860 MHz: 1.5
  • Version
    through
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    PC

Other technical data

  • Model
    Loop-through socket
  • Number of outlets
    2
  • Suitable for remote power supply
    No
  • Tap loss at 860 MHz
    10 dB
  • Through loss at 860 MHz
    1.5 dB
  • Frequency
    5 ... 862 MHz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,123 0,123 1,321
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,041 0,230
Depth (m) 0,036 0,160 0,100
