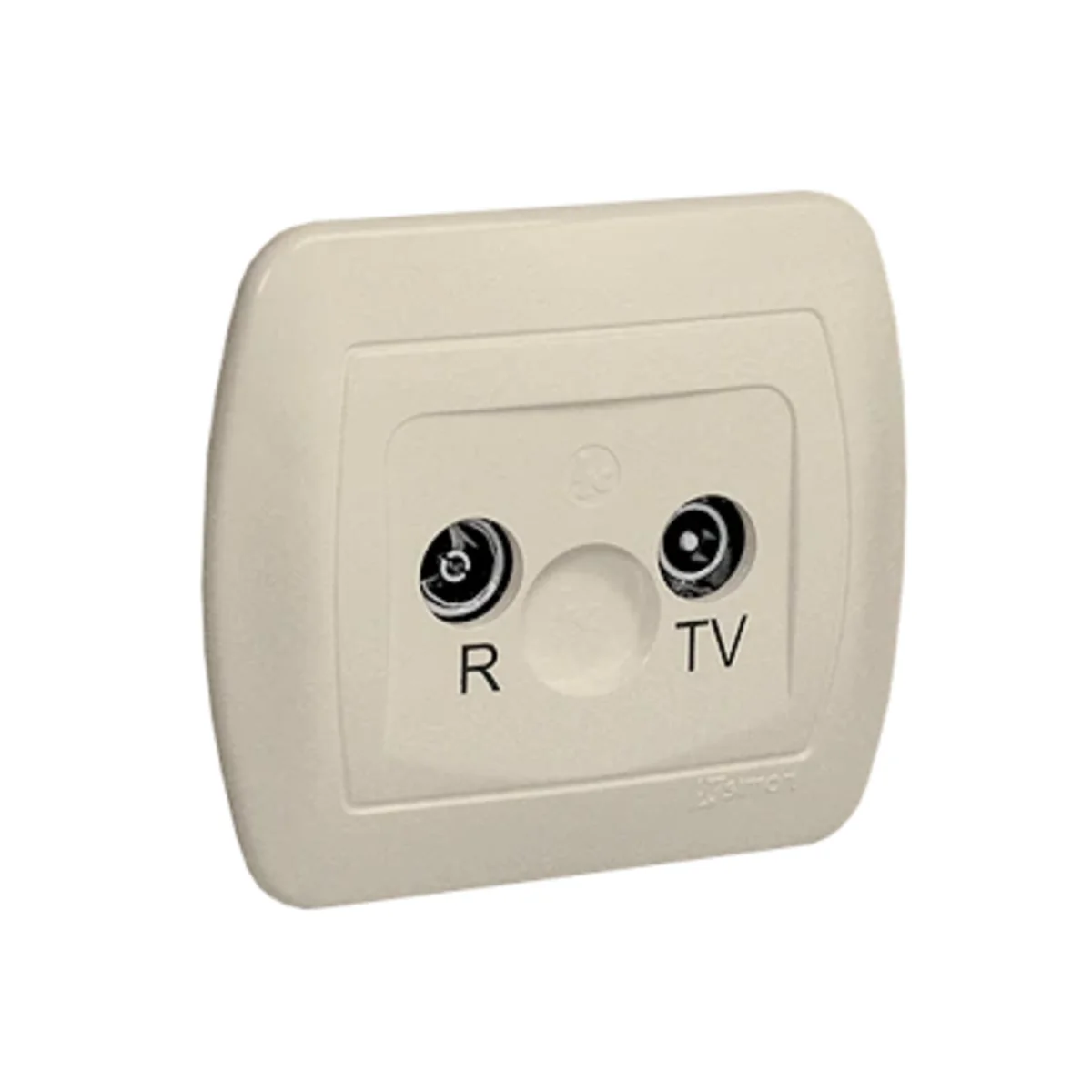

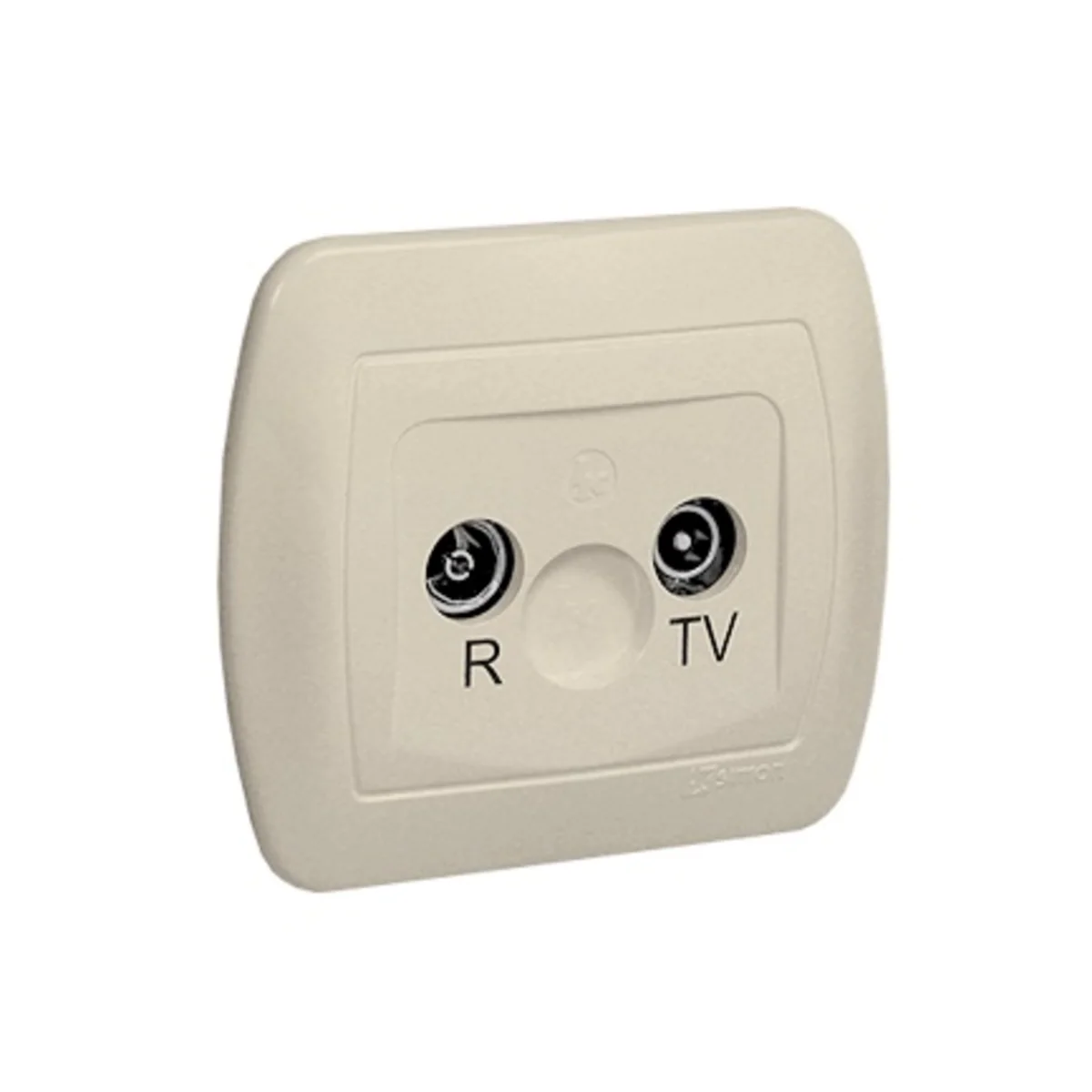

Pass-through R-TV antenna socket crowd. 10dB beige AA10/12

Name: Pass-through R-TV antenna socket crowd. 10dB beige
Brand: KONTAKT-SIMON
SKU: MEA034KONT
Price: 15.07 PLN

local index:

MEA034KONT

Catalog No:

AA10/12

EAN code:

5902787570170

Pass-through R-TV antenna socket crowd. 10dB beige

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 36

Number of sockets: 2

See full description

Price:

15,07 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

R-TV antenna socket

SERIES DESCRIPTION

Slightly longer line of the base and the spine in relation to the sides and clearly rounded corners of the frames distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Overprint

Yes
Family

SIMON CHORD
Width [mm]

90
Type

Flush-mounted
Height [mm]

80.5
Frequency Range [MHz]

5-862
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

36
Color

Beige
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthrough for 860 MHz: 1.5
Version

through
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

R TV
For the frame system

NO
PKWIU

27.33.13.0

Other technical data

Model

Loop-through socket
Number of outlets

2
Suitable for remote power supply

No

Tap loss at 860 MHz

10 dB
Through loss at 860 MHz

1.5 dB
Frequency

5 ... 862 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,123	0,123	1,321
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,041	0,230
Depth (m)	0,036	0,160	0,100
