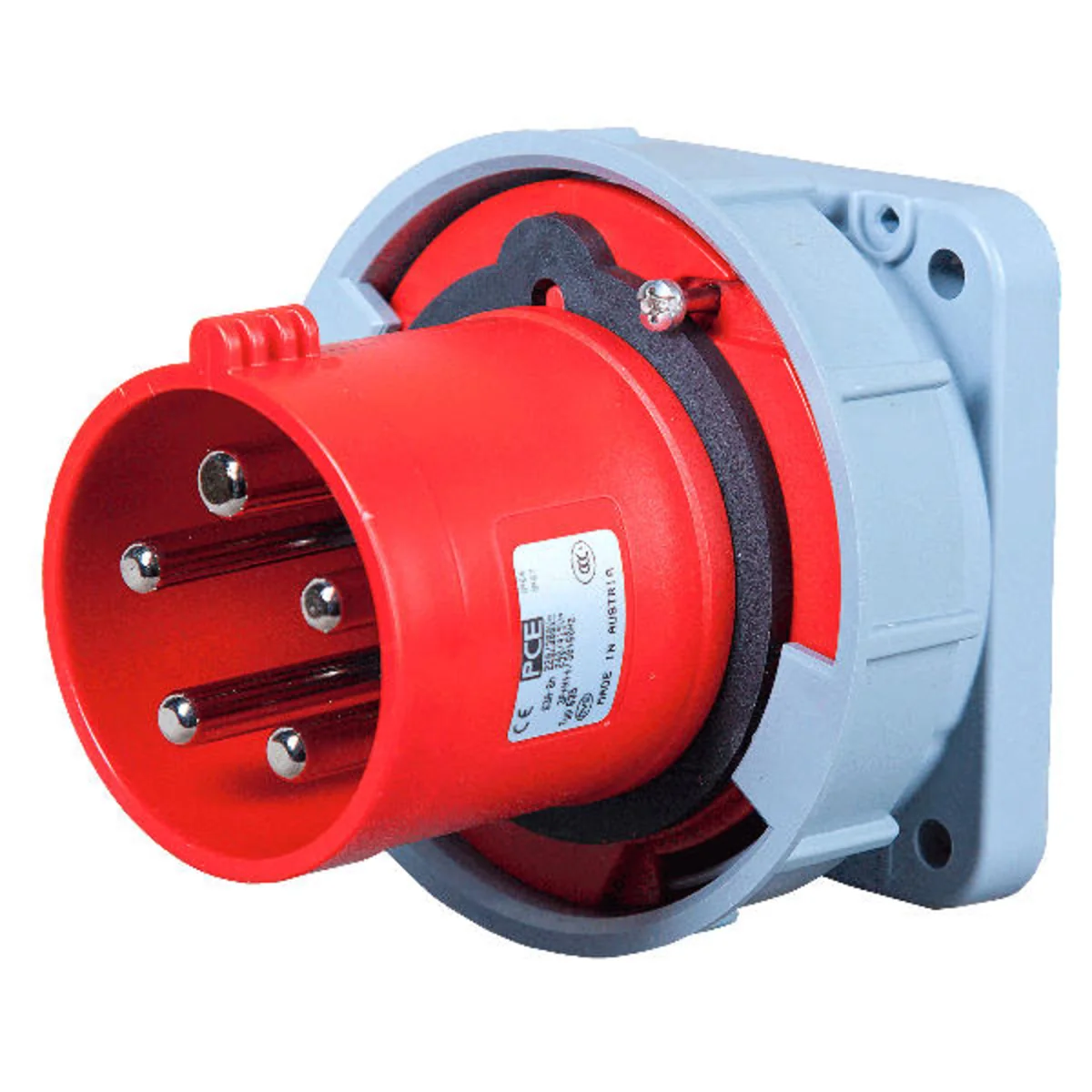

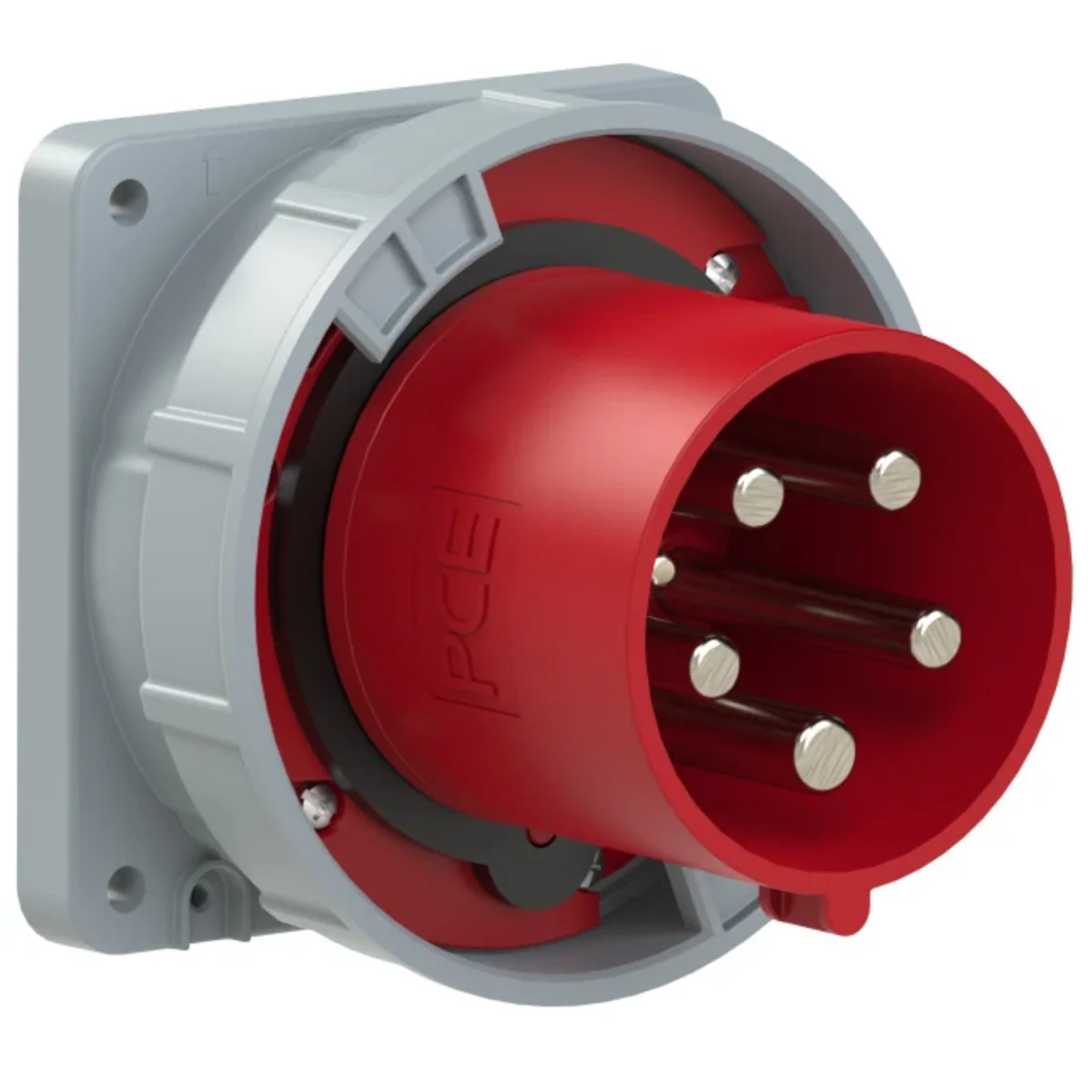

Panel plug IP67 125A 400V 3P+E+N IP67 645-6
local index:
MKS027PCEQ
Catalog No:
645-6
EAN code:
9003399069000
Price:
257,61 zł
gross / pcs.
(including VAT 23%)
258,13 zł gross/kg.
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Straight watertight board plug. Made of PA6 plastic. It has a waterproof plug. Flange size 120x120 mm
Technical data
-
Rated frequency [Hz]50/60
-
Rated voltage [V]400
-
Hose [mm²]16.0-50.0
-
Level of securityIP66
-
Connection typecage contact
-
PKWIU27.33.13.0
-
Number of contacts5
-
Rated current [A]125
-
Solid cable [mm²]16.0-70.0
-
Contactnickel plated with control contact
-
Weight [g]998
Other technical data
-
IEC-amperage125 A
-
Number of poles5
-
Identification colourRed
-
Connection systemScrewed terminal
-
Insert directionStraight
-
Contact materialCuZn
-
Voltage according to EN 60309-2400 V (50+60 Hz) red
-
Clock hour position6 h
-
Degree of protection (IP)IP67
-
Construction typeBuilt-up device plug
-
MaterialPlastic
-
Surface treatment contactsNickel-plated
