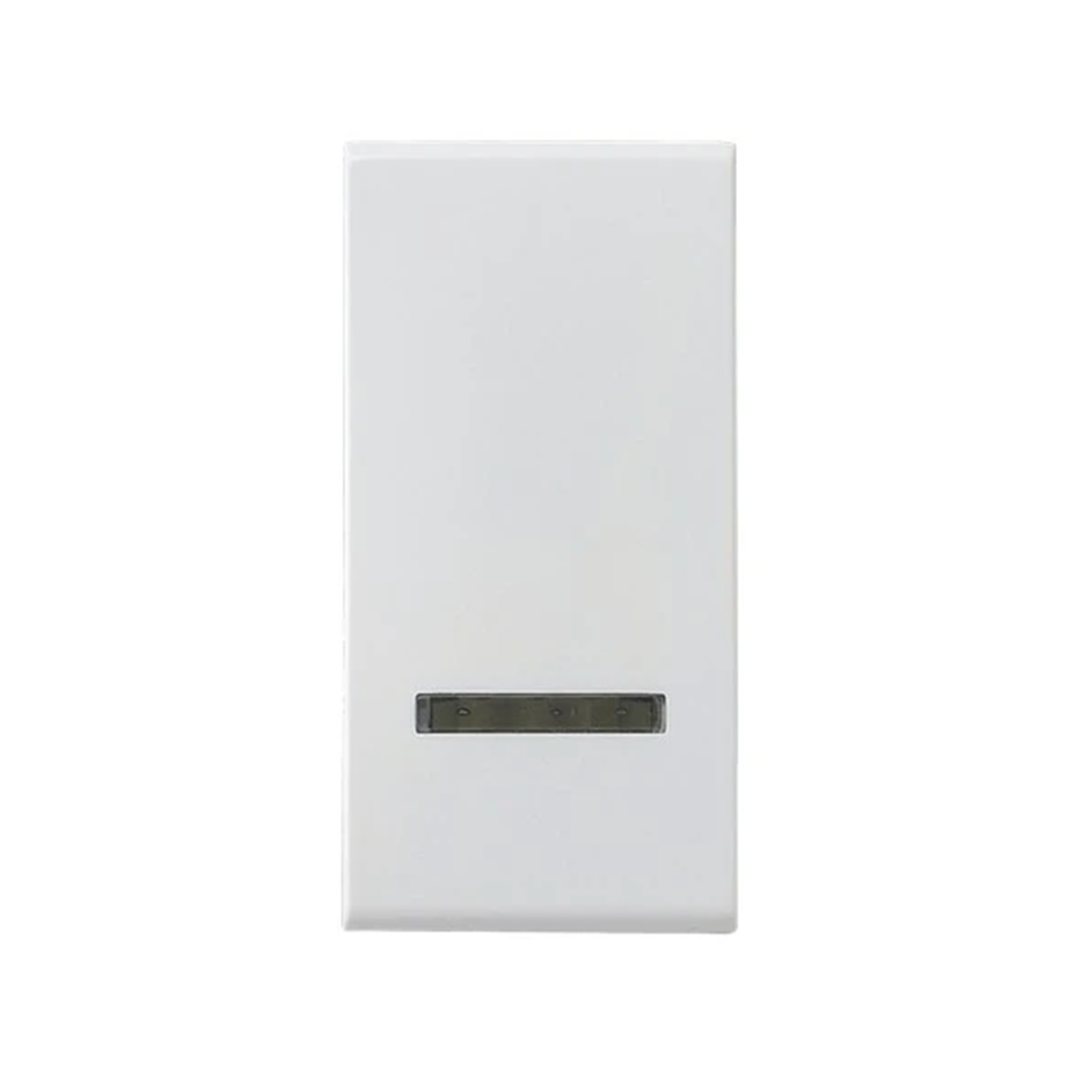

OSPEL45 Stair switch with orange backlight warm white ŁK-3S/46
local index:
MOS002OSPE
Catalog No:
ŁK-3S/46
EAN code:
5907577462482
Price:
4,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch with backlight from the Ospel45 series, from the manufacturer Ospel. The product catalog number is ŁK- 3S/46.
Technical data
-
Depth [mm]47
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyOSPEL45
-
Width [mm]22.5
-
Height [mm]45
-
Accurate colorWarm white
-
Mounting depth [mm]47
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeRectangular
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Type45x45
-
Surface protectionNatural
-
BacklightYes
-
Terminal typeThreaded
-
Backlight colorOrange
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodOther
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height45 mm
-
Built-in depth36 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers1
-
Type of fasteningEngage (snap)
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width22.5 mm
-
Device depth47 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,110 |
| Length (m) | 0,145 |
| Depth (m) | 0,105 |
