one.platform UAE double computer socket mechanism (RJ45), shielded, cat.6, class E 455501

Name: one.platform UAE double computer socket mechanism (RJ45), shielded, cat.6, class E
Brand: BERKER
SKU: MJI006BERK
Price: 143.41 PLN
Availability: InStock

local index:

MJI006BERK

Catalog number:

455501

EAN code:

4011334437451

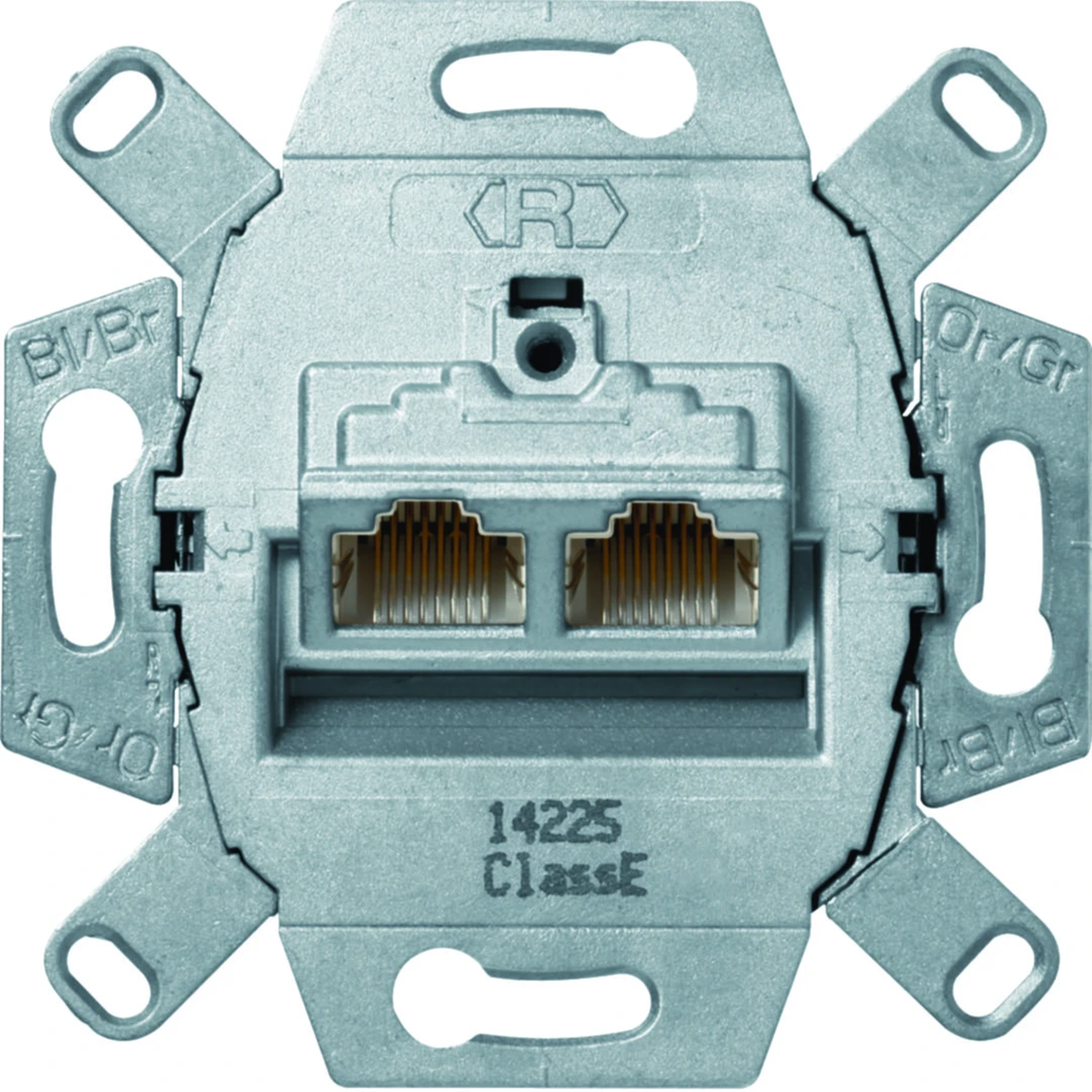

one.platform UAE double computer socket mechanism (RJ45), shielded, cat.6, class E

Click on the photo to enlarge

Manufacturer: BERKER

Category: 6

Shape: Square

Material: Plastic | Metal

See full description

Price:

143,41 zł

gross / pcs.

(including VAT 23%)

Accessible 49 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Internet computer socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is 455501.

FEATURES

Double.
RJ45.
Rated current In: 0.5 A.
With an output angle of 45°.
For RJ11, RJ12 and RJ45 plugs.
Compatibility with PoE+.
Shield contact resistance: 100 mΩ.
Signal contact resistance: 20 mΩ .
Galvanized housing.
Without spreaders.
With LSA+ terminals.
With 360° and cable clamp.
Flexible cable entry.
For order numbers. 1409 .., 1410 .., 1469 .., 53 1409 ..
Color coded according to EIA/TIA Standard 568A and 568B.
Category 6/Class E according to DIN EN 50173-1:2011-09.
For RJ45 plug.
Category 6 on pin pairs 1.2 and 7.8.
Transmission frequency up to 250 MHz.

Technical data

Category

6
Material

Plastic Metal
Type

Internet
Level of security

IP20
Version

Shielded
Variant

RJ45 (twisted pair)
Number of internet sockets

2

Shape

Square
DC rated voltage [V]

72
Family

ONE.PLATFORM
Type

Socket mechanism
Mounting depth [mm]

31
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Surface mounting

No
Duct installation

Yes
Type of fastening

Screwing
Type of connector

2x RJ45 8(8)
Suitable for number of connectors

2
Connection type

LSA
Shielded housing

Yes
With label space

No
Separate strain relief

No
Outlet direction

Inclined
With terminal resistor

No
Mechanical coding

No
Device width

70 mm
Device depth

45 mm

Flush-mounted installation

Yes
Floor box/subfloor mounted

Yes
Assembly arrangement

Basic element
With buses/couplings

Yes
Category

Other
Shielded buses

Yes
Separate earthing connection

No
Compatible with third-party covers

Yes
Mounting method shielding connection

Screw
With dust cover

No
Degree of protection (IP)

IP20
Colour coding

Yes
Device height

70 mm
Number of modules (module system)

1

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	10 pcs.	120 pcs.	1440 pcs.	10 pcs.	120 pcs.	1440 pcs.
Weight (kg)	1,475	18,290	242,480	1,475	18,290	242,480
Width (m)	0,090	0,380	0,800	0,090	0,380	0,800
Length (m)	0,100	0,330	1,050	0,100	0,330	1,050
Depth (m)	0,370	0,380	1,200	0,370	0,380	1,200
