one.platform UAE computer socket mechanism 2-cr (RJ45) cat.6a iso shielded 4587
local index:
MJI002BERK
Catalog No:
4587
EAN code:
4011334256397
Price:
36,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

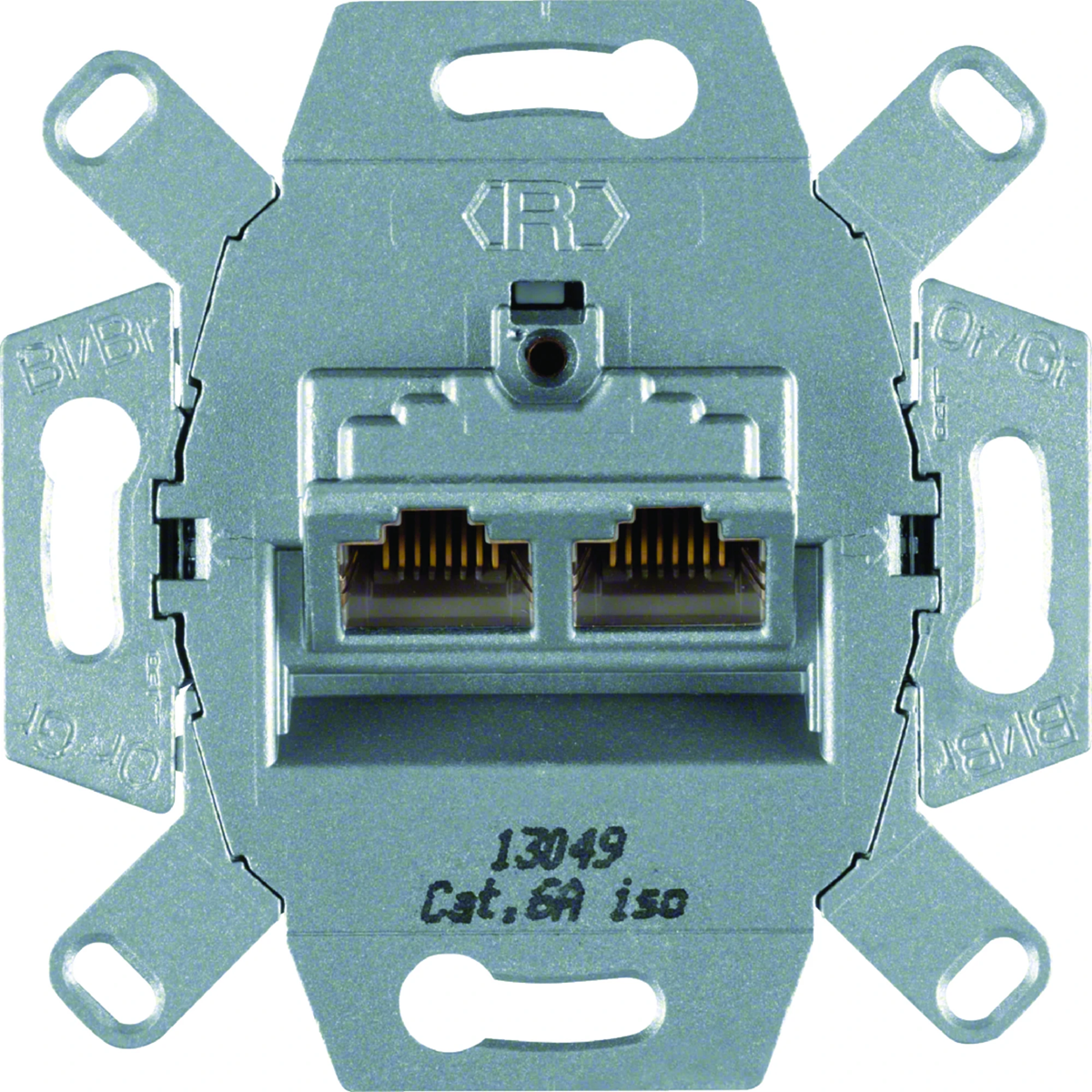

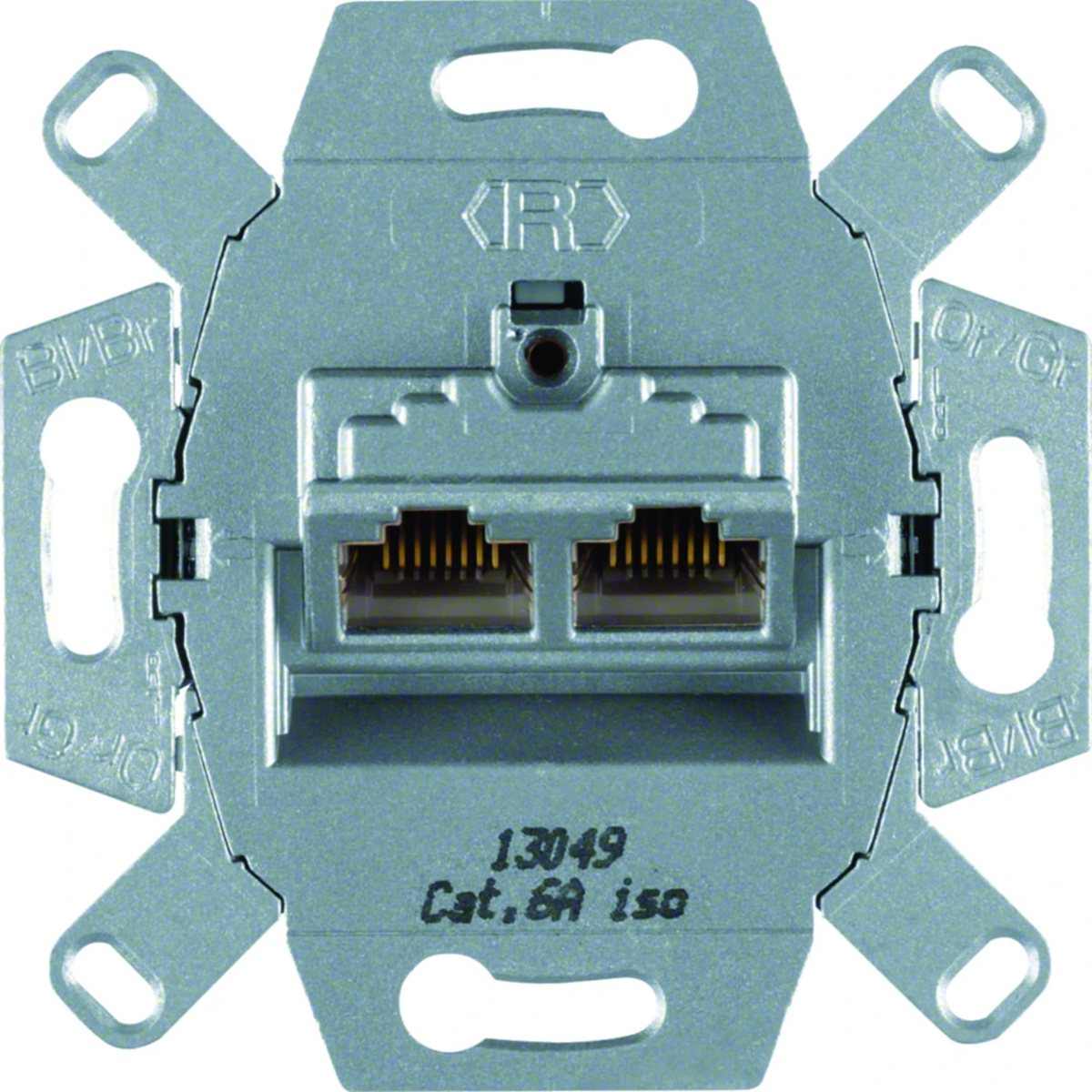

Internet computer socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is 4587.
FEATURES
- Double Slot mechanism.
- RJ45.
- Rated current In: 0.5 A.
- With an output angle of 45°.
- For RJ11, RJ12 and RJ45 plugs.
- Compatibility with PoE+.
- Shield contact resistance: 100mΩ.
- Signal contact resistance: 20 mΩ.
- Zinc-plated housing.
- Without clamps, fixing screw through support plate.
- With LSA+ terminals.
- With cover 360° detection fields and cable clamp.
- Flexible cable entry.
- Transmission frequency up to 500 MHz.
- For order number: 1409 .. , 1410 .., 1469 .., 53 1409 ..
- Color coded according to EIA/TIA Standard 568A and 568B.
- Iso\Class EA 6A compliant with ISO/IEC 11801 A2.
Technical data
-
Category6a
-
MaterialPlastic Metal
-
TypeInternet
-
Level of securityIP20
-
VersionShielded
-
VariantRJ45 (twisted pair)
-
Number of internet sockets2
-
ShapeSquare
-
DC rated voltage [V]72
-
FamilyONE.PLATFORM
-
TypeSocket mechanism
-
Mounting depth [mm]31
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedYes
-
Assembly arrangementBasic element
-
With buses/couplingsYes
-
Category6A (IEC)
-
Shielded busesYes
-
Separate earthing connectionYes
-
Compatible with third-party coversYes
-
Outlet directionInclined
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height70.4 mm
-
Duct installationYes
-
Type of fasteningScrewing
-
Type of connector2x RJ45 8(8)
-
Suitable for number of connectors2
-
Connection typeLSA
-
Shielded housingYes
-
With label spaceNo
-
Separate strain reliefYes
-
With dust coverNo
-
Mechanical codingNo
-
Device width70.4 mm
-
Device depth45 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 120 pcs. | 1440 pcs. |
| Weight (kg) | 0,135 | 1,470 | 18,020 | 236,240 |
| Width (m) | 0,070 | 0,090 | 0,370 | 0,800 |
| Length (m) | 0,045 | 0,100 | 0,310 | 0,770 |
| Depth (m) | 0,070 | 0,370 | 0,360 | 1,200 |
