320751
0

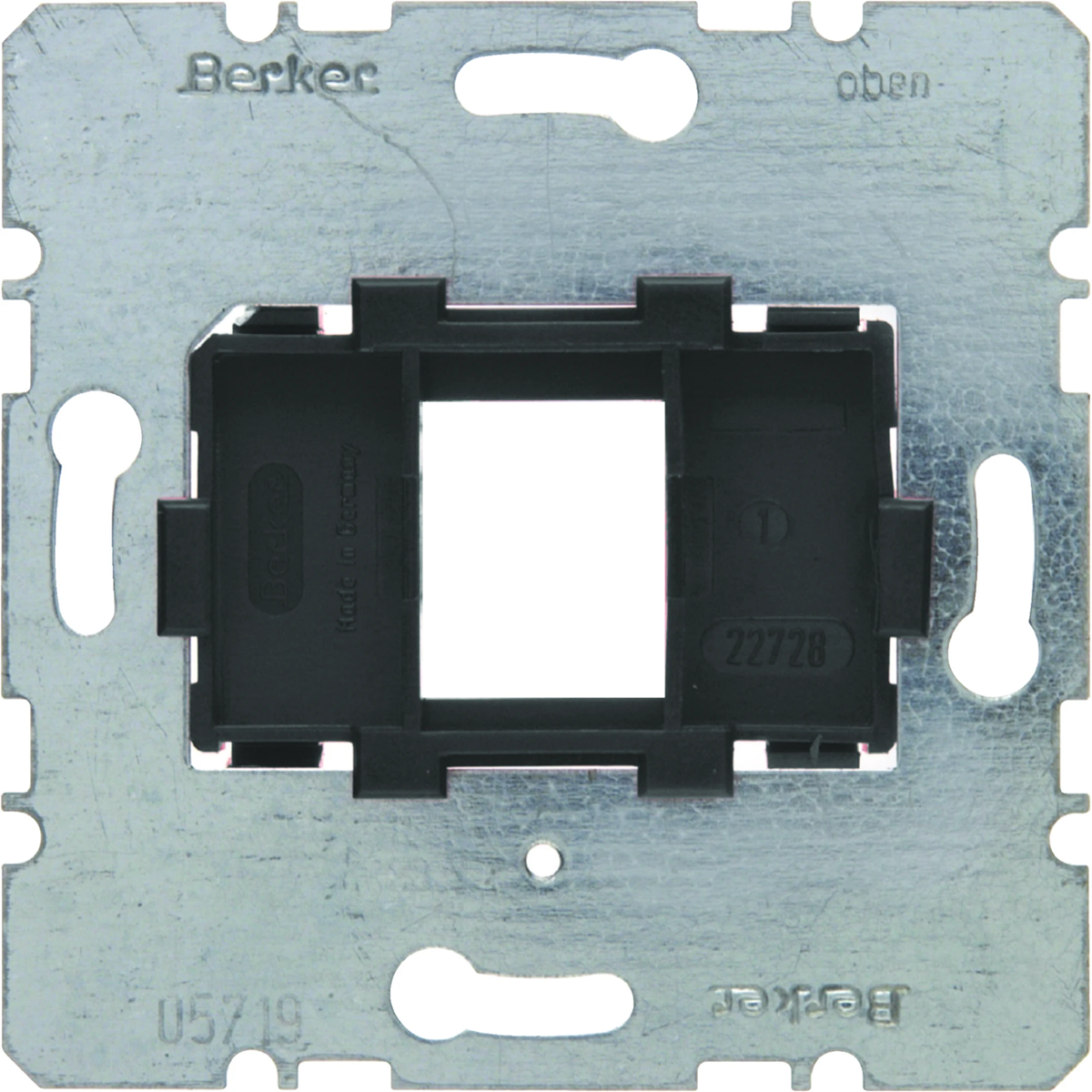

one.platform Single carrier plate with black fixing element, mechanism 454201
local index:
MAA020BERK
Catalog No:
454201
EAN code:
4011334402381
Price:
6,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
one.platform Single carrier plate with black fixing element, mechanism
Technical data
-
MaterialPlastic Metal
-
Height [mm]20.5
-
Width [mm]14.8
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementBasic element
-
Support ringYes
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
RAL-number (similar)9005
-
Type of fasteningMounting with screw
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box0 mm
-
UtilizationModular Jack
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
ColourBlack
-
TransparentNo
-
Number of modules (module system)1
-
Suitable for number of connectors1
-
Luster terminalNo
-
Device width71 mm
-
Device depth13 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 200 pcs. | 6400 pcs. |
| Weight (kg) | 0,030 | 0,331 | 7,049 | 245,558 |
| Width (m) | 0,071 | 0,077 | 0,300 | 0,800 |
| Length (m) | 0,013 | 0,066 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,177 | 0,400 | 1,200 |
