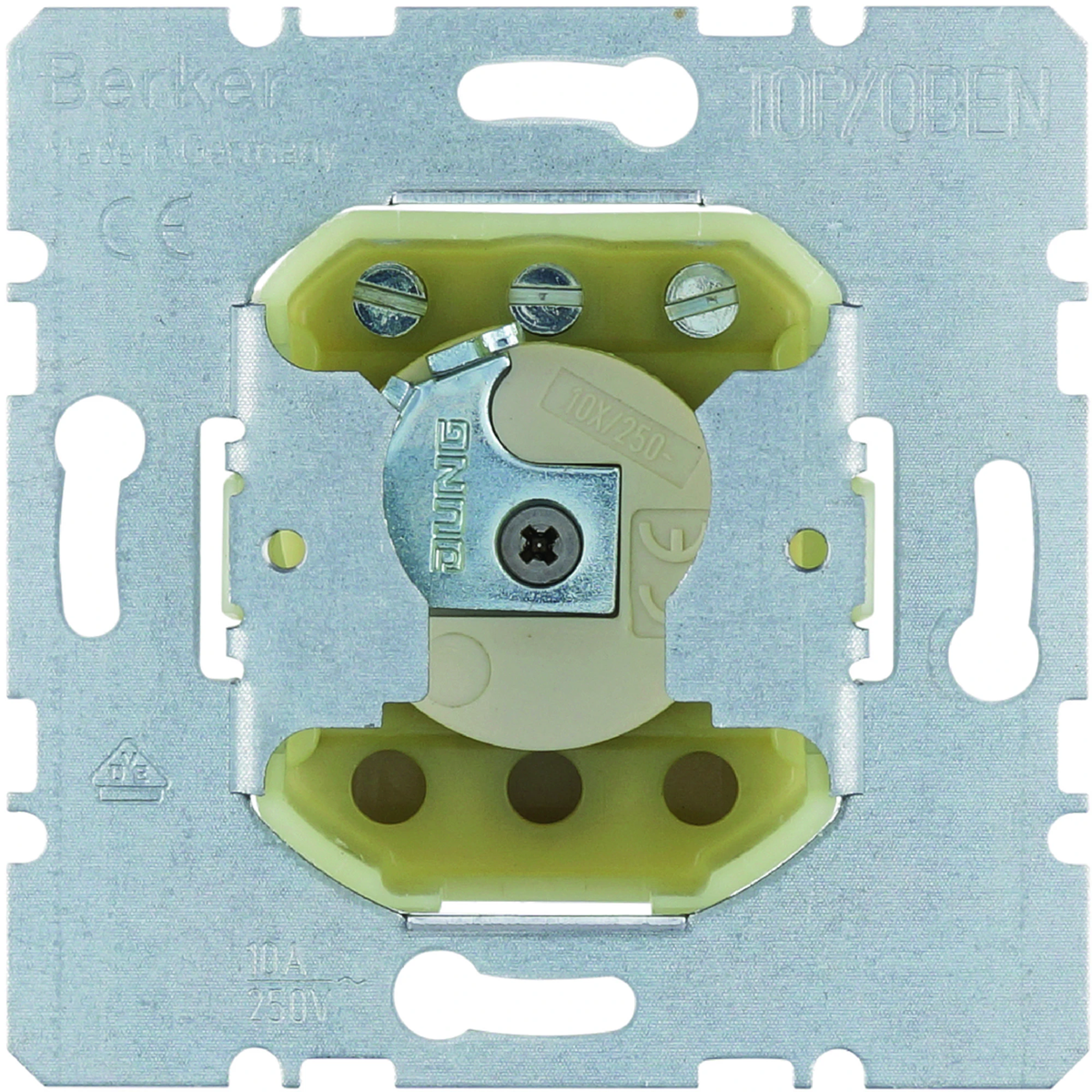

ONE.PLATFORM Shutter switch for cylinder lock, 1-pole, normally open 383110
local index:
MPO005BERK
Catalog No:
383110
EAN code:
4011334190769
Price:
64,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The shutter switch mechanism from the one.platform series, from Berker. The product catalog number is 383110.
- For profile cylinder key.
- 1-pole.
- Making.
- Without spreader legs, for screw connection.
- With screw terminals.
- For central locks.
- Only for fixing with with screws through the carrier plate.
- For order numbers 1506 60 .., 1818 ..
- Not suitable for flush-mounted series splash-proof.
Technical data
-
Depth [mm]40.3
-
ShapeSquare
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyONE.PLATFORM
-
Width [mm]70.8
-
VersionSingle
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
Number of keyskey
-
MaterialMetal Plastic
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]70.8
-
Mounting depth [mm]31.5
-
VariantThree-position normally open
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element
-
Method of operationKey
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
Type of fasteningMounting with screw
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of modules (module system)0
-
Model1-pole push button
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,084 | 0,943 | 4,135 | 152,320 |
| Width (m) | 0,071 | 0,180 | 0,300 | 0,800 |
| Length (m) | 0,040 | 0,080 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,245 | 0,400 | 1,200 |
