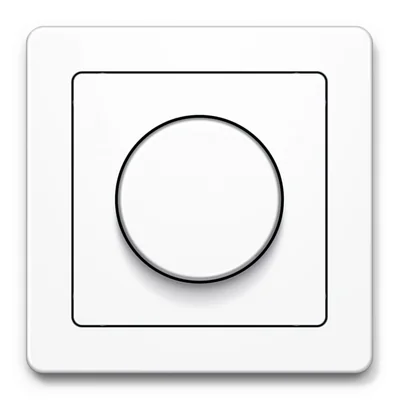

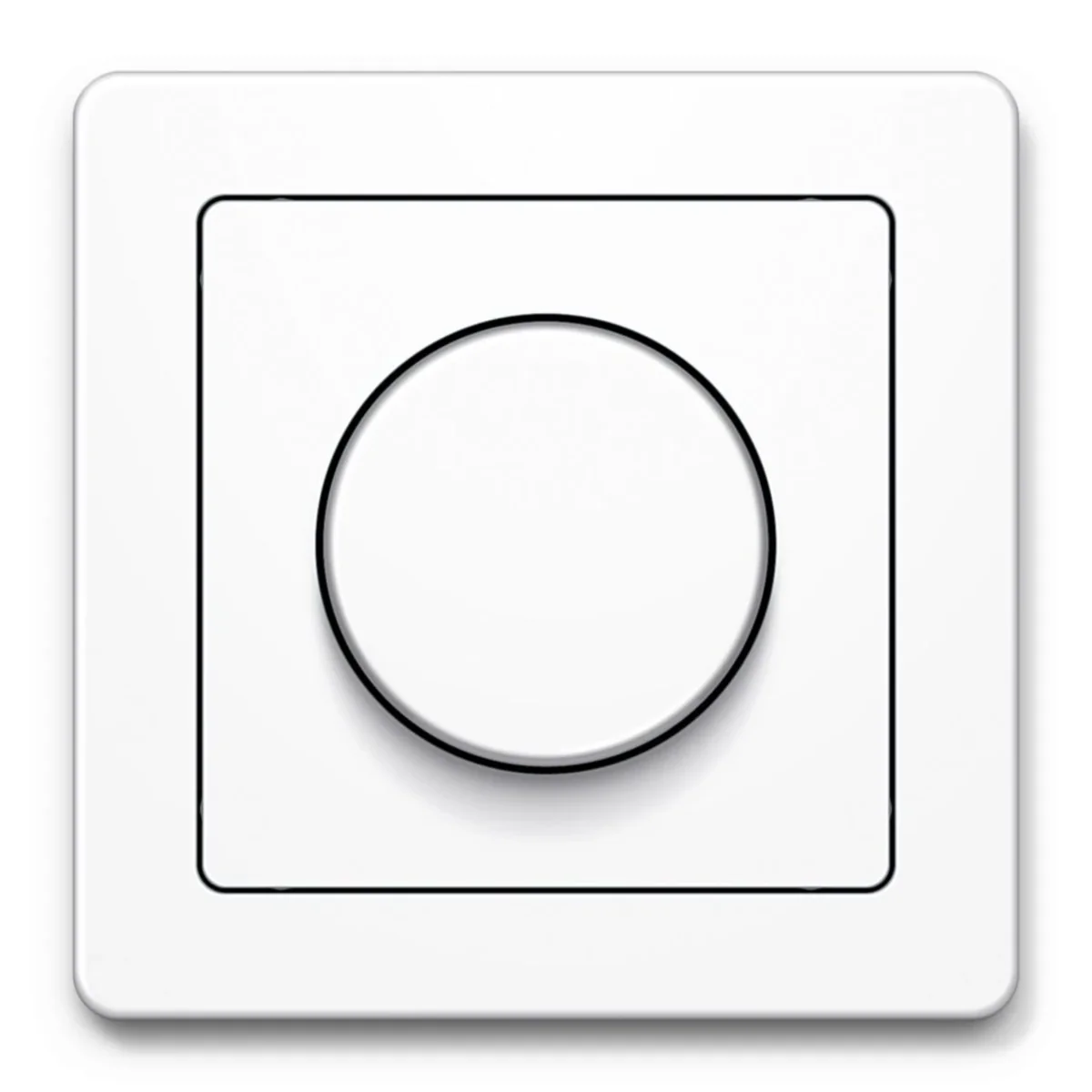

one.platform Rotary dimmer load R 20-200W LED 3-40W 2909
local index:
MPC003BERK
Catalog No:
2909
EAN code:
4011334510055
Price:
32,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

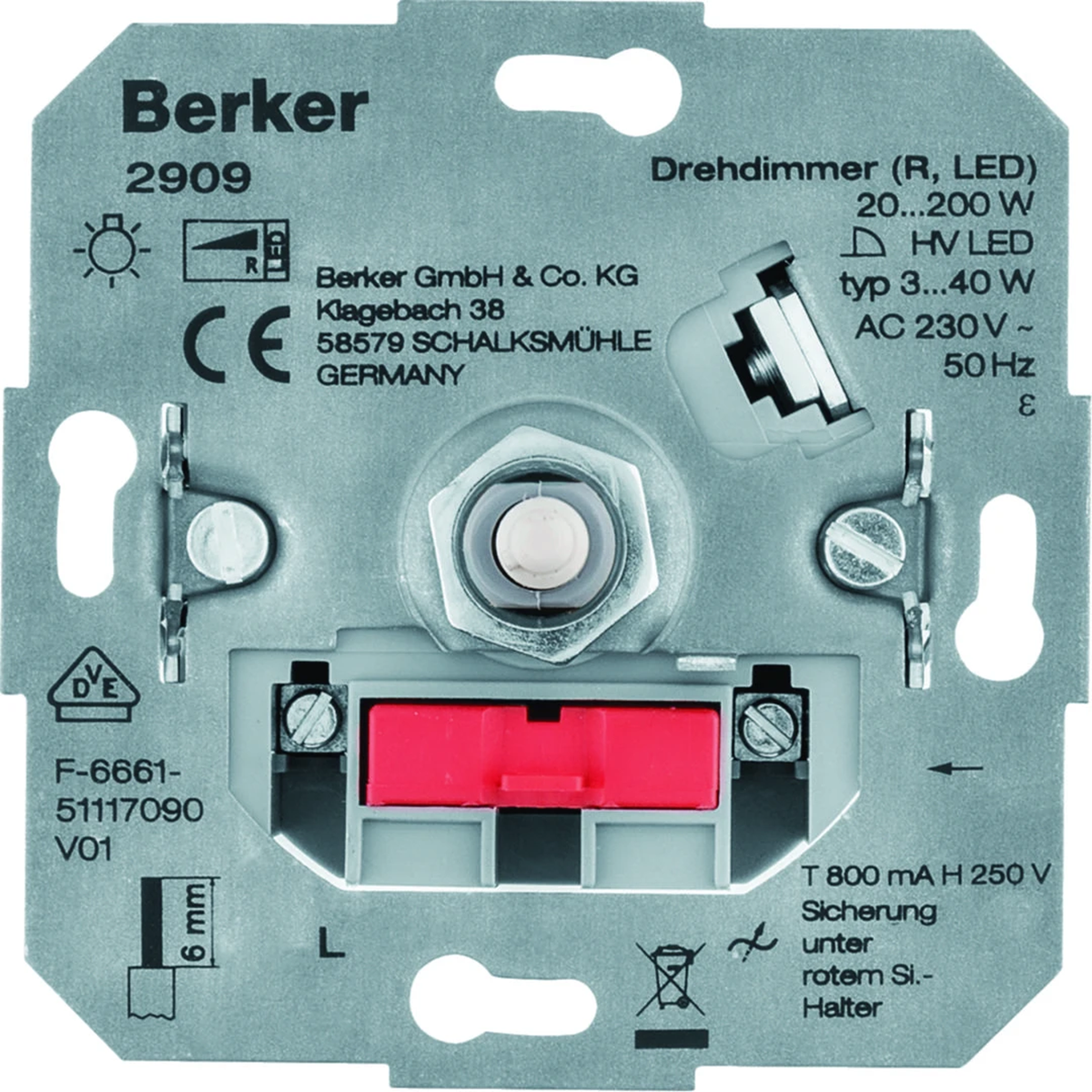

Rotary dimmer mechanism of the one.platform series. The product catalog number is 2909.
- Load R.
- 20-200W, LED 3-40W.
- Fuse: T 0.8H 250.
- Short-circuit and overload protection (fuse).
- Standby power consumption: ≈ 0.2 W.
- Wattage:
- Dimmable 230 V LED lamps: 3…40 W.
- Halogen bulbs and fluorescent lamps 230 V: 20…200 W.
- Universal load.
- Adjustable by phase cutting.
Technical data
-
Halogen freeYes
-
ShapeSquare
-
Rated voltage [V]230
-
FamilyONE.PLATFORM
-
VersionFor halogen lighting For LED
-
Mounting depth [mm]31
-
VariantRotary
-
PKWIU27.33.11.0
-
Number of keysKnob
-
FixingExpanding claws
-
Typedimmers
-
TypeThe linkage mechanism
-
BacklightNO
-
load power [W]20-200 LED: 3-40
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element
-
Dimming phase cut-onYes
-
Serial dimmerNo
-
Substation inputNo
-
Applicable with buttonNo
-
Applicable with presence indicatorNo
-
Applicable with transmission buttonNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
TransparentNo
-
Nominal voltage230 ... 230 V
-
Connection typeScrewed terminal
-
Device width71 mm
-
Device depth50 mm
-
Method of operationTurn button
-
Dimming phase cut-offNo
-
Type of loadUniversal
-
Light value memoryNo
-
Applicable with movement sensorNo
-
Applicable with time switch/timerNo
-
Applicable with infrared buttonNo
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Surface protectionUntreated
-
Suitable for degree of protection (IP)IP20
-
Frequency50 ... 50 Hz
-
Core cross section0.5 ... 2.5 mm²
-
Device height71 mm
-
Min. depth of built-in installation box34 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 100 pcs. | 1600 pcs. |
| Weight (kg) | 0,144 | 0,163 | 16,925 | 290,800 |
| Width (m) | 0,071 | 0,083 | 0,430 | 0,800 |
| Length (m) | 0,050 | 0,068 | 0,300 | 1,650 |
| Depth (m) | 0,071 | 0,083 | 0,430 | 1,200 |
