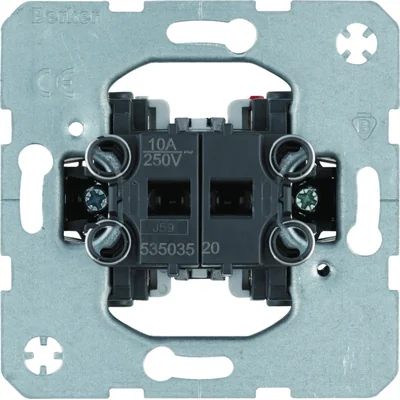

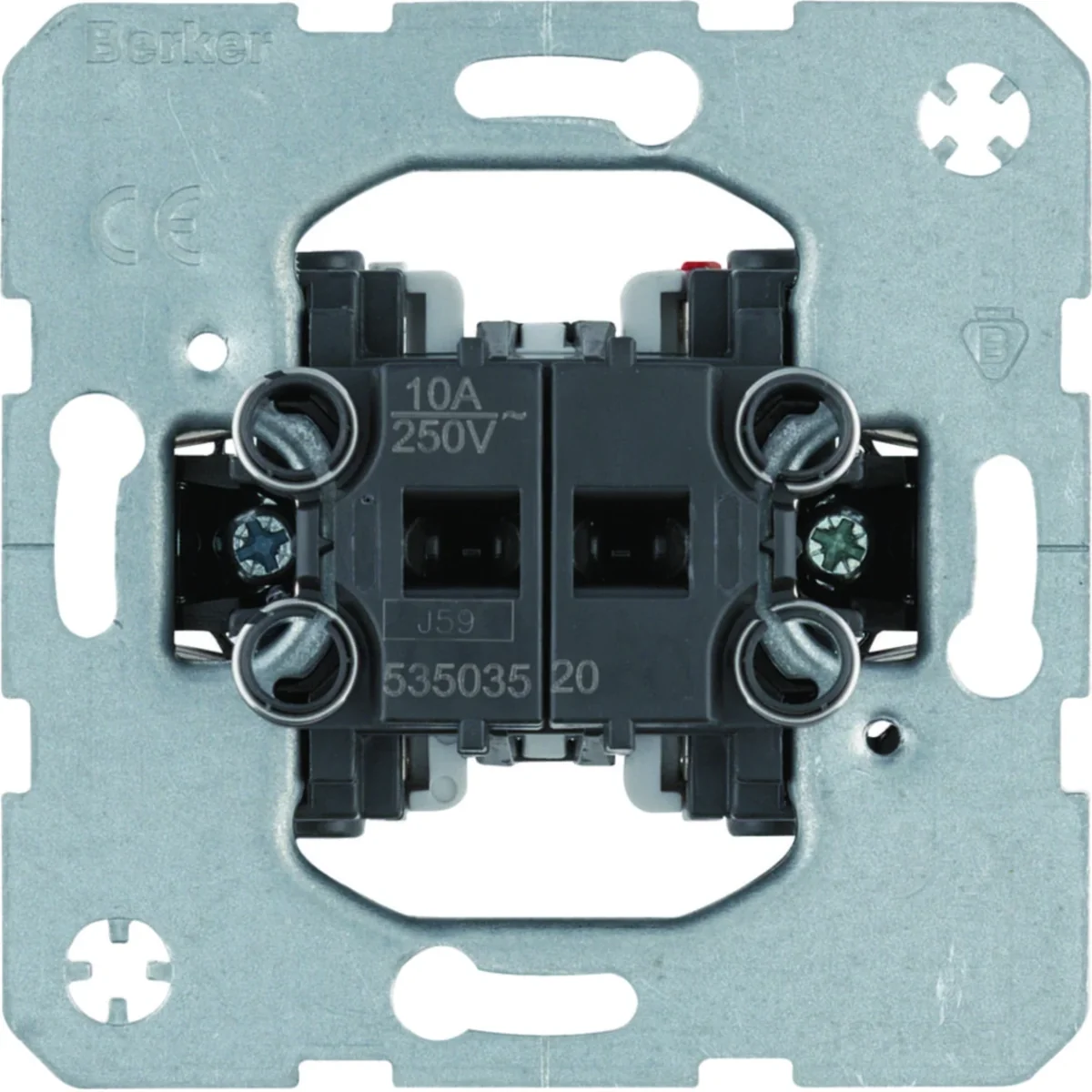

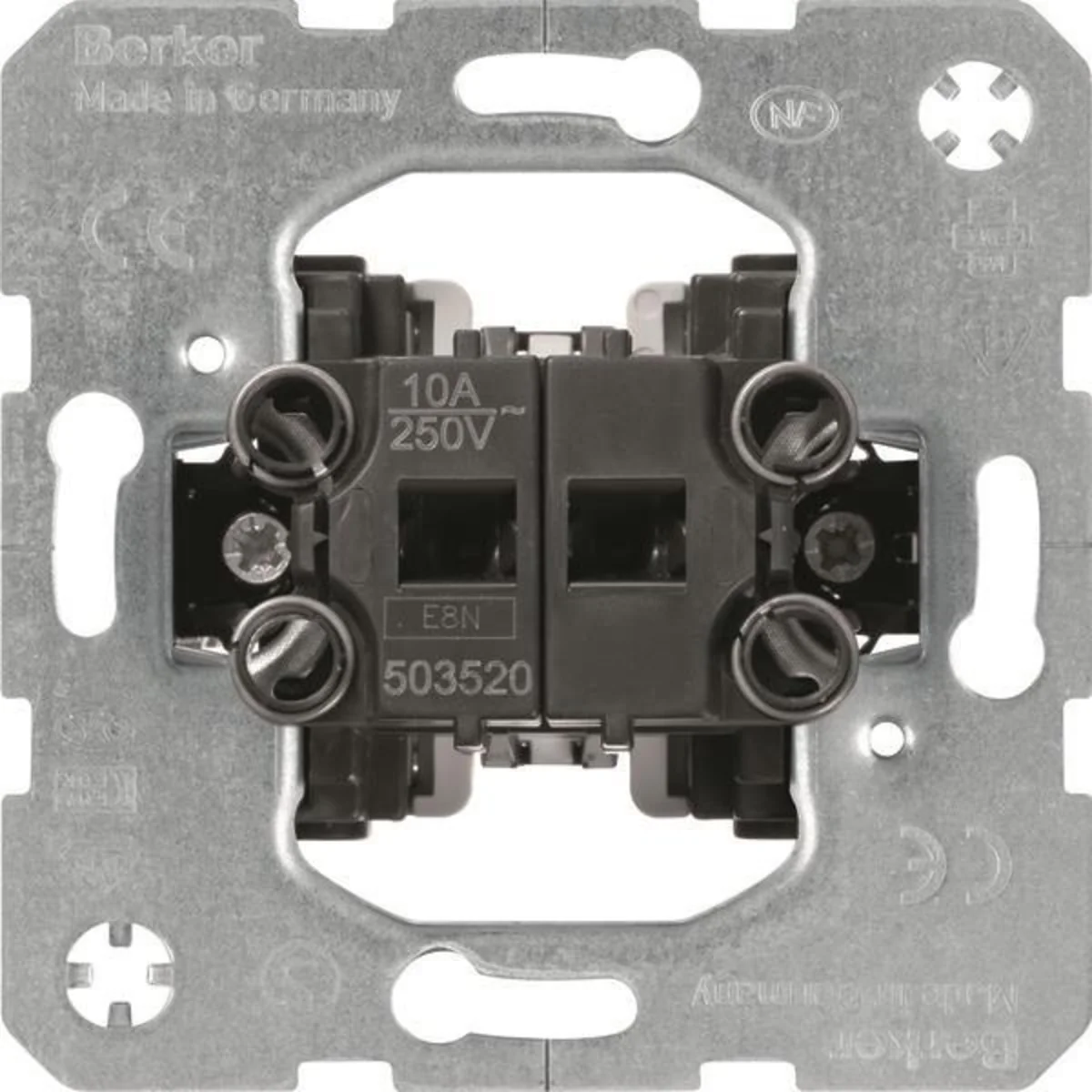

One.Platform Blind switch 2-gang push-button, 1-pole, mechanism, self-locking 53503520

local index:
MPO002BERK
Catalog No:
53503520
EAN code:
4011334447788
Manufacturer: BERKER
Number of keys: 2
Shape: Square
Material: Metal | Plastic
Price:
10,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 52 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The shutter switch  mechanism from the one.platform series, from Berker. Product part number is 53503520.

  • 2-key.
  • Push-button.
  • 1-pole.
  • With self-locking devices.
  • With mechanical and electrical interlocking as security for simultaneous closing in both directions (closing).

Technical data

  • Number of keys
    2
  • Material
    Metal Plastic
  • Rated current [A]
    10
  • Family
    ONE.PLATFORM
  • Type
    The linkage mechanism
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Version
    Single
  • Blockade
    Electric Mechanical
  • Variant
    Three-position normally open
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Mechanical controllable
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Min. depth of built-in installation box
    35 mm
  • Blokada elektryczna i mechaniczna
    Yes
  • Electronic controllable
    No
  • Material
    Other
  • Halogen free
    Yes
  • Type of fastening
    Mounting with claw and screw
  • Label space/information surface
    No
  • Rated current
    10 A
  • Number of modules (module system)
    0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,057 0,670 3,745 139,849
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
