one.platform Berker.Net DALI / DSI control gear, screw terminals 85421700

local index:
MWW001BERK
Catalog No:
85421700
EAN code:
4011334405184
Manufacturer: BERKER
Operating temperature range [°C]: from -5 to 45
Mounting depth [mm]: 32
AC operating voltage [V]: 230
Price:
146,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

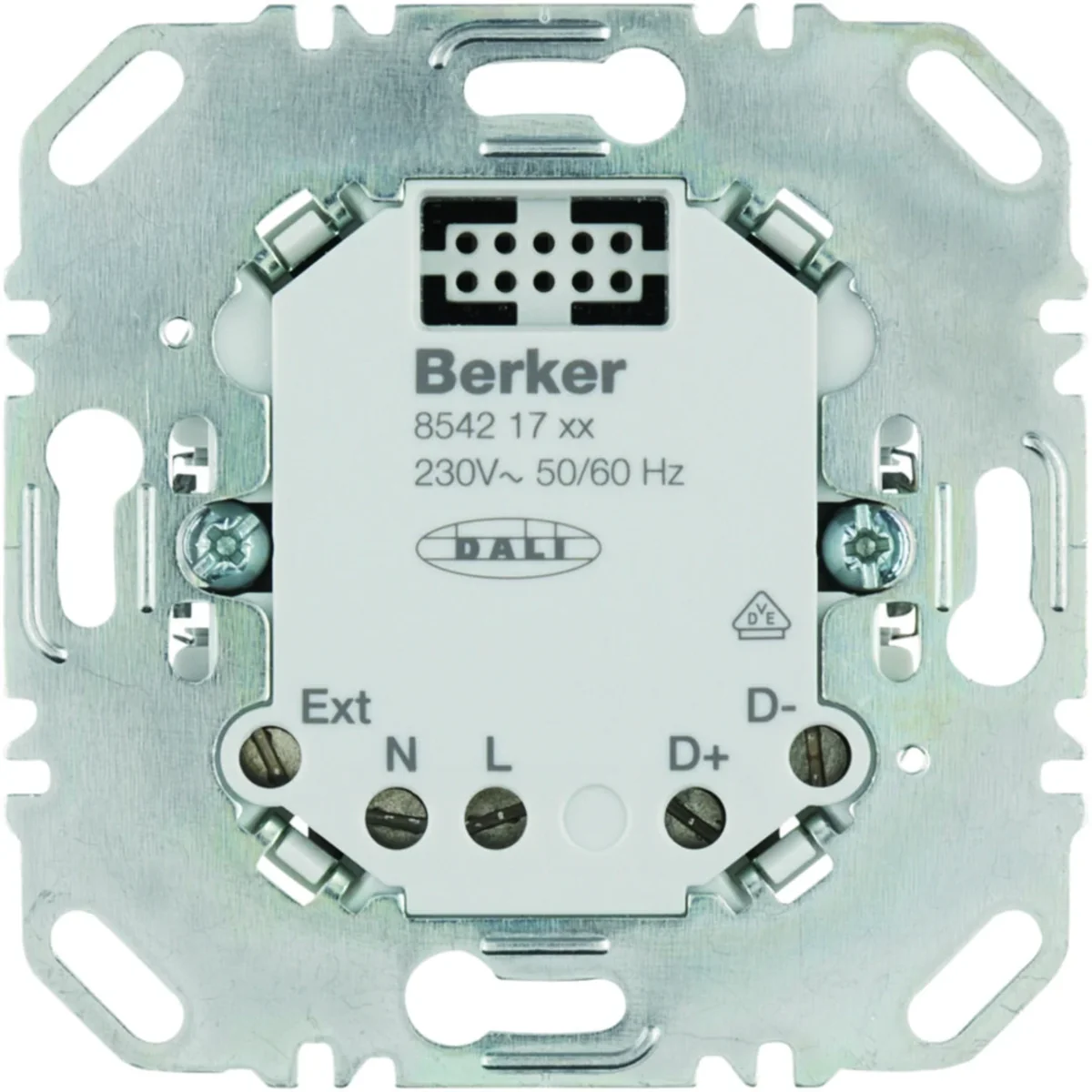

one.platform Berker.Net DALI / DSI control gear, screw terminals

Technical data

  • Operating temperature range [°C]
    from -5 to 45
  • AC operating voltage [V]
    230
  • storage temperature [°C]
    from -20 to 60
  • PKWIU
    26.30.60.0
  • Mounting depth [mm]
    32
  • Connection type
    With screw terminals
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)

Other technical data

  • Mounting method
    Flush-mounted
  • Frequency
    50 ... 60 Hz
  • Dimming DALI
    Yes
  • Dimming Touch and Dim
    Yes
  • Dimming manufacturer's proprietary system
    No
  • Substation input
    Yes
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    Yes
  • Device width
    71 mm
  • Device depth
    33.2 mm
  • Nominal voltage
    16 V
  • Dimming 1-10 V
    No
  • Dimming DSI
    Yes
  • Dimming with push-button
    Yes
  • Method of operation
    Button
  • Light value memory
    Yes
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Device height
    71 mm

Bulk packaging

A kind of package Pakiet Paleta Karton
Quantity 60 pcs. 2400 pcs. 1 pcs. 1 pcs.
Weight (kg) 6,210 273,400 0,062 0,097
Width (m) 0,300 0,800 0,071 0,085
Length (m) 0,335 1,800 0,034 0,075
Depth (m) 0,395 1,200 0,071 0,085
