One.Platform 2-gang switch, double universal (staircase), mechanism, screw terminals 53303808

Name: One.Platform 2-gang switch, double universal (staircase), mechanism, screw terminals
Brand: BERKER
SKU: MPS004BERK
Price: 19.88 PLN
Availability: InStock

local index:

MPS004BERK

Catalog No:

53303808

EAN code:

4011334430094

One.Platform 2-gang switch, double universal (staircase), mechanism, screw terminals

Click on the photo to enlarge

Manufacturer: BERKER

Number of keys: 2

Shape: Square

Material: Plastic | Metal

See full description

Price:

19,88 €

gross / pcs.

(including VAT 23%)

Accessible 72 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

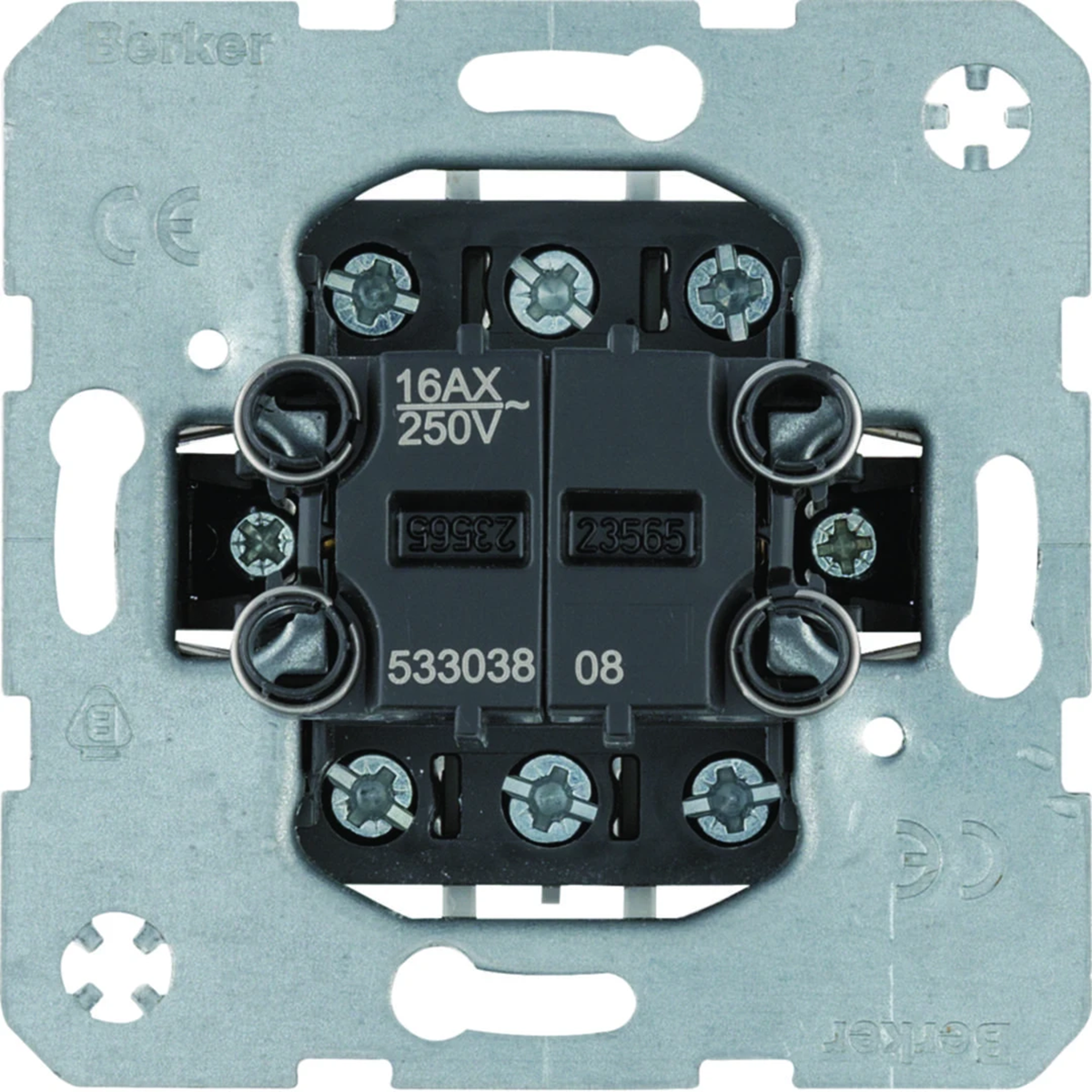

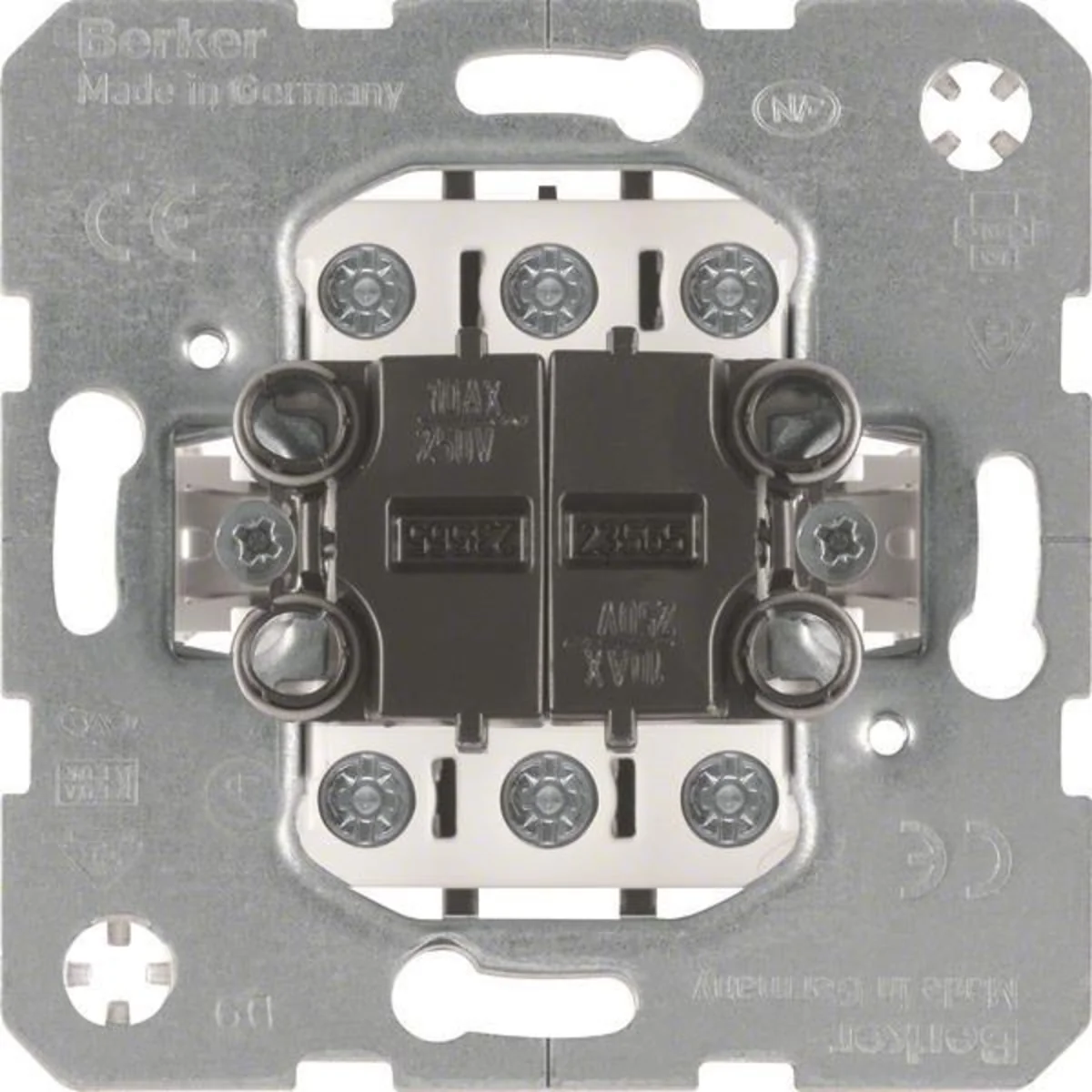

Mechanism of a universal 2-gang switch (staircase) from the one.platform series, from Berker. The product catalog number is 53303808.

Screw connection.
With screw terminals.
With the possibility of backlighting with glow plug.
To be combined with backlight.

Technical data

Number of keys

2
Material

Plastic Metal
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Type

The linkage mechanism
Degree of mechanical protection

IK07
Terminal type

Threaded
PKWIU

27.33.11.0

Shape

Square
Installation

Flush-mounted
Rated current [A]

16
Family

ONE.PLATFORM
Width [mm]

71
Height [mm]

71
Backlight

NO
For the frame system

Yes

Other technical data

Assembly arrangement

Basic element
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Other
Surface protection

Untreated
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX
Min. depth of built-in installation box

35 mm

Number of rockers

1
Type of fastening

Screw mounting
Material

Other
Halogen free

Yes
Label space/information surface

No
Rated current

16 A
Connection type

Screwed terminal

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	100 pcs.	2000 pcs.
Weight (kg)	0,082	0,920	10,100	222,000
Width (m)	0,071	0,160	0,452	0,800
Length (m)	0,042	0,075	0,254	1,500
Depth (m)	0,071	0,225	0,354	1,200
