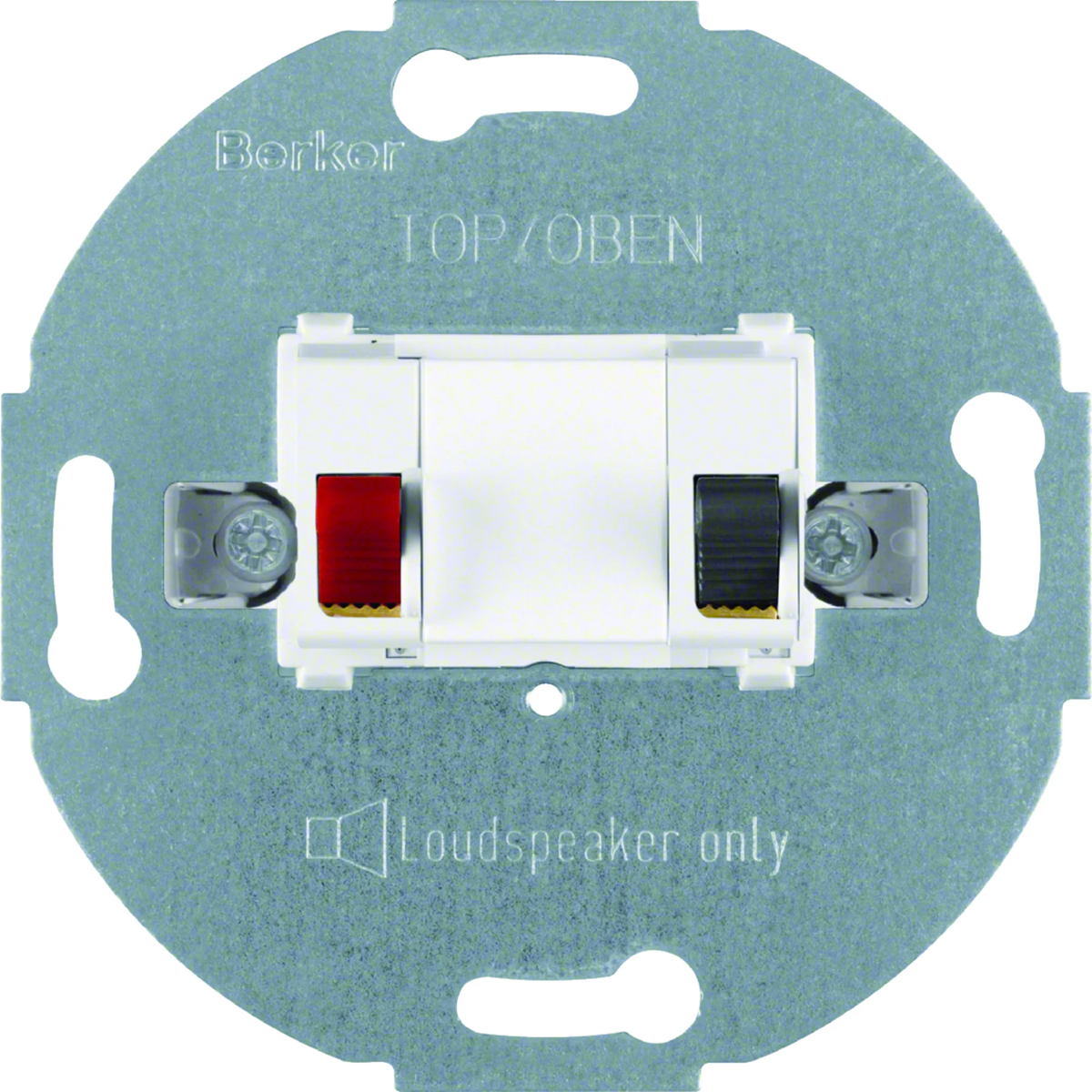

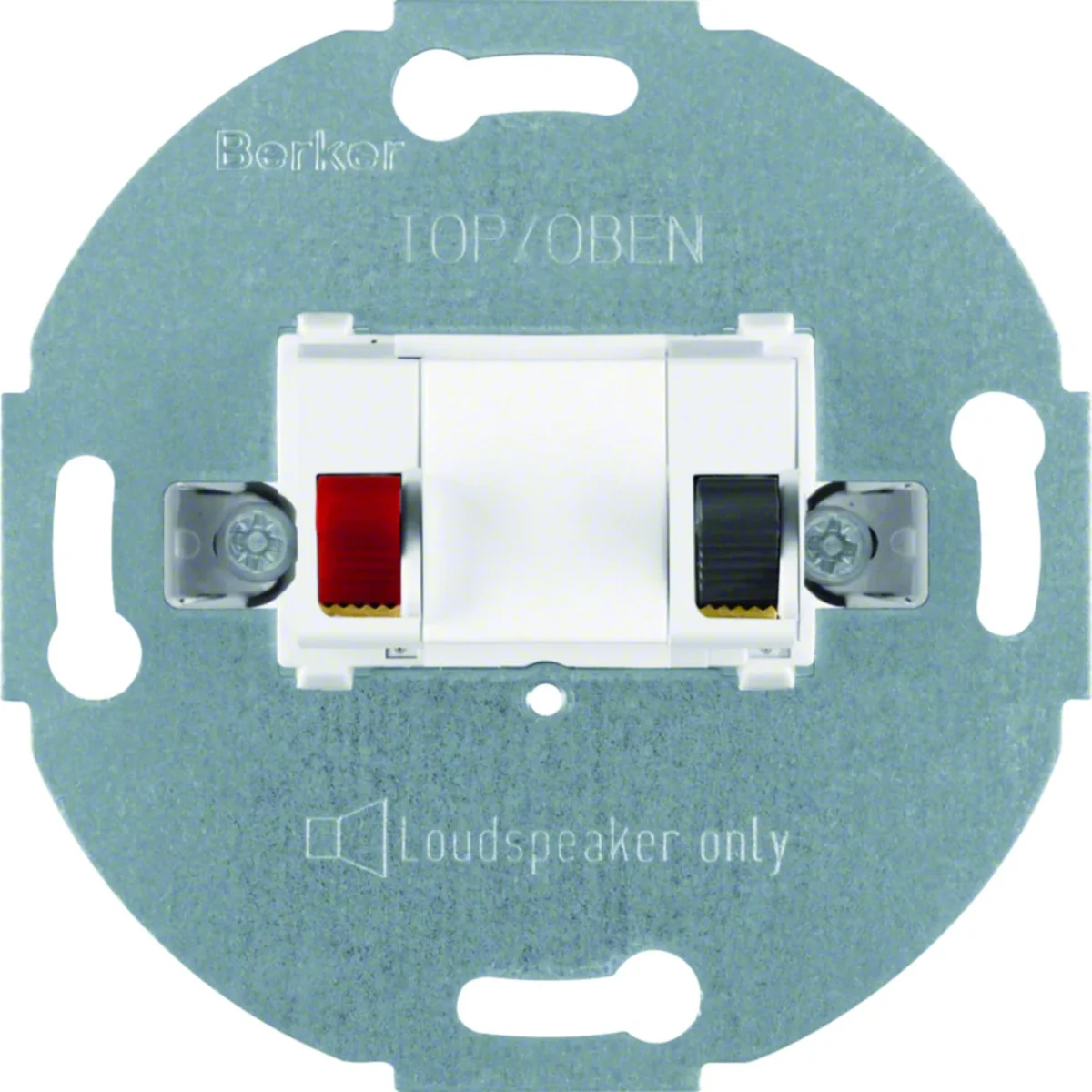

One.platform 1-way stereo speaker jack mechanism, white 457209

local index:
MJG005BERK
Catalog No:
457209
EAN code:
4011334051176
Manufacturer: BERKER
Number of sockets: 1
Shape: square | Round
Material: Plastic | Metal
Price:
23,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 15 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Stereo speaker jack mechanism from the one.platform series, from Berker. The product catalog number is 457209.



FEATURES

  • 1-fold.
  • Colour-coded polarity, also suitable as connection socket for safety low voltage.
  • For order numbers 1033 .., 1040 ..
  • With crimp contacts (rear side screw terminals).
  • Rated voltage: 60 V DC.

Technical data

  • Number of sockets
    1
  • Material
    Plastic Metal
  • Type
    speaker
  • Level of security
    IP20
  • Surface finish
    matte
  • Accurate color
    Snow white
  • Variant
    Pin-type plugs
  • PKWIU
    27.33.13.0
  • Shape
    square Round
  • Fixing
    With spreaders
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Maximum conductor cross-section [mm²]
    10
  • Backlight
    NO
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element
  • Support ring
    Yes
  • With hinged lid
    No
  • Contact type
    Female
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Suitable for number of connectors
    2
  • With strain relief
    No
  • Luster terminal
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    45 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    No
  • Outlet direction
    Inclined
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Isolated connections
    No
  • Shielded buses
    No
  • With lighting
    No
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,470 2,350 75,200
Width (m) 0,170 0,300 0,800
Length (m) 0,080 0,220 1,050
Depth (m) 0,230 0,400 1,200
