BERKER

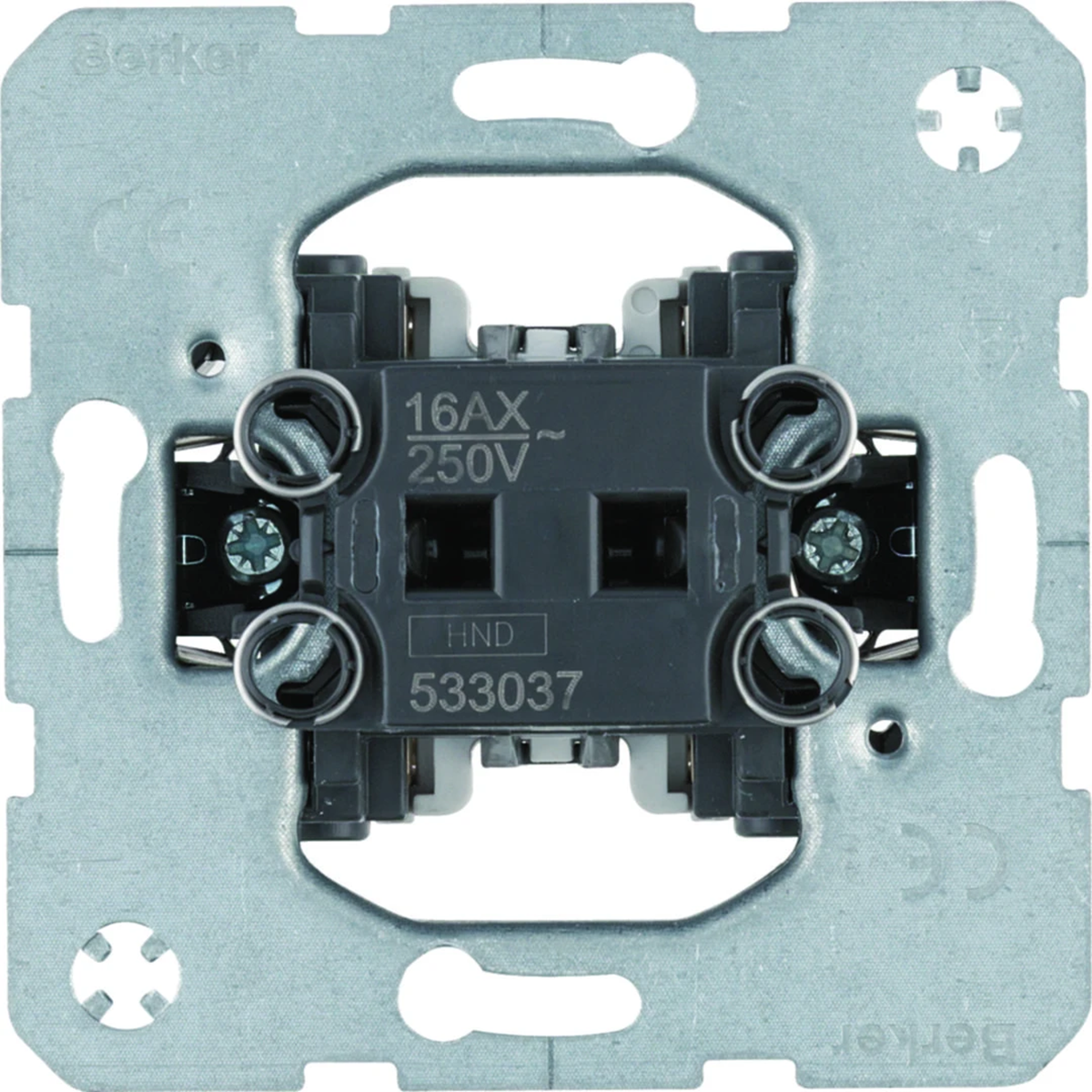

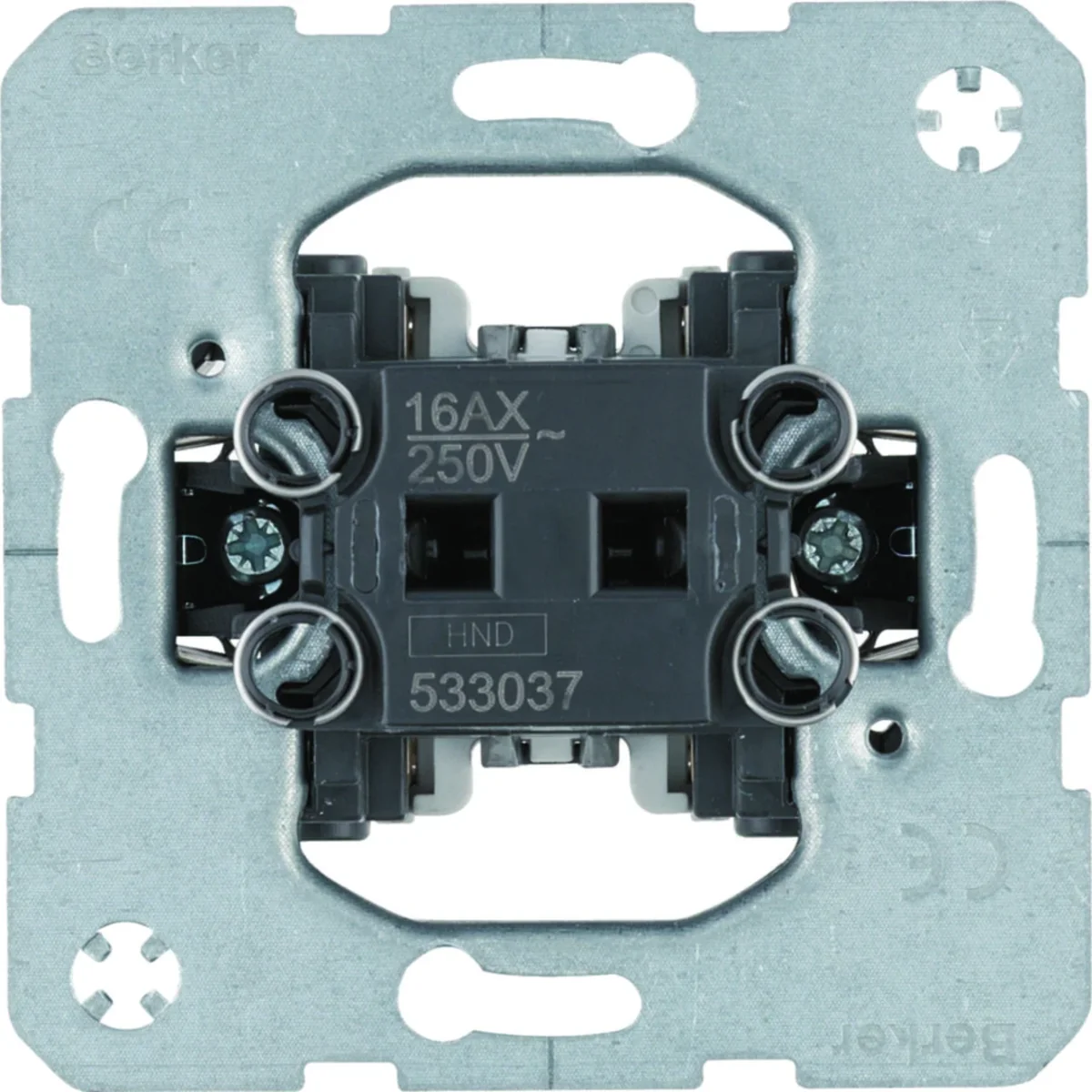

One.Platform 1-way cross switch, mechanism, self-locking 533037

local index:
MPK001BERK
Catalog No:
533037
EAN code:
4011334430087
Price:
8,18 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 90 pcs.
Delivery:
From 3,70 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Cross connector mechanism from the one.platform series, from Berker. Product part number is 533037.

  • 1-key.
  • 16 AX (200W self-ballasted).
  • Quick Connect.
  • For backlight connection and backlight control connection.

Technical data

  • Depth [mm]
    41.6
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ONE.PLATFORM
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • For the frame system
    Yes
  • Number of keys
    1
  • Material
    Plastic Metal
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Degree of mechanical protection
    IK07
  • Mounting depth [mm]
    32

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element
  • Push button switch
    no
  • Mounting method
    Flush-mounted
  • With mounting plate
    no
  • Material quality
    Other
  • Surface protection
    Other
  • Illumination
    Optional
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    41.6 mm
  • Min. depth of built-in installation box
    35 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw
  • Material
    Other
  • Halogen free
    yes
  • Label space/information surface
    No
  • Function lighting
    Control and orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    71 mm
  • Built-in depth
    32 mm
