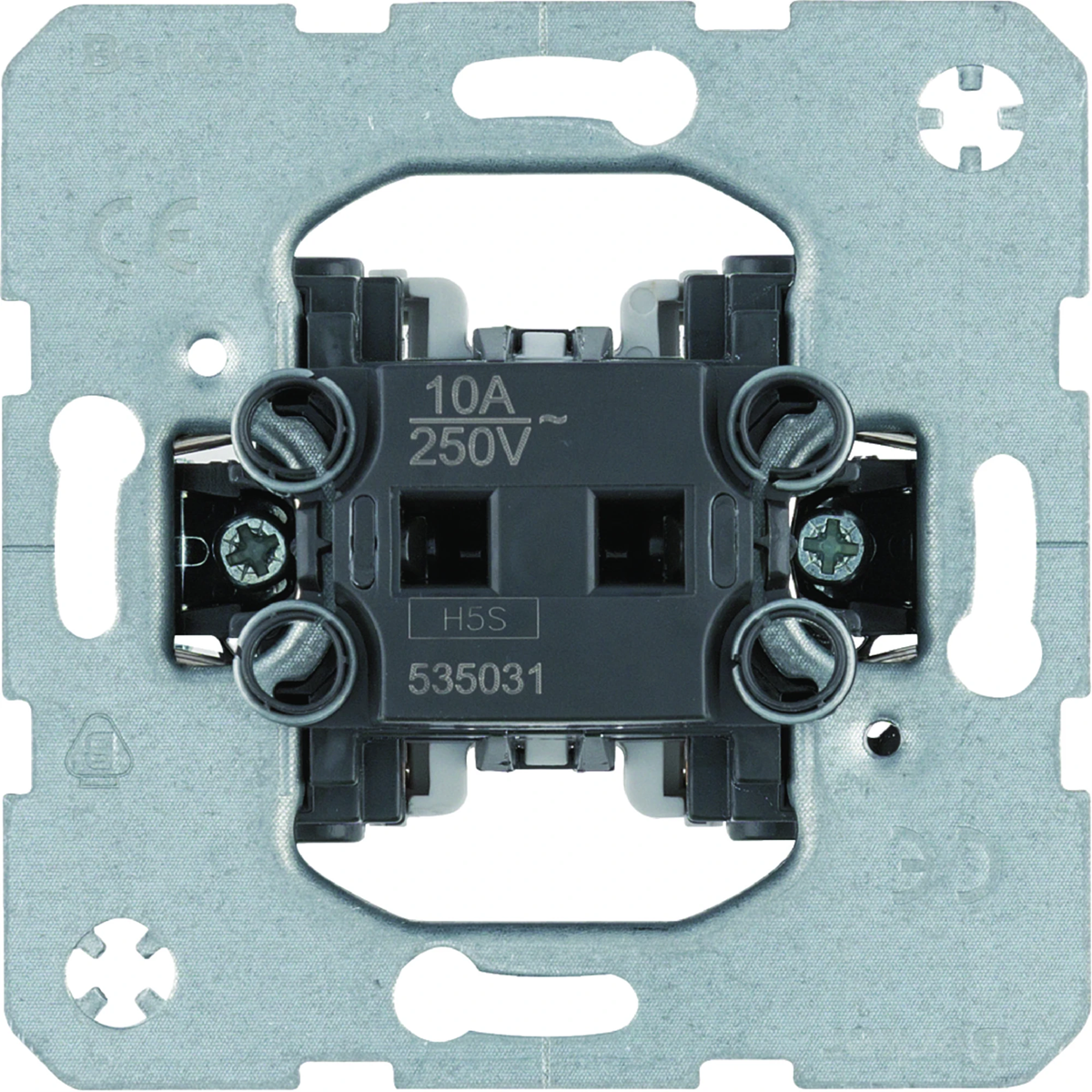

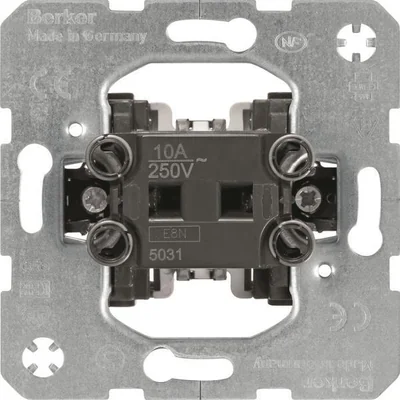

One.Platform 1-gang push-button switch, NO contact, mechanism, self-locking 535031
local index:
MPZ001BERK
Catalog No:
535031
EAN code:
4011334430070
Price:
5,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-button switch mechanism from the one.platform series, from Berker. Product reference number is 535031.
- NO contact.
- With plug-in terminals.
- For connection to backlight and control connection with backlight.
- With the possibility of backlighting using a glow plug and a glow plug with a neutral terminal.
Technical data
-
Depth [mm]41.6
-
ShapeSquare
-
FixingExpanding claws
-
Rated current [A]10
-
FamilyONE.PLATFORM
-
Width [mm]71
-
VersionConfident
-
Maximum conductor cross-section [mm²]2.5
-
Terminal typeThreadless
-
For the frame systemYes
-
Number of keys1
-
MaterialPlastic Metal
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]71
-
BacklightNO
-
VariantOrdinary
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element
-
Number of rockers1
-
Nominal voltage250 V
-
With signal lampNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
Surface protectionOther
-
Label space/information surfaceNo
-
Device width71 mm
-
Device depth41.6 mm
-
ModelSingle push button
-
Number of modules (module system)0
-
Rated current10 A
-
Feedback-signal contactNo
-
Type of fasteningMounting with claw and screw
-
Material qualityOther
-
Anti-bacterial treatmentNo
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,058 | 0,660 | 3,795 | 141,449 |
| Width (m) | 0,071 | 0,170 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,235 | 0,400 | 1,200 |
