one.platform 1-gang 2-pole switch, mechanism, screw terminals 53303212

local index:
MPD004BERK
Catalog No:
53303212
EAN code:
4011334430162
Manufacturer: BERKER
Number of keys: 1
Shape: Square
Material: Plastic | Metal
Price:
12,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

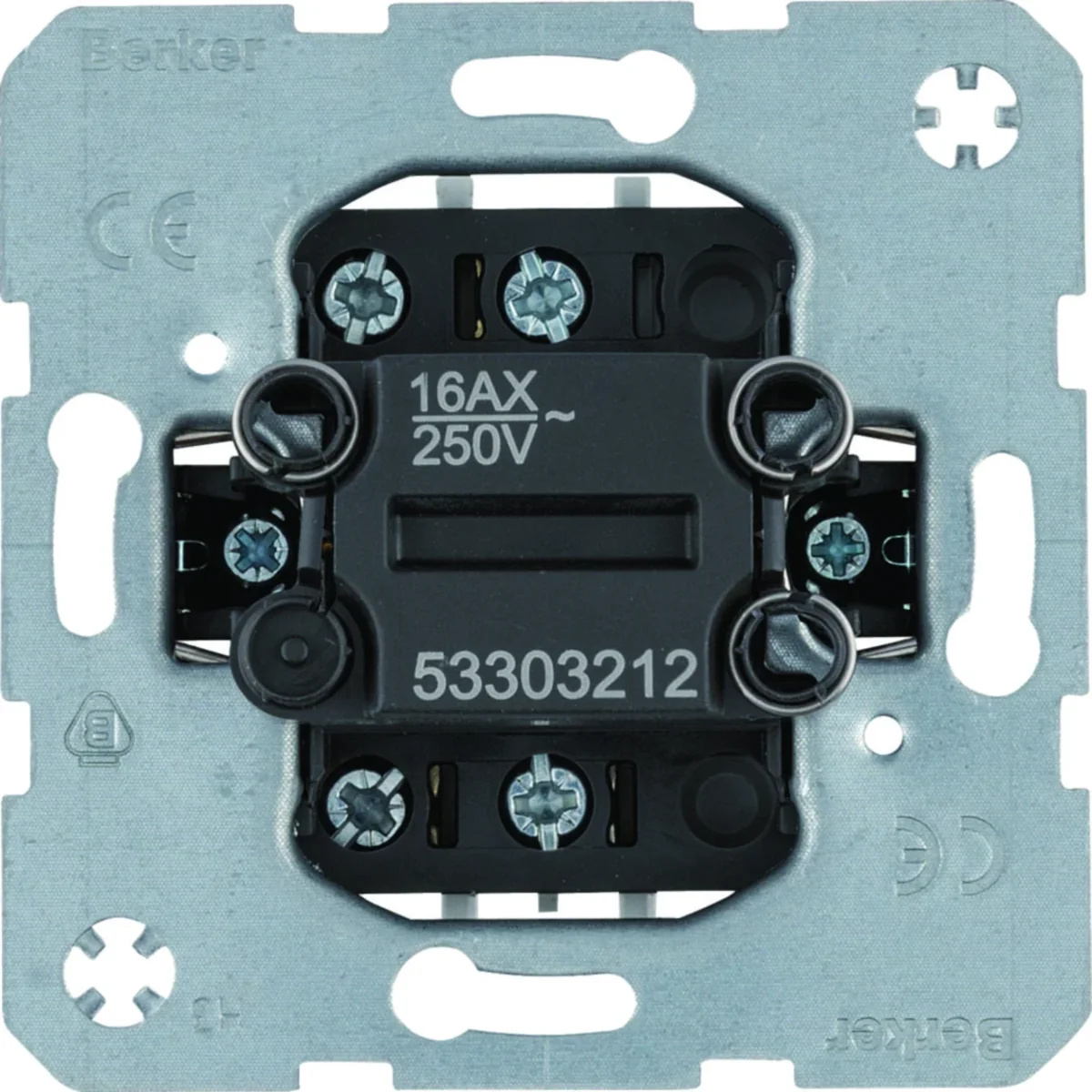

Double-pole switch mechanism from the one.platform series, from Berker. The product part number is 53303212.

  • 1-key.
  • 16 AX (200W self-ballasted).
  • Screw connection.

Technical data

  • Number of keys
    1
  • Material
    Plastic Metal
  • Rated voltage [V]
    230
  • Type
    Bipolar
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Degree of mechanical protection
    IK05
  • Terminal type
    Threaded
  • PKWIU
    27.33.11.0
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ONE.PLATFORM
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    16 AX
  • Min. depth of built-in installation box
    35 mm
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Other
  • Halogen free
    Yes
  • Label space/information surface
    No
  • Rated current
    16 A
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,076 0,850 4,695 175,240
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
