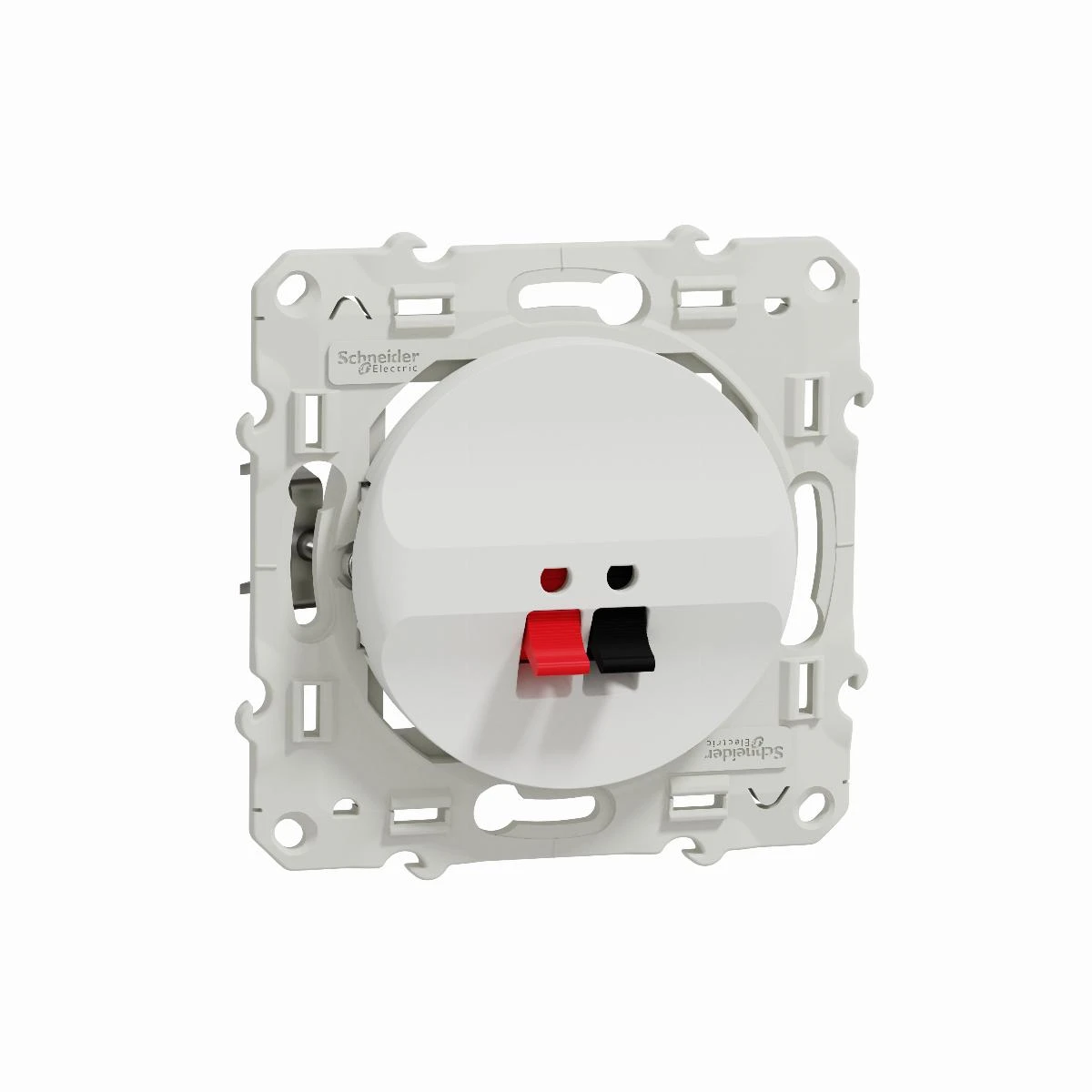

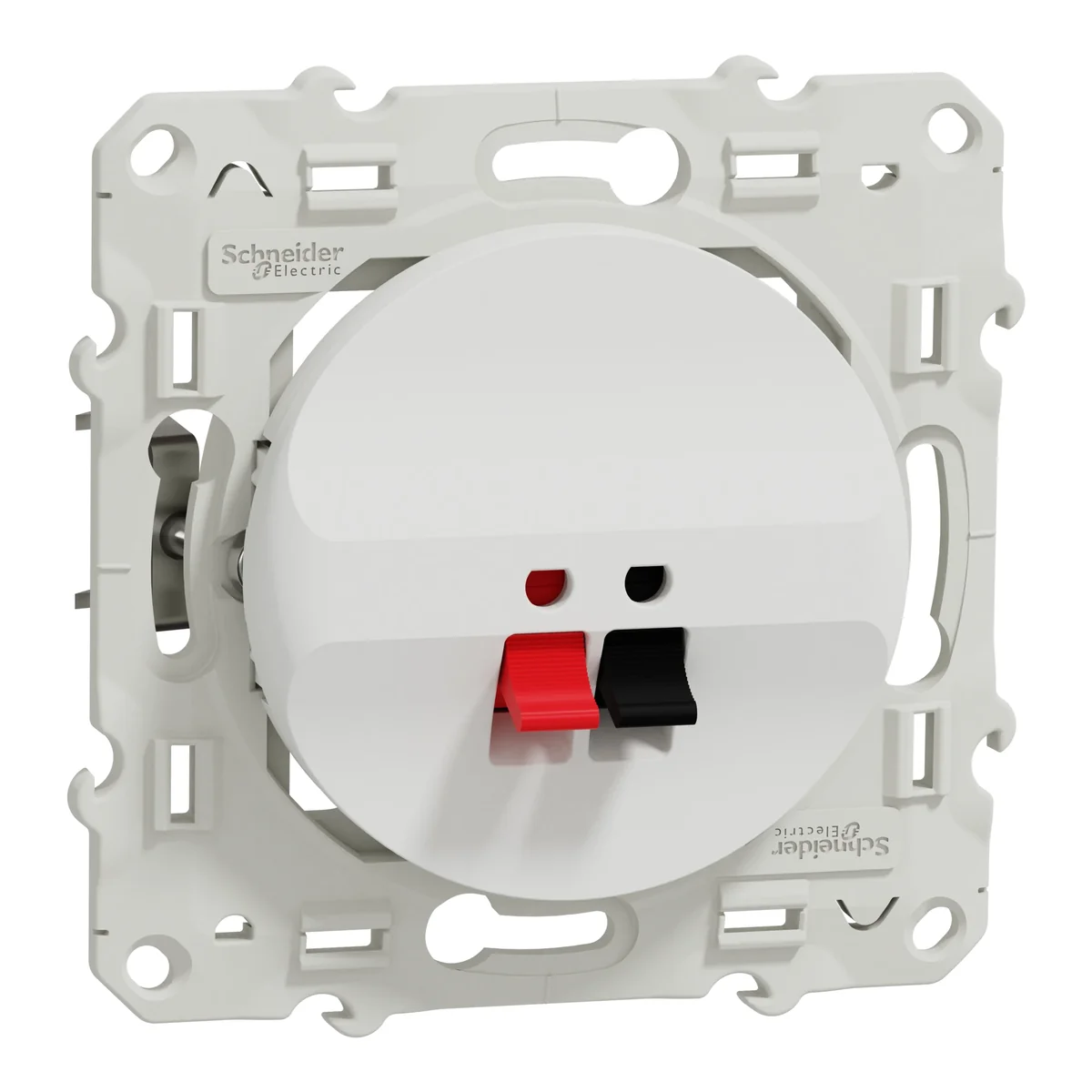

ODACE Single white speaker socket S520487

local index:
MEG009SCHN
Catalog No:
S520487
EAN code:
3606480319884
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 47.2
Number of sockets: 1
Color: White
Price:
24,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Speaker socket from the Odace series, from Schneider Electric. The product part number is S520487.



FEATURES

  • Single.< /li>
  • Module without frame.
  • Screwless terminals.
  • Color white .
  • flush installation.
  • Thermoplastic ABS with increased resistance to UV radiation.
  • Length stripped insulation from the 12 mm cable.



SERIES DESCRIPTION

The innovative Odace series makes a seemingly ordinary interior gains character. Vivid colors, natural materials and original design, using the round shape of the mechanisms, will perfectly complement any interior. The Speaker socket has all the features of this unique series.

Technical data

  • Depth [mm]
    47.2
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ODACE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK04
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Round
  • Fixing
    Screws
  • Type
    speaker
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    Shiny
  • Mounting depth [mm]
    19.9
  • Variant
    Pin-type plugs
  • Exact material
    ABS PBT PA

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    0
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    47.2 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    19.9 mm
