SCHNEIDER ELECTRIC

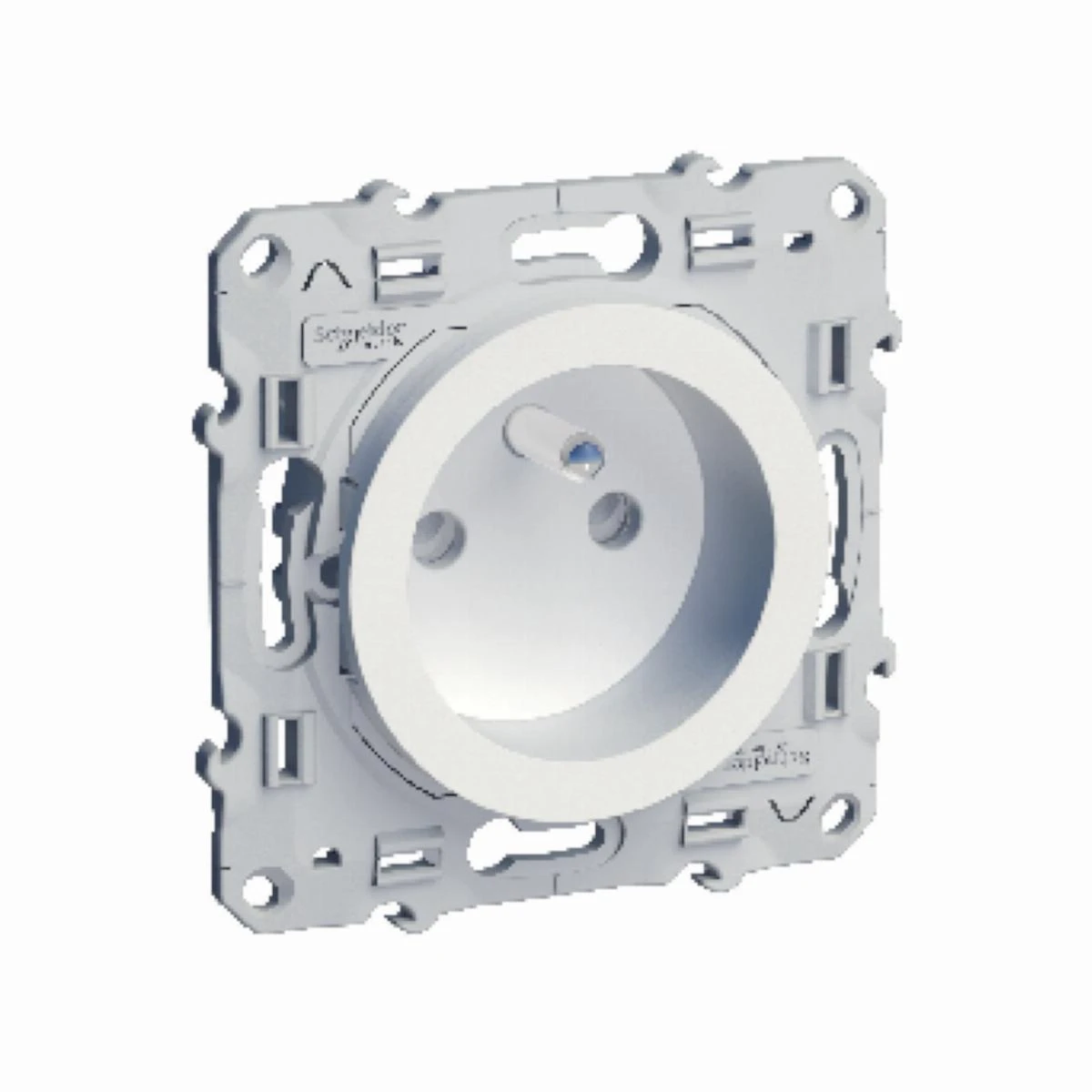

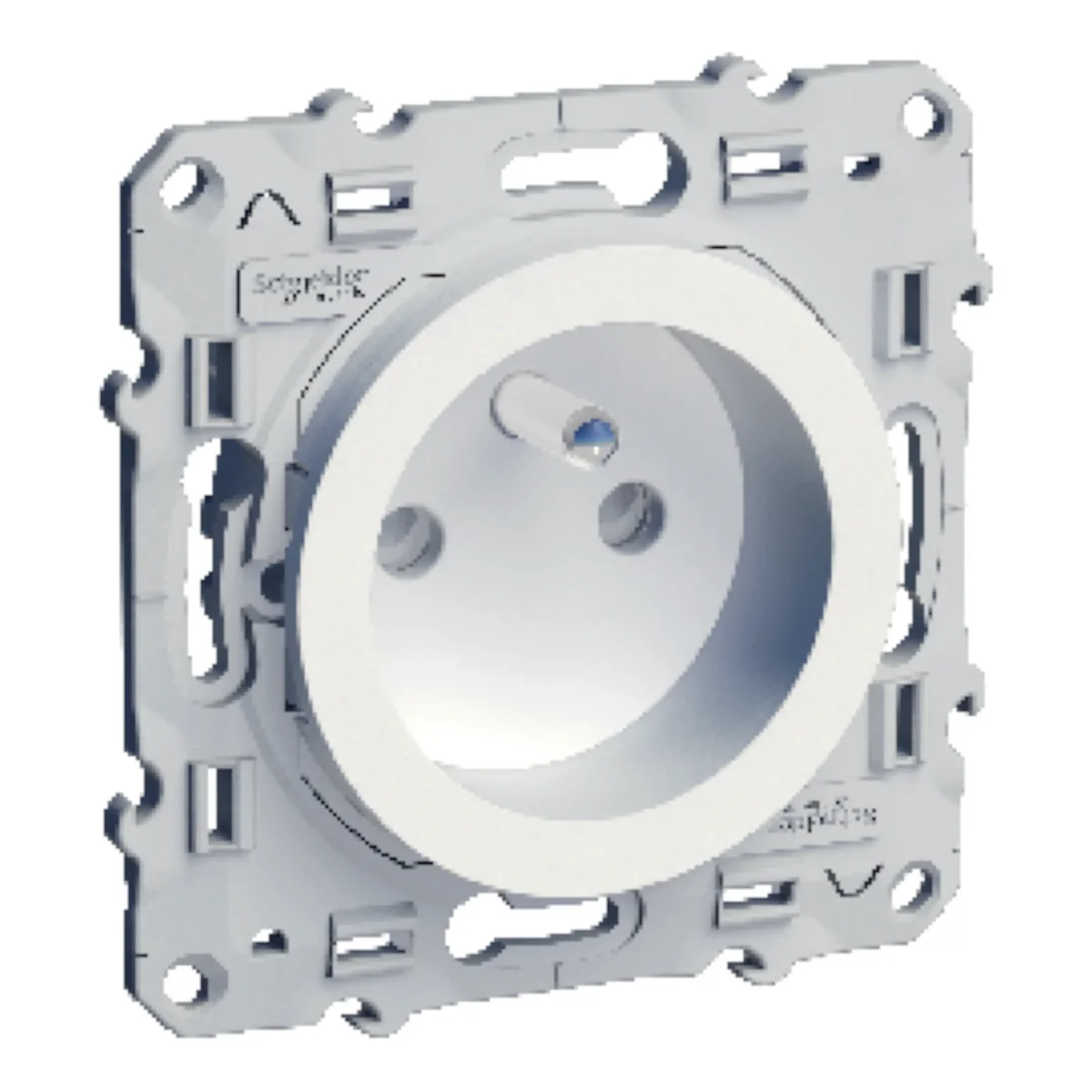

ODACE Single socket 2P+PE DIY with shutters for current paths screwless white terminals S52D059

local index:
MEE071SCHN
Catalog No:
S52D059
EAN code:
3606480545191
Price:
9,98 €
gross / pcs.
including VAT 23%
Availability:
2 weeks
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

2P+PE single socket



SERIES DESCRIPTION

The innovative Odace series makes a seemingly ordinary interior it gains character. Vivid colors, natural materials and original design, using the round shape of the mechanisms, will perfectly complement any interior.

Odace is a modern and innovative range of electrical installation accessories that will allow you to personalize the interior of your home, apartment or office in a down to the tiniest details. The unusual design distinguishes the Odace series from other series of accessories, beautifully emphasizing the style of the interior. Thanks to a wide range of functions, it is possible to choose the best solutions tailored to the needs of users. Simplicity and functionality make the Odace series a perfect complement to any modern interior.

The modern series of Odace wiring accessories was created to keep up with the fast pace of life of its users. Its unique design, a number of practical functions and the possibility of personalization make Odace products enliven your interior and increase the comfort of its use.

Technical data

  • Depth [mm]
    42.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ODACE
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC ASA PBT

Other technical data

  • Protective contact
    no
  • Number of active contacts (round)
    1
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    yes
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK04
  • Device height
    71 mm
  • Min. depth of built-in installation box
    10.45 mm
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9003
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP21
  • Device width
    71 mm
  • Device depth
    47.3 mm
