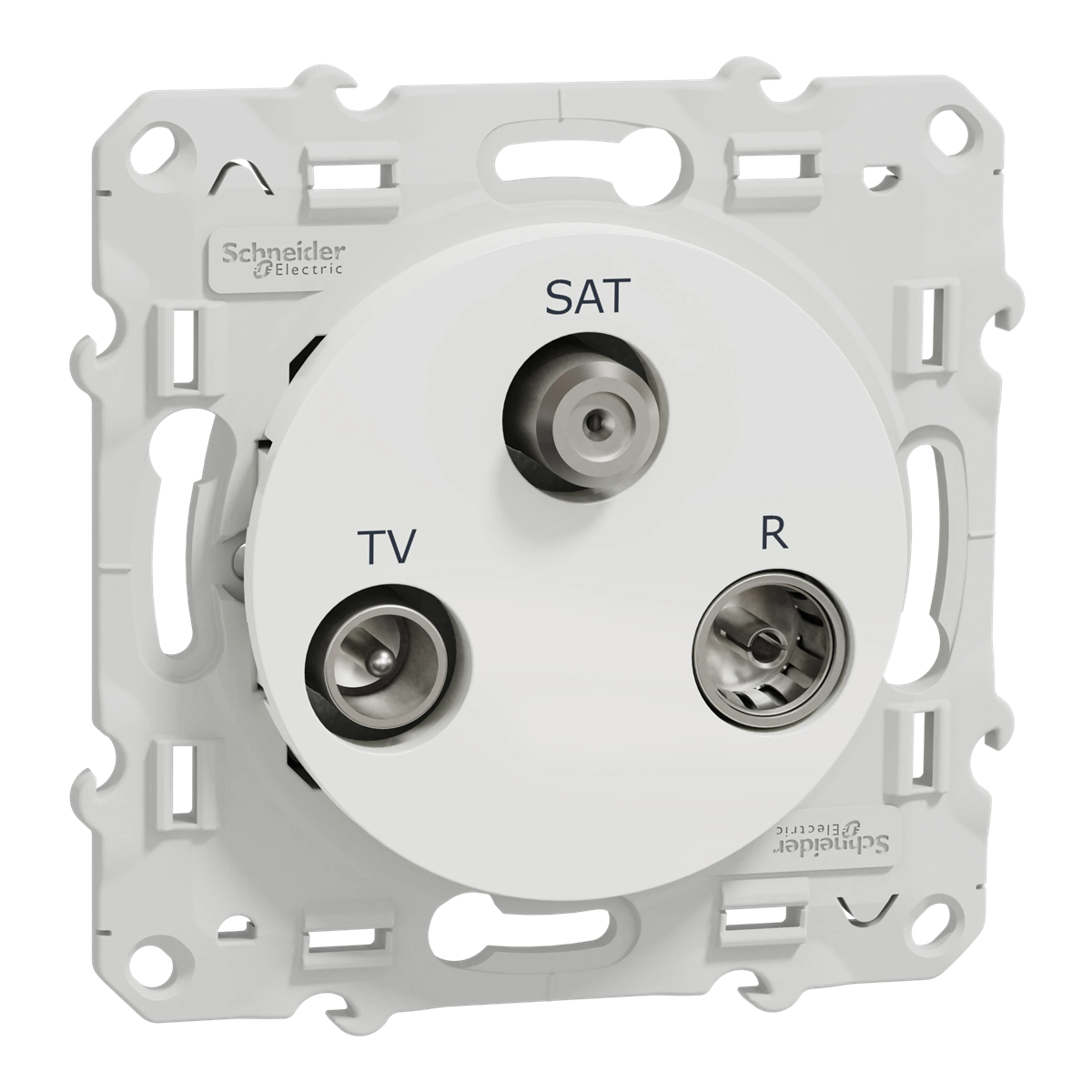

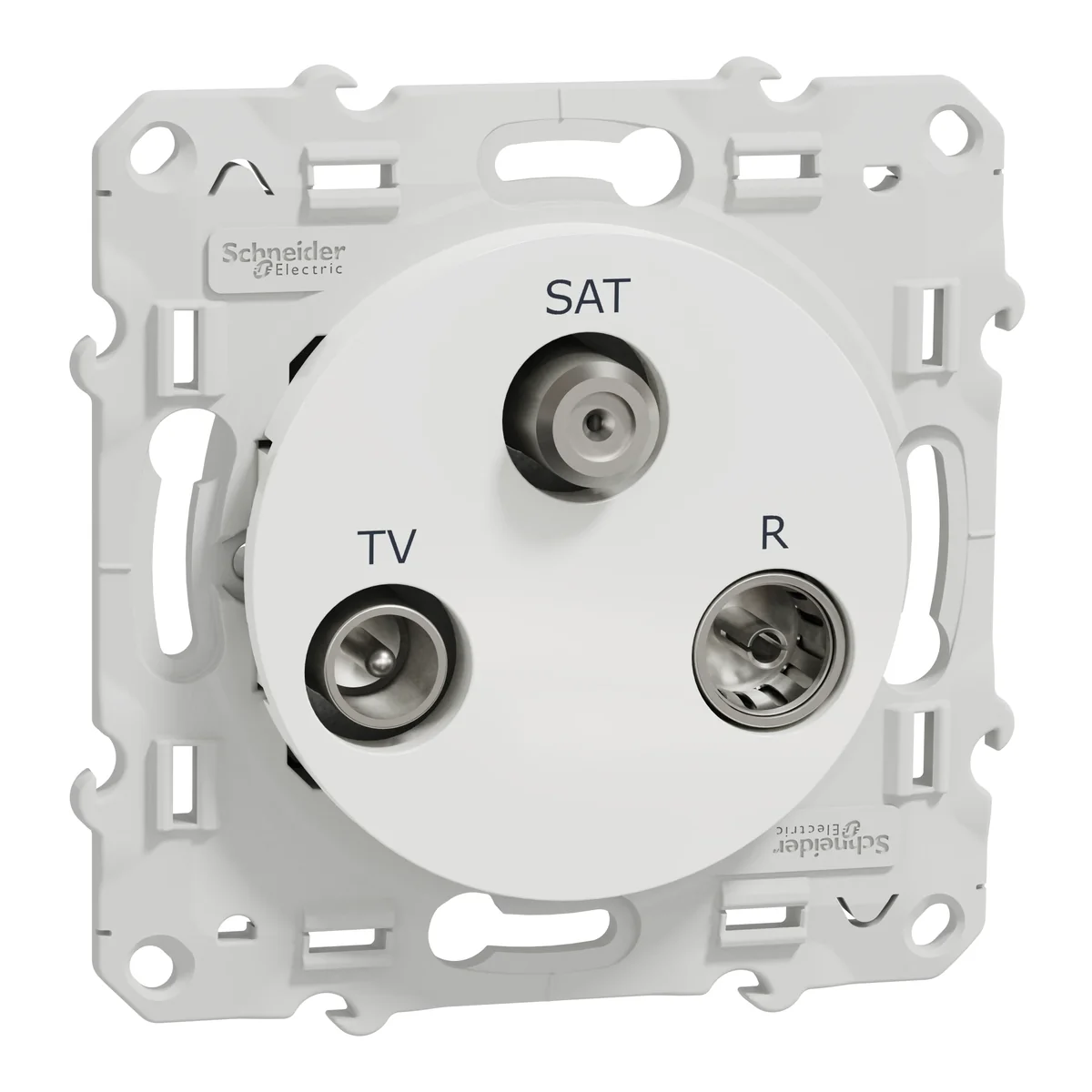

ODACE Final R/TV/SAT socket white S520461

local index:
MEA093SCHN
Catalog No:
S520461
EAN code:
3606480319105
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 40
Number of sockets: 3
Color: White
Price:
41,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Antenna R/TV/SAT end socket. Made of thermoplastic ABS with increased resistance to UV radiation.



SERIES DESCRIPTION

The innovative Odace series makes a seemingly ordinary interior gain character . Vivid colors, natural materials and original design, using the round shape of the mechanisms, will perfectly complement any interior.

Odace is a modern and innovative range of electrical installation accessories that will allow you to personalize the interior of your home, apartment or office in a down to the tiniest details. The unusual design distinguishes the Odace series from other series of accessories, beautifully emphasizing the style of the interior. Thanks to a wide range of functions, it is possible to choose the best solutions tailored to the needs of users. Simplicity and functionality make the Odace series a perfect complement to any modern interior.

The modern series of Odace wiring accessories was created to keep up with the fast pace of life of its users. Its unique design, a number of practical functions and the possibility of personalization make Odace products enliven your interior and increase the comfort of its use.

Technical data

  • Depth [mm]
    40
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Diameter [mm]
    71
  • Version
    Final
  • Degree of mechanical protection
    IK04
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    ABS PBT
  • Number of sockets
    3
  • Shape
    Round
  • Fixing
    Screws
  • Overprint
    Yes
  • Family
    ODACE
  • Type
    Flush-mounted
  • Frequency Range [MHz]
    R: 5-108 TV: 125-862 Sat: 950-2400
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    3 dB
  • Suitable for cable modem
    No
  • Frequency
    5 ... 2400 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Central cover plate
  • Number of outlets
    3
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Halogen free
    Yes
