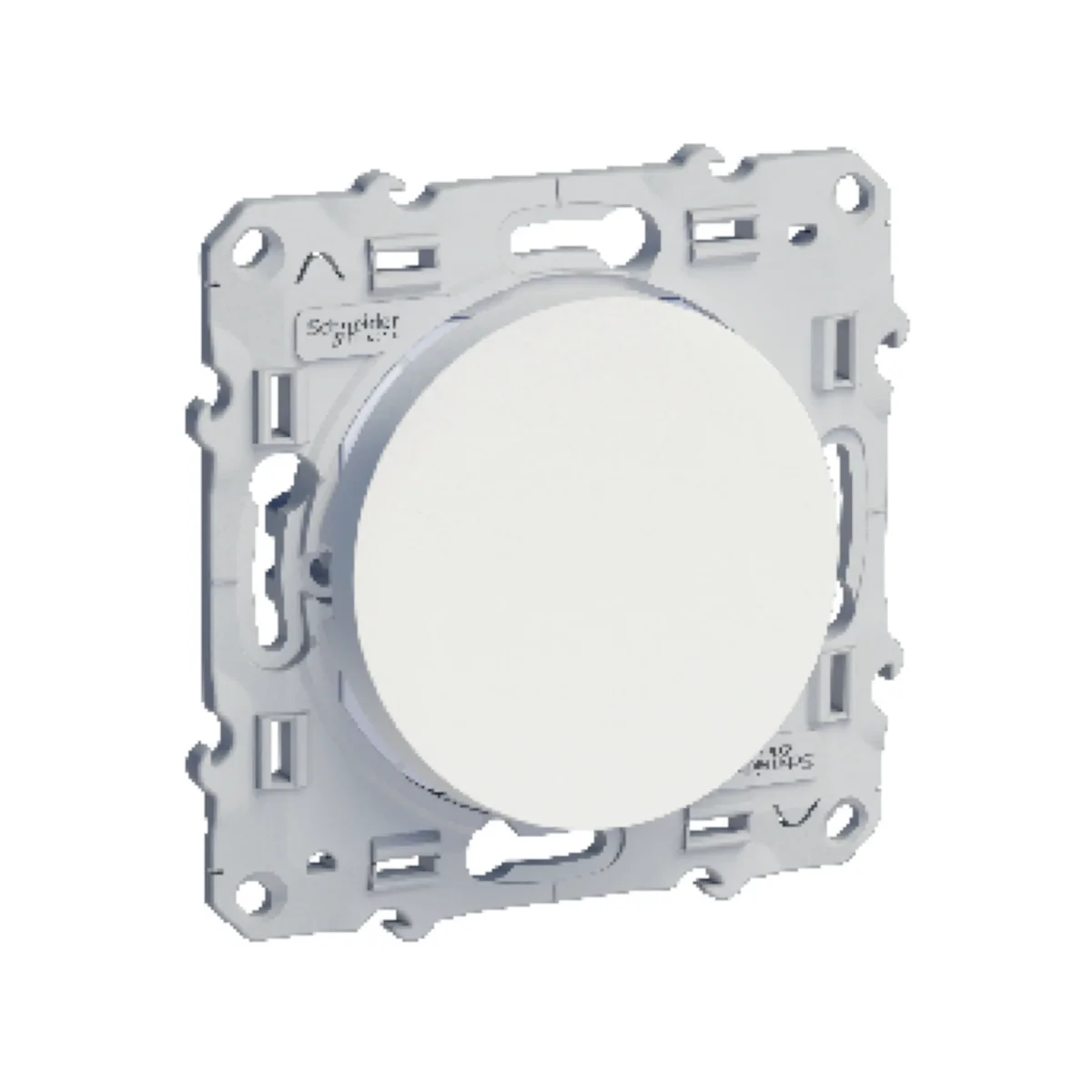

ODACE DIY cross connector white S52D205
Índice local:
MMK022SCHN
Número de catálogo:
S52D205
Código EAN:
3606480545238
Precio:
112,93 zł
gross / uds.
(IVA incluido 23%)
Añadir a solicitud de presupuesto
Imprimir
Pregunta por el producto
Descripción del producto
Cross connector from the Odace series, from Schneider Electric. Product part number is S52D205.
- 4 screwless terminals.
- Mechanism with plastic mounting frame.
- Material:
- ABS thermoplastic with increased resistance to UV radiation: middle plate.
- PBT (polybutylene terephthalate) GF30: support frame.
- PC (polycarbonate) GF10 FR: casing.
- Connection wire cross-section:
- 1 x 1.5...2 x 2.5 mm² for rigid cable.
- 1 x 1.5...2 x 2.5 mm² for flexible cable
- 1 x 1.5...2 x 2.5 mm² for stranded cable.
Datos técnicos
-
Depth [mm]33.6
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyODACE
-
Width [mm]71
-
Height [mm]71
-
Surface finishShiny
-
Mounting depth [mm]18.75
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeRound
-
Fixingclaws
-
Rated voltage [V]230
-
TypeCross
-
Level of securityIP21D
-
TypeFlush-mounted
-
Degree of mechanical protectionIK04
-
BacklightNO
-
Terminal typeThreadless
-
Exact materialABS PBT PC
Otros datos técnicos
-
Wiring systemIntermediate switch
-
Assembly arrangementBasic element with central cover plate
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationNo
-
Suitable for degree of protection (IP)IP21
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth18.75 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers2
-
Type of fasteningMounting with claw
-
MaterialPlastic
-
Halogen freeYes
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeScrewed terminal
-
Device width71 mm
-
Device depth33.6 mm
