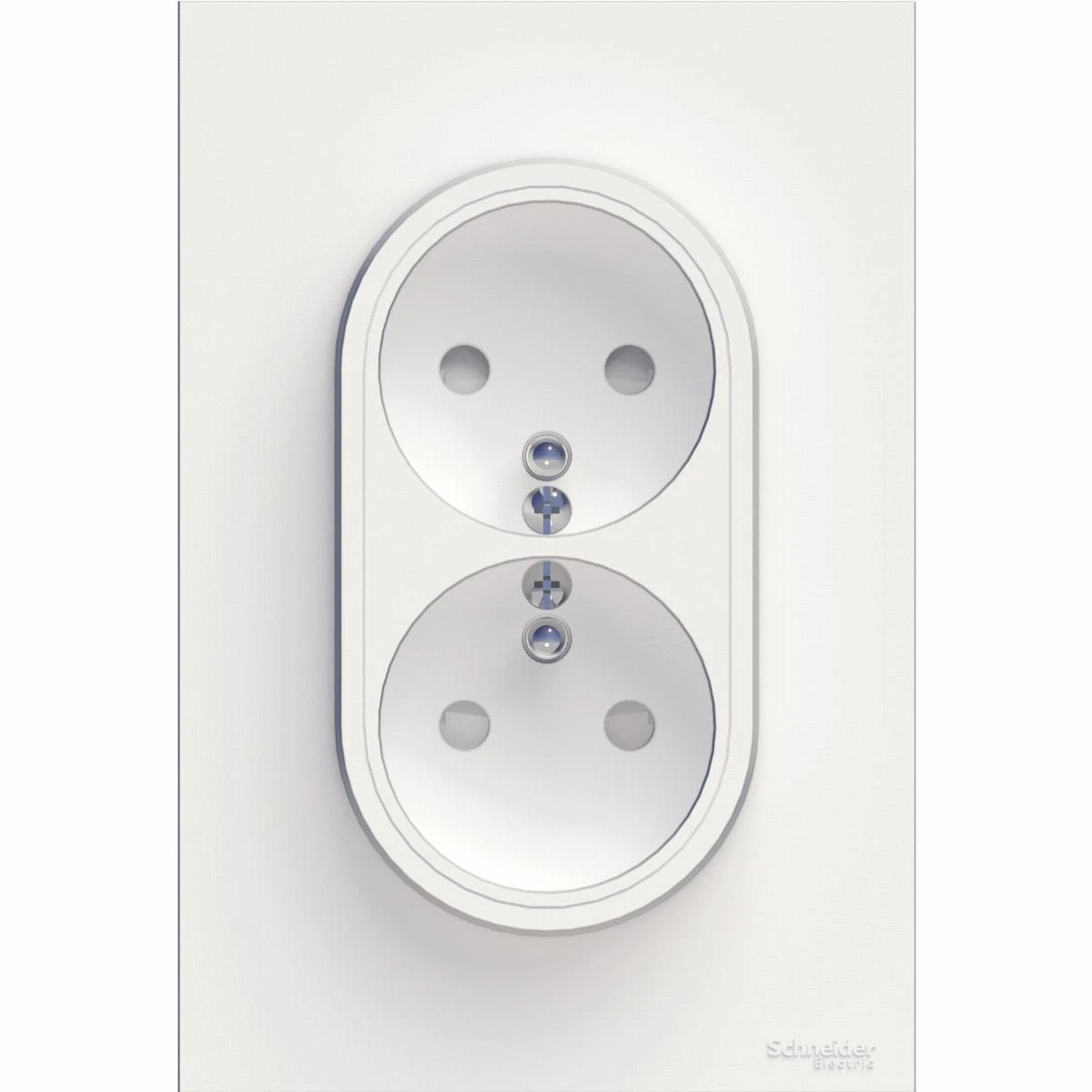

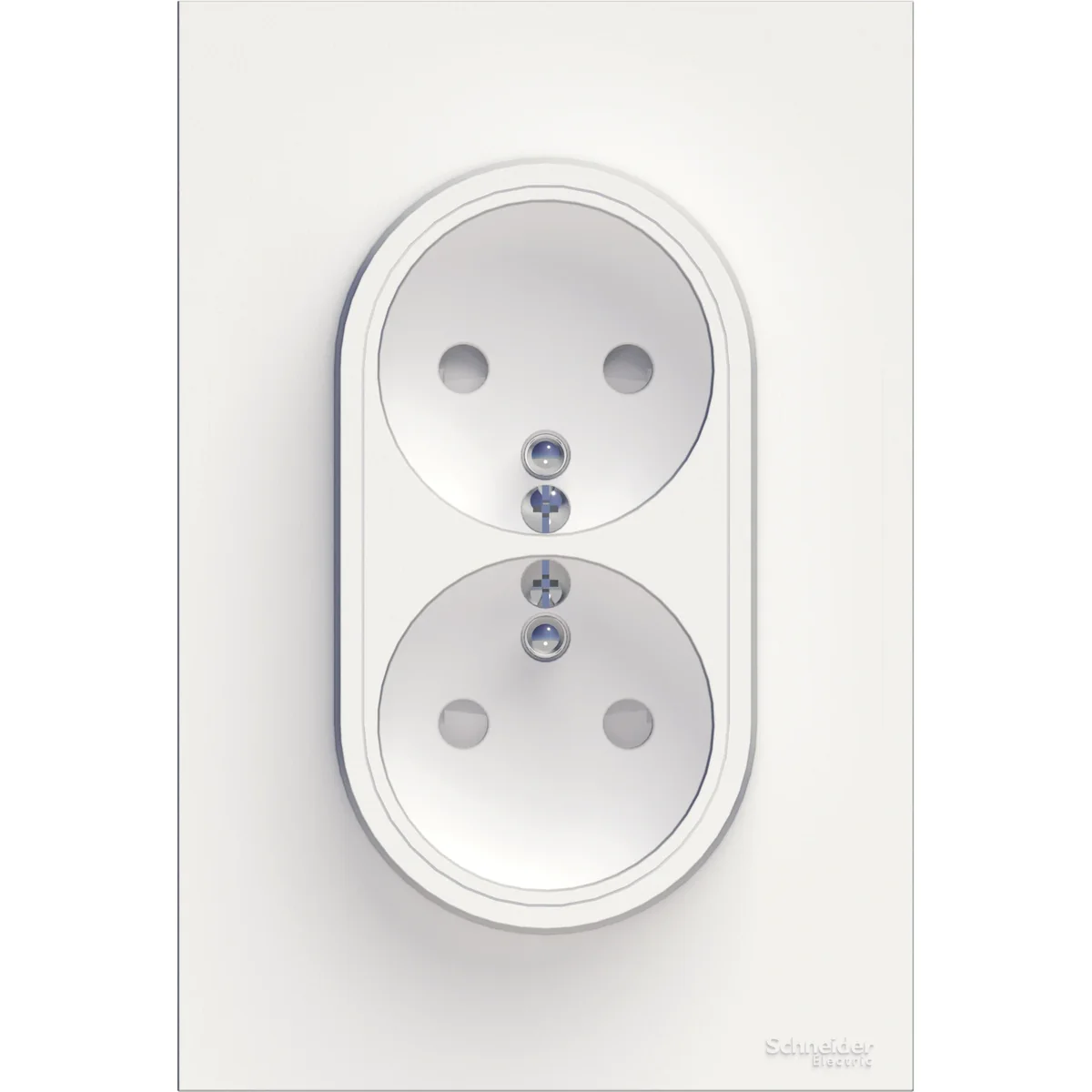

ODACE DIY 2P+PE double socket with shutters for current paths, white S52D089

local index:
MEE072SCHN
Catalog No:
S52D089
EAN code:
3606480545207
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 46
Number of sockets: 2
Color: White
Price:
26,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

2P+PE double socket



SERIES DESCRIPTION

The innovative Odace series makes a seemingly ordinary interior it gains character. Vivid colors, natural materials and original design, using the round shape of the mechanisms, will perfectly complement any interior.

Odace is a modern and innovative range of electrical installation accessories that will allow you to personalize the interior of your home, apartment or office in a down to the tiniest details. The unusual design distinguishes the Odace series from other series of accessories, beautifully emphasizing the style of the interior. Thanks to a wide range of functions, it is possible to choose the best solutions tailored to the needs of users. Simplicity and functionality make the Odace series a perfect complement to any modern interior.

The modern series of Odace wiring accessories was created to keep up with the fast pace of life of its users. Its unique design, a number of practical functions and the possibility of personalization make Odace products enliven your interior and increase the comfort of its use.

Technical data

  • Depth [mm]
    46
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ODACE
  • Width [mm]
    85
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    126
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC ASA Sheet metal

Other technical data

  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    4
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK04
  • Device height
    126 mm
  • Min. depth of built-in installation box
    27.1 mm
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP21
  • Device width
    85 mm
  • Device depth
    46 mm
