ODACE Central plate of the RJ45 socket white S520400

Name: ODACE Central plate of the RJ45 socket white
Brand: SCHNEIDER ELECTRIC
SKU: MAP001SCHN
Price: 13.43 PLN

local index:

MAP001SCHN

Catalog No:

S520400

EAN code:

3606480319174

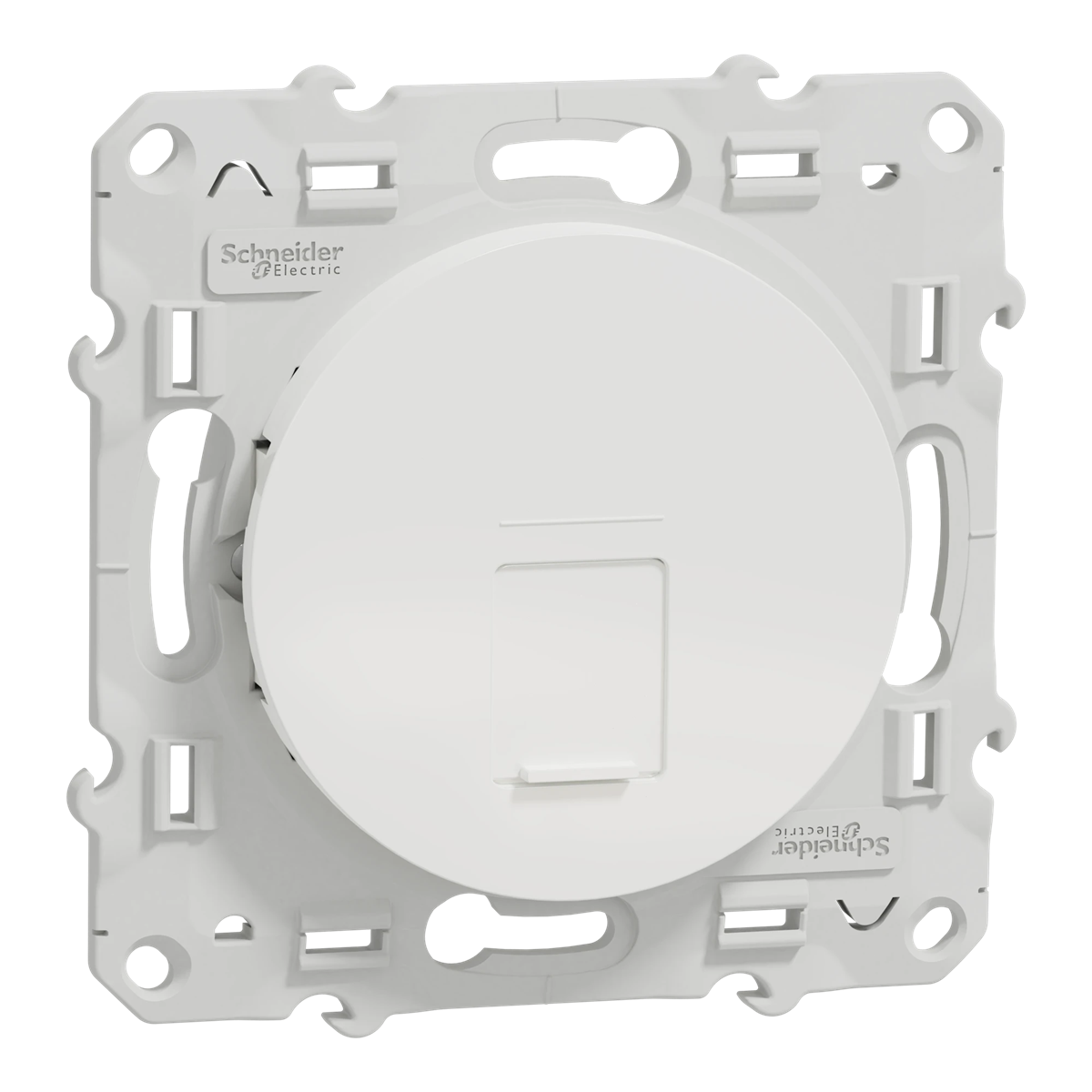

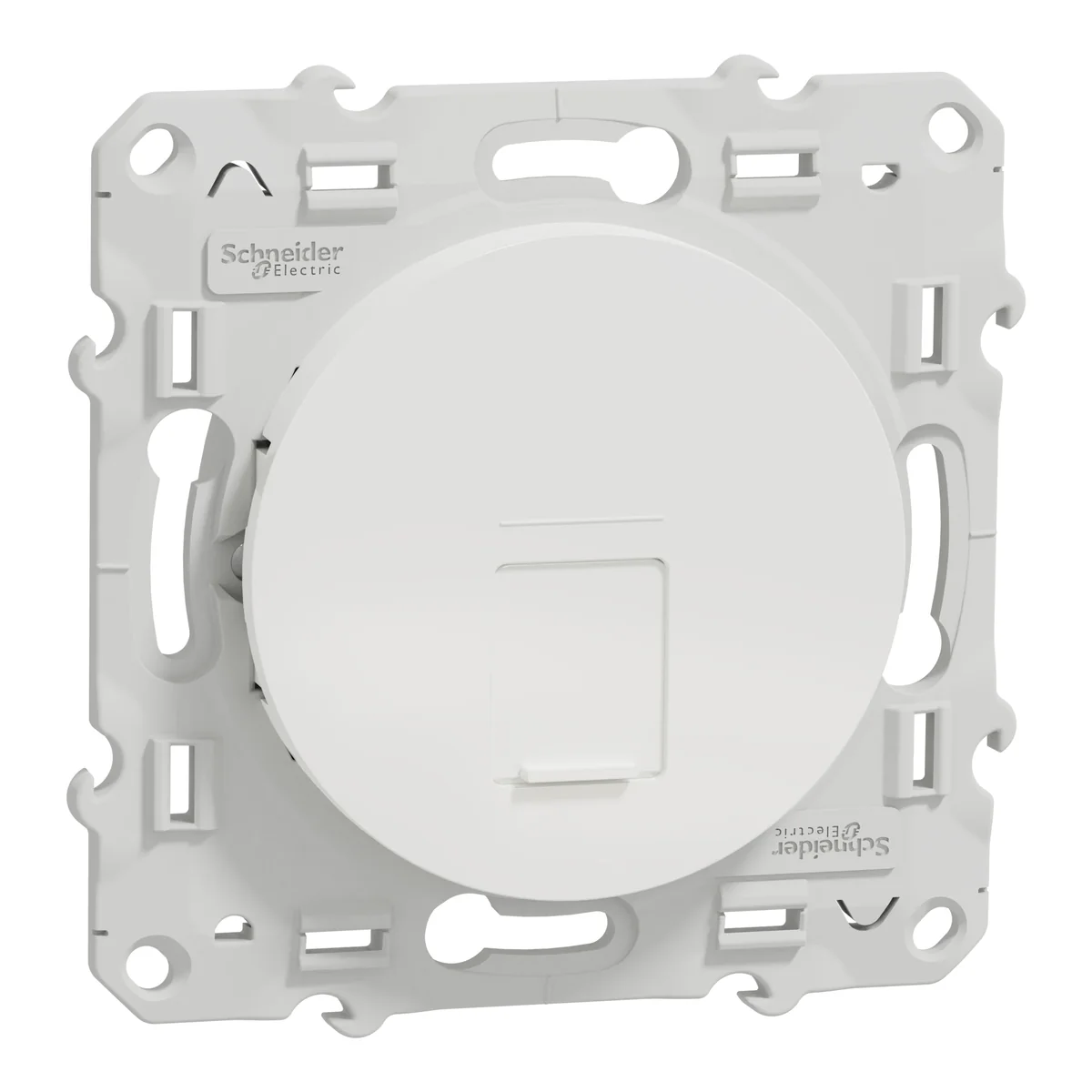

ODACE Central plate of the RJ45 socket white

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Depth [mm]: 34.2

Color: White

Shape: Square

See full description

Price:

13,43 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Out of stock

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Print

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

RJ45 socket center plate Odace series. The product catalog number is S520400. ;Odace is a modern series of electrical installation equipment.

Technical data

Depth [mm]

34.2
Shape

Square
Type

To the internet socket
Width [mm]

71
Surface finish

Shiny
For modular equipment

Not applicable
PKWIU

27.33.13.0

Color

White
Material

Plastic
Family

ODACE
Height [mm]

71
Mounting depth [mm]

18.2
Exact material

ABS PBT

Other technical data

Assembly arrangement

Basic element with central cover plate
Support ring

No
With hinged lid

No
Imprintable label

Without indication field
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
Number of modules (module system)

1
Suitable for number of connectors

1
Shielded buses

No
Luster terminal

No
Device width

71 mm
Device depth

34.2 mm

Utilization

Modular Jack
With dust cover

Yes
Outlet direction

Straight
With imprint

No
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Type of fastening

Mounting with claw and screw
With buses/couplings

No
With strain relief

No
Shielded housing

No
Suitable for degree of protection (IP)

IP21
Device height

71 mm
Min. depth of built-in installation box

18.2 mm
